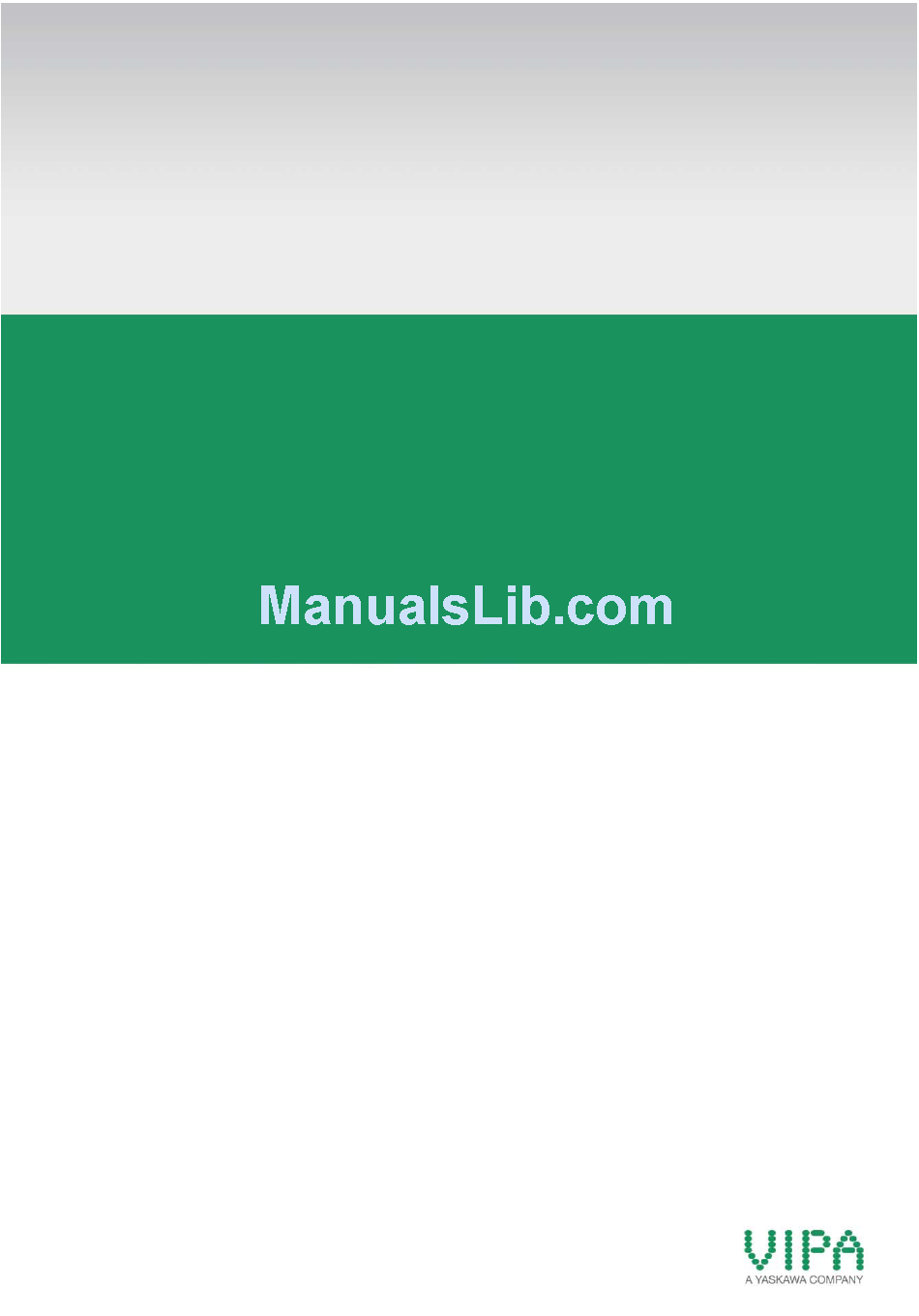

- Page 1 VIPA System 200V FM | Manual HB97E_FM | RE_250-1BS00 | Rev. 14/44 October 2014...
- Page 2 Copyright © VIPA GmbH. All Rights Reserved. This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable agreements. This material is protected by the copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either internal or external to VIPA), except in accordance with applicable agreements, contracts or licensing, without the express written consent of VIPA and the business management owner of the material.
-
Page 3: Table Of Contents
Manual VIPA System 200V Contents Contents About this manual ..................1 Safety information ..................2 Chapter 1 Basics and Assembly ............. 1-1 Safety Information for Users..............1-2 System conception ................1-3 Dimensions ..................1-5 Installation .................... 1-7 Demounting and module exchange ............ 1-11 Wiring.................... - Page 4 Contents Manual VIPA System 200V HB97E - FM - RE_250-1BS00 - Rev. 14/44...
-
Page 5: About This Manual
Overview Chapter 1: Basics and Assembly The focus of this chapter is on the introduction of the VIPA System 200V. Here you will find the information required to assemble and wire a controller system consisting of System 200V components. Besides the dimensions the general technical data of System 200V will be found. - Page 6 About this manual Manual VIPA System 200V Objective and This manual describes the System 200V SSI module FM 250S from VIPA. It contains a description of the construction, project implementation and contents usage. This manual is part of the documentation package with order number...
-
Page 7: Safety Information
Safety information Safety information The FM 250S is constructed and produced for: Applications conforming with • all VIPA System 200V components specifications • communication and process control • general control and automation applications • industrial applications • operation within the environmental conditions specified in the technical data •... - Page 8 Safety information Manual VIPA System 200V HB97E - FM - RE_250-1BS00 - Rev. 14/44...
-
Page 9: Chapter 1 Basics And Assembly
Chapter 1 Basics and Assembly Overview The focus of this chapter is on the introduction of the VIPA System 200V. Here you will find the information required to assemble and wire a controller system consisting of System 200V components. Besides the dimensions the general technical data of System 200V will be found. -
Page 10: Safety Information For Users
Chapter 1 Basics and Assembly Manual VIPA System 200V Safety Information for Users Handling of VIPA modules make use of highly integrated components in MOS- electrostatic Technology. These components are extremely sensitive to over-voltages sensitive modules that can occur during electrostatic discharges. -
Page 11: System Conception

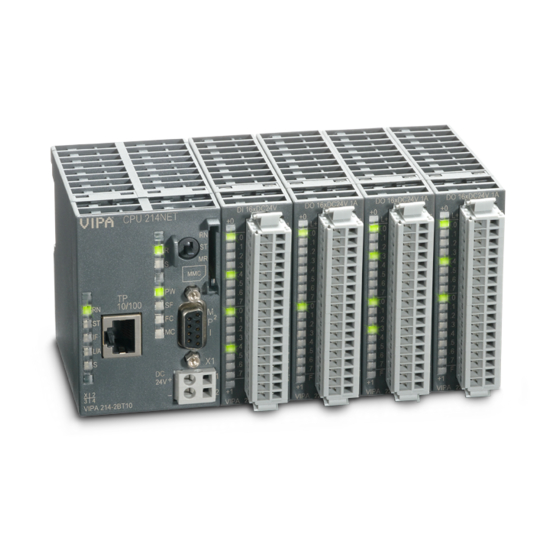

Manual VIPA System 200V Chapter 1 Basics and Assembly System conception Overview The System 200V is a modular automation system for assembly on a 35mm profile rail. By means of the peripheral modules with 4, 8 and 16 channels this system may properly be adapted matching to your automation tasks. - Page 12 Chapter 1 Basics and Assembly Manual VIPA System 200V Power supplies With the System 200V the DC 24V power supply can take place either externally or via a particularly for this developed power PS 207/2 supply. The power supply may be mounted on the...
-
Page 13: Dimensions
Manual VIPA System 200V Chapter 1 Basics and Assembly Dimensions Dimensions 1tier width (HxWxD) in mm: 76 x 25.4 x 74 Basic enclosure 2tier width (HxWxD) in mm: 76 x 50.8 x 74 Installation dimensions Installed and wired dimensions In- / Output... - Page 14 Chapter 1 Basics and Assembly Manual VIPA System 200V Function modules/ 89 mm 88 mm Extension modules 85 mm 84,46 mm 11 mm 4,66 mm CPUs (here with 91 mm 89 mm EasyConn from 85 mm VIPA) 11 mm 5 mm...
-
Page 15: Installation
Manual VIPA System 200V Chapter 1 Basics and Assembly Installation General The modules are each installed on a 35mm profile rail and connected via a bus connector. Before installing the module the bus connector is to be placed on the profile rail before. - Page 16 Chapter 1 Basics and Assembly Manual VIPA System 200V Installation on a The following figure shows the installation of a 4tier width bus connector in profile rail a profile rail and the slots for the modules. The different slots are defined by guide rails.
- Page 17 Manual VIPA System 200V Chapter 1 Basics and Assembly Assembly possibilities hoizontal assembly vertical Please regard the allowed environmental temperatures: assembly • horizontal assembly: from 0 to 60°C • vertical assembly: from 0 to 40°C • lying assembly: from 0 to 40°C...
- Page 18 Chapter 1 Basics and Assembly Manual VIPA System 200V Assembly procedure • Install the profile rail. Make sure that a clearance of at least 60mm exists above and 80mm below the middle of the profile rail. • Press the bus connector into the profile rail until it clips securely into place and the bus-connectors look out from the profile rail.
-
Page 19: Demounting And Module Exchange
Manual VIPA System 200V Chapter 1 Basics and Assembly Demounting and module exchange • Remove if exists the wiring to the module, by pressing both locking lever on the connector and pulling the connector. • The casing of the module has a spring loaded clip at the bottom by which the module can be removed. -
Page 20: Wiring
Chapter 1 Basics and Assembly Manual VIPA System 200V Wiring Overview Most peripheral modules are equipped with a 10pole or a 18pole connector. This connector provides the electrical interface for the signaling and supply lines of the modules. The modules carry spring-clip connectors for interconnections and wiring. - Page 21 Manual VIPA System 200V Chapter 1 Basics and Assembly Wiring procedure • Install the connector on the module until it locks with an audible click. For this purpose you press the two clips together as shown. The connector is now in a permanent position and can easily be wired.
-
Page 22: Installation Guidelines
Chapter 1 Basics and Assembly Manual VIPA System 200V Installation guidelines General The installation guidelines contain information about the interference free deployment of System 200V systems. There is the description of the ways, interference may occur in your control, how you can make sure the electromagnetic digestibility (EMC), and how you manage the isolation. - Page 23 Manual VIPA System 200V Chapter 1 Basics and Assembly Basic rules for In the most times it is enough to take care of some elementary rules to guarantee the EMC. Please regard the following basic rules when installing your PLC.
- Page 24 Chapter 1 Basics and Assembly Manual VIPA System 200V Isolation of Electrical, magnetically and electromagnetic interference fields are conductors weakened by means of an isolation, one talks of absorption. Via the isolation rail, that is connected conductive with the rack, interference currents are shunt via cable isolation to the ground.
-
Page 25: General Data
Manual VIPA System 200V Chapter 1 Basics and Assembly General data • Profile rail 35mm Structure/ • Peripheral modules with recessed labelling dimensions • Dimensions of the basic enclosure: 1tier width: (HxWxD) in mm: 76x25.4x74 in inches: 3x1x3 2tier width: (HxWxD) in mm: 76x50.8x74 in inches: 3x2x3 •... - Page 26 Chapter 1 Basics and Assembly Manual VIPA System 200V General data Conformity and approval Conformity 2006/95/EC Low-voltage directive 2004/108/EC EMC directive Approval UL 508 Approval for USA and Canada others RoHS 2011/65/EU Product is lead-free; Restriction of the use of...
- Page 27 Manual VIPA System 200V Chapter 2 Hardware description Chapter 2 Hardware description Overview Here the hardware components of the FM 250-1BS00 are described. The technical data are at the end of the chapter. Contents Topic Page Chapter 2 Hardware description............2-1 Properties.....................
-
Page 28: Chapter 2 Hardware Description
Chapter 2 Hardware description Manual VIPA System 200V Properties • Wiring does not depend on the length of the data word. The interface FM 250S 250-1BS00 always uses 4 wires. • Maximum security due to the use of symmetrical clock and data signals. -
Page 29: Structure
Manual VIPA System 200V Chapter 2 Hardware description Structure Functionality SSI is the abbreviation for Synchronous Serial Interface. The SSI module provides the connection for transducers with absolute coding and a SSI module. The module converts the serial information of the transducer into parallel information for the controller. - Page 30 Chapter 2 Hardware description Manual VIPA System 200V LEDs The SSI module has a number of LEDs. The following table explains the significance of these LEDs: Name Color Description yellow Indicates that 24V power is available green ON when clock pulses are transmitted OFF when hold function has been activated and 24V at I/O .0...
-
Page 31: Technical Data
Manual VIPA System 200V Chapter 2 Hardware description Technical data Order no. 250-1BS00 Type FM 250S Current consumption/power loss Current consumption from backplane bus 120 mA Power loss Technical data digital inputs Number of inputs Cable length, shielded 1000 m... - Page 32 Chapter 2 Hardware description Manual VIPA System 200V Order no. 250-1BS00 of a load Parallel switching of outputs for increased power not possible Actuation of digital input Switching frequency with resistive load max. 1000 Hz Switching frequency with inductive load max.
-
Page 33: Technical Data
Manual VIPA System 200V Chapter 2 Hardware description Additional Technical data SSI VIPA 250-1BS00 Technical Data SSI module Transducer supply voltage Signal cable RS422, isolated Clock RS422, isolated Baudrate configurable: 100 / 300kBaud (default: 300kBaud) Signal voltage "0" -5 ... 7V Signal voltage "1"... - Page 34 Chapter 2 Hardware description Manual VIPA System 200V HB97E - FM - RE_250-1BS00 - Rev. 14/44...
-
Page 35: Chapter 3 Deployment
Manual VIPA System 200V Chapter 3 Deployment Chapter 3 Deployment Overview This chapter contains every information on the deployment and the configuration of the SSI module FM 250S. Contents Topic Page Chapter 3 Deployment ..............3-1 Functionality ..................3-2 Configuration..................3-4... -
Page 36: Functionality
Chapter 3 Deployment Manual VIPA System 200V Functionality Overview SSI is the abbreviation for Synchronous Serial Interface. The SSI module provides the connection for transducers with absolute coding and a SSI module. The module converts the serial information of the transducer into parallel information for the controller. - Page 37 Manual VIPA System 200V Chapter 3 Deployment Output data (Data Out) Data Out provides the option of controlling the 2 Output ports on the SSI module depending on the value of a transducer input. Output data consists of 4Byte. The SSI transducer stores 8Byte of output data, i.e. you may define two comparative values along with the respective control byte.
-
Page 38: Configuration
Chapter 3 Deployment Manual VIPA System 200V Configuration 4Byte of configuration data are transferred. In these bytes you define the Configuration baud rate, the coding and the analysis of the combined I/O .0 as well as the data BASP signal. - Page 39 Manual VIPA System 200V Chapter 3 Deployment Coding The gray code is a different form of binary code. The principle of the gray code is that two neighboring gray numbers will differ in exactly one single bit. When the gray code is used, transmission errors can be detected easily as neighboring characters may only be different in a single location.
- Page 40 Chapter 3 Deployment Manual VIPA System 200V HB97E - FM - RE_250-1BS00 - Rev. 14/44...
