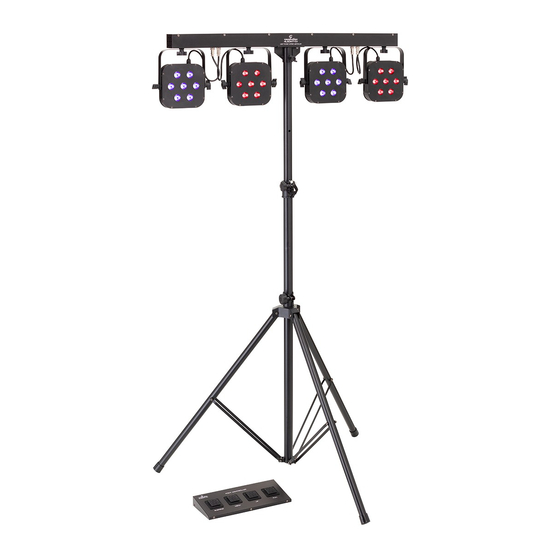

4LEDKIT-DJ
LED Tricolor 4-PAR Lighting Kit

USER MANUAL

Please read this manual carefully and proper take care of this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4LEDKIT-DJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for soundsation 4LEDKIT-DJ

Summary of Contents for soundsation 4LEDKIT-DJ

  • Page 1: User Manual

    4LEDKIT-DJ LED Tricolor 4-PAR Lighting Kit USER MANUAL Please read this manual carefully and proper take care of this manual.

  • Page 2: Table Of Contents

    Dear customer, First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future.
  • Page 3 ENGLISH 4LEDKIT-DJ User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.

  • Page 4: Power Supply

    ENGLISH 4LEDKIT-DJ User manual install according to the manufacturer’s instructions. Object and Liquid Entry Objects do not fall into and liquids are not spilled into the inside of the apparatus for safety. Power Cord and Plug Protect power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

  • Page 5: Introduction

    4LEDKIT-DJ User manual 1. INTRODUCTION Thank you for purchasing our 4LEDKIT-DJ lighting kit. Enjoy your new equipment and make sure to read this manual carefully before operation! This user manual is made to provide both an overview of controls, as well as informa- tion on how to use them.

  • Page 6: Main Features

    ENGLISH 4LEDKIT-DJ User manual In addition to RGB color adjustment of all four PARs independently, the unit features 16 color change auto programs strobo and sound control, to let your lighting kit create wonderful effects even without a DMX controller.

  • Page 7: Function

    ENGLISH 4LEDKIT-DJ User manual 10. ENTER: Used to confirm your choice. 11. DMX LED: It flashes during DMX operation 12. SLAVE LED: When set Slave mode, it lights up 13. MASTER LED: When set Master mode, it lights up 14. SOUND LED: When Sound mode is active, it flashes accord- ing to incoming sound.

  • Page 8: Main Menu

    ENGLISH 4LEDKIT-DJ User manual FOOT FOOT FOOT AC 100-240V / 50-60Hz POWER IN MENU DOWN UP ENTER DMX IN DMX OUT CONTROLLER AC 100-240V / 50-60Hz POWER IN MENU DOWN UP ENTER DMX IN DMX OUT CONTROLLER AC 100-240V / 50-60Hz...

  • Page 9: Dmx Channel Chart

    ENGLISH 4LEDKIT-DJ User manual 6. DMX Channel Chart 1CH Mode Channels Value Description 000-007 No function 008-037 show1 038-067 show2 068-097 show3 098-127 show4 (008-255 all affected 128-157 show5 by sound active) 158-187 show6 188-217 show7 218-247 show8 248-255 Random show1-8...
  • Page 10 ENGLISH 4LEDKIT-DJ User manual 173 - 187 LED color change 12 188 - 202 LED color change 13 203 - 217 LED color change 14 218 - 232 LED color change 15 233 - 247 LED color change 16 248 - 255...

  • Page 11: Mains Connections

    ENGLISH 4LEDKIT-DJ User manual 000 - 007 Remain the same CH14 008 - 247 Strobe speed slow to fast 248 - 255 Sound active control strobe 000 - 007 Remain the same 008 - 022 LED color change 1 023 - 037...

  • Page 12: Dmx Terminator

    ENGLISH 4LEDKIT-DJ User manual easiest and most direct cabling. DMX Termonator DMX use of 3-Pin XLR Connectors INPUT OUTPUT 3-Pin XLR Unit 1 Unit 2 Last Unit Pin 1: GND Pin 2: DMX - Pin 3: DMX + DMX 512 Connect fixtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to female connectors.

  • Page 13: Trouble Shooting

    ENGLISH 4LEDKIT-DJ User manual Following the wiring correspondence between 3-Pin and 5-Pin plug and socket stan- dards 5-Pins XLR (socket) Pin 1: GND (Screen) 3-Pins XLR (plug) Pin 1: GND (Screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+)

  • Page 14: Warranty And Service

    SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION.
  • Page 15 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
