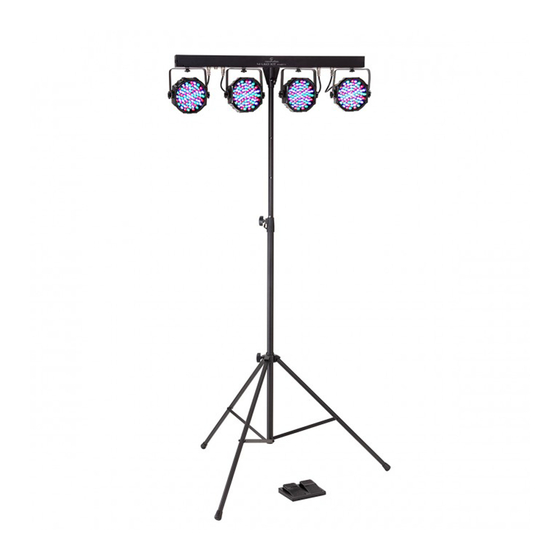

Complete 4-par led lighting kit
Hide thumbs Also See for 4 led KIT Party:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

4 led KIT
Party
Complete 4-PAR LED Lighting Kit

USER MANUAL

MANUALE utente
Please read this manual carefully and proper take care of this manual.
Leggete questo manuale e conservatelo per future consultazioni!

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 led KIT Party and is the answer not in the manual?

Questions and answers

Summary of Contents for soundsation 4 led KIT Party

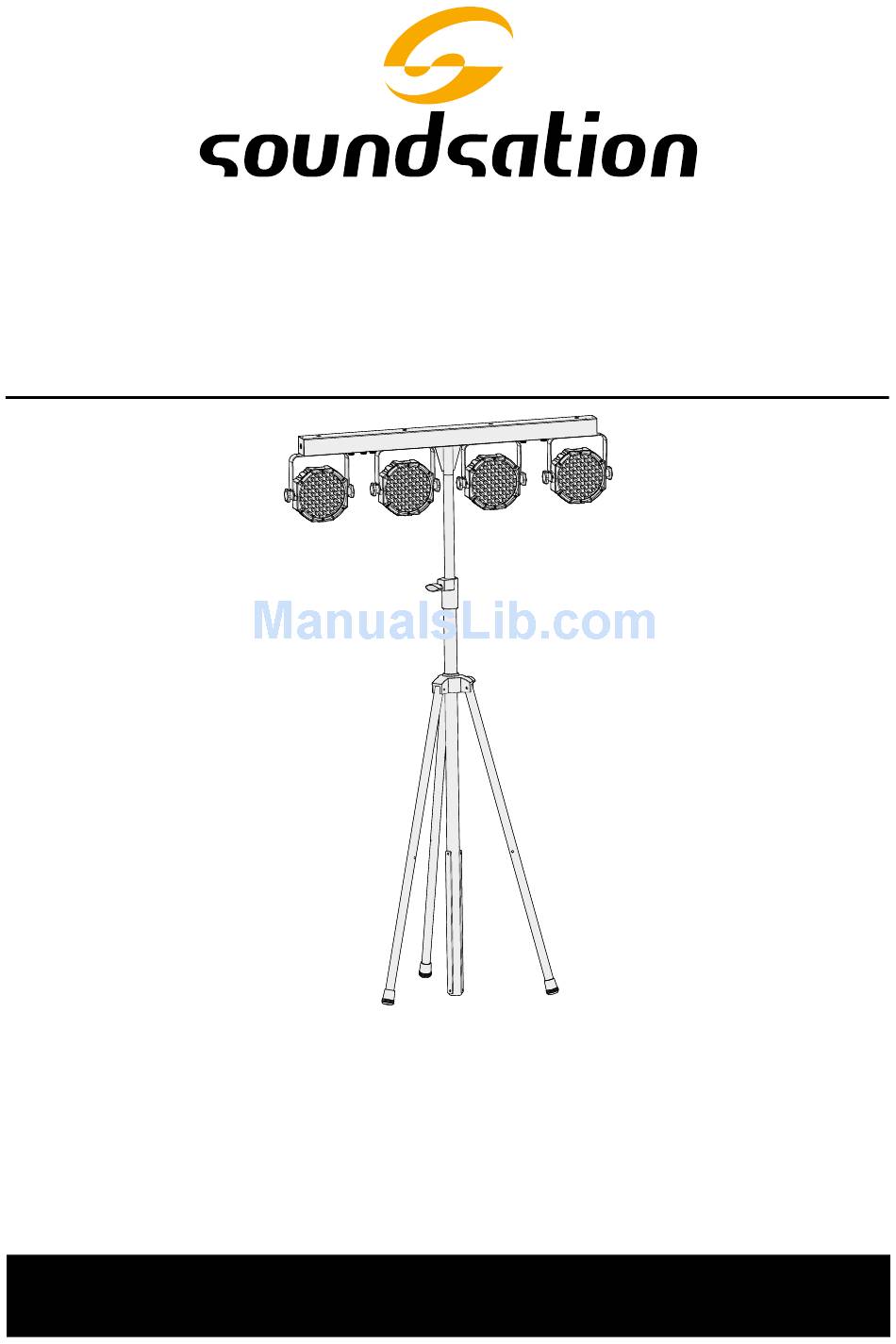

  • Page 1: User Manual

    4 led KIT Party Complete 4-PAR LED Lighting Kit USER MANUAL MANUALE utente Please read this manual carefully and proper take care of this manual. Leggete questo manuale e conservatelo per future consultazioni!
  • Page 2 Dear customer, First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future.
  • Page 3: Table Of Contents

    ENGLISH TABLE OF CONTENTS 1. 1. INTRODUCTION ....................6 1.1. UNPACKING ................................6 1.2. ACCESSORIES ................................6 2. OVERVIEW ........................6 3. MAIN FEATURES ......................7 4. OVERHEAD RIGGING ....................7 5. OVERVIEW ........................8 6. FUNCTION ........................9 6.1. MAIN Menu ................................9 6.2. Footswitch ................................10 7. MODE INTRODUCTION ...................10 8.
  • Page 4 ENGLISH 4LEDKIT-PARTY User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
  • Page 5: Power Supply

    ENGLISH 4LEDKIT-PARTY User manual install according to the manufacturer’s instructions. Object and Liquid Entry Objects do not fall into and liquids are not spilled into the inside of the apparatus for safety. Power Cord and Plug Protect power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
  • Page 6: Introduction

    1.2. ACCESSORIES SOUNDSATION can supply a wide range of quality accessories that you can use with your LED Kit, like Cables, Splitters, DMX controllers, and a wide range of fixtures.
  • Page 7: Main Features

    ENGLISH 4LEDKIT-PARTY User manual In addition to RGB color adjustment of all four PARs independently, the unit features 12 auto running programs and 4 Audio Mode Options, to let your lighting kit create wonderful effects even without a DMX controller. 3.
  • Page 8: Overview

    ENGLISH 4LEDKIT-PARTY User manual 5. OVERVIEW POWER: Main input and output with IEC socket and integrated fuse holder. Con- nect here the supplied mains cable and any next light. SENSITIVITY: This knob is used to adjust music input sensitivity. MICROPHONE: Turn the knob to adjust sound activated sensitivity. DMX INPUT: 3PIN male XLR connector for DMX communication.
  • Page 9: Function

    ENGLISH 4LEDKIT-PARTY User manual supplied tripod stand. Use the knob to fasten the bar to the stand. 17. GROUND PLACEMENT CONNECTOR: Put here the supplied bracket to use the T-bar stacked on ground or other plain surfaces. 6. FUNCTION The unit has five working modes: f Auto mode - Built-in programs not controlled by foot pedal controller.
  • Page 10: Footswitch

    ENGLISH 4LEDKIT-PARTY User manual Once you have made a selection then press to con- ENTER firm. button to choose the desired menu op- DOWN tion. Just wait 20 seconds, the menu structure is shown in previous page. This product has a memory function. It will go directly into DMX mode after switching on, it will show “A001”.
  • Page 11: Dmx Channel Chart

    ENGLISH 4LEDKIT-PARTY User manual f When the display shows F-00 - F-08, you can adjust Strobe Speed. Audio mode Under this mode, please adjust the Audio Sensitivity control knob on rear panel to a suitable position. There are 4 modes, from SP00 to SP03, as you increase the value the sound mode will increase and change.
  • Page 12: Mains Connections

    ENGLISH 4LEDKIT-PARTY User manual Blue Dimmer 000 - 255 2nd PAR Blue Adjustment 0 - 100% CH10 Red Dimmer 000 - 255 3rd PAR Red Adjustment 0 - 100% CH11 Green Dimmer 000 - 255 3rd PAR Green Adjustment 0 - 100% CH12 Blue Dimmer 000 - 255 3rd PAR Blue Adjustment 0 - 100%...
  • Page 13: Trouble Shooting

    ENGLISH 4LEDKIT-PARTY User manual NOTE: Please note only one unit must be set as a master. The slave units Will Follow the controls from the master unit. The foot pedal can be connected to the master unit To control all connected units. Using a DMX controller Each unit uses 15 DMX channels.
  • Page 14: Appendix

    ENGLISH 4LEDKIT-PARTY User manual 12. APPENDIX DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is where the DATA OUT of one fixture connects to the DATA IN of the next fixture. The order in which the fixtures are connected is not important and has no effect on how a controller communicates to each fixture.
  • Page 15: 3-Pin Vs 5-Pin Dmx Cables

    ENGLISH 4LEDKIT-PARTY User manual DMX Terminator 120ohm, 1/4W resistor Complimentary signal cable can transmits signals to 20 unit fixtures at most. Signal amplifier is a must to connect more fixtures. 12.2. 3-Pin vs 5-Pin DMX cables DMX connection protocols used by controllers and fixtures manufacturers are not stan- dardized around the world.
  • Page 16: Warranty And Service

    SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION.
  • Page 17 ITALIANO SOMMARIO 16. 1. INTRODUZIONE ....................20 16.1. DISIMBALLAGGIO ..............................20 16.2. ACCESSORI ................................20 17. PANORAMICA ......................20 18. CARATTERISTICHE PRINCIPALI ................21 19. MODALITÀ DI INSTALLAZIONE ................21 20. INTRODUZIONE .......................22 21. FUNZIONI .........................23 21.1. MENU PRINCIPALE ..............................23 21.2. Pedaliera ..................................24 22. MODALITÀ DI FUNZIONAMENTO .................24 23.
  • Page 18 ITALIANO 4LEDKIT-PARTY MANUALE UTENTE IMPORTANTI SIMBOLI DI SICUREZZA Il simbolo è usato per indicare che in questa apparecchiatura sono presenti alcuni terminali sotto tensione pericolosi, anche in condizioni di normale funzionamento, che possono costituire rischio di scosse elettriche o di morte. Il simbolo viene utilizzato nella documentazione di servizio per indi- care che uno specifico componente può...
  • Page 19 ITALIANO 4LEDKIT-PARTY MANUALE UTENTE Ventilazione Non ostruite le prese d’aria per la ventilazione: ciò potrebbe provocare incendi. Installa- re sempre l’unità secondo le istruzioni del produttore INTRODUZIONE DI OGGETTI E LIQUIDI Non introdurre oggetti o versare liquidi all’interno dell’apparato per ragioni di sicurezza. PRESA DI ALIMENTAZIONE Proteggere il cavo di alimentazione nel caso in cui venga calpestato o schiacciato, in particolare in corrispondenza delle spine, delle prese e il punto di uscita dall’apparec-...
  • Page 20: Introduzione

    16.2. ACCESSORI SOUNDSATION è in grado di fornire un ampia gamma di accessori utili per l’utilizzo del tuo LED Kit, come cavi, splitter, centraline DMX e una vasta scelta di accessori per il fissaggio.
  • Page 21: Caratteristiche Principali

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE Esso viene fornito completo di 4 PAR a LED compatti. Ogni PAR contiene 81 LED (27 Rossi, 27 Verdi, 27 Blu) per creare una gamma completa di colori. I PAR sono montati su un T-bar con una unità di controllo incorporata. Il T-bar può essere controllato dalla pedaliera inclusa o da DMX.
  • Page 22: Introduzione

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE f Prima di utilizzare il prodotto per la prima volta, deve essere controllato da personale professionale per assicurarsi della sicurezza. INTRODUZIONE POWER: Ingresso e uscita principali con presa IEC e portafusibili integrati. Collegare qui il cavo di alimentazione in dotazione e qualsiasi luce successiva. SENSIBILITÀ: Questa manopola viene utilizzata per regolare la sensibilità...
  • Page 23: Funzioni

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE 16. CONNETTORE STAND: Staffa di collegamento Ø36mm per montare la barra a “T” sul supporto treppiede in dotazione. Utilizzare la manopola posteriore per bloccare la barra al supporto. 17. CONNETTORI PER USO A PAVIMENTO: Posizionare qui la staffa in dotazione per utilizzare il barra a T per terra o su altre superfici piane.
  • Page 24: Pedaliera

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE Dopo aver effettuato la selezione, premere per confermare. ENTER Usare i tasti per scegliere l’opzione del menu desiderata. DOWN Attendere 20 secondi per tornare al menù di partenza.. Questa LED kit è dotato di memoria interna. Dopo l’accensione esso va direttamente alla modalità...
  • Page 25: Tabella Dmx

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE f g-00 - g08 indica il livello dimmer del VERDE. f b-00 - b08 indica il livello dimmer del BLU f F-00 - F-08 regola la velocità dello Strobo MODO Audio In questa modalità il segnale audio proveniente dal microfono controlla il funzionamento dei PAR.
  • Page 26: Collegamenti Principali

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE Dimmer Rosso 000 - 255 Regolazione Rosso 1° PAR 0 - 100% Dimmer Verde 000 - 255 Regolazione Verde 1° PAR 0 - 100% Dimmer Blu 000 - 255 Regolazione Blu 1° PAR 0 - 100% Dimmer Rosso 000 - 255 Regolazione Rosso 2°...
  • Page 27: Appendice

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE f Premere enter per confermare. Impostare la unita slave (secondaria) f Premere il tasto menu fino a visualizzare A***. f Usare i tasti per selezionare A001 DOWN f Premere il tasto per confermare ENTER f Tutte le unità slave devono essere settate su A001 NOTA: Si prega di notare che solo una unità...
  • Page 28: Terminatore Dmx

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE DMX Termonator Unit 1 Unit 2 Last Unit DMX 512 Collegare gli apparecchi utilizzando un cavo a due conduttori schermati con connettori maschio a femmina XLR a 3 poli. La massa è il piedino 1, mentre il piedino 2 è il segnale Negativo (S-) e il piedino 3 è...
  • Page 29: Risoluzione Dei Problemi

    ITALIANO 4LEDKIT-PARTY MANUALE UTENTE XLR a 5 piedini e quello con XLR a 3 piedini. Se si desidera collegare il 4LEDKIT-PARTY ad una apparecchiatura con XLR a 5 piedini, è necessario utilizzare un cavo adattatore o farselo da soli. Di seguito la corrispondenza dei collegamenti tra connettori a 3 e 5 piedini. 5-Pins XLR (socket) 3-Pins XLR (plug) Pin 1: GND (Screen)
  • Page 30: Garanzia E Assistenza

    Eventuali parti difettose rimosse da un prodotto durante il corso di una richiesta di garanzia diventano di proprietà di SOUNDSATION. Durante il periodo di garanzia, i prodotti difettosi possono essere restituiti al rivenditore SOUNDSATION locale con prova di acquisto originale.
  • Page 31 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
  • Page 32 www.soundsa tionmusic.com Ver 1.1 - July 2017...
