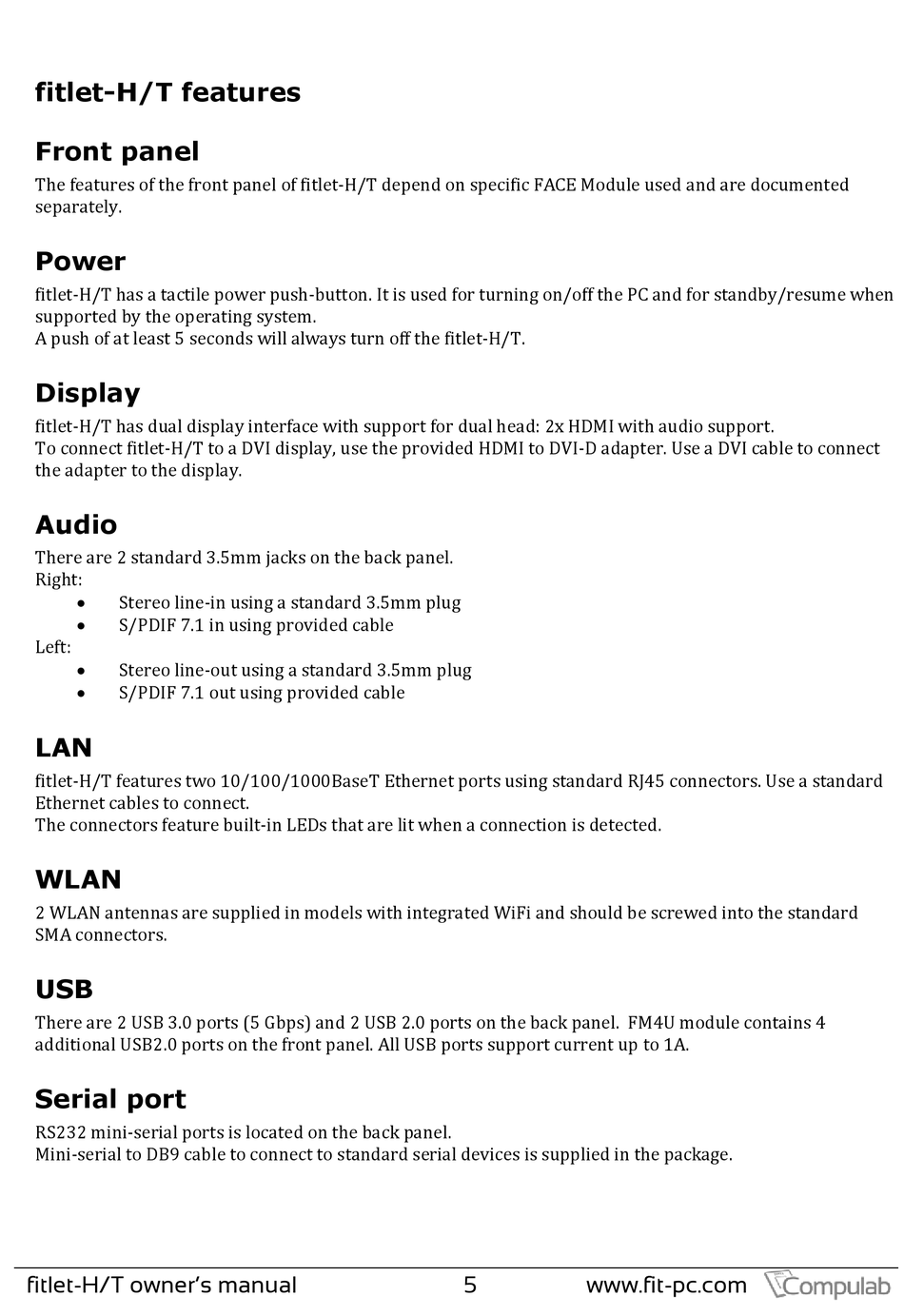

fitlet-H/T features

Front panel

The features of the front panel of fitlet-H/T depend on specific FACE Module used and are documented
separately.
Power
fitlet-H/T has a tactile power push-button. It is used for turning on/off the PC and for standby/resume when
supported by the operating system.
A push of at least 5 seconds will always turn off the fitlet-H/T.
Display
fitlet-H/T has dual display interface with support for dual head: 2x HDMI with audio support.
To connect fitlet-H/T to a DVI display, use the provided HDMI to DVI-D adapter. Use a DVI cable to connect
the adapter to the display.
Audio
There are 2 standard 3.5mm jacks on the back panel.
Right:

Stereo line-in using a standard 3.5mm plug

S/PDIF 7.1 in using provided cable
Left:

Stereo line-out using a standard 3.5mm plug

S/PDIF 7.1 out using provided cable
LAN
fitlet-H/T features two 10/100/1000BaseT Ethernet ports using standard RJ45 connectors. Use a standard
Ethernet cables to connect.
The connectors feature built-in LEDs that are lit when a connection is detected.
WLAN
2 WLAN antennas are supplied in models with integrated WiFi and should be screwed into the standard
SMA connectors.
USB
There are 2 USB 3.0 ports (5 Gbps) and 2 USB 2.0 ports on the back panel. FM4U module contains 4
additional USB2.0 ports on the front panel. All USB ports support current up to 1A.

Serial port

RS232 mini-serial ports is located on the back panel.
Mini-serial to DB9 cable to connect to standard serial devices is supplied in the package.
