Note: For computer MAX 12 devices (12 relay outputs) the connection between COM termi-
nals in the upper and lower terminal strips must be done externally.
14
A
B
COM
1
2
S1
S2
RELAYS
P1
P2
RELAYS
COM
7
8

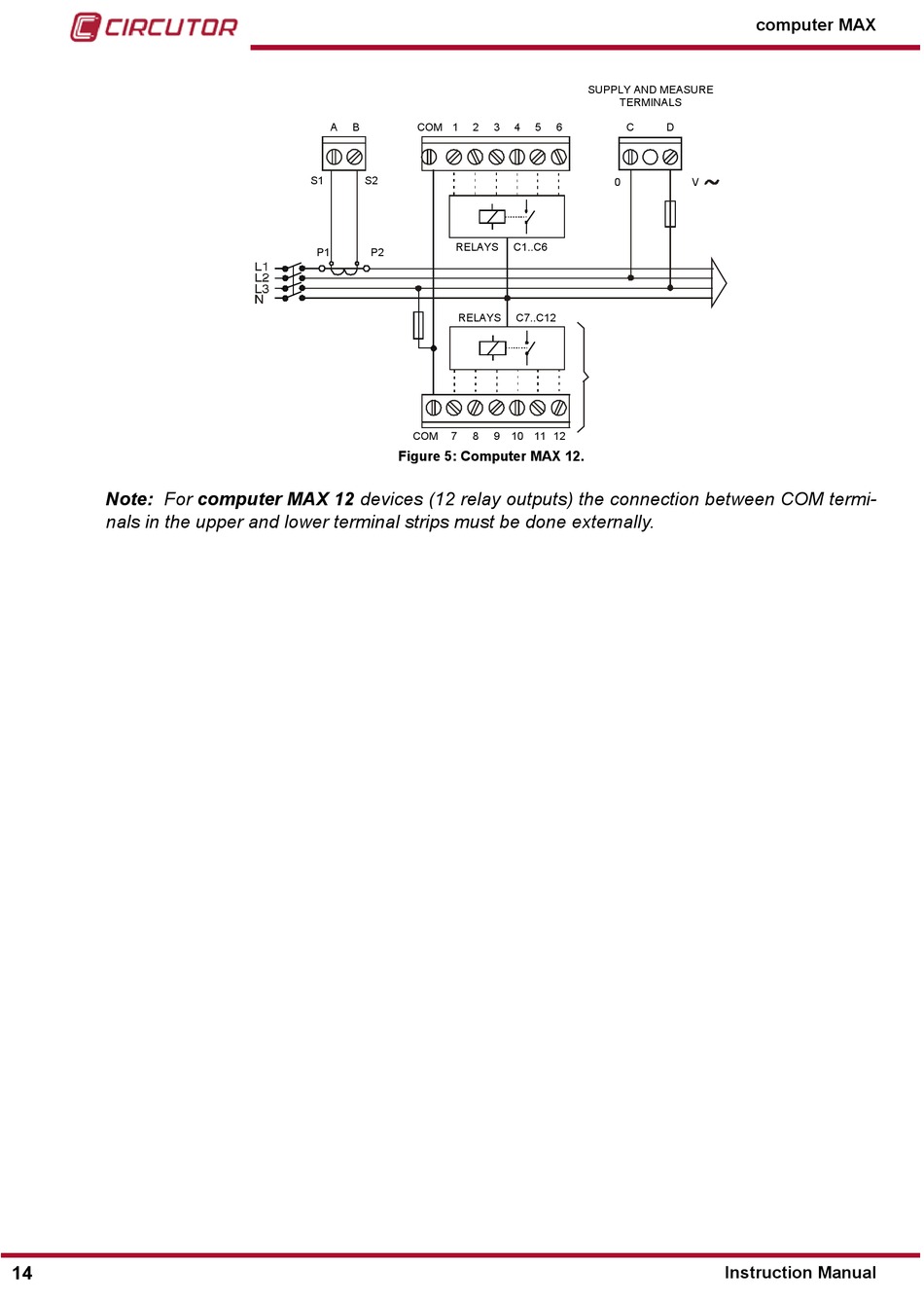

Figure 5: Computer MAX 12�
SUPPLY AND MEASURE
TERMINALS
3
4
5
6
C
D
0
C1..C6
C7..C12
9
10 11 12
computer MAX
V
Instruction Manual
