computer MAX

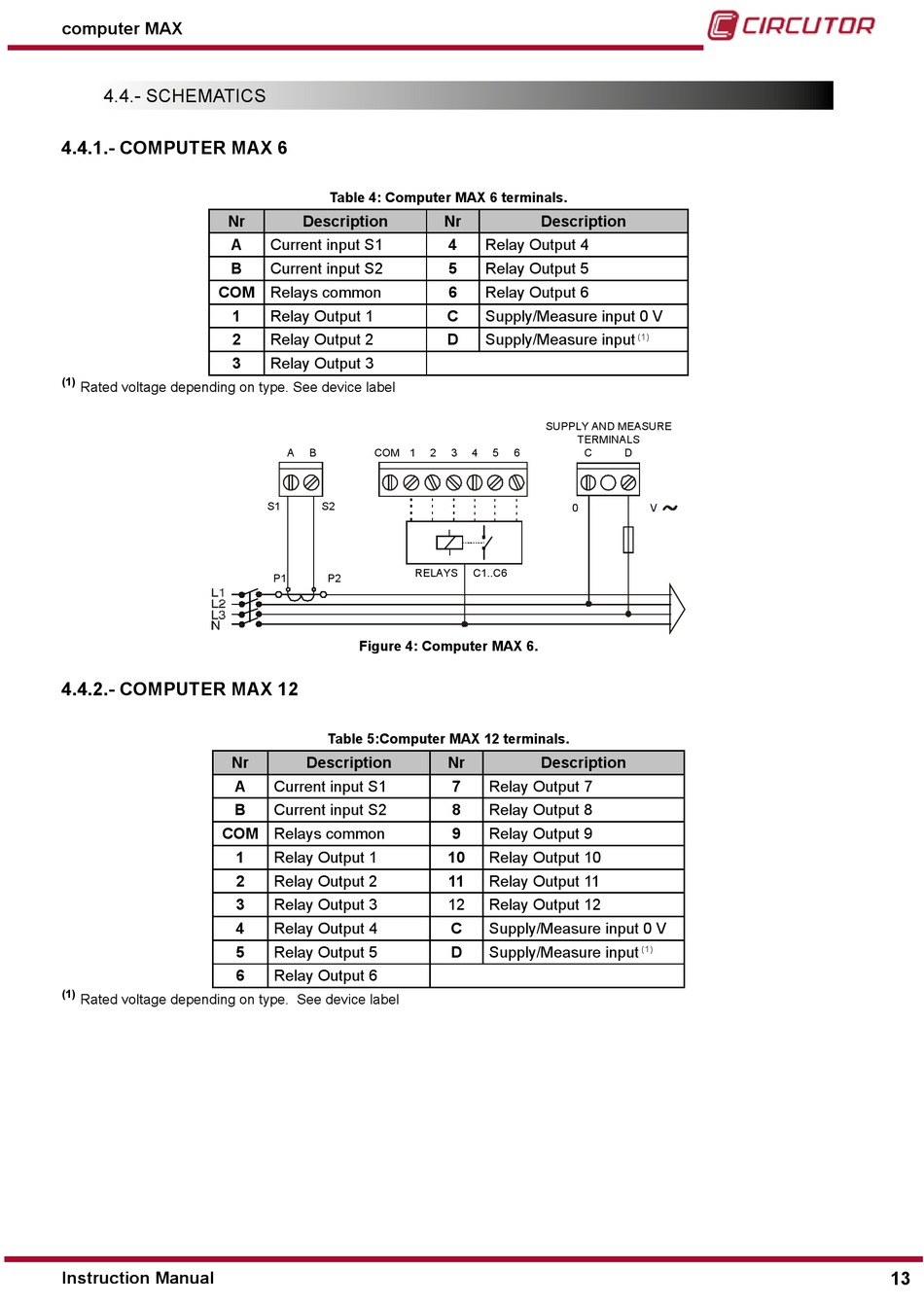

4.4.- SCHEMATICS
4�4�1�- COMPUTER MAX 6
Nr
A
B
COM Relays common
1
2
3
(1)
Rated voltage depending on type. See device label
4�4�2�- COMPUTER MAX 12
Nr
A
B
COM Relays common
1
2
3
4
5
6
(1)
Rated voltage depending on type. See device label
Instruction Manual
Table 4: Computer MAX 6 terminals�
Description
Current input S1
Current input S2
Relay Output 1
Relay Output 2
Relay Output 3
A B COM 1 2
S1 S2
RELAYS
P1 P2
Figure 4: Computer MAX 6�
Table 5:Computer MAX 12 terminals�
Description
Current input S1
Current input S2
Relay Output 1
Relay Output 2
Relay Output 3
Relay Output 4
Relay Output 5
Relay Output 6
Nr Description
4 Relay Output 4
5 Relay Output 5
6 Relay Output 6
C Supply/Measure input 0 V
D Supply/Measure input
SUPPLY AND MEASURE
TERMINALS
3 4 5 6 C
0
C1..C6
Nr Description
7 Relay Output 7
8 Relay Output 8
9
Relay Output 9
10 Relay Output 10
11 Relay Output 11
12 Relay Output 12
C Supply/Measure input 0 V
D Supply/Measure input
(1)
D
V
(1)
13
