Maximum demand controller
MDC-20
INSTRUCTION MANUAL
(M98251101-03-25A)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MDC-20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Circutor MDC-20

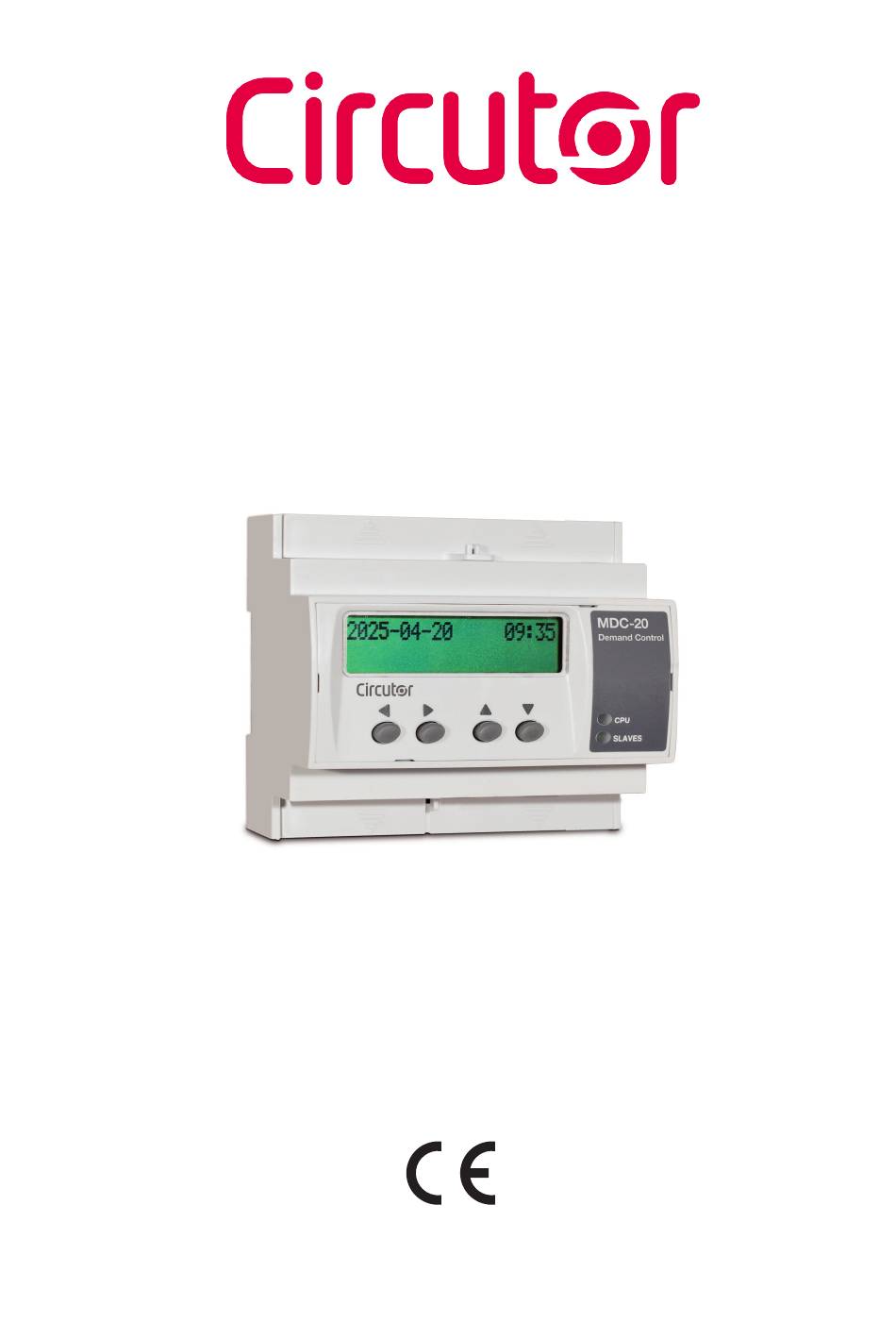

  • Page 1 Maximum demand controller MDC-20 INSTRUCTION MANUAL (M98251101-03-25A)
  • Page 2 MDC-20 Instruction Manual...
  • Page 3 CIRCUTOR S�A�U� reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S�A�U� on its web site, supplies its customers with the latest versions of the device specifi- cations and the most updated manuals.
  • Page 4 6�- CONFIGURATION OF NETWORK PARAMETERS BY SOFTWARE ������������������������������������������������������������������������������������23 6�1�- FIXED IP ASSIGNMENT ������������������������������������������������������������������������������������������������������������������������������������������23 6�2�- DHCP IP ASSIGNMENT ������������������������������������������������������������������������������������������������������������������������������������������23 6�3�- CONFIGURATION WEB SITE ����������������������������������������������������������������������������������������������������������������������������������24 6�3�1�- PASSWORD ACCESS �����������������������������������������������������������������������������������������������������������������������������������������24 7�- FUNCTIONAL CONFIGURATION OF THE MDC-20 ����������������������������������������������������������������������������������������������������������26 7�1�- SOFTWARE INSTALLATION ������������������������������������������������������������������������������������������������������������������������������������26 7�2�- REGISTRATION OF THE DEVICE �����������������������������������������������������������������������������������������������������������������������������26 Instruction Manual...
  • Page 5 MDC-20 7�3�- IMPORTING THE APPLICATION ������������������������������������������������������������������������������������������������������������������������������27 7�4�- EXPORTING THE APPLICATION ������������������������������������������������������������������������������������������������������������������������������27 7�5�- MDC-20 CONFIGURATION OPTIONS ���������������������������������������������������������������������������������������������������������������������28 7�5�1�- DRIVER PARAMETERS �������������������������������������������������������������������������������������������������������������������������������������28 7�5�2�- DEVICE PARAMETERS �������������������������������������������������������������������������������������������������������������������������������������28 7�5�3�- DEVICE INPUTS AND OUTPUTS ����������������������������������������������������������������������������������������������������������������������29 7�5�4�- VARIABLE UNITS ��������������������������������������������������������������������������������������������������������������������������������������������� 31 7�5�5�- VARIABLES LIMITS ������������������������������������������������������������������������������������������������������������������������������������������ 31 7�5�6�- DISPLAY OF VARIABLES ����������������������������������������������������������������������������������������������������������������������������������32...
  • Page 6 MDC-20 REVISION LOG Table 1: Revision Log� Date Revision Description 02/14 M98251101-03-14A Versión Inicial Changes in the following sections: 06/17 M98251101-03-17A 8.1. - 8.1.8. Changes in the following sections: 03/25 M98251101-03-25A 3.3. SYMBOLS Table 2: Symbols� Symbol Description Compliant with the relevant European directive.
  • Page 7 Check that it has been delivered with the following: - An installation guide. If any problem is noticed upon reception, immediately contact the transport com- pany and/or CIRCUTOR’s after-sales service. 1�1�- STORAGE The device should be stored according to the following recommendations: •Avoid placing it on uneven surfaces.
  • Page 8 The MDC-20 has an internal web server from which the user can view in real time the variables mea- sured and others obtained by calculation, and the status of the device inputs and outputs with the possibility of managing them.
  • Page 9 The device has a RS-485 communication bus for linking to external peripherals through a field bus. The MDC-20 can act as a field bus master and temporarily store data on the peripherals in a 200MB internal memory, which is filled cyclically, deleting the oldest data. That memory and the web access capacity enables real time viewing for the user and being able to record the data from the devices connected to the field bus, although it is not read immediately.
  • Page 10 •Tariff discriminators / calendars •Calculated variables. •System events and alarms. •Authentication configuration. •Web system security. •Etc. Without the PowerStudio® or PowerStudio®Scada Editor, it is not possible to configu- re the power control application, and equip the MDC-20 with all its features. Instruction Manual...
  • Page 11 MDC-20 3.- DEVICE INSTALLATION 3�1�- PRIOR RECOMMENDATION Device installation and maintenance must only be carried out by authorised and qua- lified personnel. Before carrying out any maintenance work, make sure you disconnect the device’s power supply. Those people who handle the device must follow the safety measures set out in the...
  • Page 12 RS-485 bus. 4�1�- BUTTONS The front panel of the MDC-20 comes with an alphanumeric LCD screen and four buttons for naviga- ting through the different screens for the configuration of the device. Buttons - short and long press: SHORT PRESS: Less than two seconds.
  • Page 13 MDC-20 To see the device’s IP address simultaneously press for 2 seconds the buttons Figure � Figure 2: Pressing of buttons to configure the IP address� Instruction Manual...
  • Page 14 5�3�1�- IP - (with DHCP “no”)* With this option the user can configure an IP address for the MDC-20 device. For this press the button , activating the edit cursor on the first digit. With the buttons parameterise a numerical data entry of the type 000.000.000.000.
  • Page 15 MDC-20 5�3�2�- NetMask - (with DHCP “no”)* To configure the NetMask press the button, activating the edit cursor on the first digit. With the buttons parameterise a numerical data entry of the type 000.000.000.000. After establishing the parameters, press the...
  • Page 16 MDC-20 Figure 3: Menu flow diagram (1)� Instruction Manual...
  • Page 17 MDC-20 Note: When selecting DHCP yes, given that the DHCP server has still not assigned the Ethernet addres- sing values, all the parameters will appear with 000.000.000.000, but they are not editable Figure 4: Menu flow diagram (2)� Instruction Manual...
  • Page 18 The device can synchronise the date and time through an NTP (Network Time Protocol) server in the UTC time system. By default, the MDC-20 does not display any value, indicating that synchronisation is completed via DHCP, provided the network server allows this.
  • Page 19 MDC-20 After selecting the zone, press the button, moving to the next screen. After validating this option, you will move to the Active Mode menu, “5.5.- ACTIVE MODE AMB®”. 5�5�- ACTIVE MODE AMB® The AMB (Active Mode Bridge) system reverses the server client role in the process of connecting re- mote devices.
  • Page 20 By default the HTTP (Hypertext Transfer Protocol) uses port 80 to communicate with an application. The MDC-20, like all web servers, uses this port by default but allows you to change it to configure other options. For example, secure access to certain web sites is with the HTTPS protocol, which nor- mally uses port 443 instead of 80.
  • Page 21 If there is no authentication configuration by the DHCP system, and if there is no Primary and Secon- dary NTP server available, MDC-20 allows the time and date to be configured manually when valida- ting the changes by displaying the caption “Adjust clock”. The date and time are displayed on screen with the following format: YYYY-MM-DD HH:MM.
  • Page 22 “PING” test on a certain IP address. (PING = Packet Internet Groper) The MDC-20 offers the possibility of doing a “PING” test. For this on the first configuration screen whe- re the MAC address is displayed (section...
  • Page 23 6.- CONFIGURATION OF NETWORK PARAMETERS BY SOFTWARE The network address can be configured by both the device’s buttons and on a PC, by means of an executable program provided by CIRCUTOR, called IPSetup�exe� This program is supplied on a CD with the device.
  • Page 24 C�- In the Host Name field, enter the DHCP name to be assigned to the device. D�- Optionally, the user can configure the parameters of the ClientID field. The default VendorID of the device is CIRCUTOR� 6�3�- CONFIGURATION WEB SITE...
  • Page 25 MDC-20 Figure 8: Internal configuration web site� Instruction Manual...
  • Page 26  Windows compatible mouse and keyboard. Before creating the application, PowerStudioScada® software, version 4.0 or later, must be installed in the PC. The manual for this software can be downloaded from the CIRCUTOR web site, www.circutor. 7�2�- REGISTRATION OF THE DEVICE After you have installed the PowerStudio®...
  • Page 27 Figure 11 Figure 11: Export window of the application� The IP address of the MDC-20 and the port used by the device (by default port 80) must be configured in this window. The default options are shown in ‘Engine preferences’ , but can be modified to send the application to any other communications engine.
  • Page 28 7�5�- MDC-20 CONFIGURATION OPTIONS The PowerStudio® software configuration options for the MDC-20 are those shown in Figure 12 detailed below: Figure 12: Configuration options�...
  • Page 29  Counters: Accumulated number of pulses of each of the counters. (Accumulated count).  Load values in the meters: Select to edit the total value of each of the device inputs.  Synchronise clock: Press to synchronise the MDC-20 clock with the computer clock. 7�5�3�- DEVICE INPUTS AND OUTPUTS...
  • Page 30 MDC-20 Meters: It is possible to configure the following parameters for each of the eight meters:  Description: Alphanumeric name to identify the meter on the device screen.  Unit: Alphanumeric type data to identify the meter units.  Factor: Multiplier value of each pulse, (for example kWh/impulse ratio) Flows: Checking the selector will activate the flow variable.
  • Page 31 In the MDC-20 the limits of the variables only refer to flow values as there is no point referencing them to either impulse or status values. For this reason the fields appear disabled if the inputs have not been configured as flow meters.
  • Page 32 7�5�6�- DISPLAY OF VARIABLES This menu option (see ) lets you configure the variables to be displayed on the MDC-20 Figure 12 screen.. Figure 21: Setup of variables to be displayed on screen�...
  • Page 33 MDC-20  Show inputs/outputs: Displays on screen the status of the device inputs and outputs, showing 0 if they are deactivated and 1 if they are active.  Variable: Lets you select any variable accessible from the device to show its value on screen, entering it by hand or with the help button You can associate a description for display instead of viewing the name of the variable.
  • Page 34 You can therefore avoid penalties for power peak consumption. The parameters to be configured for adapting the MDC-20 to your installation are programmed in the following submenus: Parameters, Groups and Loads.
  • Page 35 This sync pulse output must lead to one of the device inputs to be synchronised, in this case, the MDC-20. The input used for synchronisation must be configured in the corresponding field after selec- ting the external synchronisation checkbox. It is understood that there is a sync pulse when there is a change in the logic state from 0 to 1 in the variable or configured input.
  • Page 36 Figure 26: Simulation configuration screen�  Uncontrolled load (kW): Enter in this field the total power of the installation not subject to power control (loads not controlled by the MDC-20), which generally coincide with priority loads that cannot be disconnected.
  • Page 37 MDC-20 Figure 28: Configuration of Power Control by conditions screen� 8�1�6�- CONTROLLED VARIABLE Allows you to select the parameter to control in the installation between Active Power or Apparent Power Figure 29: Power to control� Confirm that the units selected in this section are consistent with the variable se- lected in the control variable field.
  • Page 38 MDC-20 to zero. Figure 31: Fixed integration window�  Sliding blocks: The integration period is divided into N time intervals equal to that configured in the “integration time” field. The calculation window therefore consists of N sliding blocks. Figure 32: Sliding blocks integration window�...
  • Page 39 MDC-20  Time between actions: This is the time established between actions. A value of 60 seconds means that once a load has been connected or disconnected, the controller will wait 60 seconds before ca- rrying out any other operation.
  • Page 40 MDC-20 Figure 37: Selection of type of discriminator� In a formula with another variable, the value of the variable outside the slot defined by the user for the discriminator is considered invalid if the option is not marked. This option considers value 0 for the variables, outside the discriminators interval.
  • Page 41 MDC-20 Note: A day is configured from 00:00 h to 24:00 h. Figure 39:Day types� Figure 40:Day types� To enter or modify hour types, you must select ADD and the following menu will be displayed ( gure 41 Figure 41:Definition of hour types�...
  • Page 42 MDC-20 Figure 43:Time slot for each hour type (graphic definition) CALENDAR ( Figure 44 After defining the day types that make up the discriminator, they must be distributed in the annual calendar. Figure 44: Hourly discrimination calendar� You can assign day types during the year in progress, but in later years. Day selection is done as fo- llows: ...
  • Page 43 MDC-20 Figure 45:Quick selection� 8�1�10�-LOAD GROUPS You can create load groups in the menu option. The groups acquire a different property depending on their place in the list, with the first group in the list having the highest priority and the last group the lowest.
  • Page 44 MDC-20 To add a new load group you must select the button “Add” from the left-hand side of the menu. When adding a new load group, the user must indicate the name and sequence of the load group. Figure 47: Add groups�...
  • Page 45 MDC-20 Figure 49: Modify load 8�1�11�1�- General Name: Load name. Maximum value: Theoretical maximum power value of load. This value is considered when connecting the load. Instantaneous value: Instantaneous power value of the load. This power must be read by a power analyzer or device that calculates this variable.
  • Page 46 MDC-20 8�1�11�4�-Control The inputs used to control the status of the loads and outputs used for actions on them must be con- figured in the following fields. Status control: Variable used to read the status of the load. Normally an input in a local or remote device is used, wiring the status of the relay that controls the load.
  • Page 47 MDC-20 Figure 52:Type of calendar� DAILY This menu lets you select the time intervals when you want loads to be disconnected without being able to be controlled by the system. The user must indicate in red the time intervals when they want the loads to be disconnected. In the green time intervals, the loads are available for management by the power control system.
  • Page 48 MDC-20 ANNUAL The annual time control allows you to configure the disconnection of loads every day of the year ac- cording to the daily types of time control configured previously. Figure 55:Configuration of year periods� The configured calendars are associated with each load, selecting them from the drop-down menu in the main load setup window.
  • Page 49 MDC-20 8�2�- POWER CONTROL SIMULATION The application has a tool that allows the user to check the correct working of their configuration. 8�2�1�- SIMULATION Figure 57: Graphic obtained by simulation� The graphic part shows all the configured loads. The load status is indicated by a light indicator. If the indicator is red it indicates that the load is disconnected.
  • Page 50 MDC-20 8�2�2�- SIMULATION LOG The simulation menu log tab shows a graphic with the simulated data log. Figure 58:Simulated data log� When carrying out the simulation, the program creates a file where it saves the values being simulated. This file saves the data each month. The graphics and events represented are data which has been stored in that file.
  • Page 51 MDC-20 Figure 60: Display of events (simulated)� In the graphic, time is divided into two hour intervals. If you left-click the mouse on the graphic, a cur- sor will appear where with the arrow buttons you can move along each point of the graphic and view the time at that point.
  • Page 52 MDC-20 Shows the list of events of the loads selected in chronological order. Figure 62: List of events� 8�3�- CLIENT DISPLAY When the client communicates with the power control device, the devices configured in the application are displayed on the screen.
  • Page 53 MDC-20 8�3�1�- MDC-20 DEVICE If the MDC-20 display is selected, in the General window you can see the values of the meters and the status of the inputs and outputs of the devices previously configured in the menu of section “7.5.3.-...
  • Page 54 MDC-20 8�3�3�- LOAD ACTION The load action option displays the loads configured in the system associated with several buttons that allow you to force the connection or disconnection of the load or release the load from any lock for its management by the system. If the load is not enabled, all the deactivated fields appear so it is not possible to take any action on the load.
  • Page 55 MDC-20 The various icons and their description are: Load connected in automatic management by the MDC. Load disconnected in automatic management by the MDC. Manually connected load. This load cannot be disconnected until it is released Manually disconnected load. This load cannot be connected until it is released.
  • Page 56 MDC-20 The variables for the maximum demand controller are shown in the image. Figure 70:Variables of the MD controller� Set point (kWh): Consumption value that cannot be exceeded and depends on the maximum power configured. Real (kWh): This is the total consumption for the period in progress calculated according to the con- figured energy variable.
  • Page 57 MDC-20 Figure 72: Outputs� 8�3�5�-DISCRIMINATOR DEVICES You can access the information on the discriminators that have been created in the power control application. The user must select the discriminator from the list of devices. Figure 73:List of discriminator devices� The information displayed on the screen of these discriminators is very important as it allows the user to know the time accumulated in each time interval, the time remaining until deactivation and how much time is left until that time period is reactivated.
  • Page 58 MDC-20 9.- TECHNICAL FEATURES Power supply Single-phase 85…264 V ~ / 120…300 V Frequency 50 /60 Hz Consumption 5…8VA (depending on the number of connected relays) Category III according to EN 61010. Installation category Double-insulated electric shock protection class II.
  • Page 59 MDC-20 (Continuation) Mechanical features Enclosure UL94–V0 self-extinguishing plastic Standard Box / Flammability UL 94 Electrical safety EN61010-1 Electromagnetic compatibility (EMC) EN 61000-6-1, EN 61000-6-2 , EN 61000-6-3, EN 61000-6-4 Figure 75: MDC-20 dimmensions� Instruction Manual...
  • Page 60 MDC-20 10.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR S�A�U� Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 61 MDC-20 12.- EU DECLARATION OF CONFORMITY Instruction Manual...
  • Page 62 CIRCUTOR, S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
