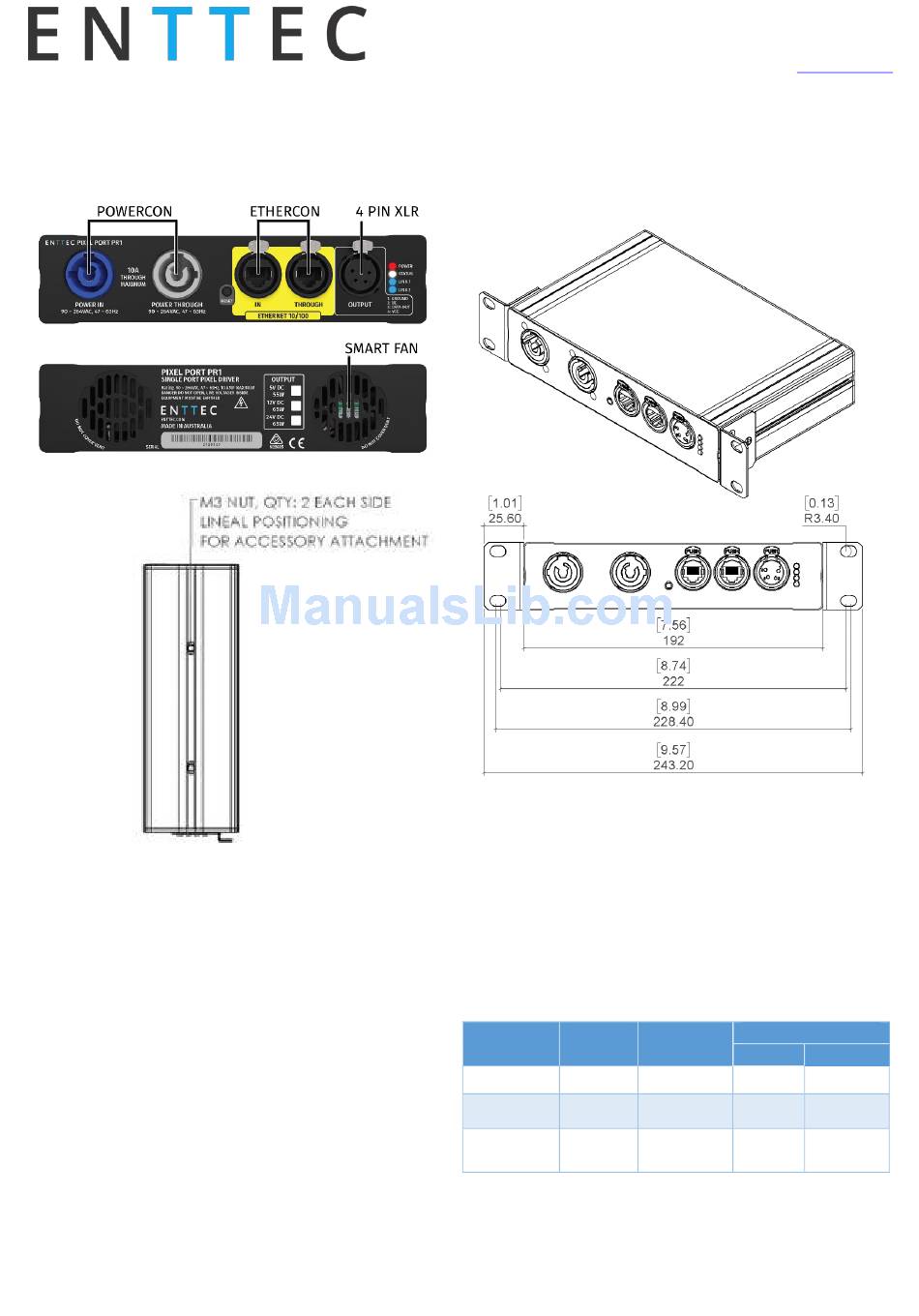

Hardware Features
•
Anodised enclosure
•
Scalable design for large projects
•
powerCON in/out sockets
•
etherCON Link through
•
4-pin XLR pixel data output socket.
•
Captive M3 nuts compatible with a range of
ENTTEC mounting accessories.
21 September 2017
Mounting options
•
Provided standard, 9.5" rack ears
Notes
•
All dimensions are in millimetres (mm)
•
An optional accessory is the Universal Bracket
(Part number: 79160), this kit allows various
mounting options including: Truss, surface mount,
DIN rail 35mm. See the product specific web page
for more information.
Hardware Options
Pixel Port is available in the following 3 options:
Product
Output
Part No.
Voltage
76302-16
12V
73602-26
24V
73602-55
5V
ID: 3617472
User Manual
For the latest version visit:
www.enttec.com
Maximum
Current
Power
Max.
Leakage
5.41 A
65W
2.7 A
65W
10 A
55W
P a g e
Pixel Port
<2mA
<2mA
<2mA
| 2
