Connectors Summary

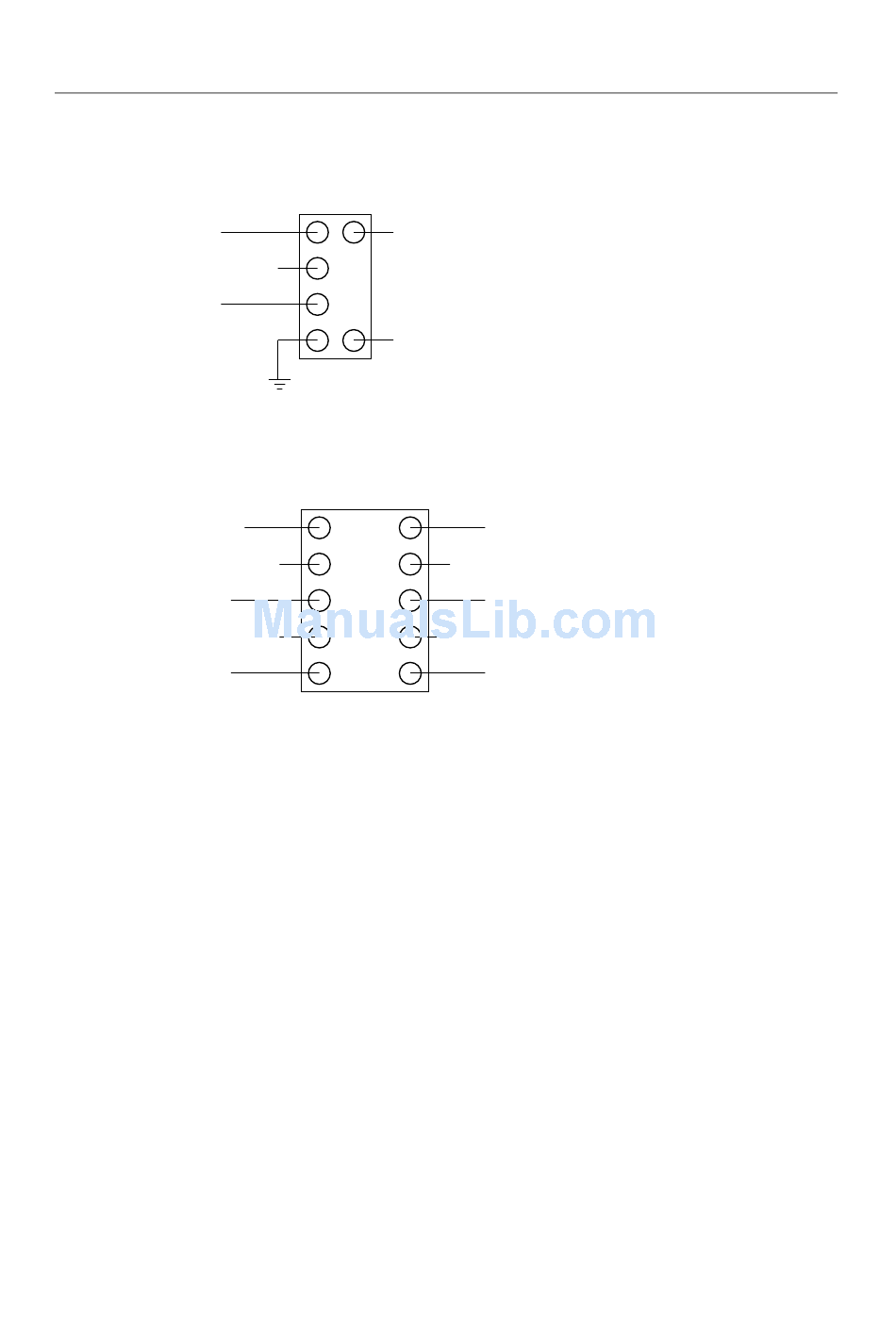

PS/2 Mouse Connector Pin Assigment

+5V
N.C.
Mouse
Data
GND

COM1, 2 Serial Port Connectors Pin Assigment

CARRIER
GND
RING
MS1 Top View
N.C.
Mouse
Clock
COM1/2 (Top View)
1 2
TX 3 4
5 6
RTS 7 8
9 10
RX
DTR
DSR
CTS
N.C.
