Cyrix 6x86L CPUs Setting

Cyrix 6x86L – PR120 + /PR133 + /PR150 + /PR166 + MHz
Cyrix 6x86L
JP11
JP12
1

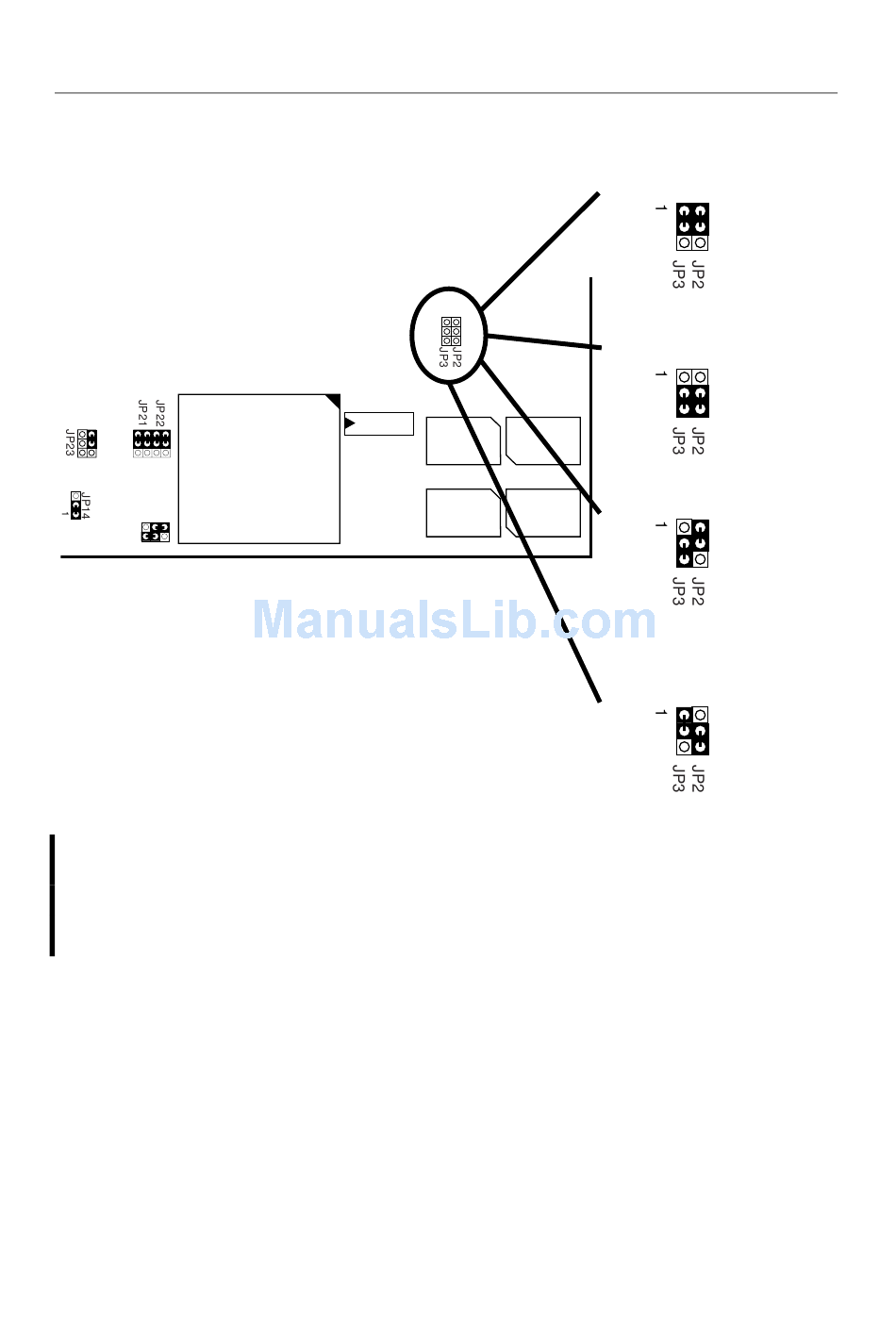

Figure 2Ð4. Cyrix 6x86L CPU Type Configuration
Note: Cyrix 6x86L is a dual voltage CPU. JP21, 22, 23, and JP14 must
be set correctly (refer to page 13.) Check with your CPU suplier
for CPU voltage specification.
TAG
CPU
Cyrix 6x86L – PR120 + /50
1
Cyrix 6x86L – PR133 + /55
PB
82438VX
SRAM
Cyrix 6x86L – PR150 + /60
PB
82438VX
SRAM
Cyrix 6x86L – PR166 + /66
Hardware Installation 11
