Cache Memory Select

The cache size (256K/512K) jumper is fixed by the factory of
this model.

CPU Voltage Setting

Single Voltage for Intel P54C, Cyrix 6x86, AMD K5 (PR75–
PR166)
Linear Regulator Circuit Setting (default)
3.52V
3.38V
Dual Regulator/Single Voltage for Intel P54C, Cyrix 6x86, AMD
K5 (PR75–PR166)
3.52V
3.38V
16

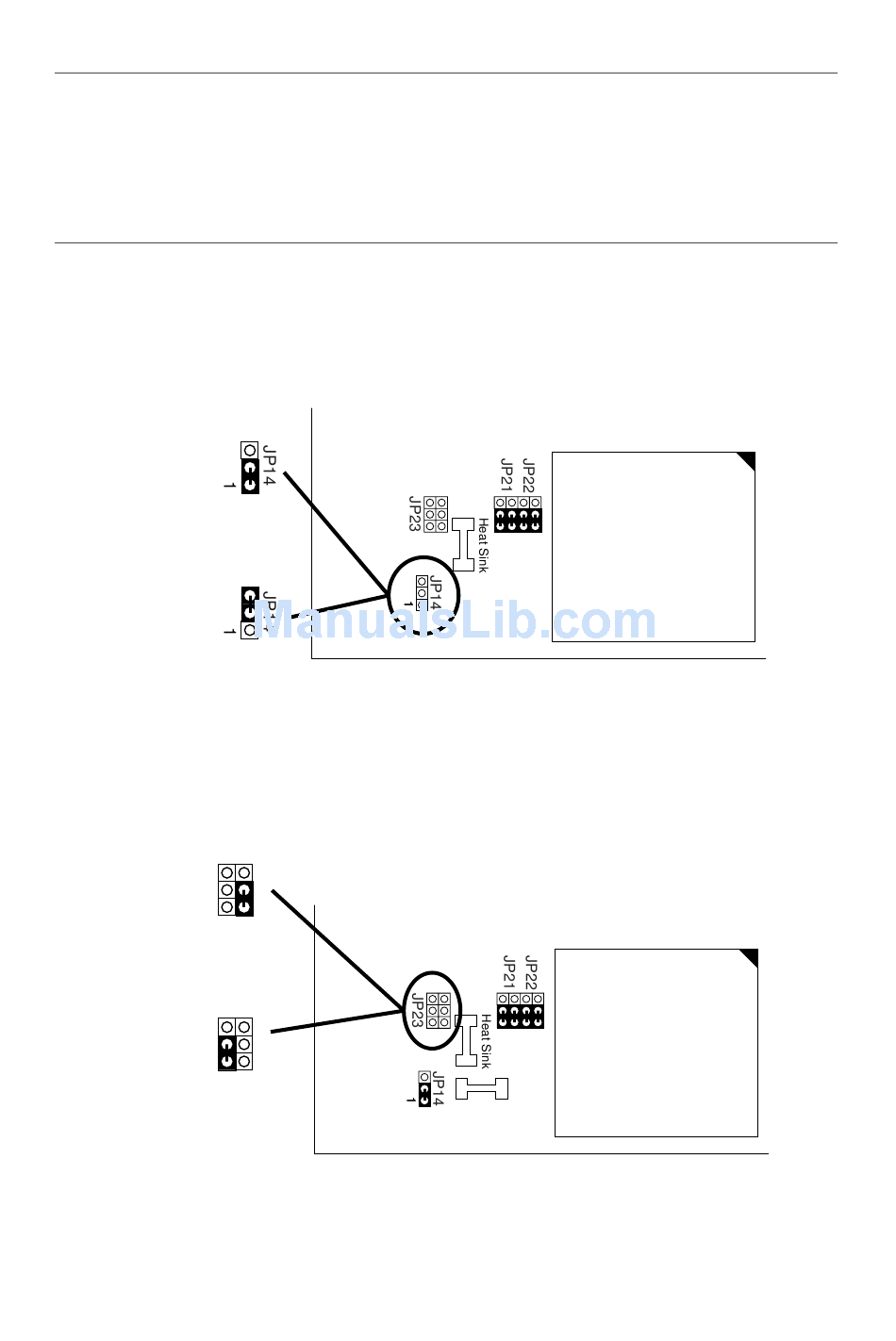

Figure 2Ð12Ð1. CPU Type Configuration
Figure 2Ð12Ð2. CPU Type Configuration
P54C
6x86
K5
CPU
P54C
6x86
K5
CPU
