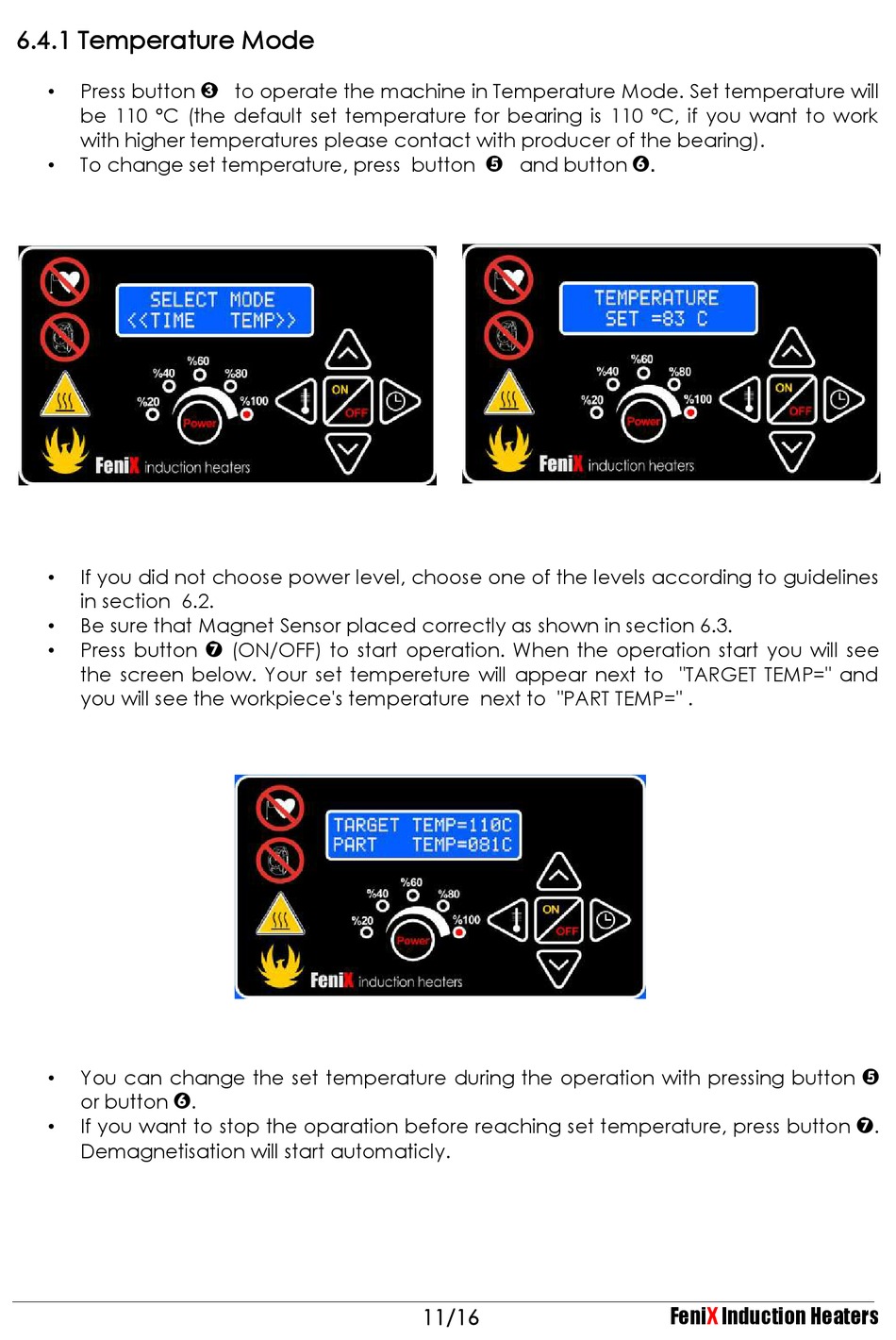

6.4.1 Temperature Mode
•
Press button 3 to operate the machine in Temperature Mode. Set temperature will
be 110 ºC (the default set temperature for bearing is 110 ºC, if you want to work
with higher temperatures please contact with producer of the bearing).
•
To change set temperature, press button 5 and button
•
If you did not choose power level, choose one of the levels according to guidelines
in section 6.2.
•
Be sure that Magnet Sensor placed correctly as shown in section 6.3.
•
Press button 7 (ON/OFF) to start operation. When the operation start you will see
the screen below. Your set tempereture will appear next to "TARGET TEMP=" and
you will see the workpiece's temperature next to "PART TEMP=" .
•
You can change the set temperature during the operation with pressing button 5
or button 6 .
•
If you want to stop the oparation before reaching set temperature, press button 7 .
Demagnetisation will start automaticly.
11/16
6
.
FeniX
Induction Heaters
