2N Helios IP Automation Configuration Manual

2N Helios IP Automation Configuration Manual

Door access intercom
Hide thumbs Also See for Helios IP Automation:

Advertisement

Quick Links

Download this manual See also: Configuration Manual
®
2N
Helios IP Automation
Door Access Intercom
Configuration Manual
Version
2.5
www.2n.cz


Advertisement

loading
Need help?

Need help?

Do you have a question about the Helios IP Automation and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 2N Helios IP Automation

Summary of Contents for 2N Helios IP Automation

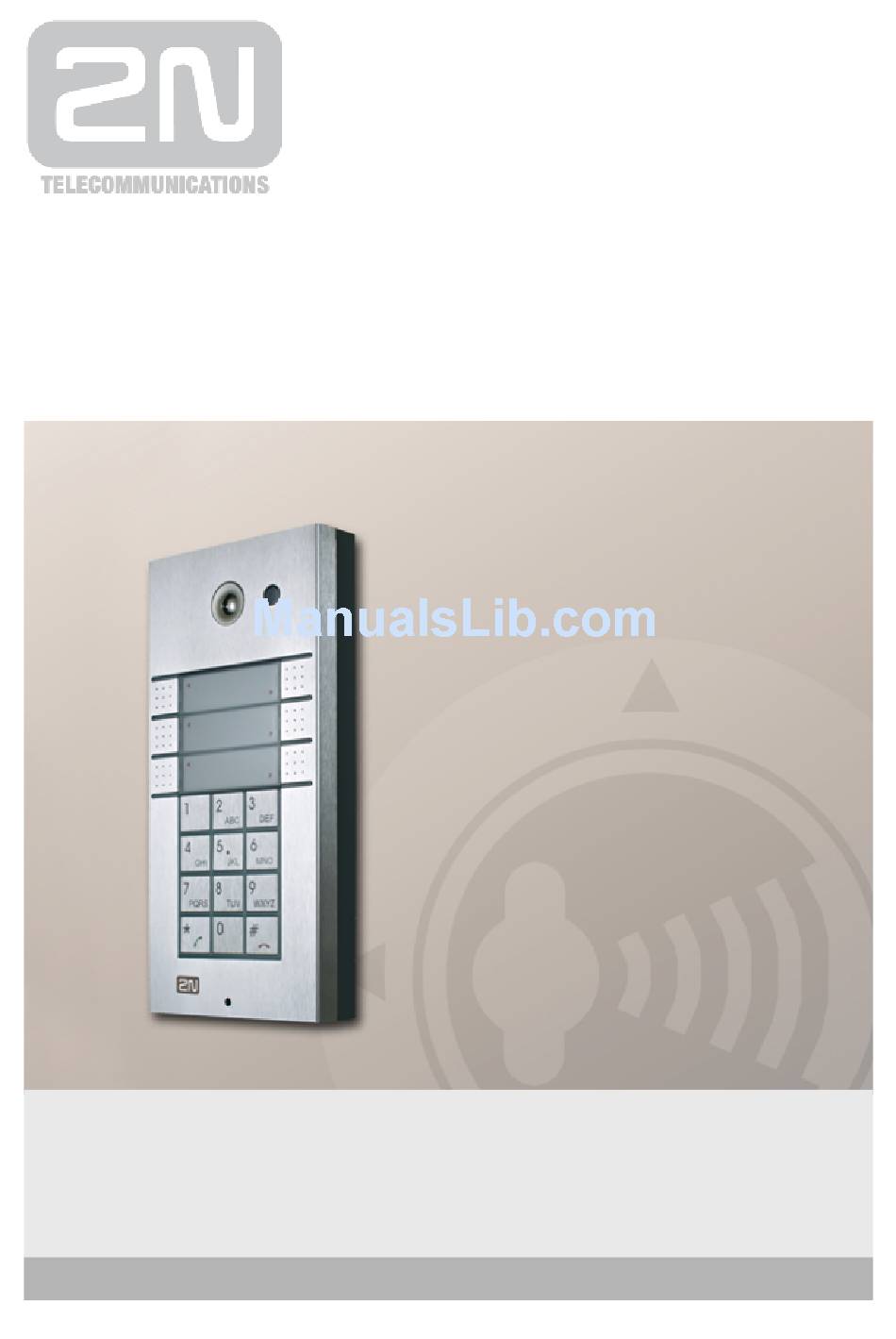

  • Page 1 ® Helios IP Automation Door Access Intercom Configuration Manual Version www.2n.cz  ...
  • Page 2 2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www.faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...“.

  • Page 3: Table Of Contents

    1. Terms and Symbols ....... . 4 2. 2N® Helios IP Automation Configuration ....5 3.

  • Page 4: Terms And Symbols

    Always abide by this information to prevent injury of persons. Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful advice for quick and efficient functionality. Note Routines or advice for efficient use of the device. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 5: N® Helios Ip Automation Configuration

    ® outputs, most of which can be configured like standard Helios IP switches (refer ® to the Switches subsection). You can make use of all of these 2N Helios IP Automation inputs and outputs in variable combinations. ® Helios IP Automation...
  • Page 6 It holds true in general that an action is always tied with a selected event and is executed when a selected condition is met. The condition is optional and if none is ® selected, the action is executed whenever the assigned event occurs. 2N Helios IP Automation defines a number of events, actions and conditions to be further set.
  • Page 7 Move your mouse cursor to the red mark to display the Help to find the error. If all the required blocks have been configured correctly (there is a green mark on ® every row), Helios IP Automation will be enabled. If there is a red mark, the ® Helios IP Automation function will be disabled.

  • Page 8: Events

    3. Events ® Helios IP Automation defines the following event types: KeyPressed – key pressed CodeEntered – numerical code entered CardEntered – RFID card entered CallStateChanged – call state changed InputChanged – digital input changed HttpTrigger – HTTP command received Delay –...
  • Page 9 Numerical code – 12345, e.g. SuppressTones Suppress sound signalling initiated by receiving of an invalid numerical code. The parameter is optional. Valid values: 0 – tones are not suppressed 1 – tones are suppressed (default value) ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 10 ID (for RFID card reader models only). Parameters Card ® Define the RFID card ID; refer to the Card Reader subsection in the 2N Helios IP Configuration Manual Valid values: valid – any valid card (included in the intercom card list) invalid –...
  • Page 11 InputChanged block defines the event generated by a change of the logic level on the defined digital input. Parameters Input Define the logic input. Valid values: tamper – tamper switch input input1 – digital input 1 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 12 Define the event that starts the delay. StopEvent Define the event that stops the delay. The parameter is optional. Delay Define the delay time. Example of valid values: 10 – 10 seconds (units are unnecessary) 10s – 10 seconds ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 13 Value 1 makes the timer behave as a Delay. Example Event generated three times in 1s intervals after the rise of event on row 1: ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 14 'trigger/' in the HTTP command. The intercom sends a simple reply to this request (200 OK). Parameters Name Define a unique HTTP command identifier including alphabetical characters and digits. Example Event generated receiving following HTTP command: http://ip_addr/enu/trigger/opendoor Event.HttpTrigger: Name=opendoor ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 15: Actions

    4. Actions ® Helios IP Automation – defines the following types of actions: ActivateSwitch – switch activation SetOutput – digital output state setting BeginCall – outgoing call setup AnswerCall – incoming call answer EndCall – call termination SendHttpRequest – HTTP command sending Action.ActivateSwitch...
  • Page 16 – LED 1 indicator led2 – LED 2 indicator led3 – LED 3 indicator ® There may be different lists of valid values for different Helios IP models; refer to the Available Digital Inputs and Outputs subsection. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 17 Define the user number from the telephone directory to be called. The valid values are 1 through 999 (depending on the intercom model). Enter just one of the above mentioned parameters (Number, Uri or User). Example An outgoing call will be established if the event defined on row 2 arises: ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 18 Define the event to launch the action. Condition Define the condition to be met to execute the action. This parameter is optional. Example A call is terminated if the event defined on row 2 arises: Action.EndCall: Event=2 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 19 Define the standard HTTP URI including the destination address and, optionally, the path and other parameters. Example Send an HTTP command to the device with the IP address 192.168.1.1 if the event defined on row 2 arises: Action.SendHttpRequest: uri= http://192.168.1.1/message ; Event=2 ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 20: Conditions

    5. Conditions ® Helios IP Automation defines the following types of conditions: ProfileState – time profile state CallState – current call state InputState – digital input state LogicalAnd – logical AND of conditions LogicalOr – logical OR of conditions LogicalNot – condition negation FlipFlopD –...
  • Page 21 – ringing in progress connected – call connected Direction Define the call direction. Valid values: incoming – incoming calls outgoing – outgoing calls any – both directions The parameter is optional, the default value is ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 22 Define the required digital input level. The parameter is optional. Valid values: 0 – logic 0 1 – logic 1 (default value) Example The condition is met for an activated tamper switch (device not open): Condition.InputState: Input1=tamper; Level=0 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 23 Example The condition is met if conditions 1, 2 or 3 are met: Condition.LogicalOr: Condition=1, 2, 3 Condition.LogicalNot LogicalNot block defines the condition to be met in case another defined condition is not met. Parameters Condition ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 24 (variable), which records the state of another condition at the moment of rise of the defined event for later use. The FlipFlopD output can be used as a condition for control of actions in rather complex 2N ®...
  • Page 25 (variable), whose state changes to 1 or 0 at the rise of defined events. The FlipFlopRS output can be used as a condition for ® control of actions in rather complex Helios IP Automation applications. It is a simulation of an RS-type flip-flop circuit. Parameters SetEvent Define the event to set the condition into the 'met' state (1).
  • Page 26 1 – condition is met Example The condition will be met at the rise of event 1 and not met at the rise of event 2: Condition.FlipFlopRS: SetEvent=1; ResetEvent=2 ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 27: Available Digital Inputs And Outputs

    Helios IP Force/Safety Outputs relay1 – relay output on basic unit output1 – digital 12V output on basic unit (for board versions 555v3 and higher, digital 12V output is connected with relay output 1 in 555v2 boards) ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 28 – digital output 1 output2 – digital output 2 led1 – LED 1 control output led2 – LED 2 control output led3 – LED 3 control output Inputs input1 – digital input 1 input2 – digital input 2 ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 29: Examples Of Use

    Calling to Dispatching Office in Case of Unauthorised Door Opening with Service Code Blocking Option Specification Call the selected telephone number whenever the tamper switch is disconnected (device opened). Enable blocking and re-enable numerical code alarm entered from the intercom keypad. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 30 5: Action.BeginCall: Number=1111; Event=1; Condition=4 Door Opening by RFID Card Specification Activate the door contact switch by entering the proper RFID card. Block diagram Entering an RFID card with the defined ID (1: Event.CardEntered) activates switch 1 (2: Action.ActivateSwitch). ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 31 (4: Action.BeginCall) with a 120s delay (2: Event.Delay).The call is only executed if the door remains open for more than 120s (3: Condition.InputState). Intercom settings 1: Event.InputChanged: Input=input1; Edge=rising 2: Event.Delay: Delay=120s; StartEvent=1 3: Condition.InputState: Input=input1; Level=1 4: Action.BeginCall: Number=1111; Event=2; Condition=3 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 32 (4: Action.SetOutput) and off-switching (5: Action.SetOutput) actions. The LED switch-on action is conditioned by the active call (3: Condition.CallState). Intercom settings 1: Event.Timer: Period=250ms 2: Event.Delay: Delay=125ms; StartEvent=1 3: Condition.CallState: State=Connected 4: Action.SetOutput: Output=led1; Level=1; Event=1; Condition=3 5: Action.SetOutput: Output=led2; Level=0; Event=2 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 33 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz xxxx ® TELEKOMUNIKACE a.s., www.2n.cz...
