Page 1

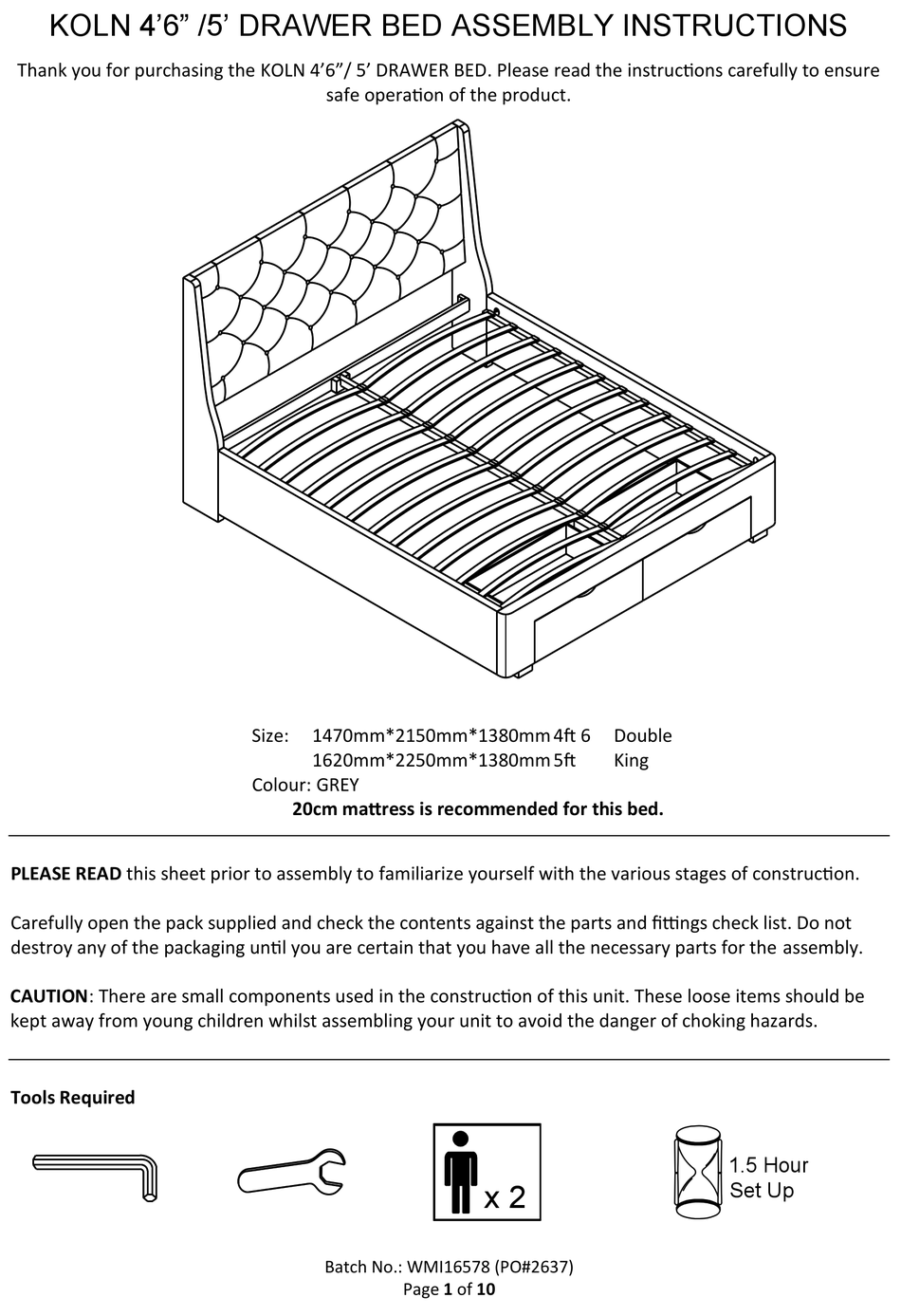

KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS Thank you for purchasing the KOLN 4’6”/ 5’ DRAWER BED. Please read the instruc�ons carefully to ensure safe opera�on of the product. Size: 1470mm*2150mm*1380mm 4� 6 Double 1620mm*2250mm*1380mm 5� King Colour: GREY 20cm ma�ress is recommended for this bed. PLEASE READ this sheet prior to assembly to familiarize yourself with the various stages of construc�on.
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is intended for a maximum person’s weight of 110kg per side. Do not exceed this weight. Incorrect installa�on could lead to injury, take care following instruc�ons. Due to the size of this product we recommend that it is assembled in the room intended for use.
Page 3
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fi�ngs pack contains small items that should be kept away from small children. Batch No.: WMI16578 (PO#2637) Page 3 of 10...
Page 4
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS Parts DESCRIPTION: HEADBOARD DESCRIPTION: HEADBOARD DESCRIPTION: DESCRIPTION: FOOTBOARD QTY: 1 PC BOTTOM PANEL HEADBOARD WING QTY: 1 PC Dimension: QTY: 1 PC QTY: 2 PCS Dimension: 4� 6 1370x130x810mm Dimension: Dimension: 4� 6 1470x100x450mm 5�...
Page 6
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS Layout Parts on Soft Surface Lay out all 4 sides on a soft surface i.e. Rug, Carpet or Packaging Carton tp avoid damage. STEP 1 Parts Required 1. Headboard x 1 2. Headboard Bo�om Panel x 1 3.
Page 7
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS STEP2 Parts Required 4. Footboard x 1 Pull the drawers harder to 6. Drawer base x 1 separate both drawer and 7. Drawer support feet x 2 drawer base. A. Bolt x 4 (ii) B.
Page 8
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS STEP4 Parts Required 9. Centre support rail x 1 10. Centre support leg x 2 14. Centre support leg x 1 ii ) L. Screw x 2 iii ) STEP5 Parts Required J. Metal “L” x 4 K.
Page 9
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS STEP7 Parts Required 11. Slat 4’6: 26pcs 5: 30pcs 12. Centre Slat Cap 4’6: 13pcs 5: 15pcs 13. Slat Cap 4’6: 26pcs 5’: 30pcs STEP7 Parts Required 8. Drawer x 2 Batch No.: WMI16578 (PO#2637) Page 9 of 10...
Page 10
KOLN 4’6” /5’ DRAWER BED ASSEMBLY INSTRUCTIONS Complete Assembly Your KOLN 4’6’’/5’DRAWER BED is now completely assembled. Periodically check to ensure that the components are in their proper posi�on, free from damage. Also, make sure the connectors are ri ght and secure. Keep instructions for future reference Batch No.: WMI16578 (PO#2637) Page 10 of 10...
