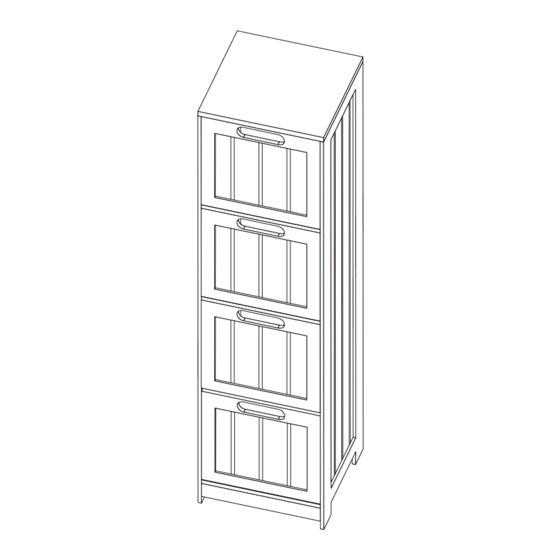

COLONIAL 4 DRAWER SLIM CHEST
ASSEMBLY INSTRUCTIONS
Thank you for purchasing the COLONIAL 4 DRAWER SLIM CHEST.
Please read the instructions carefully to ensure safe operation of the product.
W300 x D300 x H1190mm
COLOUR: WHITE
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of co
on.
Carefully open the pack supplied and check the contents against the parts and
check list. Do not destroy any of the
packaging
you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the constr
of this unit. These loose items should be kept away from young
children whilst assembling your unit to avoid the danger of choking hazards.
Tools Required:
x 2
Batch No.: WMI16046
Page 1 of 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW WMI16046
Summary of Contents for GFW WMI16046
- Page 1 CAUTION: There are small components used in the constr of this unit. These loose items should be kept away from young children whilst assembling your unit to avoid the danger of choking hazards. Tools Required: Batch No.: WMI16046 Page 1 of 12...
- Page 2 Never use scourers, abrasives or chemical cleaners. • To clean wipe with a sponge and warm soapy water. Do not use solvent based cleaners or detergents as they • can bleach or damage the product. Batch No.: WMI16046 Page 2 of 12...
- Page 3 ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Batch No.: WMI16046 Page 3 of 12...
- Page 4 Qty: 3PCS Qty: 4PCS BOTTOM RIGHT SIDE LEFT SIDE BACK PANEL OF Description: Description: Description: Description: PANEL OF DRAWERS PANEL OF DRAWERS PANEL OF DRAWERS DRAWERS Qty: 4PCS Qty: 4PCS Qty: 4PCS Qty: 4PCS Batch No.: WMI16046 Page 4 of 12...
- Page 5 Please keep these components away from young children whilst assembling this product. If you keep the fittings in a bowl during assembly you will be less likely to lose them! General Hints and Tips Batch No.: WMI16046 Page 5 of 12...
- Page 6 COLONIAL 4 DRAWER SLIM CHEST ASSEMBLY INSTRUCTIONS Layout Parts on Soft Surface Lay out all parts on a soft surface i.e. Rug, Carpet or Packaging Carton. Batch No.: WMI16046 Page 6 of 12...
- Page 7 C. Cam Bolt x 10 STEP 2 Parts Required 5. Drawers Base Support x 3 7. Base Front Rail A. 12mm Screw x 3 B. Wood Dowel x 10 G. Block Slice x 3 Batch No.: WMI16046 Page 7 of 12...
-
Page 8: Parts Required
Support x 3 7. Base Front Rail x 1 D. Cam x 5 STEP 4 Parts Required 2. Left Side Panel x 1 3. Right Side Panel x 1 D. Cam x 5 Batch No.: WMI16046 Page 8 of 12... - Page 9 3. Right Side Panel x 1 6. Back Panel x 1 STEP 6 Parts Required 1. Top Panel x 1 A. 12mm Screw x 1 C. Cam Bolt x 4 G. Block Slice x 1 Batch No.: WMI16046 Page 9 of 12...
- Page 10 8. Front Of Drawers 9. Right Side Panel Of Drawers x 4 10. Left Side Panel Of Drawers x 4 11. Back Panel x 4 12. Bottom Panel x 4 E. 12mm Screw x 32 Batch No.: WMI16046 Page 10 of 12...
- Page 11 E. 25mm Screw x 1 F. Wall Fixing x 1 H. Wall Anchor x 1 E. 40mm Screw x 1 Always ensure the area to be drilled is free from hidden electrical wires, water and gas pipes. Batch No.: WMI16046 Page 11 of 12...
-
Page 12: Complete Assembly
Your COLONIAL 4 DRAWER SLIM CHEST is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure. Keep instructions for future reference Batch No.: WMI16046 Page 12 of 12...
