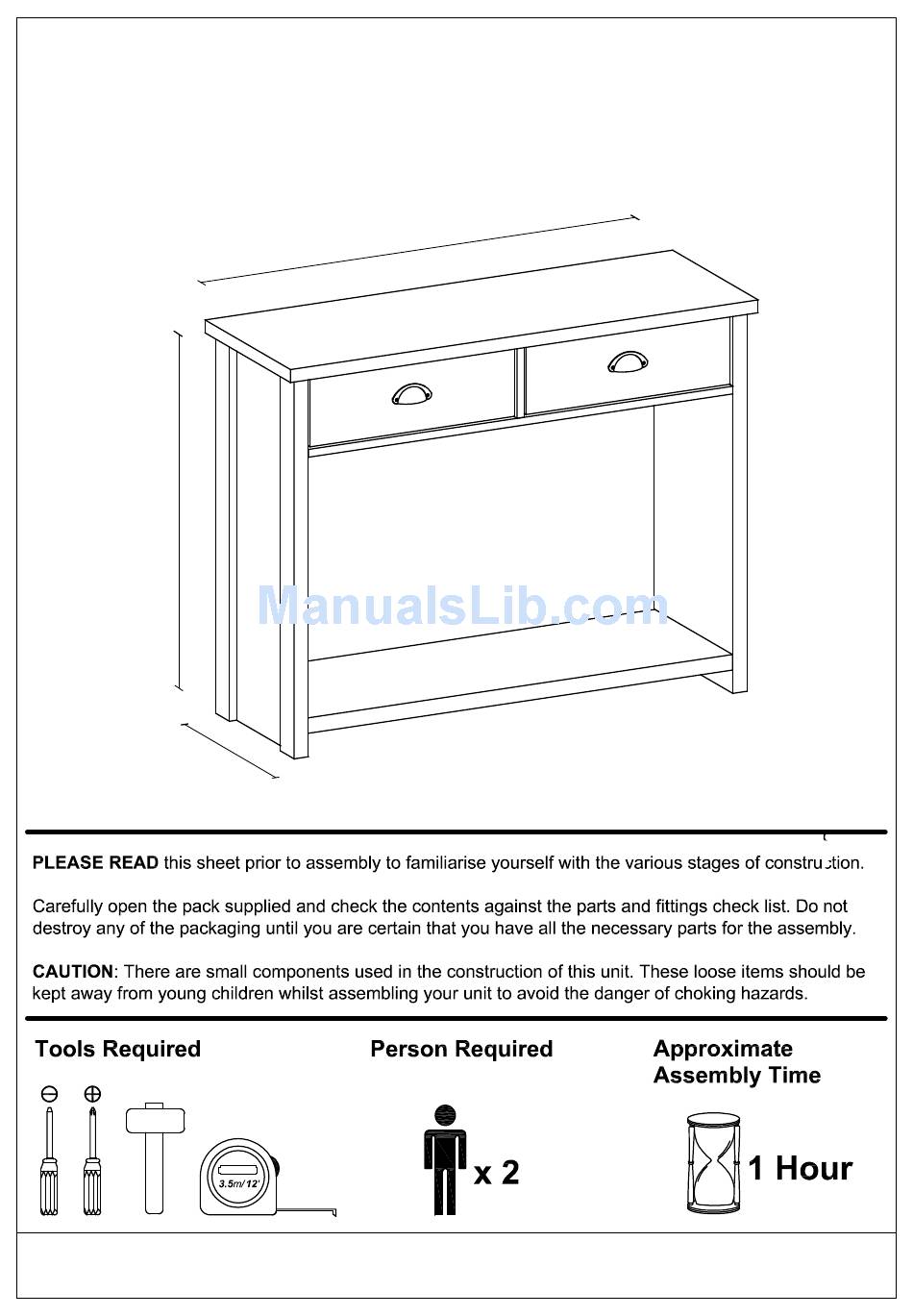

LANCASTER - CONSOLE HALL TABLE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the CONSOLE HALL TABLE.
Please read the instructions carefully to ensure safe operation of the product.
970
760
350
Size : (W)970 x (D)350 x (H)760 mm
Batchh No : PO# 2759
Page 1 of 16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW LANCASTER CONSOLE HALL TABLE
Summary of Contents for GFW LANCASTER CONSOLE HALL TABLE
- Page 1 LANCASTER - CONSOLE HALL TABLE ASSEMBLY INSTRUCTIONS Thank you for purchasing the CONSOLE HALL TABLE. Please read the instructions carefully to ensure safe operation of the product. Size : (W)970 x (D)350 x (H)760 mm Batchh No : PO# 2759 Page 1 of 16...
- Page 2 This product is intended for a maximum weight of 15kgs and drawer load capacity 4kg each. Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to prevent it from scratching.
- Page 3 Side Panel (L) (30) x 320 x 735mm) Rear panel Bar (15 x 80 x 880mm) Side Panel (R) (30) x 320 x 735mm) Bottom Panel Bar (15 x 60 x 880mm) Top Panel (25 x 350 x 370mm) Drawer Front (15 x 160 x 587mm) Bottom Panel (30) x 318 x 880mm) Drawer Side (L) (15 x 100 x 250mm) Back Panel ( 15 x 160 x 880mm)
- Page 4 D6.3 x 40mm M4.7 x 38mm D8 x 30mm M5 x 29mm M6 x 1/2mm Unitar Screw CSK Screw Wooden Dowel Minifix Bolt Handle Screw M3.5 x 15mm 5 x 8 x 13.5mm D15 x 12mm D6 x 9mm Csk Screw Nail Leg Minifix Cam Euro Screw...
- Page 5 STEP 1 21 x Parts Required Qty Parts Required Qty Parts Required Qty Panel (A) Panel (F ) Panel (K) Panel (B) Panel (G) Panel (L) Panel (D) Panel (H) Panel (E ) Panel (I ) Page 5 of 16...
- Page 6 STEP 2 22 x Parts Required Qty Panel (A) Panel (B) Panel (C) Panel (J) STEP 3 Parts Required Qty Panel (A) Panel (B) Panel (F ) Page 6 of 16...
- Page 7 STEP 4 Parts Required Qty Panel (E ) Panel (H) STEP 5 Parts Required Qty Panel (F ) Page 7 of 16...
- Page 8 STEP 6 STEP 7 Parts Required Qty Panel (G) Page 8 of 16...
- Page 9 STEP 8 Parts Required Qty Panel (A) STEP 9 Parts Required Qty Panel (D) Panel (I) Page 9 of 16...
- Page 10 STEP 10 STEP 11 Parts Required Qty Panel (B) Page 10 of 16...
- Page 11 STEP 12 STEP 13 Parts Required Qty Panel (C) Page 11 of 16...
- Page 12 STEP 14 Parts Required Qty Panel (K) Panel (M) Panel (L) STEP 15 Parts Required Qty Panel (Z) Page 12 of 16...
- Page 13 STEP 16 Parts Required Qty Panel (J) STEP 17 Page 13 of 16...
- Page 14 STEP 17 STEP 18 Page 14 of 16...
- Page 15 STEP 19 Put the screw in the top panel hole of your furniture Make a hole in the wall and put the wall plug in Put the screw in the wall plug hole NOTE : Wall fixing are not supplied with this product as different devices (such as Rawl plugs on brick work).You must use fixing devices suitable for the Csk Screw (M3.5x15mm)
- Page 16 Your LANCASTER CONSOLE HALL TABLE is now completely assembled Page 16 of 16...
