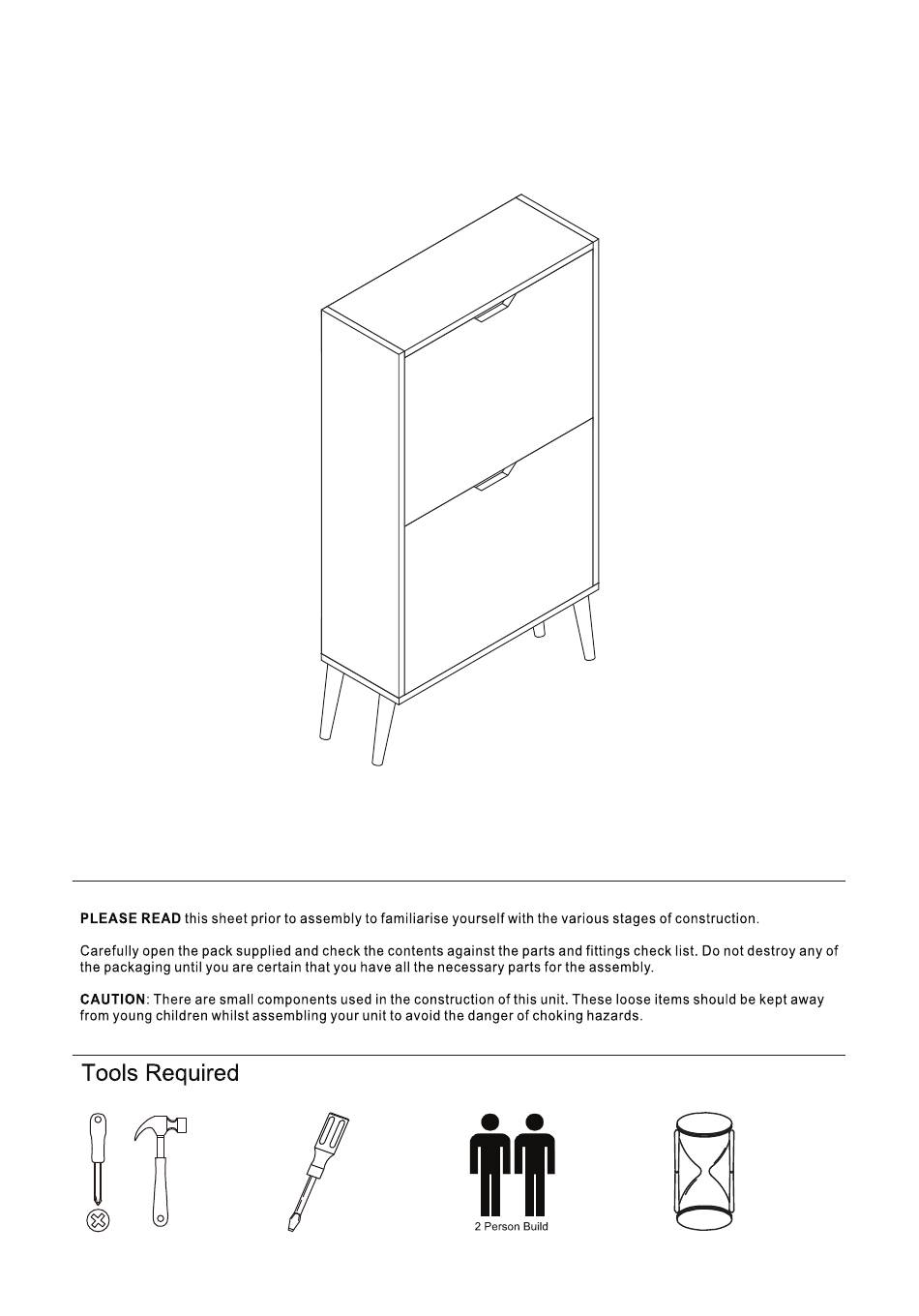

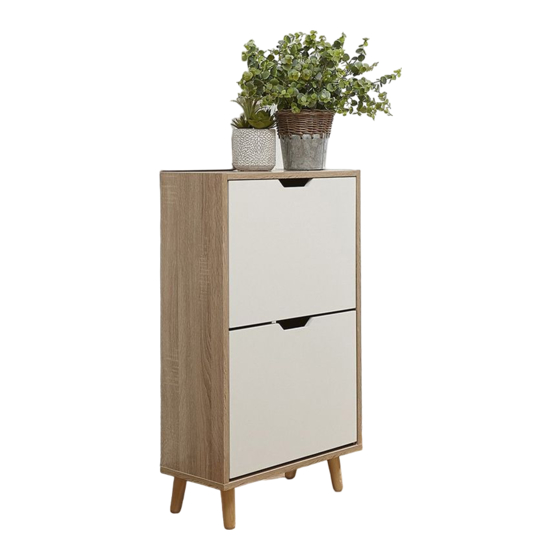

- Page 1 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Thank you for purchasing the STOCKHOLM TWO TIER SHOE CABINET. Please read the instructions carefully to ensure safe operation of the product. Size: W47.0 x D23.0 x H88.8cm COLOUR: WHITE & OAK 1 Hour Set Up Batch No.WMI16579(PO#2653) Page 1 of 14...
-
Page 2: Care Information
STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is intended for a maximum load of 20 kg spread evenly thorough the storage compartments. Do not exceed this weight. Due to the size of this product we recommend that it is assembled in the room intended for use. - Page 3 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling this product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Batch No.WMI16579(PO#2653) Page 3 of 14...
- Page 4 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS DESCRIPTION: TOP PANEL DESCRIPTION: LEFT SIDE PANEL DESCRIPTION: RIGHT SIDE PANEL QTY:1 PC QTY:1 PC QTY:1 PC DIMENSION3:440X230X15MM DIMENSION3:765X230X15MM DIMENSION3:765X230X15MM DESCRIPTION: BOTTOM PANEL DESCRIPTION: SUPPORT PANEL DESCRIPTION: UPSIDE BACK PANEL QTY:1 PC QTY:1 PC QTY:1 PC DIMENSION3:470X230X15MM DIMENSION3:440X50X15MM...
- Page 5 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS FIXINGS (TO SCALE) Dimensions SCREWS (4x35mm) SCREWS (4x14mm) SCREWS (4x12mm) DOWEL (6X30MM) NAIL (1.5x10mm) NOT TO SCALE STICKERS LEG BRACKETS OUTER AXIS STOPPER INNER AXIS LEFT SIDE BRACKET RIGHT SIDE BRACKET WALL FIXING HARDWARE CAUTION: There are many small components used in the construction of this product.
- Page 6 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Layout Parts on Soft Surface Layout all part on a soft surface i.e. Rug,carpet or packaging carton Batch No.WMI16579(PO#2653) Page 6 of 14...
- Page 7 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS DRAWER FRONT PANEL DRAWER BACK SHELF PANEL DRAWER BOTTOM PANEL SCREWS C:SCREWS X4 LEFT SIDE BRACKET X2 RIGHT SIDE BRACKET X2 LEFT SIDE PANEL RIGHT SIDE PANEL OUTER AXIS X4 STOPPER X 4 Batch No.WMI16579(PO#2653) Page7 of 14...
-
Page 8: Bracket Adjustment
STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS 1:TOP PANEL X1 :WALL FIXING X1 BRACKET ADJUSTMENT 1:TOP PANEL X1 LEFT SIDE PANEL 3:BOTTOM PANEL X1 5:RIGHT SIDE PANEL X1 A:SCREWS X8 DOWEL Batch No.WMI16579(PO#2653) Page 8 of 14... - Page 9 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS BOTTOM PANEL A:SCREWS X4 DOWEL UPSIDE BACK PANEL X1 UNDERSIDE PACK PANEL X1 NAIL Batch No.WMI16579(PO#2653) Page 9 of 14...
- Page 10 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS STEP 7 SCREWS G:LEG BRACKETS STEP 8 WOODEN LEGS Batch No.WMI16579(PO#2653) Page 10 of 14...
- Page 11 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS WALL STRAP M:WALL FIXING X1 Remark iii) Batch No.WMI16579(PO#2653) Page 11 of 14...
- Page 12 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS STEP 9 SCREWS : INNER AXIS X 4 STEP 10 SCREWS Batch No.WMI16579(PO#2653) Page 12 of 14...
- Page 13 STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS STEP 11 STICKERS Batch No.WMI16579(PO#2653) Page 13 of 14...
-
Page 14: Complete Assembly
STOCKHOLM TWO TIER SHOE CABINET ASSEMBLY INSTRUCTIONS Complete Assembly STOCKHOLM TWO TIER SHOE CABINET Your is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure. Retain these instructions for future reference.
