GNSS tracking current is tested in the following conditions:
For Cold Start, 10 minutes after First Fix.

For Hot Start, 15 seconds after First Fix.


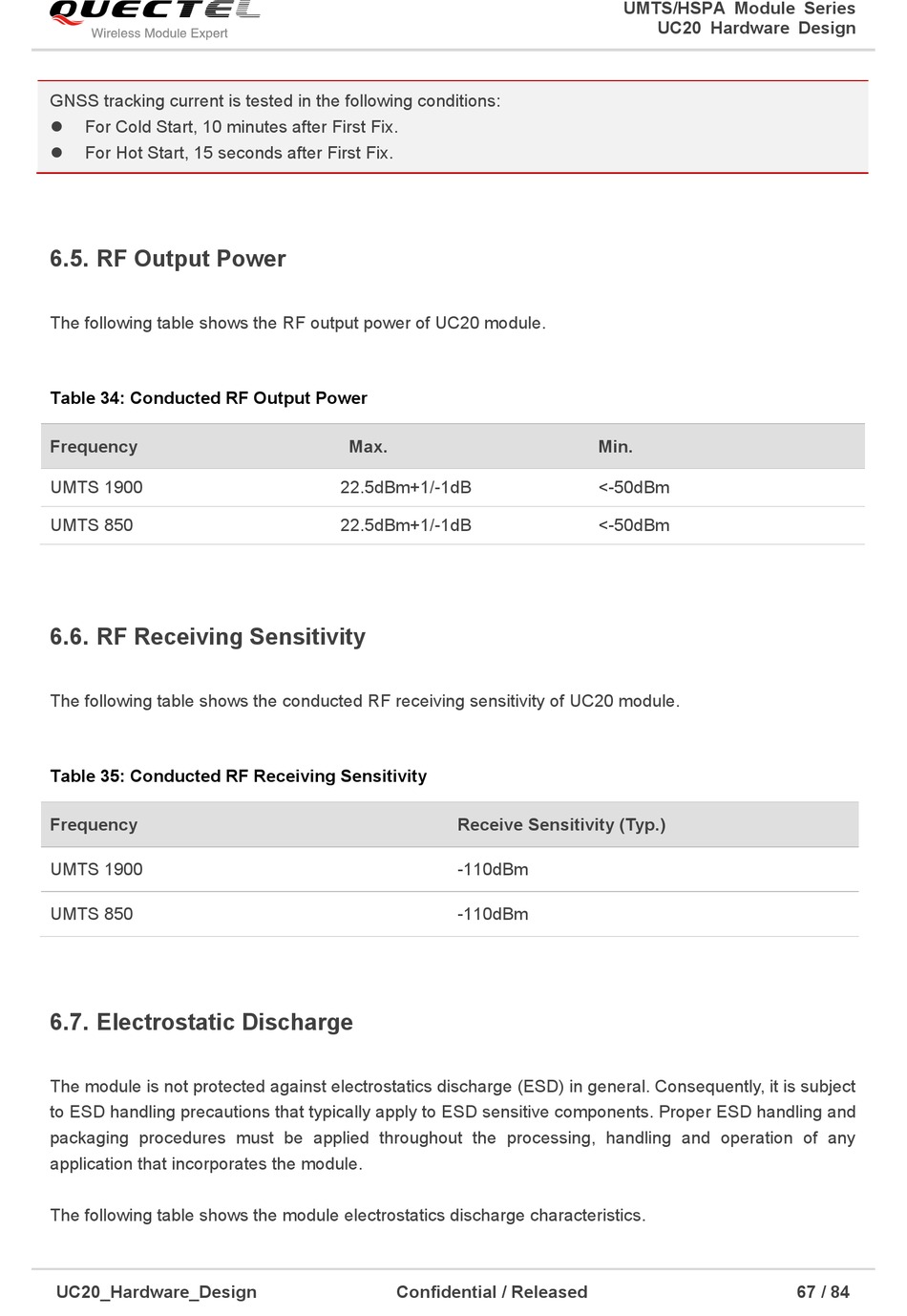

6.5. RF Output Power

The following table shows the RF output power of UC20 module.
Table 34: Conducted RF Output Power
Frequency
UMTS 1900
UMTS 850

6.6. RF Receiving Sensitivity

The following table shows the conducted RF receiving sensitivity of UC20 module.
Table 35: Conducted RF Receiving Sensitivity
Frequency
UMTS 1900
UMTS 850

6.7. Electrostatic Discharge

The module is not protected against electrostatics discharge (ESD) in general. Consequently, it is subject
to ESD handling precautions that typically apply to ESD sensitive components. Proper ESD handling and
packaging procedures must be applied throughout the processing, handling and operation of any
application that incorporates the module.
The following table shows the module electrostatics discharge characteristics.
UC20_Hardware_Design
Max.
22.5dBm+1/-1dB
22.5dBm+1/-1dB
Receive Sensitivity (Typ.)
-110dBm
-110dBm
Confidential / Released
UMTS/HSPA Module Series
UC20 Hardware Design
Min.
<-50dBm
<-50dBm
67 / 84
