Table 14: Pin Description Of Amphenol Usim Connector - Quectel UC20 Manual

For 6-pin USIM connector, it is recommended to use Amphenol C707 10M006 512 2. Please visit
http://www.amphenol.com for more information.

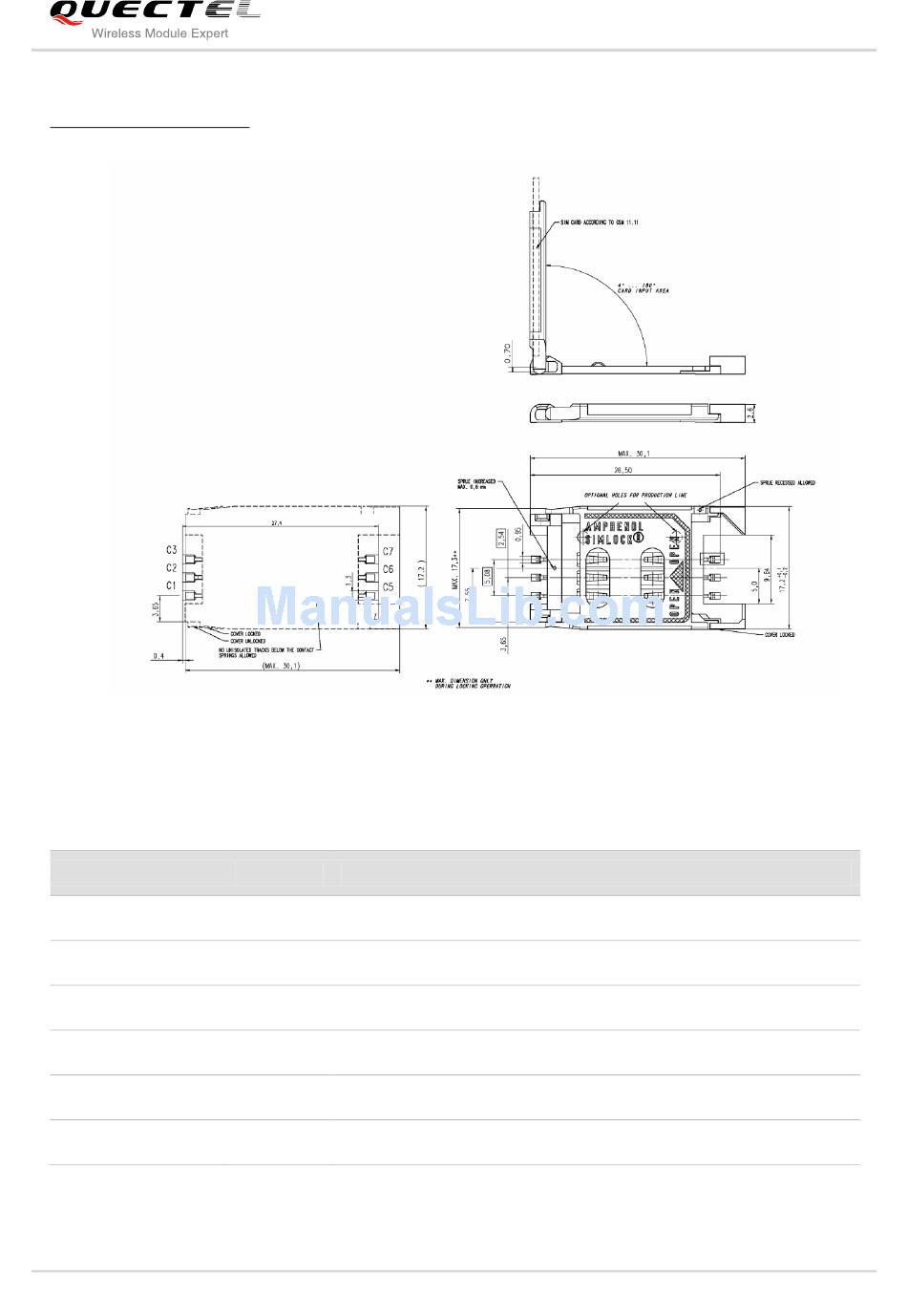

Figure 25: Amphenol C707 10M006 512 2 USIM Card Connector

Table 14: Pin Description of Amphenol USIM Connector

Name
VDD
RST
CLK
GND
VPP
DATA I/O
UC20_Hardware_Design
Pin Function
C1 USIM card power supply.
C2 USIM card reset.
C3 USIM card clock.
C5 Ground.
C6 Not connected.
C7 USIM card data.
