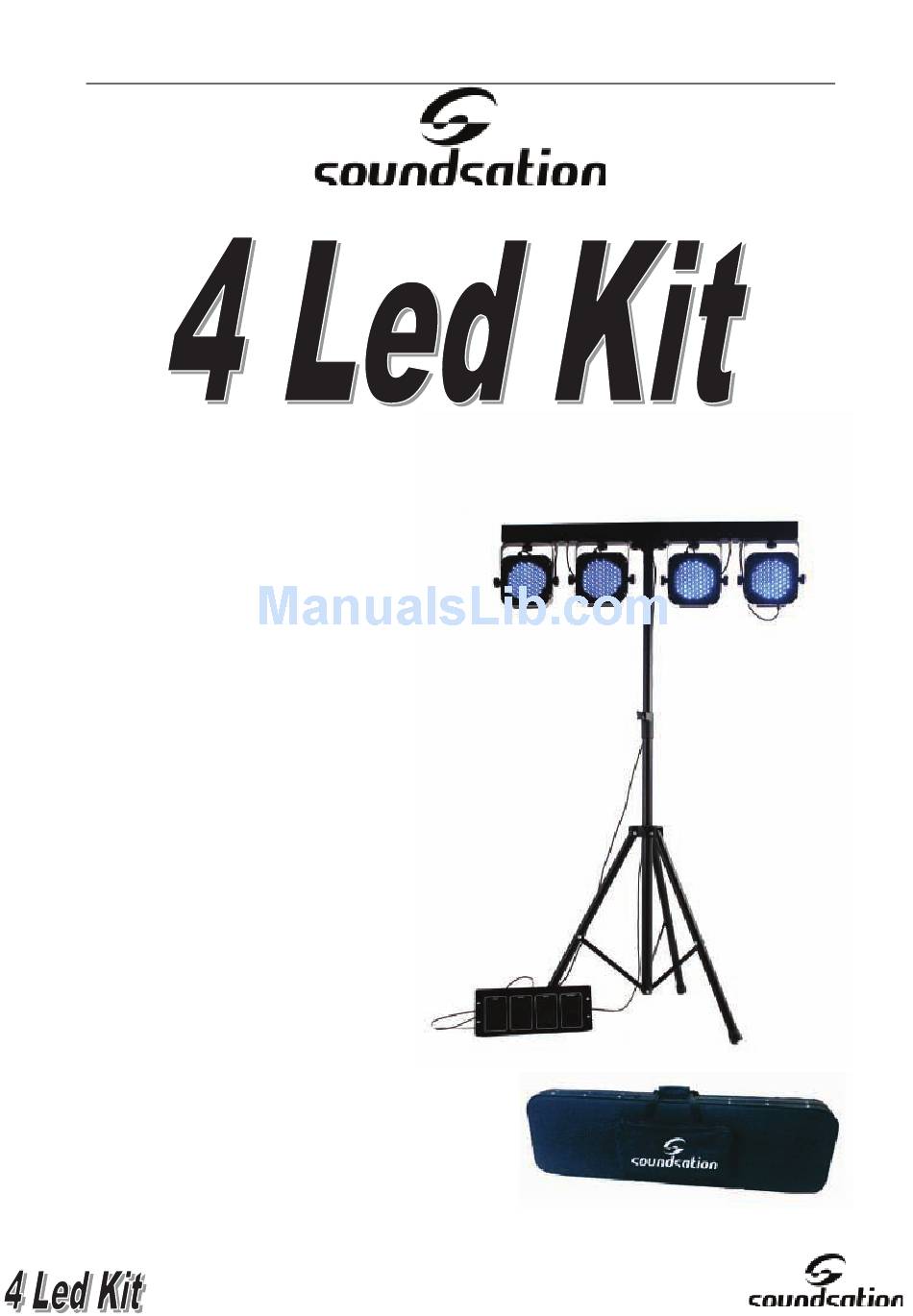

Page 1: User Manual
www.soundsationmusic.com User Manual... -
Page 2: Table Of Contents
www.soundsationmusic.com CONTENTS 2. introduction 3. features 4. general setup 5. operating instructions 6. display touch buttons 7. DMX Channel reference tables 9. product maintenance & troubleshooting 10. technical specifications 11. disclaimers 12. warranty & services 13. WEEE disclosure... -
Page 3: Introduction
SOUNDSATION 4 Led Kit is a DMX intelligent LED light set. Each of the 4 light panel included is LED which means light weight and compact style that makes it a great piece for mobile DJ’s and clubs. -
Page 4: Features
www.soundsationmusic.com FEATURES - 4 lightweight LED light panels - 212 pcs 5mm (71R,70G,71B) led lamps each panel – total in the package 848 pcs - 50.000 hours long life lamps - RGB color mixing - Control Channels: 5 or 14CH - Color Strobe - Master/Slave synchronization - DMX-512 protocol... -
Page 5: General Setup
Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your 4 Led Kit . The 4 Led Kit is workable in 100-220V/50~60Hz. Because line voltage may vary from venue to venue, you should be sure your unit voltage matches the wall outlet voltage before attempting to operate you fixture. -
Page 6: Operating Instructions
Operating Instructions OPERATING MODES You can use the 4 Led Kit in 4 ways: Sound activation The unit will activated by the sound signal. Static display The unit will display the pattern in static way. Auto Mode The unit will automatically chase through the different patterns. -
Page 7: Display Touch Buttons
www.soundsationmusic.com Display Touch Buttons Hang the Color Picker on the frame and adjust to a right angle. Lamp:4X5mm212pcs(71R,70G,71B),Sound control, Automatics,DMX512. Connect signal wire .Plug one end of the signal wire into INPOUT socket on the rear the projector System..The other end into OUTPUT which is singnal output of DMX512.Feetl.2 and 3 of signal input socket(1 Ground 2 data-3 data +) setup state IF autonation ,method of Digital display... - Page 8 www.soundsationmusic.com please read the following picture 14CH DMX intelligent lighting controller) 1channel light closed Red lasting lighted From dark to bright 1-255 1par 2 channel light closed 1-255 Green lasting lighted From dark to bright 3 channel light closed B1ue lasting lighted From dark to bright 1-255 4channel light closed...
- Page 9 www.soundsationmusic.com TTON FUNCTION PRODUCT MANTENANCE Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe down the outside casing. 2.
-
Page 10: Technical Specifications
Technical Specifications Model name : 4 Led Kit Working Position : any safe working position Power Supply : Switching power supply Voltage : AC 100-240V /50~60Hz - Fuse - 2A (220v) Power Consumption : 90W Colors : RGB Color Mixing... - Page 11 www.soundsationmusic.com WARNINGS ( Please read carefully ) - To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. - Do not spill water or other liquids into or on to your unit. - Be sure that the local power outlet match that of the required voltage for your unit.
-
Page 12: Warranty & Services
Alternatively you can send the product to SOUNDSATION SERVICE CEN TER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product to service center you need an RMA number. - Page 13 www.soundsationmusic.com PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive ( 2202/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (WEEE) .
