The PosiTector Surface Profile Gage (SPG) is a hand-held
electronic instrument that measures the peak-to-valley height of
the surface profile of abrasive blast cleaned surfaces or textured
coatings. It consists of a PosiTector body (Standard or Advanced )
and probe.
This Quick Guide summarizes the basic functions of the Gage.
Download the full instruction manual at:
www.defelsko.com/manuals
The PosiTector SPG powers-up when the center navigation button
is pressed. To preserve battery life, the Gage powers down after
approximately 5 minutes of no activity. All settings are retained.
1. Remove the protective rubber cap from probe.
2. Power-up Gage by pressing the center navigation
3. Place the glass plate onto a stable, flat surface. Take several
measurements. If the average is greater than ±5 µm (0.2 mil),
Zero (pg. 3) the Gage.
4. Place the probe FLAT on the surface to be measured such
that the tip of the probe reaches into the bottom of a profile
valley. HOLD STEADY. The Gage will BEEP twice and
display the measurement.
5. Lift the probe from the surface between measurements.

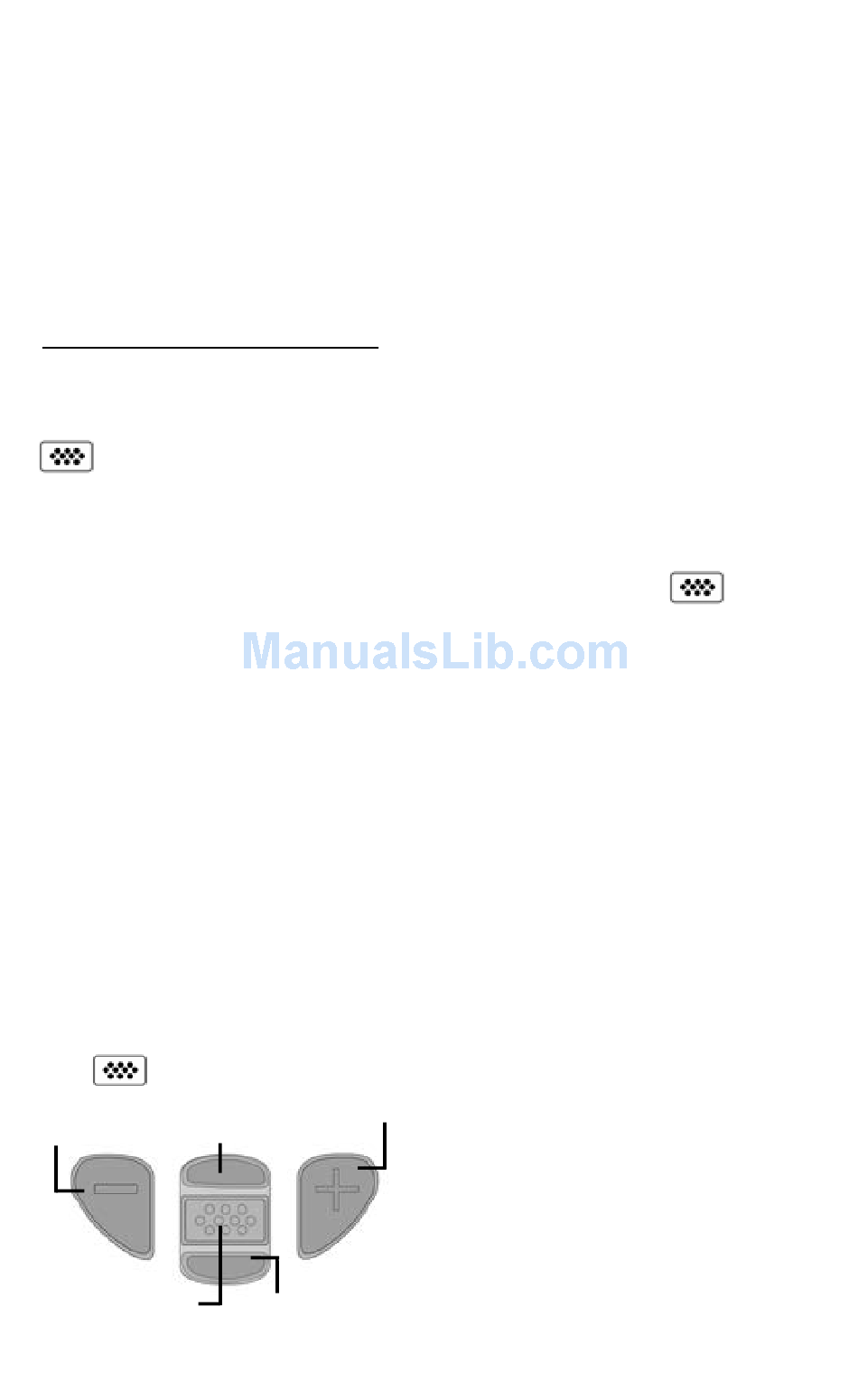

Gage functions are menu controlled. To access the Menu,
power-up the gage, then press the center navigation button.
To navigate, use the Up and Down buttons to scroll vertically
to SELECT.
and
Previous Page
(Exit)
Access the Menu
(Center/Select)
Introduction

Quick Start

Menu Operation

Next Page
Up
Down
Press the ( + ) button to switch
pages in a multipage menu
Press the (-) button to return
to the previous menu or page.
Select Exit to exit from any menu.
1
button.
