INSTALLATION INSTRUCTIONS
Bath Panels

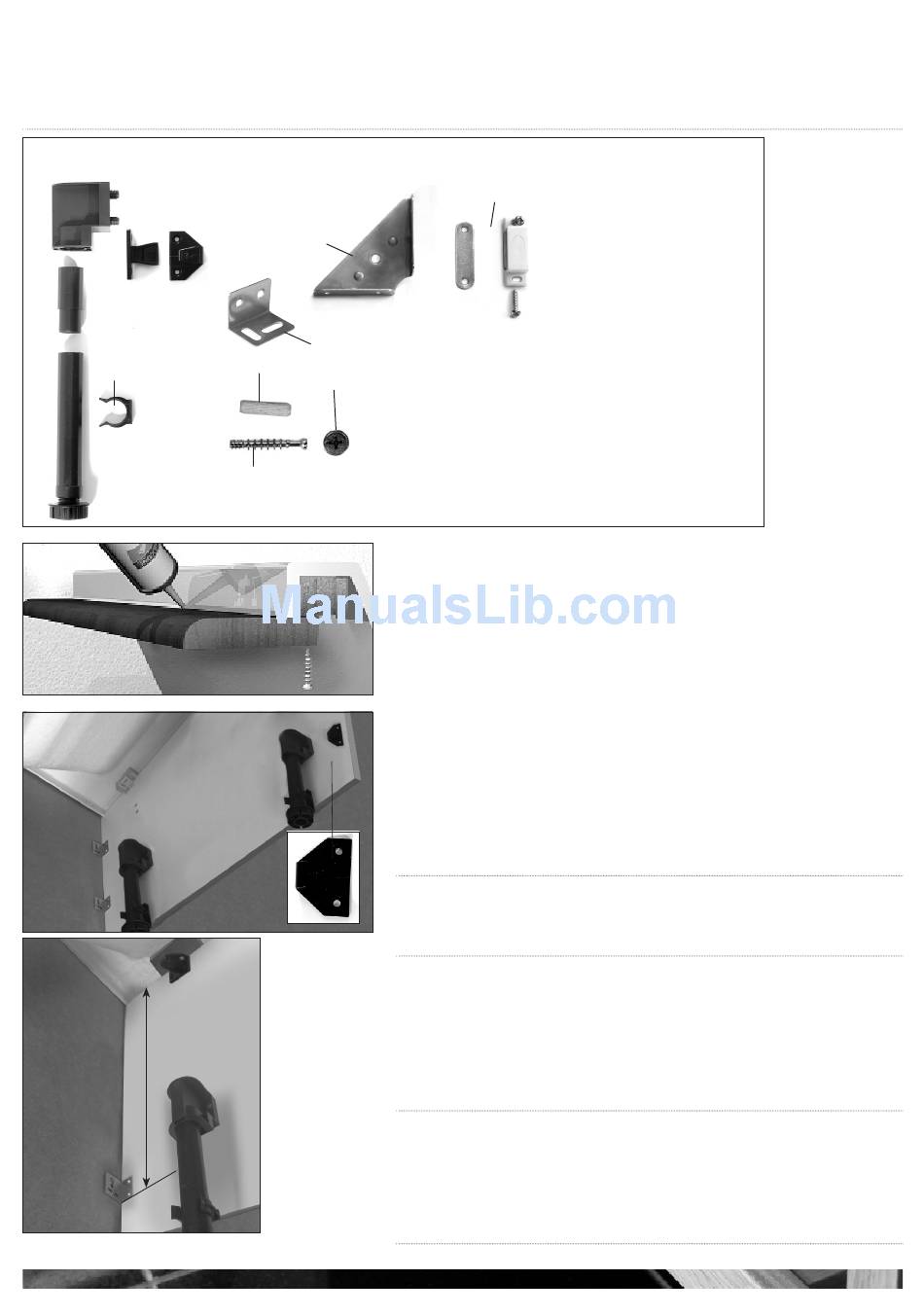

COMPONENT IDENTIFICATION
SOCKET
KEKU CLIPS
LEG
EXTENSION
LEG CLIP
LEG
fig 1
END PANEL
WALL
fig 2
fig 3
SIDE PANEL
300mm
WALL
L BRACKET
AS A STOP
WWW.UTOPIAGROUP .COM
CORNER
SUPPORT
ONLY USE ROUND-HEADED
'L' BRACKET
DOWEL
CAM
BOLT
Including the Dualelle, Roundelle and Definity.
Please note:
The bath being fitted must have a wooden batten fitted under the bath rim to hold the
bath panel clips. In the event that the bath being fitted does not have any timber for these
clips, the installer will need to fit timber under the bath rim as necessary. Depending on
tiling, panels may be required to be trimmed to walls.
Bath panels are not supplied with plinth return corner.
Remove all protective film from panels before fixing together. Note in some instances
the pre-drilled holes will be covered by the panels finish. These holes will need to be
reinstated.
Wall fixings are not supplied - a suitable fixing for the wall must be used by the installer.
All cut panels must be sealed with a high quality silicone sealant.
Baths with a 350mm high panel and fitted plinth – the plinth must line up with the furniture
which has a 175mm plinth. When using a 500mm high panel with a plinth, set the height
required for the bath being fitted. See page 6 for fitting a plinth. Bath panel plinths are not
supplied with plinth returns.
INSTALLATION HELP NOTES
The bath panel top rail is set under the rim of the bath, with the desired amount of rail
showing and fixed to the bath timber. All bath panels are fitted under this rail
END PANEL
Important - the End Panel should be fitted before fitting the Side Panel.
When the bath has an end panel, fix this with the 'L' brackets to the wall and the timber
under the bath rim.
Two black Keku clips can be fitted to the front edge to allow the bath side panel to be
removable
SIDE PANEL
The three black Keku clips can be fixed to the timber under the bath rim to give the required
finish for the bath panel. The two 'L' brackets will be used as stops at the side walls – fit about
300mm from the top of the panel
We suggest panel legs are fixed to the floor, this will avoid sliding when plinth is fitted.
MAGNET CATCH
AND PLATE
SCREWS WITH THE CATCH
(see fig 2)
.
(see fig 3)
.
(see fig 1)
page 27
