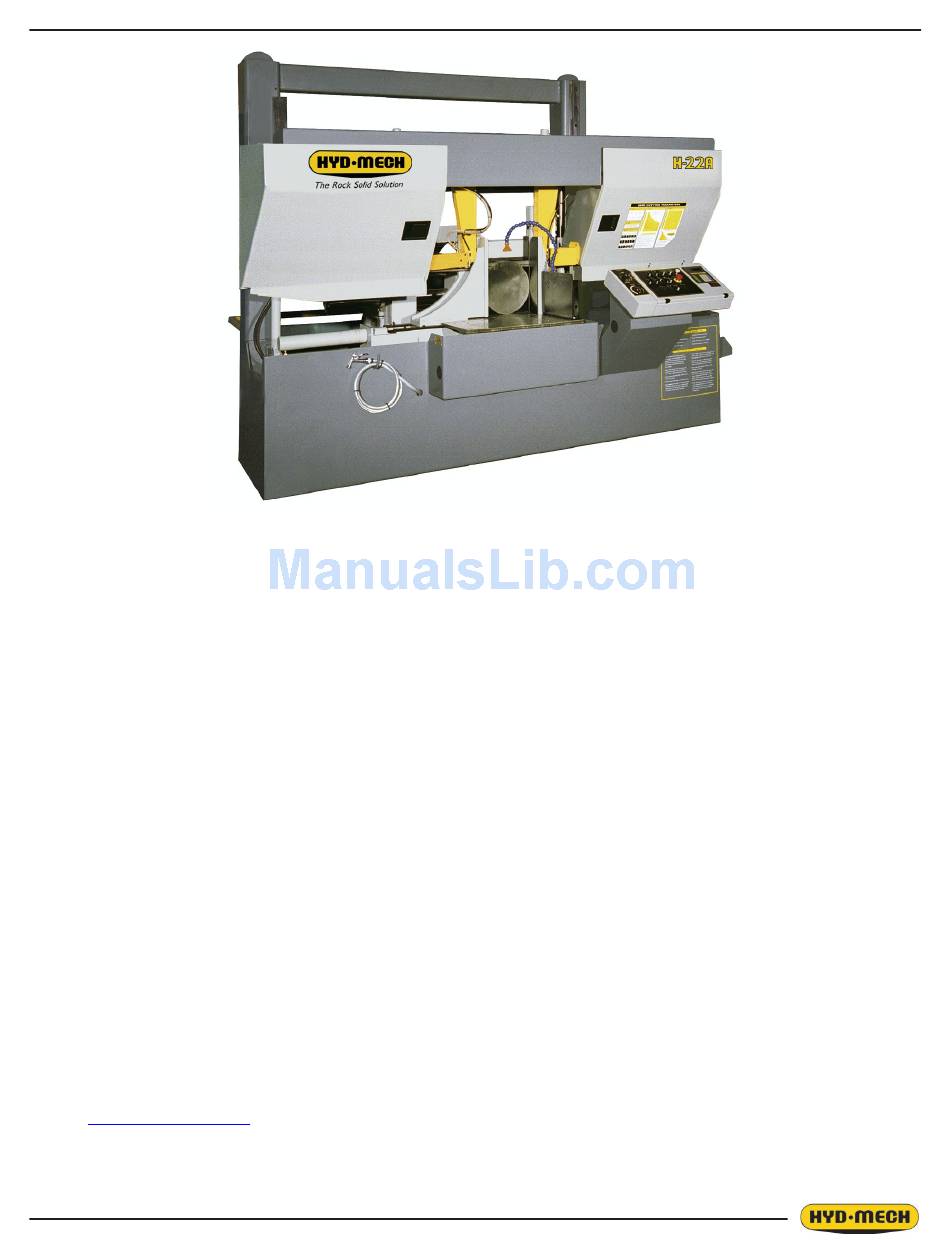

H-18/22 ASV
393115
November 2004, REV G
Thank you,
On behalf of everyone at HYD·MECH Group Limited, I would like to thank and congratulate you on your decision to pur-
chase a HYD·MECH bandsaw.
Your new machine is now ready to play a key role in increasing the efficiency of your operation, helping you to reduce cost
while boosting quality and productivity.
To ensure you are maximizing the power and versatility of your new HYD·MECH bandsaw, please take the time to famil-
iarize yourself and your employees with the correct operation and maintenance procedures as outlined in this manual.
We sincerely appreciate the confidence you have demonstrated in purchasing our product and look forward to building a
long and mutually beneficial relationship.
Thank you
Hyd·Mech Group Limited
P.O. Box 1030, 1079 Parkinson Road
Woodstock, Ontario, N4S 8A4
Phone : (519) 539-6341
Service : 1-877-237-0914
Sales : 1-877-276-SAWS (7297)
Fax : (519) 539-5126
info@hydmech.com
e-mail :

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-18 ASV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyd-Mech H-18 ASV

Summary of Contents for Hyd-Mech H-18 ASV

  • Page 1 H-18/22 ASV 393115 November 2004, REV G Thank you, On behalf of everyone at HYD·MECH Group Limited, I would like to thank and congratulate you on your decision to pur- chase a HYD·MECH bandsaw. Your new machine is now ready to play a key role in increasing the efficiency of your operation, helping you to reduce cost while boosting quality and productivity.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION 1, INSTALLATION SAFETY PRECAUTIONS............................1.1 H-18/22 SV LIFTING INSTRUCTIONS ........................1.2 FOUNDATION, LEVELLING AND ANCHORING ......................1.3 WIRING CONNECTIONS............................1.3 HYDRAULIC OIL AND CUTTING FLUID ........................1.4 SECTION 2, OPERATION BLADE BASICS ................................2.1 VARIABLE SPEED CONTROL ........................... 2.1 THE CONTROL PANEL ..............................
  • Page 3 SECTION 4, ELECTRICAL GENERAL INFORMATION............................4.1 INITIAL HOOKUP................................ 4.1 H-18/22 SV ELECTRICAL SCHEMATIC, NO OPTIONS 208/240 VAC ..............4.8 H-18/22 SV ELECTRICAL WIRING DIAGRAM, NO OPTIONS 208/240 VAC ............4.12 H-18/22 SV ELECTRICAL WIRING DIAGRAM INPUTS & OUTPUTS, NO OPTIONS 208/240 VAC ......4.18 H-18/22 SV ELECTRICAL SCHEMATIC, WITH OPTIONS, 208/240 VAC ..............

  • Page 5: Section 1, Installation

    MAINTAIN PROPER ADJUSTMENT OF BLADE TENSION, BLADE GUIDES, AND BEARINGS • HOLD WORKPIECE FIRMLY AGAINST TABLE. • DO NOT REMOVE JAMMED CUTOFF PIECES UNTIL BLADE HAS STOPPED. NO MODIFICATIONS TO THE MACHINE ARE PERMITTED WITHOUT PRIOR APPROVAL FROM HYD-MECH. ANY APPROVED MODIFICATIONS SHOULD ONLY BE UNDERTAKEN BY TRAINED PERSONNEL.

  • Page 6: H-18/22 Sv Lifting Instructions

    H-18/22 SV LIFTING INSTRUCTIONS...

  • Page 7: Foundation, Levelling And Anchoring

    FOUNDATION, LEVELLING AND ANCHORING Machine location should be carefully selected. A flat con- crete floor area should be chosen. It should have enough free space surrounding the machine to enable free access for safe operation and maintenance. Machine should be leveled in both directions i.e. along and across its in-feed conveyor especially when machine is to be inserted into a larger conveyor system.

  • Page 8: Hydraulic Oil And Cutting Fluid

    HYDRAULIC OIL AND CUTTING FLUID The H-18/22 SV bandsaw is supplied with Arco Duro 46 hydraulic oil. If it is necessary to change the oil to a different brand see the HYDRAULIC SECTION for equivalent grade oil. No cutting fluid is supplied with the machine. There are two types of coolant available: •...

  • Page 9: Blade Basics

    SECTION 2, OPERATING INSTRUCTIONS This section has been prepared to give the operator the ability to set up the saw for most cutting situations. Before cutting any material, the operator should be familiar with all operations and controls as well as the basic cutting theory described below.
  • Page 10 FRONT VISE - This switch has three positions, OPEN, HOLD and CLOSE. With the switch held in the OPEN position the vise will open all the way or until the switch is released. With the switch in the HOLD position, the vise will stay where it is and will not move freely although it will not resist a large force indefinitely without creeping.
  • Page 11 SHUTTLE VISE - This switch has three positions, OPEN, HOLD and CLOSE. With the switch held in the OPEN position the vise will open all the way or until the switch is released. With the switch in the HOLD position, the vise will stay where it is and will not move freely although it will not resist a large force indefinitely without creeping.

  • Page 12: Plc 100 Control Systems

    PLC 100 CONTROL SYSTEMS NOTE: This instruction manual is applicable to the H-18/22 SV equipped with a MITSUBISHI PLC manufactured after and including the following serial numbers: Machine Model Serial # H-18S B1001099, B1001103 DISPLAY WINDOW PLC FUNCTION KEYS CURSOR KEYS NUMERIC KEY PAD ENTER KEY OPERATION OVERVIEW...

  • Page 13: Activating The Plc

    ACTIVATING THE PLC Position the head, fixed vise, and shuttle vise switches to the NEUTRAL (center) positions. If any of these switches are not in the NEUTRAL position, the hydraulics will not start. The PLC control will become active when the HYDRAULIC START button is depressed and “held in”...

  • Page 14: Single Part Cycle Operation

    SINGLE PART CYCLE OPERATION In MAN mode, the PLC allows the operator to initiate a “Single Part Cycle” to cut one piece at a desired length. To accom- plish this, follow the procedure below. 1. A trim cut should be made before initiating the “Single Part Cycle” operation. 2.

  • Page 15: Automatic Operation

    AUTOMATIC OPERATION When the AUTO/MAN button is pressed, the red indicator light above it will come on, and the blade will stop if it has been running. The screen will change to the JOB display window as shown below and be ready for editing or starting a new job. All manual functions will be disabled.

  • Page 16: Working With A Queue

    WORKING WITH A QUEUE The purpose of a QUEUE is to allow the operator to run several jobs (max of 5) in series if they are of the same material and shape. In AUTO mode, press the key below the word “QUE” on the display and the display window will appear as shown. If you choose to VIEW the QUEUE, press the key below the words “VIEW QUE”...

  • Page 17: Hydraulic Feed Control

    HYDRAULIC FEED CONTROL The Hydraulic Feed Control is located to the left of the control panel. These controls allow independent control of Feed Force and Feed Rate. FEED FORCE KNOB USED TO SET FEED FORCE LIMIT (COUNTERCLOCKWISE ROTATION TO INCREASE AND CLOCKWISE ROTATION TO DECREASE).

  • Page 18: Cutting Parameters Chart

    CUTTING PARAMETERS CHART A full size CUTTING PARAMETERS CHART is mounted on the front of the saw. The chart contains five steps for the operator to follow in order to achieve optimum perfor- mance of the saw. These steps are detailed on the following pages. CHART EXAMPLE #1 We will use the parameters chart to set up the saw for cutting 8”...
  • Page 19 many teeth per inch (T.P.I.) is recommended. For wide materials a blade with a coarse pitch should be used. The sketch can be referenced for the blade pitch changes for differing effective material widths. It is impractical to change the blade to the proper pitch every time a different width of material is cut and it is not necessary, but remember that the optimum blade will cut most efficiently.
  • Page 20 back up. To set FEED RATE for particular cutting situations use the Graph below, which represents the relationship be- tween FEED RATE, blade speed and blade pitch. MATERIALS OPTIMUM BLADE SPEED ft/min m/min 5” (125mm) Dia Solid Carbon Steel 12” (300mm) I-Beam 4”...

  • Page 21: Additional Controls

    Optimum Pitch 10/14 8/12 6/10 0.67 0.54 0.42 0.29 0.21 1.4/2.5 0.17 .85/1.5 10/14 8/12 6/10 1.4/2.5 .85/1.5 If your blade is finer than optimum blade pitch, multiply feed rate, FR, by above factors ft/min X .60 = 135ft/min Step 5 Feed Rate for 3/4 TPI blade: 1.8 in/min (45mm/min) Feed Rate for 4/6 TPI blade: 1.8 in/min X .70 = 1.3in/min (reduced by finer than optimum blade pitch fac- tor)

  • Page 22: Head Up And Down Limit Setting

    When cutting materials that do not need constant coolant, such as Cast Iron, some coolant flow is required for blade lubri- cation to prevent blade scoring by the carbide pads as the blade moves through them. HEAD UP and DOWN LIMIT SETTING The head up limit is used to restrict the distance the head travels for each stroke.

  • Page 23: Bundling Operation (Option)

    BUNDLING OPERATION (OPTION) The bundling vises can be operated in direct conjunction with the front and shuttle vises or at a slower clamping speed. Either bundling can be turned on or off at any time. The on / off valves are shown in the photos. The speed at which the bundling jaws close can be adjusted as required by turning the flow control valves (shown in the photos) for each bundling cylinder.

  • Page 25: Section 3, Maintenance & Troubleshooting

    SECTION 3, MAINTENANCE AND TROUBLE SHOOTING LOCK -OUT Purpose: To prevent injury to workers caused by unexpected start-up of machines being worked on. Where the starting of a machine or device may endanger the safety of a worker a. Control switches or other control mechanisms shall be locked out; b.

  • Page 26: Blade Brush Adjustment

    BLADE BRUSH ADJUSTMENT The blade brush is properly set when machine leaves the factory, but it wears out during operation and needs to be read- justed periodically. The blade brush assembly is found behind the drive side door and is shown below. To adjust the as- sembly, loosen the hex nut, turn the set screw counterclockwise until the wires on the brush touch the bottom of the blade gullets and tighten the hex nut.

  • Page 27: Cam Follower Adjustment

    CAM FOLLOWER ADJUSTMENT There are two cam followers mounted on the head frame. The set of cam followers are shown on the following page(s). One of them is fixed and the other is adjustable. The cam followers are factory set and usually do not require adjustment. In a properly adjusted system of cam followers only one side should be in contact with the guide.

  • Page 28: Gearbox Lubrication (H-18Asv With A503 Gearbox)

    IDLER WHEEL TENSIONER (ONE AT BOTH ENDS) CAM FOLLOWER GREASE NIPPLES 4 GUIDE ARM GREASE POINTS 2 VISE SHUTTLE VISE GREASE 2 SHUTTLE SHAFT BEARING HOUS- NIPPLES INGS GEARBOX LUBRICATION (H-18ASV WITH A503 GEARBOX) The Bonfiglioli A503 gearbox used on the H18 is supplied with 5.3 litres (1.35 US gallon) of Mobil SHC 630 synthetic oil.

  • Page 29: Output Shaft Lubrication

    Oil can be changed by draining through plug, E, and filling at plug F. If the type of oil is being changed, it is advisable to flush the old oil by filling the box with the normal quantity of the new oil, running it briefly at mod- erate speed, and then draining the box again, before re-filling it with a fresh quantity of the new oil.

  • Page 30: Cleanliness

    7. BLADE TENSION – Blade tension pressure is factory set and should not require any farther attention. For adjustment see hydraulic schematic. 8. CARBIDE PRESSURE Carbide lock pressure is factory preset: • H-18SV 300 – 400 PSI • H-22SV 150 – 200 PSI The pressure gauge is not provided.
  • Page 31 Blade pitch too fine. Select coarser pitch. Blade brush not cleaning. Adjust or replace blade brush. Tooth strippage. Excessive feed rate. Reduce. Excessive feed force. Reduce. No coolant. Add coolant. No coolant flow. Coolant line blocked. Blow out coolant line. Coolant pump inoperable.

  • Page 32: Progammable Logic Control

    In Automatic Mode Auto cycle will not No job queue programmed to Enter job numbers(s) and job data as de- start. run. scribed in Section 2. PROGAMMABLE LOGIC CONTROL Note: The PLC is equipped with a lithium battery to keep the program stored while the power is shut down. The bat- tery will need to be replaced every 3 to 5 years, depending on the usage.
  • Page 33 justment factor X existing speed factor = New Speed Factor WHEEL TRGETS Number of targets per revolution of the idler wheel. S20A, S23A, H10/14, M16/20 = 1 H18/22, H28/32 = 6. HGT CLB (Press Enter) This is to be used only if calibration is required. Call Hyd·Mech Service department for instruction. ACTUAL HGT Actual Height Value.

  • Page 34: Plc Troubleshotting

    Activates feed rate display. Not active on S20A, S23A and H10 machines. ACTUAL POSITION If this value is set to “YES” displays shuttle vise actual position. HOLD SHT HOME Hold shuttle VISE home and closed during cut. BRKN PROX Allows user to override signal from prox switch in case it is broken. (When set to “NO” machine will not run with broken proximity sensor.
  • Page 35 1. Encoder a. Pinion gear is loose on the encoder shaft b. A bad encoder 2. Encoder Cable a. Bad connections at the encoder or the PLC b. Open or shorted wire. 3. PLC Unit a. Damaged hardware 4. Display unit a.
  • Page 36 Possible Causes: 1. Encoder a. Pinion not engaging the rack all the way from front to back. b. Mechanical interference. c. Pinion loose on the encoder shaft. 2. Encoder Cable a. Bad connection at encoder or at the PLC b. Intermittent open in one or more signal wires 3.
  • Page 37 The display should ready 3.142” (positive or negative depending on the direction you rotated). Repeat this test 3 or 4 times, spinning the shaft several times between tests. CONSISTENT INACCURACY (make sure the blade kerf value is correct) Change the “ACTUAL POS” parameter to 1. This will make the PLC show actual shuttle travel in AUTO With no material in the machine: 1.
  • Page 38 Auto Cycle Not Being Completed In auto mode, the PLC controls the saw functions through output relays. For a certain function to be actuated, the PLC must first see specific input(s). Like the output relays, the input relays are located on the PLC unit. Directly beside the input and output terminals are red LED’s (Light Emitting Diode), which will light up when the corresponding input is being received or output being actuated.

  • Page 39: Fuses

    LED’s will light when the PLC commands specific outputs. IF an output LED is present then either the output relay is faulty/stuck or the output (3 amp) fuse is blown. IF a fuse is blown, a shorted directional valve coil, shorted noise suppressor at the coil or shorted wiring could be the cause (a good coil will measure between 30 to 40 ohms).

  • Page 40: Mitsubishi Fx2N 48Mr Inputs And Outputs

    MITSUBISHI FX2N 48MR INPUTS AND OUTPUTS Input and output terminal identification: The top row of identification labels corresponds to the top row of terminals and the bottom row of labels to the bottom row of terminals. Input and output LED numbers correspond to the input or output of the same number. I.E.

  • Page 41: Encoder & Proximity Sensor Connections

    Input/Output Terminal Information X0 Shuttle encoder, channel A Shuttle vise close switch X1 Shuttle encoder, channel B Shuttle vise open switch X2 Blade Speed Front vise close switch X3 Feed rate encoder A Front vise open switch X4 Feed rate encoder B Head raise switch X5 Head lower L/S Head lower switch...

  • Page 42: Calibration Procedure

    CALIBRATION PROCEDURE Length calibration may be achieved in two ways, by inputting the ACTUAL LTH or LTH CONST parameter. To determine the ACTUAL LTH value, the LTH CLB (length calibration) procedure must be executed. In manual mode, position a piece of material, which is longer that the shuttle full stroke length and close the front vise.

  • Page 43: Head Height Calibration Procedure

    To adjust “LTH CONST”, follow this procedure: Cut length ÷ Programmed length x Existing “LTH CONST” = New “LTH CONST” Example: Cut length of 11.998”, Programmed length of 12”, Existing “LTH CONST” parameter of 0.001256. 11.988 ÷ 12.000 x 0.001256 = 0.001255 The new “LTH CONST”...

  • Page 45: Section 4, Electrical

    SECTION 4, ELECTRICAL SYSTEM GENERAL INFORMATION This machine has been built to the customers requirements, however, if any voltage changes are required, consult Hyd·Mech service department before implementing any changes. INITIAL HOOKUP At initial hook-up it is important to check that the phase order is correct. This is indicated by the blade drive wheel revolv- ing in a counter clockwise direction and the hydraulic pressure gauge registering a pressure rise.
  • Page 46 Mitsubishi PLC Electrical Disconnect and Fuses Mitsubishi Inverter Transformer...
  • Page 47 LIST OF H18ASV & H22ASV ELECTRICAL COMPONENTS Item Code as on Component H22ASV Description Part Number Manufacturer Schematic 1PB-Emergency Stop Red mushroom head, latching push button. ZB2 BT4 Telemecanique Push Button Mounting base with 1 N/C contact block. ZB2 BZ102 Telemecanique 2PB-Hydraulic Start Green, illuminated, flush head push button.
  • Page 48 Hydrualic Hirschmann connector H/927811311 Hirschmann Valve Connector Coolant pump relay G2R-2-S Omron plus mounting base. P2RF-08-E Fuse holder USM1 Gould 5A Time-delay fuse ATDR5 Fuse holder for “power” into PLC WK10/Si Wieland 2A Instant glass fuse AGC-2 Buss Fuse holder for PLC outputs WK10/Si Wieland 5FU1 - 5FU4...

  • Page 52: H-18/22 Sv Electrical Schematic, No Options 208/240 Vac

    H-18/22 SV ELECTRICAL SCHEMATIC, NO OPTIONS 208/240 VAC Please note that the H-22 SV uses a Hydraulic Blade Brush...
  • Page 54 4.10...
  • Page 55 4.11...

  • Page 56: H-18/22 Sv Electrical Wiring Diagram, No Options 208/240 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM, NO OPTIONS 208/240 VAC 4.12...
  • Page 57 4.13...
  • Page 58 4.14...
  • Page 59 4.15...
  • Page 60 4.16...
  • Page 61 4.17...

  • Page 62: H-18/22 Sv Electrical Wiring Diagram Inputs & Outputs, No Options 208/240 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM INPUTS & OUTPUTS, NO OPTIONS 208/240 VAC 4.18...
  • Page 63 4.19...

  • Page 64: H-18/22 Sv Electrical Schematic, With Options, 208/240 Vac

    H-18/22 SV ELECTRICAL SCHEMATIC, WITH OPTIONS, 208/240 VAC 4.20...
  • Page 65 4.21...
  • Page 66 4.22...
  • Page 67 4.23...

  • Page 68: H-18/22 Sv Electrical Wiring Diagram, With Options, 208/240 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM, WITH OPTIONS, 208/240 VAC 4.24...
  • Page 69 4.25...
  • Page 70 4.26...
  • Page 71 4.27...
  • Page 72 4.28...
  • Page 73 4.29...

  • Page 74: H-18/22 Sv Electrical Wiring Diagram Inputs & Outputs, With Options, 208/240 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM INPUTS & OUTPUTS, WITH OPTIONS, 208/240 VAC 4.30...
  • Page 75 4.31...

  • Page 76: H-18/22 Sv Electrical Schematic, No Options 480/575 Vac

    H-18/22 SV ELECTRICAL SCHEMATIC, NO OPTIONS 480/575 VAC 4.32...
  • Page 77 4.33...
  • Page 78 4.34...
  • Page 79 4.35...

  • Page 80: H-18/22 Sv Electrical Wiring Diagram, No Options 480/575 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM, NO OPTIONS 480/575 VAC 4.36...
  • Page 81 4.37...
  • Page 82 4.38...
  • Page 83 4.39...
  • Page 84 4.40...
  • Page 85 4.41...

  • Page 86: H-18/22 Sv Electrical Wiring Diagram Inputs & Outputs, With No Options, 480/575 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM INPUTS & OUTPUTS, WITH NO OPTIONS, 480/575 VAC 4.42...
  • Page 87 4.43...

  • Page 88: H-18/22 Sv Electrical Schematic, With Options, 480/575 Vac

    H-18/22 SV ELECTRICAL SCHEMATIC, WITH OPTIONS, 480/575 VAC 4.44...
  • Page 89 4.45...
  • Page 90 4.46...
  • Page 91 4.47...

  • Page 92: H-18/22 Sv Electrical Wiring Diagram, With Options, 480/575 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM, WITH OPTIONS, 480/575 VAC 4.48...
  • Page 93 4.49...
  • Page 94 4.50...
  • Page 95 4.51...
  • Page 96 4.52...
  • Page 97 4.53...

  • Page 98: H-18/22 Sv Electrical Wiring Diagram Inputs & Outputs, With Options, 480/575 Vac

    H-18/22 SV ELECTRICAL WIRING DIAGRAM INPUTS & OUTPUTS, WITH OPTIONS, 480/575 VAC 4.54...
  • Page 99 4.55...

  • Page 101: Section 5, Hydraulic System

    SECTION 5, HYDRAULIC SYSTEM The H-18/22 SV hydraulic system does not require any special work on a new machine before its start-up. The hydrau- lic tank is filled with Duro AW46 hydraulic oil and all machine functions have been tested at the factory to ensure proper operation upon initial start-up.

  • Page 102: Gland Assemblies

    GLAND ASSEMBLIES PISTON ASSEMBLIES...

  • Page 103: H-18/22 Sv Hydraulic Schematic

    H-18/22 SV HYDRAULIC SCHEMATIC...

  • Page 104: H-18/22 Sv Plumbing Diagram

    H-18/22 SV PLUMBING DIAGRAM...

  • Page 107: H-18 Sv Blade Brush Assembly

    H-18 SV BLADE BRUSH ASSEMBLY ITEM S-22 PART NUMBER DESCRIPTION S20-922A-00 BRUSH MOUNTING WELDMENT W6440-4 BEARING S20-925-03A POLYURETHANE WHEEL S20-925-02A SHAFT EXTENSION 5043 3” BLADE BRUSH .5FLT FLAT WASHER B1-.50x1.0 HEX HEAD CAP SCREW TC 13 COMPRESSION SPRING .375FLT FLAT WASHER A1-.375X3.5 SOCKET HEAD CAP SCREW S1-.375X2.5...

  • Page 108: H-22 Sv Blade Brush Assembly

    H-22 SV BLADE BRUSH ASSEMBLY ITEM H-22 PART NUMBER DESCRIPTION 129-0017 HYDRAULIC MOTOR H22-48-01 MOTOR MOUNTING BRACKET S20-926-02A EXTENSION .5FLT FLAT WASHER 12290 4” BLADE BRUSH .5HXNUT HEX NUT B2-.25x.75 HEX HEAD CAP SCREW, NF .375FLT FLAT WASHER TC 13 COMPRESSION SPRING A1-.375x3.75 SOCKET HEAD CAP SCREW...

  • Page 109: H-18/22 Sv Guide Arm Assembly

    H-18/22 SV GUIDE ARM ASSEMBLY ITEM H-18 SV PART NUMBER H-22 SV PART NUMBER DESCRIPTION H18SV-461-00 H22SV-461-00 FIXED GUIDE ARM H18SV-471-01B H22SV-471-01A MOVABLE GUIDE ARM A1-.5x3.5 A1-.5X4.5 SOCKET HEAD CAP SCREW A3-8x40 A3-8x40 SOCKET HEAD CAP SCREW, METRIC LGR25R780 LGR25R900 LINEAR BEARING RAIL LGW25CA LGW25CA...

  • Page 110: H-18/22 Sv Carbide Guide Assembly

    H-18/22 SV CARBIDE GUIDE ASSEMBLY Fixed Guide Arm (H18SV-461-00C or H22SV-461-00) Moveable Guide Arm (H18SV-471-00 or H22SV-471-00) ITEM QTY (H-22 SV) H-18 SV PART NUMBER H-22 SV PART NUMBER DESCRIPTION FLAT SOCKET HEAD CAP F1-.312x.5 F1-.375 X .75 SCREW CRB-150-22-00A CRB-200-22-00 CARBIDE PLATE CRB-TL-770...

  • Page 111: H-18/22 Sv Anti-Vibration Roller Assembly

    H-18/22 SV ANTI-VIBRATION ROLLER ASSEMBLY ITEM H18-22 PART NUMBER DESCRIPTION AVR-471-01A BLOCK, IDLER SIDE AVR-461A-01 BLOCK, DRIVE SIDE A1-.375x2 SOCKET HEAD CAP SCREW 6200 2RS BALL BEARING AVR-461-03 BACK ROLLER RACE AVR-461-02A FRONT ROLLER RACE B3-10x30S METRIC SOCKET HEAD SHOULDER SCREW O-RING (.625x1/16) AVR-471-02A BUSHING...

  • Page 112: H-18 Sv Idler Wheel Assembly

    H-18 SV IDLER WHEEL ASSEMBLY ITEM H-18 PART NUMBER DESCRIPTION S25-341-01A IDLER TRACK BASE PLATE S25-3411-00B IDLER WHEEL CARRIER WELDMENT S25-341-02A IDLER TRACK .5LOC LOCK WASHER .5FLT FLAT WASHER B1-.5x1.5 HEX HEAD CAP SCREW B1-.5x2.5 HEX HEAD CAP SCREW S1-.5x.75C SOCKET SET SCREW, CUP POINT 1613-B STRAIGHT GREASE FITTING...

  • Page 113: H-22 Sv Idler Wheel Assembly

    H-22 SV IDLER WHEEL ASSEMBLY ITEM H-22 PART NUMBER DESCRIPTION H22-43-01A BACK PLATE H22-431-00 SLIDER WELDMENT S1-.5x1-C SOCKET SET SCREW, CUP POINT H22-6-01 TENSION CYLINDER MOUNTING PIN H22-C5-00A BLADE TENSION CYLINDER H22-43-02 TENSION TRACK A1-.875x3.25 SOCKET HEAD CAP SCREW A1-.875x2.5 SOCKET HEAD CAP SCREW S1-.875x1.5-F SOCKET SET SCREW, FLAT POINT...

  • Page 114: H-18/22 Sv Hydraulic Pump Assembly

    H-18/22 SV HYDRAULIC PUMP ASSEMBLY ITEM H-18 PART NUMBER DESCRIPTION 182TC 3 HP, 1800RPM, SPECIFY VOLTAGE 5J - 1 1/8 SUREFLEX COUPLING FLANGE 5JEM SLEEVE 5J 3/4 SUREFLEX COUPLING FLANGE 1960 3 & 5HP BELL HOUSING .5LOC LOCK WASHER B1-.5x1.5 HEX HEAD CAP SCREW PVQ-13-A2R-SE-15-10-CM7 HYDRAULIC PUMP...

  • Page 115: H-18/22 Sv Hydraulic Tank Assembly

    H-18/22 SV HYDRAULIC TANK ASSEMBLY ITEM PART NUMBER DESCRIPTION H14-611-00A POWER PACK WELDMENT S22A-61-01 OIL TANK LID B1-.25x.75 HEX HEAD CAP SCREW .25LOC LOCK WASHER SES-3-40-S-80 FILLER CAP & BREATHER, 50micron T1-.19x.5 TRUSS HEAD MACHINE SCREW SNA2B LEVEL & TEMPERATURE GAUGE TFS-100-0-P SUCTION STRAINER MP-100-FE...

  • Page 116: H-18/22 Sv Front Vise Assembly

    H-18/22 SV FRONT VISE ASSEMBLY ITEM H-18 PART NUMBER H-22 PART NUMBER DESCRIPTION H22V-511-00 H22SV-511-00 FRONT VISE FRAME WELDMENT H18SV-512-00 H22SV-512-00 FRONT VISE DATUM WELDMENT H18SV-5-02 H22SV-5-02 WEAR STRIP H18SV-5-03 H22SV-5-03 WEAR STRIP OUT FEED SIDE H18SV-5-04 H18SV-5-04 MOVABLE JAW SLIDER H22SV-51-01 H22SV-51-01 FRONT VISE WAY...

  • Page 117: H-18/22 Sv Shuttle Vise Datum Line Jaw Assembly

    H-18/22 SV SHUTTLE VISE DATUM LINE JAW ASSEMBLY DATUM CYLINDER ITEM H-18 PART NUMBER H-22 PART NUMBER DESCRIPTION H18SV-5221-00 H22SV-5221-00 DATUM LINE JAW H18-5-02 H22-5-01 WEAR STRIP F1-.312x.75 F1-.312x.75 FLAT SOCKET HEAD CAP SCREW H14-5A-10 H14-5A-10 SMALL JAW MOUNTING PIN H14-5A-12 H14-5A-12 SMALL DATUM JAW LINK...

  • Page 118: H-18/22 Sv Shuttle Vise Assembly

    H-18/22 SV SHUTTLE VISE ASSEMBLY ITEM PART NUMBER DESCRIPTION H22SV-521-00 FRONT VISE FRAME H22-5-03 MOVABLE JAW SHAFT H3000 3” SHAFT WIPER 9.375x1x.125 WEAR RING (702 STRIP) H22-C31-00 VISE CYLINDER H22-5-05 CYLINDER MOUNTING PLATE F1-.5x1 FLAT SOCKET HEAD CAP SCREW SH-0287-PA 2 7/8 EXTERNAL RETAINING RING H22SV-5-05 MOVABLE JAW PLATE...

  • Page 119: H-18/22 Sv Chip Auger Assembly

    H-18/22 SV CHIP AUGER ASSEMBLY ITEM H-18 PART NUMBER DESCRIPTION MG.12.09.10 HYDRAULIC MOTOR 2503-6-4 O RING ADAPTOR, M STRT/FNPT 2103-4-4 90 deg ELBOW, MNPT/MJIC S1-.312x.25C SOCKET SET SCREW, CUP POINT F1-.375x1 FLAT SOCKET HEAD CAP SCREW H18-12-00 AUGER WELDMENT 6.13...

  • Page 120: H-18 Sv Drive Assembly

    H-18 SV DRIVE ASSEMBLY 6.14...
  • Page 121 6.15...

  • Page 122: H-22 Sv Drive Assembly

    H-22 SV DRIVE ASSEMBLY 6.16...
  • Page 123 6.17...

  • Page 125: H-18/22 Sv Bundling Assembly

    H-18/22 SV BUNDLING ASSEMBLY SHUTTLE BUNDLING FRONT BUNDLING ITEM PART NUMBER DESCRIPTION H22SV-G5111-00 BUNDLING BRACKET H22SV-C23-00 BUNDLING CYCLINDER R3100-200 2” EXTERNAL RET. RING H22SV-G511-02 COVER H22SV-G511-01 BUNDLING SHAFT H22SV-G5112-00 FRONT BUNDLING CLAMP H18-G5111-03 BUNDLING WEAR STRIP H2250 2 1//4” YELLOW SHAFT WIPER 7.260 X 1 X .125 2 1/4”...

  • Page 126: H-18/22 Sv Outboard Bundling Assembly

    H-18/22 SV OUTBOARD BUNDLING ASSEMBLY...

  • Page 127: Section 8, Specifications

    SECTION 8, SPECIFICATIONS ITEM H-18 SV DIMENSIONS H-22 SV DIMENSIONS Round: 18” Diameter Round: 22” Diameter Capacity Square: 18” x 18” (Bundling to full capacity Square: 22” x 22” (Bundling to full capacity optional) optional) Length: 19’2” Length: 22” Blade Width: 1 1/2”, 1 1/4”...

  • Page 128: H-18 Sv Layout

    H-18 SV LAYOUT...

  • Page 129: H-22 Sv Layout

    H-22 SV LAYOUT...

  • Page 131: Warranty

    WARRANTY Hyd-Mech Group Limited warrants each new H-18/22 SV bandsaw to be free from failure resulting from defective material and workmanship under proper use and service for a period of two years parts and one year labour by an authorized Hyd- Mech dealer following the date of shipment to the user.
  • Page 132 Wheel Targets Speed Constant Height CLB (Press Enter) Actual Height Height Constant Lth CLB (Press Enter) Actual Length Length Constant Accel Dist Decel Distance Min Fast Dist Target Window SVO Dwell FVO Dwell Close Time Feed Rate Actual Position Hold SHT Home Yes / No Yes / No Yes / No...

This manual is also suitable for:

H-22 asvH22 a

Table of Contents
