Summary of Contents for Hyd-Mech H-14A

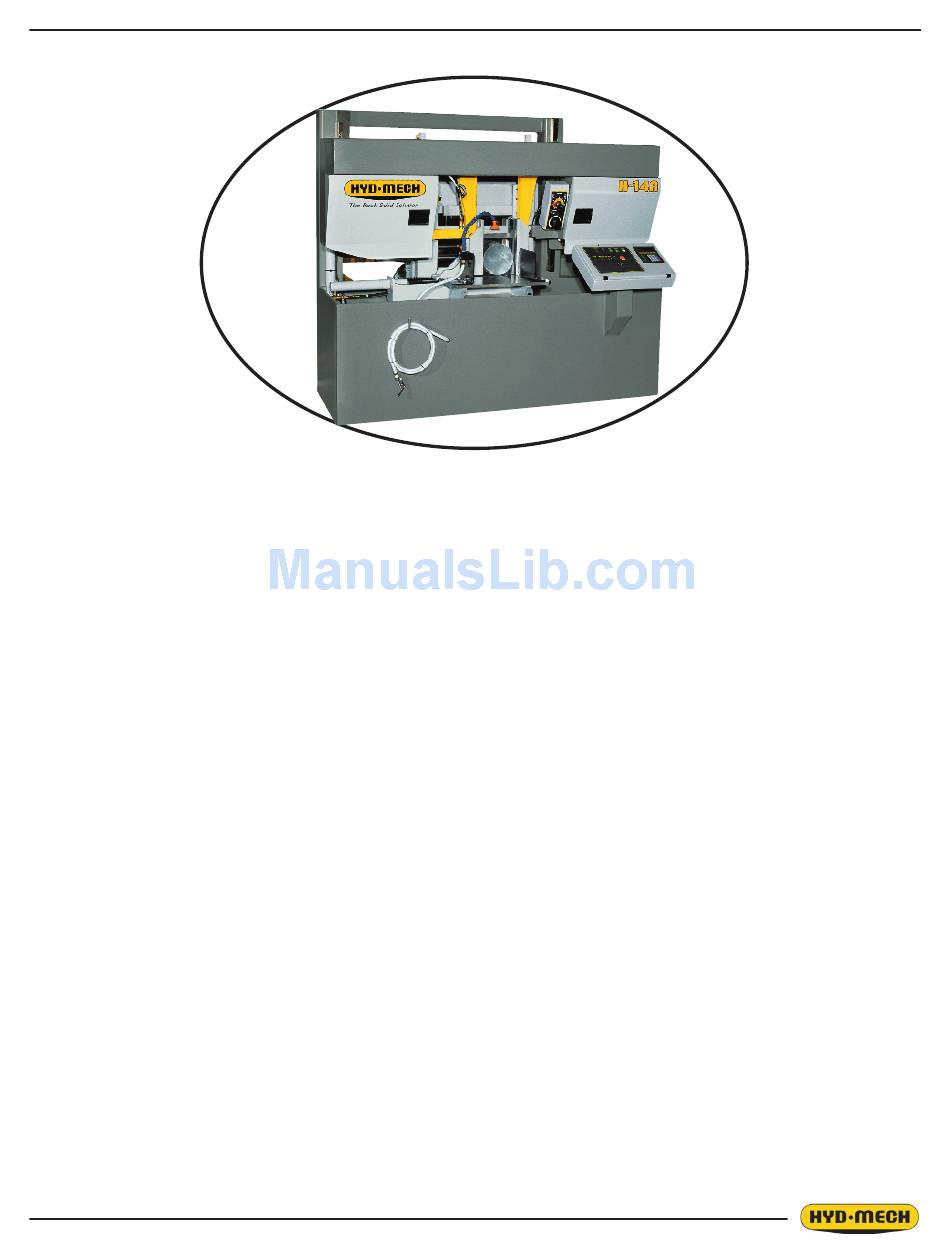

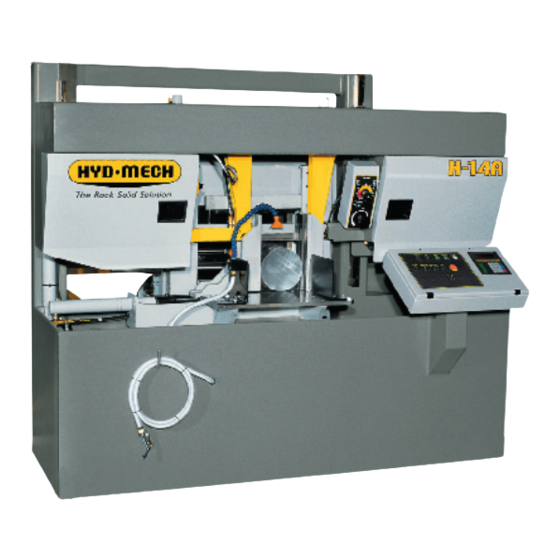

Page 1 H-14A April 2005, Rev B 393301 THANK YOU, On behalf of everyone at HYD . MECH, I would like to thank and congratulate you on your decision to purchase a HYD . MECH band saw. Your new machine is now ready to play a key role in increasing the efficiency of your operation, helping you to reduce cutting costs while boosting quality and productivity.
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION 0 - SAFETY INSTRUCTIONS SUMMARY .................................. 0.1 FOREWORD ................................0.2 RESPONSIBILITIES OF THE OWNER........................0.5 RESPONSIBILITIES OF THE OPERATOR AND MAINTENANCE PERSONNEL............0.6 SECTION 1 – INSTALLATION SAFETY PRECAUTIONS............................1.1 LIFTING AND SHIPPING ............................1.2 FOUNDATION LEVELING AND ANCHORING ......................1.2 EARTH GROUNDING PROCEDURE .........................
Page 4 REYNOLDS PM40 GEARBOX ASSEMBLY........................ 6.16 SECTION 7 - OPTIONAL EQUIPMENT BUNDLING ASSEMBLY .............................. 7.1 VERTICAL ROLLERS ..............................7.2 OUT OF STOCK ASSEMBLY............................7.3 VARIABLE VISE PRESSURE ............................. 7.3 SECTION 8 - SPECIFICATIONS H-14A LAYOUT DRAWING ............................8.2 WARRANTY................................9.1 PLC PARAMETERS ..............................9.2 TOC.2...
Page 5: Summary
SECTION 0 - SAFETY INSTRUCTIONS SUMMARY All persons operating this machine must have read and understood all of the following sections of this Manual: Section 0 SAFETY Section 2 OPERATING INSTRUCTIONS However, as a memory aid, the following is a summary of the Safety Section. Put Safety First Mandatory Information –...
Page 6: Foreword
FOREWORD Put Safety First! This Safety Section contains important information to help you work safely with your machine and describes the dangers inherent in our machines. Some of these dangers are obvious, while others are less evident. It really is important to PUT SAFETY FIRST. Make it a habit to consider the hazards associated with any action BEFORE you do it.
Page 7 Signatures Everyone involved in operation of this machine must sign below to confirm that: I have read and understood all parts of Section 0 – Safety, and Section 2 – Operating Instructions. Name Date Signature Everyone involved in the installation, inspection, maintenance, and repair of this machine must sign below to confirm that: I have read and understood all parts of this Operation and Maintenance Manual.
Page 8 Manual. Hyd-Mech Group cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the Safety and Operating Instructions contained in this Manual.
Page 9: Responsibilities Of The Owner
RESPONSIBILITIES OF THE OWNER Organization of work This Operation and Maintenance Manual must always be kept near the machine so that it is accessible to all concerned. The general, statutory and other legal regulations on accident prevention and environmental protection must also be observed, in addition to the Manual material.
Page 10: Responsibilities Of The Operator And Maintenance Personnel
Condition of Machine and Workplace Ensure that the machine and its safety equipment is kept in good working order. Ensure that the work area is well lit, and protected from the elements, such as rain, snow, abrasive dust, and extremes of temperature. Ensure that the machine is installed with sufficient clearance around it for the safe loading and unloading of work pieces.
Page 11 On Hyd-Mech machines the Master Disconnect Switch will be of one of three types: Rotary switch mounted in electrical control cabinet door and inter-locked with door...
Page 12 • Lever switch mounted in separate box mounted on the machine Supply disconnect switch supplied by user at installation and usually wall-mounted within sight of • the machine, depending upon local regulations. In almost all jurisdictions, it is required that owners of industrial equipment establish and post lock-out pro- cedures.
Page 13: Section 1 - Installation
SECTION 1 – INSTALLATION Upon delivery of you r new H-14A saw, it is imperative that a thorough inspection be undertaken to check for any damage that could have been sustained during shipping. Special attention should be paid to the electrical and hydraulic systems to check for damaged cords and hoses or for fluid leaks.
Page 14: Lifting And Shipping
• Coolant tank emptied. The H-14A may be lifted from the front with a forklift which has a capacity of 4500 lbs (2040 Kg) and a fork length of 72” (1830mm). Lifting chains may be used as an alternative if used in the manner described below: Lifting chains are fastened to 1 - 21⁄4”...
Page 15: Wiring Connections
4. Ground rod to be connected to ground terminal in control enclosure using insulated 8-gauge stranded copper wire. 5. An additional point to check is ensuring continuity of ground within control enclosure. Start with main power entrance ground terminal where internal ground conductors should originate and connect to, DIN terminal strip, control transformer and the lid of control enclosure.
Page 17: Section 2 - Operating Instructions
SECTION 2 - OPERATING INSTRUCTIONS This section has been prepared to give the operator the ability to set up the saw for most cutting situations. Before cutting any material, the operator should be familiar with all operations and controls as well as the basic cutting theory described below.
Page 18: Manual Operation
START-UP The H-14A control console has been designed to simplify the operation of the saw, to give the operator the ability to stop any function at any time, and to be able to control all the functions remotely. We can not overstress the importance of familiarizing yourself with the controls of the H-14A prior to starting the machine.
Page 19: Plc 100 Control System
PLC 100 CONTROL SYSTEM NOTE: This instruction manual is applicable to the H-14A equipped with a MITSUBISHI PLC. OPERATION OVERVIEW The PLC is a programmable logic controller which allows the operator to run the machine in both manual and automatic modes.
Page 20: Activating The Plc
DISPLAY WINDOW BLADE SPEED (SFM) IN SURFACE FEET (METERS) PER MINUTE and SHUTTLE VISE (LTH) POSITION PLC FUNCTION KEYS NUMERIC KEY PAD CURSOR KEYS ENTER KEY ACTIVATING THE PLC Position the head, fixed vise, and shuttle vise switches to the NEUTRAL (center) positions. If any of these switches are not in the NEUTRAL position, the hydraulics will not start.
Page 21 AUTO / MAN MODE - This key will toggle between MAN and AUTO modes. Auto mode cannot be accessed unless the front vise is closed. - Also used to stop an automatic job in progress by switching to MANUAL mode. UNLABELED - The function of theses keys is displayed directly above them.
Page 22: Single Part Cycle Operation
SINGLE PART CYCLE OPERATION In MAN mode, the PLC allows the operator to initiate a “Single Part Cycle “ to cut one piece at a desired length. To accom- plish this, follow the procedure below. 1. A trim cut should be made before initiating the “Single Part Cycle” operation. 2.
Page 23: Automatic Operation
IMPERIAL STANDARD KERF @ XX DEGREES BLADE SIZE 1 1/4” 0066 0068 0076 0081 0086 0093 0103 0115 0132 1 1/2” 0074 0077 0085 0097 0105 0115 0139 0148 METRIC STANDARD KERF @ XX DEGREES BLADE SIZE 31.7MM 38.1MM AUTOMATIC OPERATION When the AUTO/MAN button is pressed, the red indicator light above it will come on, and the blade will stop if it has been running.
Page 24: Working With A Queue
WORKING WITH A QUEUE The purpose of a QUEUE is to allow the operator to run several jobs (max of 5) in series if they are of the same material and shape. In AUTO mode, press the key below the word “QUE” on the display and the display window will appear as shown.
Page 25: Cutting Parameters Chart
Feed Force Knob Used to set Feed Force Limit (counterclockwise rotation to increase and clockwise rotation to decrease). Fast Approach Lever Depress for fast head descent. Feed Rate Knob Used to set Feed Rate (counterclockwise rotation to increase and clockwise rotation to decrease). Hydraulic Feed Control CUTTING PARAMETERS CHART A full size CUTTING PARAMETERS CHART is mounted on the front of the saw.
Page 26: Cutting Structurals
by each tooth, and it is used in STEPS 3 and 4. In Example #1, for an 8” (200 mm) diameter solid, Effective Mate- rial Width is 8” (200mm). STEP 2, SET FEED FORCE LIMIT The Feed Force Limit is the maximum amount of force with which the head is allowed to push the blade into the work-piece.
Page 27 STEP 4, DETERMINE OPTIMUM BLADE SPEED, V (ft/min) (m/min) The relationship between optimum blade speed and effective material width for vari- ous materials is represented on the graph shown. The graph shows that as effective material width gets wider or as material gets harder, lower blade speeds are recommended.
Page 28 For Example #1, it is known from Step 3 that optimum blade pitch is 2/3, and from Step 4 that blade speed, is 200 ft/min (60mm/min). From the Graph on the left, the FEED RATE is determined in the following way: - On the horizontal axis (blade speed axis), find 200 ft/min(60mm/min).
Page 29 NOTE: Use the following chart when cutting solids. For structurals, see “CUTTING STRUCTURALS” in STEP 2. ADDITIONAL CUTTING SETUP EXAMPLES EXAMPLE # 2 Material Round Steel Tube SAE 4320 - Hardened to 35 RC ( 325 Bhn ) Dimensions - 6” O.D. x 4” I.D. (150mm O.D. x 100mm I.D.) 1.
Page 30: Coolant Flow
COOLANT FLOW The main coolant control is found on the control panel. WASH: Coolant flows any time the machine is under power, permitting wash down with spray nozzle without running ma- chine. OFF: No coolant flow. ON: The coolant flows only when the blade is running or when the blade is running and the head is descending. This is selectable via the PLC parameters.
Page 31: Head Up And Down Limit Setting
Head up limit trip plate Head up limit switch Head down limit switch Head down limit switch plate HEAD UP and DOWN LIMIT SETTING The head up limit is used to restrict the distance the head travels for each stroke. It can be adjusted at any time by moving the switch trip plate to any position on the vertical bar.
Page 33: Section 3 - Maintenance & Troubleshooting
SECTION 3 - MAINTENANCE & TROUBLESHOOTING Switch off before beginning work. • The emergency switch, which is used to turn the hydraulics off, should not be the only means of shutting the power off before cleaning or performing maintenance to the machine. The main power disconnect should be switched off and locked.
Page 34 10. Check the blade brush adjustment to be sure the blade is being cleaned properly. Blade Tension Slider Assembly DRIVE WHEEL TRACKING (Refer to gearbox illustra- tion) Release blade tension before adjusting. Loosening bolts “A” and turning in set screws “C” by equal amounts will move the blade OFF the wheel.
Page 35: Blade Guide Adjustment
BLADE BRUSH ADJUSTMENT The H-14A leaves the factory with the blade brush adjusted for maximum life of the brush. This setting places the ends of the blade brush wires so as to contact the blade at the bottom of the blade gullets. The plastic drive wheel that is driven by the drive wheel face should be held against the blade face with the minimum force that is necessary.
Page 36 Blade Tension Slider Assembly Shuttle Shaft Bearing Housings (4) (found below the shuttle) Linear Bearings Found at GEARBOX LUBRICATION (H14 WITH A412 GEARBOX) the Drive Side of Main Post The Bonfiglioli A412 gearbox used on the H14 is supplied with 5.0 litres (1.32 US gallon) of Mobil SHC 630 synthetic oil.
Page 37: Cleanliness
every 2000 operating hours or at least once a year. To change the oil, it is necessary to drain the tank and fill it to 1/3 full level with the new oil, operate through several fully automatic cycles with the index set to full stroke and the head to full rise.
Page 38: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Blade worn Change blade Low blade tension Reset blade tension Saw is cutting out of square vertically Blade guides Check for worn guides Excessive feed rate Check for proper cutting parameters Saw is cutting out Stock not square in vises Adjust accordingly of square horizon-...
Page 39: Programmable Logic Control, Mitsubishi 100
Observe pilot light(s) on relevant Check the wiring to the relevant valve valve. If pilot light related to inopera- tive function fails to light, problem is electrical 12a. 12a. No individual func- tion If pilot light related to inoperative Disassembly of hydraulic valves should function does light, problem may still be under taken only by qualified service be the coil.
Page 40 Parameter Definition Blade speed adjustment number. If Actual Blade speed is different than displayed Blade Speed a new speed factor will need to be calculated. (Providing wheel Trgs is SPEED CONS set correctly): Actual speed / Display = Adjustment factor X Existing speed factor = New speed factor.
Page 41: Plc 100 Troubleshooting
If set to “YES”; When the AUTO cycle reaches the function of head up, the shuttle will retract the material from the blade by 1/8” before the head will move up. When BLADE CLEAR the head reaches the up position the next length of material is shuttled into position. If “YES”...
Page 42 Measure the voltage: a. At encoder connector between 0 V pin and 24 V pin. This voltage should be a minimum of 22 to 26 VDC. If the voltage is incorrect; check encoder cable continuity. If OK, possible PLC problem. If the voltage is correct, go to step b.
Page 43 Cause: - when self-calibration is executed, incorrect “Act Lth” value entered DIAGNOSIS: 1. Check and record existing parameters. Also check for proper blade kerf. By making a cut part way into a piece of material and measuring the width of the cut, the operator can check blade kerf.
Page 44 load machine with a piece of stock for test cutting • program the PLC to cut two pieces each of 1”, 12” and a length equal to a shuttle and a half of the machine being • checked. • make the cuts and measure as a accurately as possible (vernier caliper) •...
Page 45 shuttle moves back fast. 3. As the shuttle approaches target length the FST output should shut off and the shuttle should travel slow for the “Dec. Dist.” parameter, cushion distance. (i.e. 1.00”) When the shuttle reaches target length, the SVC output should light, and the shuttle vise should close on the material.
Page 46 PROBLEM # 5 No Blade Speed Display. POSSIBLE CAUSES 1. Fault at proximity sensor a. bad sensor, misadjusted sensor (gap should be approx. 0.030” - 0.040”) b. contamination on the end of the sensor 2. Fault at the PLC a. bad connection of sensor wiring b.
Page 47 INPUT OUTPUT Shuttle Encoder, Channel A Front Vise Open (FVO) Shuttle Encoder, Channel B Front Vise Close (FVC) Blade Speed or Proximity Switch Shuttle Fast (FST) Feed rate encoder A / Angle Encoder A Encoder Switching Relay Feed rate encoder B / Angle Encoder B Shuttle Vise Open (SVO) Open Shuttle Vise Close (SVC)
Page 48 the front VISE. Simultaneously depress “FWD” & “REV” buttons on the PLC to access parameters. A password is required at this point which can be obtained from Hyd·Mech Service Department. With the cursor at the shown position press. The cycle start button will then start to flash & “ENTER” will change to “ON” indication self-calibration mode.
Page 49 NOTE: On “M” machines remove the head up limit switch target to prevent damage of the head up limit switch during calibration. Head calibration may be achieved in two ways: by inputting “ACTUAL HGT” (actual height) or “HGT CONST” (height con- stant) parameter.
Page 51: Section 4 - Electrical System
SECTION 4 - ELECTRICAL SYSTEM GENERAL INFORMATION The power connection to the machine is made to the L1, L2 and L3 terminals of the junction block. This machine has been built to the customers requirements, however, if any voltage changes are required, refer to the information on page and then consult Hyd·Mech service department before implementing any changes.
Page 52: List Of H14A Electrical Components
LIST OF H14A ELECTRICAL COMPONENTS Item Code as on Component Description Part Number H14A Schematic Manufacturer 1PB-Emergency Red mushroom head, latching push button. ZB2 BT4 Telemecanique Stop Mounting base with 1 N/C contact block. ZB2 BZ102 Telemecanique Push Button 2PB-Hydraulic Green, illuminated, flush head push button.
Page 53 LIST OF H14ASV ELECTRICAL COMPONENTS Item as on Component H14A Description Part Number Manufacturer Schematic FX2N-48MR Mitsubishi PLC. FX2N-48MR Mitsubishi E200 Mitsubishi Interface E200 Mitsubishi Interface communication cable 370152 Hydrualic Hirschmann connector H/927811311 Hirschmann Valve Connector Fuse holder USM1 Gould 5A Time-delay fuse ATDR5 Fuse holder for “power”...
Page 56: Electrical Schematics
ELECTRICAL SCHEMATICS 208/240 VOLT...
Page 60 4.10...
Page 61 4.11...
Page 62 4.12...
Page 63 4.13...
Page 64 4.14...
Page 65 4.15...
Page 66 4.16...
Page 67 4.17...
Page 68 ELECTRICAL SCHEMATICS 480/575 VOLT 4.18...
Page 69 4.19...
Page 70 4.20...
Page 71 4.21...
Page 72 4.22...
Page 73 4.23...
Page 74 4.24...
Page 75 4.25...
Page 76 4.26...
Page 77 4.27...
Page 78 4.28...
Page 79 4.29...
Page 80 4.30...
Page 81: Section 5 - Hydraulic System
SECTION 5 - HYDRAULIC SYSTEM The H-14A hydraulic system does not require any special work on a new machine before its start up. The hydraulic tank is filled with a #46 weight hydraulic oil and all machine functions have been tested at the factory to ensre proper operation upon intial startup.
Page 82: Gland Assemblies
GLAND ASSEMBLIES PISTON ASSEMBLIES...
Page 83: Hydraulic Schematic
HYDRAULIC SCHEMATIC...
Page 84: Hydraulic Plumbing Diagram
HYDRAULIC PLUMBING DIAGRAM...
Page 89: Blade Brush Assembly
BLADE BRUSH ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION S22-43-01 SHAFT, EXTENSION 340280 BEARING, WATER PUMP, W6440-4 342310 WHEEL, POLYURETHANE, YELLOW, S20-925-03 342315 WHEEL, WIRE, BLADE BRUSH, 3 IN. 394665 WASHER, FLAT, 0.50 392860 NUT, HEX, 0.50 - 13 393940 SCREW, SET, CUP POINT, 0.25 - 20 x 0.25 341960 SPRING, COMPRESSION, OD 0.600 x w 0.072 x l 1.500, TC13 394745...
Page 90: Guide Arm Assembly
GUIDE ARM ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION H14-47-01 BAR, GUIDE ARM MOUNTING 390710 BOLT, SOCKET HEAD, CAP, 0.375 - 16 x 0.75 M-H14-461-00D GUIDE ARM, FIXED, MACHINED M-H14-471-00E GUIDE ARM, ADJUSTABLE, MACHINED 340750 CAM FOLLOWER, 7/8”, CS-28-LW 340751 CAM FOLLOWER, ECCENTRIC, 7/8” WITH BUSHING 392875 NUT, HEX, 0.625 - 18 H14-47-02...
Page 91: Hydraulic Carbide Guide Assembly
HYDRAULIC CARBIDE GUIDE ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION 390640 BOLT, SOCKET HEAD, FLAT, 0.3125 - 18 x 0.50 CRB125-22-00A ASSEMBLY, CARBIDE GUIDE, 1.25 IN. 340790 CARBIDE, INSERT, TOP, CRB-TL-770 393752 ROLL PIN, 0.25 x 1.25 393723 ROLL PIN, 0.156 x 1.75 394880 WASHER, SPRING TENSION, BELLEVILLE, W-270 362867...
Page 92: Blade Tensioner Assembly
BLADE TENSIONER ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION H14-43-00B ASSEMBLY, IDLER SLIDE 390197 BOLT, HEX HEAD CAP, 0.50 - 13 x 2.75 394775 WASHER, LOCK, 0.50 394055 SCREW, SET, CUP POINT, 0.5 - 13 x 0.75 391185 FITTING, GREASE, STRAIGHT, 1/8 NPT M-V18-43-01F CARRIER, IDLER WHEEL, MACHINED 390265...
Page 93: Hydraulic Tank Assembly
HYDRAULIC TANK ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION H14-611-00A WELDMENT, POWER PACK DOOR M-S22A-61-01 LID, OIL TANK, MACHINED 390075 BOLT, HEX HEAD CAP, 0.312 - 18 x 0.75 394765 WASHER, LOCK, 0.312 363085 TANK COMPONENT, FILLER & BREATHER 393850 SCREW, MACHINE, 10-24 x 0.5 PHILLIPS TRUSS HEAD 363100 TANK COMPONENT, OIL SIGHT LEVEL GAUGE 363110...
Page 94: Hydraulic Pump Assembly
HYDRAULIC PUMP ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION 145TC 2HP, 1800 RPM, SPECIFY VOLTAGE 391250 GROMMET, RUBBER, 5/16 ID, 13/16 OD x 3/8 THICK 394745 WASHER, FLAT, 0.3125 392845 NUT, HEX, 0.312 - 18 340905 COUPLING, MECHANICAL, 7/8 HUB, L075 340920 COUPLING, MECHANICAL, INSERT N075 340875...
Page 95: Chip Auger Assembly
CHIP AUGER ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION 362690 MOTOR, HYDRAULIC 360465 FITTING, HYDRAULIC, STEEL, 90, 2503-6-4 360535 FITTING, HYDRAULIC, STEEL, ELBOW ADAPTER, 2103-4-4 393965 SCREW, SET, CUP POINT, 0.312 - 18 x 0.25 390630 BOLT, SOCKET HEAD, FLAT, 0.3125 - 18 x 1.00 H14-12-00A WELDMENT, AUGER...
Page 96: Front Vise Assembly
FRONT VISE ASSEMBLY...
Page 97 ITEM QUANTITY PART NUMBER DESCRIPTION H14-511-00C WELDMENT, FRONT VISE FRAME H14-512-00A WELDMENT, FRONT VISE DATUM 390823 BOLT, SOCKET, CAP, 0.625 - 11 x 2.00 394780 WASHER, LOCK, 0.625 H14-513-00 WELDMENT, FRONT MOVEABLE JAW 340751 CAM FOLLOWER, ECCENTRIC, 7/8” WITH BUSHING 392855 NUT, HEX, 0.375 - 24 H14-5-01...
Page 98: Conveyor Assembly
CONVEYOR ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION H12B-21-00A WELDMENT, INFEED CONVEYOR M-H12B-2-02B INFEED, MOUNTING BRACKET, MACHINED H12B-2-01 SHAFT, SHUTTLE H12B-2-05 PIN HOLDER, IDLER SIDE M-H14-2-08A PIN HOLDER, DRIVE SIDE, MACHINED 390625 BOLT, SOCKET HEAD, FLAT, 0.375 - 16 x 0.75 390785 BOLT, SOCKET, CAP, 0.5 - 13 x 1.75 H12B-2-04...
Page 99: Shuttle Vise Assembly
SHUTTLE VISE ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION H14-521-00D WELDMENT, SHUTTLE FRAME H14-5-06 SHAFT, JAW, SHUTTLE, MOVEABLE H14-5-05 PLATE, JAW, MOVEABLE, SHUTTLE A2 - 0.625 x 2.0 BOLT, SOCKET HEAD, CAP, 0.625 - 18 x 2.00 390615 BOLT, SOCKET HEAD, FLAT, 0.75 - 10 x 2.00 H14-5-03A SPACER, JAW, CYLINDER, MOVEABLE 390690...
Page 100: Datum Jaw Assembly
DATUM JAW ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION H14-5221-00 WELDMENT, DATUM JAW H14-522-01 PLATE, DATUM JAW, FRONT H14-5-02 WEAR STRIP, FIXED DATUM JAW 393540 RING, RETAINING, EXTERNAL 1 1/8 390640 BOLT, SOCKET HEAD, FLAT, 0.3125 - 18 x 0.5 M-H14-5-12 LINK, DATUM JAW, SMALL, MACHINED 340650 BUSHING, FIBERGLIDE, 1.125 x 0.750...
Page 101 6.13...
Page 102: Bonfiglioli A412 Gearbox Assembly
BONFIGLIOLI A412 GEARBOX ASSEMBLY 6.14...
Page 103 6.15...
Page 104: Reynolds Pm40 Gearbox Assembly
REYNOLDS PM40 GEARBOX ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION 341071 GEAR BOX, EPM40 37.56:1 184TC MOTOR, 7.5HP, 1800 RPM H14-P4-05B MOUNTING BAR, GEAR BOX, UPPER H14-P4-06B MOUNTING BAR, GEAR BOX, LOWER M20 NUT NUT, HEX, M20 M-W19-44B-01 WHEEL, DRIVE, 19”, MACHINED M-M20-3-13A CAP, RETAINER, DRIVE WHEEL, MACHINED 390790...
Page 109: Bundling Assembly
BUNDLING ASSEMBLY ITEM QUANTITY PART NUMBER DESCRIPTION H14-G5111-00C WELDMENT, BUNDLING BRACKET H14-C23-00A CYLINDER, HYDRAULIC, BUNDLING, H14A 393553 RING, RETAINING, EXTERNAL 2” H14-G512-02B COVER, BUNDLING, SHUTTLE VISE H14-G511-01A SHAFT, BUNDLING H14-G5112-00A WELDMENT, CLAMP, FRONT BUNDLING H14-G511-03B WEAR STRIP, BUNDLING 363320 WIPER, 2 1/4” 342165 STRIP, WEAR RING, 2 1/4”...
Page 110: Vertical Rollers
VERTICAL ROLLERS ITEM QUANTITY PART NUMBER DESCRIPTION H12B-G241-00 BRACKET, VERTICAL ROLLER H12B-G243-00 ASSEMBLY, PIN H12B-G242-00 ASSEMBLY, VERTICAL ROLLER 393605 RING, RETAINING, INTERNAL 1 1/8 H12B-G24-01 FLANGE, LOWER MOUNTING 394775 WASHER, LOCK, 0.50 390165 BOLT, HEX HEAD CAP, 0.50 - 13 x 1.00 390180 BOLT, HEX HEAD CAP, 0.50 - 13 x 1.50...
Page 111: Out Of Stock Assembly
OUT OF STOCK ASSEMBLY For customers who plan to cut in the automatic cycle with limited supervision, an OUT OF STOCK limit switch is available. It will stop the machine as soon as there is not enough material for the next cut in a cycle. VARIABLE VISE PRESSURE This option allows the operator to adjust the vise pressure.
Page 113: Section 8 - Specifications
SECTION 8 - SPECIFICATIONS H-14A Bandsaw Specification List round 14” dia Capacity rectangular 14”x14” Length Control Programmable up to 99 jobs length 15’4” Blade width 1 1/4 “ thickness .042” Blade Tension hydraulic 27,000 psi Blade Speed 50-350 SFM Blade Guides...
Page 114: H-14A Layout Drawing
H-14A LAYOUT DRAWING...
Page 115: Warranty
WARRANTY Hyd-Mech Group Limited warrants each new H-14A bandsaw to be free from failure resulting from defective material and workmanship under proper use and service for a period of two years following the date of shipment to the user. Hyd·Mech’s sole obligation under this warranty is limited to the repair or replacement without charge, at Hyd·Mech’s fac- tory, warehouse, or approved repair shop any part or parts which Hyd·Mech’s inspection shall disclose to be defective.
Page 116: Plc Parameters
PLC PARAMETERS Serial #: Voltage: Date of Inspection: Software Version: Parameters Password: Speed Constant Wheel Targets Height CLB (Press Enter) Actual Height Height Constant Lth CLB (Press Enter) Actual Length Length Constant Accel Dist Decel Distance Min Fast Dist Target Window SVO Dwell FVO Dwell Close Time...
