- Page 1 SC 60W-A36 English Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
- Page 2 Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product.
- Page 4 Wireless data transfer 1.3 Product information Hilti products are designed for professional use and may be operated, ser- viced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 5 ▶ Do not operate the power tool in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Page 6 ▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 ▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ▶ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
- Page 8 ▶ When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. ▶ Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control.
- Page 9 ▶ Blade depth and bevel adjusting locking levers must be tight and secure before making the cut. If blade adjustment shifts while cutting, it may cause binding and kickback. ▶ Use extra caution when sawing into existing walls or other blind areas.
- Page 10 ▶ Do not point the power tool toward persons. ▶ Adapt the forward pressure applied to the saw blade and the material being cut so that the blade does not stall. A stalled saw blade can cause kickback. ▶ Avoid overheating the tips of the saw blade teeth. ▶...
- Page 11 Contact Hilti Service after the battery has cooled down. English Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
- Page 12 English Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
- Page 13 English Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
- Page 14 3 Description 3.1 Product overview English Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...

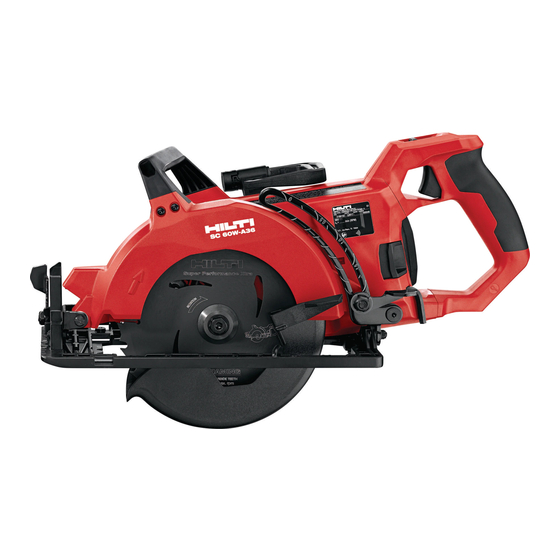

- Page 15 The product described is a cordless circular saw. It is designed for sawing wood or wood-like materials, plastics, drywall panel and gypsum fiber board. ▶ Use only Hilti Li-ion batteries from the B 36 series with this product. ▶ Use only Hilti battery chargers from the C4/36 series for these batteries.
- Page 16 Note Other system products approved for use with this product can be found at your local Hilti Store or online at: www.hilti.group | USA: www.hilti.com 3.6 Liion battery display The state of charge of the Li-ion battery and malfunctions of the power tool are indicated by the display on the Liion battery.
- Page 17 5 Preparations at the workplace CAUTION Risk of injury! Inadvertent starting of the product. ▶ Remove the battery before making any adjustments to the power tool or before changing accessories. Observe the safety instructions and warnings in this documentation and on the product.
- Page 18 5.2 Removing the saw blade WARNING Risk of burning injury. A hot accessory tool, clamping flange or clamping screw and the sharp edges of the saw blade present hazards. ▶ Wear protective gloves when changing saw blades. 1. Remove the battery. → page 15 2.
- Page 19 5.3 Installing the saw blade Note Use only saw blades of a diameter corresponding to the markings on the saw. 1. Remove the battery. → page 15 2. Clean the mounting flange and the clamping flange. 3. Slip the mounting flange right way round on to the arbor. 4.
- Page 20 11. B efore using the power tool, check that the saw blade is correctly seated and tightened securely. 12. I nsert the hex key into the hole provided for the purpose. 5.4 Adjusting the cutting depth 1. Release the cutting depth adjustment clamping lever. 2.
- Page 21 5.5 Setting the cutting angle 1. Release the cutting angle adjustment clamping lever. 2. Set the cutting angle with the aid of the cutting angle scale. 3. Tighten the cutting angle adjustment clamping lever. 5.6 Inserting the battery WARNING Risk of injury Inadvertent starting of the circular saw. ▶...
- Page 22 Open the pivoting guard fully and check that the guard automatically returns to the fully closed position when released. Clean the pivoting guard if necessary or have the product repaired by Hilti Service. Observe the safety instructions and warnings in this documentation and on the product.
- Page 23 6.1 Switching the tool on 1. Disengage the transport safety lock. 2. Press the on/off switch. 6.2 Sawing along a line 1. Secure the workpiece to prevent movement. 2. Position the workpiece so that the saw blade is free to rotate beneath it. 3.
- Page 24 6.3 Plunge function 1. Set the cutting depth. → page 18 2. Set the front edge of the base plate on the workpiece. 3. Use the operating lever to open the pivoting guard. 4. Lower the product until the saw blade is just clear of the workpiece. 5.
- Page 25 • Do not operate the cordless tool if signs of damage are found or if parts malfunction. Have the tool repaired by Hilti Service immediately. • After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.
- Page 26 9 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. 9.1 The circular saw is in working order. Trouble or fault...
- Page 27 The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appli- ances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 28 English Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
- Page 29 Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
- Page 30 Hilti = registered trademark of Hilti Corp., Schaan 20171206 Printed: 08.12.2017 | Doc-Nr: PUB / 5389748 / 000 / 00...
