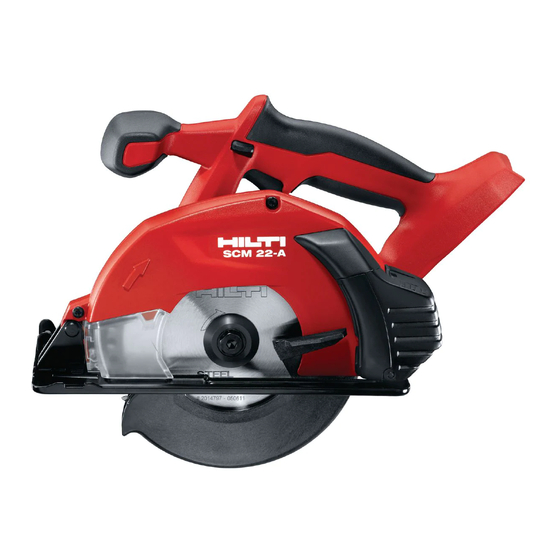

Hilti SCM 22-A Manual
Hide thumbs
Also See for SCM 22-A:
- Operating instructions manual (257 pages) ,
- Original operating instructions (256 pages) ,
- Manual (92 pages)
Related Manuals for Hilti SCM 22-A
Summary of Contents for Hilti SCM 22-A
- Page 1 SCM 22-A English Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
- Page 2 Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
- Page 3 Saw blade 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 4 The type designation and serial number are stated on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information Type: SCM 22A...
- Page 5 ▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 6 Kickback causes and related warnings • kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator; • when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;...
- Page 7 ▶ Observe the national health and safety requirements. ▶ To reduce the risk of injury, use only genuine Hilti accessories and accessory tools. ▶ Dust from materials, such as paint containing lead, some wood species, concrete / masonry / stone containing silica, and minerals as well as metal, may be harmful.
- Page 8 English Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
- Page 9 English Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
- Page 10 3 Description 3.1 Overview of the product English Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
- Page 11 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.group English Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
-
Page 12: Operation
3.6 Accessories Clamping flange, mounting flange, clamping screw. 4 Technical data 4.1 Circular saw SCM 22A Rated voltage 21.6 V Weight in accordance with EPTA procedure 01 4.0 kg Saw blade diameter 160 mm …165 mm Blade disc thickness 1.2 mm Kerf width 1.6 mm Saw blade arbor size... - Page 13 5.2 Removing the battery ▶ Press both battery release buttons simultaneously and pull the battery out of the product. 5.3 Removing the saw blade WARNING Risk of burning injury. A hot accessory tool, clamping flange or clamping screw and the sharp edges of the saw blade present hazards.
- Page 14 1. Clean the mounting flange and the clamping flange. 2. Fit the mounting flange onto the drive spindle the right way round. 3. Open the pivoting guard. 4. Fit the new saw blade. Note Observe the direction-of-rotation arrow on the saw blade and on the power tool. They must correspond.
- Page 15 WARNING Electrical hazard! Risk of short circuiting. ▶ Before inserting the battery, check to ensure that the battery terminals and the contacts on the circular saw are free from foreign objects. WARNING Risk of injury! Hazard presented by a falling battery. ▶...
- Page 16 5.8 Fitting / adjusting the rip fence (parallel guide) 1. Press the clamp together. 2. Push the parallel guide into the base plate as far as desired. 3. Release the clamp when the parallel guide is in the desired position. 5.9 Emptying the chip collector WARNING Risk of injury! Hot or sharp metal cuttings / chips present a hazard.
- Page 17 ▶ Clean the dust shield on the chuck with a dry, clean cloth at regular intervals. ▶ Clean the sealing lip by wiping it carefully and then grease it again lightly with Hilti grease. ▶ It is essential that the dust shield is replaced if the sealing lip is damaged.
-
Page 18: Troubleshooting
▶ Check the tool and batteries for damage before use after long periods of storage. 8 Troubleshooting ▶ If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. 8.1 The circular saw is not in working order. Malfunction... - Page 19 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 20 English Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
- Page 21 Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
- Page 22 Hilti = registered trademark of Hilti Corp., Schaan 20170512 Printed: 23.06.2017 | Doc-Nr: PUB / 5359135 / 000 / 00...
