  • Page 1 WiPG-1600 User’s Manual WiPG-1000 User's Manual version: 2.01...

  • Page 2: Table Of Contents

    WiPG-1600 User’s Manual Table of Contents Overview ........................... 3 Package Contents ........................4 USB Token Contents ........................4 Physical Details .......................... 5 What You Might Need ....................... 7 Hardware Installation ........................ 7 Standby Screen of the Projector/Display ................... 8 Web Management ........................10 Home Page ..........................

  • Page 3: Overview

    WiPG-1600 User’s Manual Overview wePresent WiPG-1000 is a professional wireless presentation gateway. With the revolutionary “interactive” and “wireless” features, wePresent WiPG-1000 enables users to deliver presentations wirelessly from a PC, Mac, iPad, iPhone or any Android device to a projector, to use a tablet or smartphone to control the projecting PC/Mac,...

  • Page 4: Package Contents

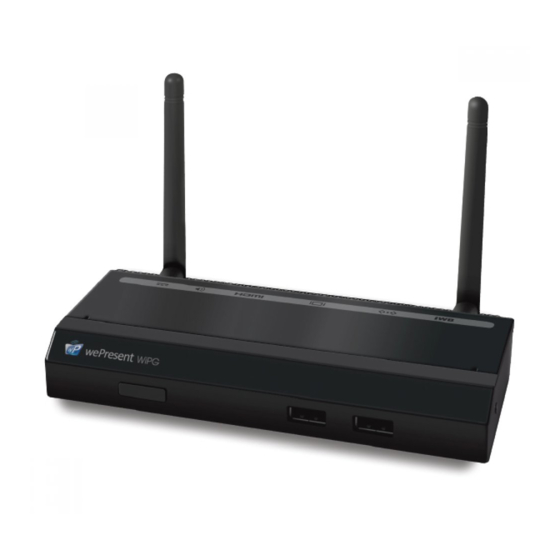

    WiPG-1600 User’s Manual Package Contents wePresent WiPG-1000 Base Unit  wePresent USB Token  Power Adapter (DC +5V, 2.6A)  Two Detachable WiFi Antennas  Quick Installation Guide  Warranty Card  CE DoC and Warning Statement  USB Token Contents MirrorOp Installer for Windows ...

  • Page 5: Physical Details

    WiPG-1600 User’s Manual Physical Details Front Panel Power Button/LED Indicator USB Port Description Power Button and LED Indicator Power on/off button. LED indicator: red - system loading, green - system ready USB Port (Front) 2 USB ports for USB mouse/keyboard/thumb drive Rear Panel Ethernet Port HDMI Port...
  • Page 6 Description Reset Button For hard reset * * *To perform a hard reset to restore your WiPG-1000 device to the factory default settings, please follow the below procedures: 1. Long press the reset button and hold. 2. Turn on the WiPG-1000 and wait for over 10 seconds until the LED indicator turns green.

  • Page 7: What You Might Need

    1) Connect the WiPG-1000 to the projector/display through the VGA/HDMI port and turn on the projector/display power. 2) Connect the power adapter to the WiPG-1000 and press the power button to turn on the device. The system is ready when the LED indicator turns green.

  • Page 8: Standby Screen Of The Projector/Display

    SSID/Hostname IP Address 3) If you disable the WiFi of the WiPG-1000, you need to connect the device to an existing IT network through an Ethernet cable. 4) Insert the speaker cable to the WiPG-1000 audio jack for audio output. (A speaker is required for audio output when using VGA.)
  • Page 9 WiPG-1600 User’s Manual of connected sender devices will be shown on the standby screen. The conference moderator can use the USB mouse/keyboard to select which device to use and control it remotely. 3) If you need more advanced information, please click the “Setup” icon and you can: (a) find the FW version, resolution, and WiFi security information;...

  • Page 10: Web Management

    Web Management Home Page 1) Make sure your sender device connects to the WiPG-1000 successfully. 2) Open the browser of the sender device, and enter the receiver IP address in the address bar of the browser. You can find the receiver IP address on the standby screen of the projector/display.

  • Page 11: Conference Control

    1) Select the “Conference Control” function, and a list of connected sender devices will be shown. 2) Enter the password and then click “Login”. (Default password: moderator) 3) After login, you can see a user-list on the screen which indicates all the users connected to the WiPG-1000.

  • Page 12: Webslides

    (lower-right quadrant of the screen); (stop) 6) Uncheck the “Allow control from this page only”, and the centralized control will be disabled, allowing users to project the screen to WiPG-1000 freely. WebSlides 1) Press the “WebSlides” button to enter the WebSlides page.

  • Page 13: Admin

    Default Gateway: default gateway ♦ Wireless MAC address: wireless MAC address ♦ Wire MAC address: wire MAC address ♦ < Connection Status > Projecting Status: “Waiting for projecting” or “Projecting” ♦ Total Users: the number of users logging into the WiPG-1000 device ♦...

  • Page 14: Device Setup

    IWB USB Port: You can configure the IWB USB port to support the “IWB (HID)” or ♦ “Mouse/Keyboard” device. < SharePod Pairing Settings >: Choose “Apply wePresent’s WiFi settings” or “Apply the following WiFi settings”. (If ♦ you choose “Apply the following WiFi settings”, input the SSID to which the SharePod should connect.) Encryption: The default setting is “Disable”.

  • Page 15: Network Setup

    “Enable” or “Disable” the AirPlay feature. ♦ Note: If a login code is set on the WiPG-1000 device, you will be asked for a password when you use AirPlay on Mac or iOS devices. Please enter the same login code in the AirPlay password dialog box.
  • Page 16 The default setting of the WiPG-1000 is DHCP client. When the WiPG-1000 is connected to a LAN that already has a DHCP server present, the WiPG-1000 takes an IP address assigned to it by the server. When the WiPG-1000 is connected to a LAN that does not have a DHCP server, the WiPG-1000 can become the DHCP server in the network.
  • Page 17 WiPG-1600 User’s Manual according to the encryption mode you selected Channel Bandwidth: “20MHz” or “Auto” (20MHz/40MHz) [The default value is ♦ “Auto”] < AP Client > Connect to Existing AP: The default value is “Disable” (if you choose “Enable”, ♦ input the SSID of the existing AP you want to connect to).

  • Page 18: Osd Setup

    WiPG-1600 User’s Manual 8.5.4 OSD Setup Click [OSD Setup], and you can change the standby image < Change Standby Image > Restore to default: Restore the standby image to the default one. ♦ Browse: Browse and choose an image file you wish to display on the standby ♦...

  • Page 19: 8.5.5 Change Passwords

    WiPG-1600 User’s Manual User-List: “Enable”(show the user-list) or “Disable” (hide the user-list) [The ♦ default value is “Enable”] Connect Info: “Enable” (show the overlay connection info) or “Disable” (hide ♦ the overlay connection info) [The default value is “Enable”] Font Color: Adjust the font color of system information [The default value is ♦...

  • Page 20: Reset To Default

    <Apply>: Confirm to perform the reset. *** To perform a hard reset to restore your WiPG-1000 device to the factory default settings, please follow the below procedures: A. Long press the reset button (on the bottom side of the WiPG-1000) and hold.

  • Page 21: Firmware Upgrade

    D. A warning message will be shown, and a progress bar will appear on the screen. E. After a few minutes, a message will be shown on the screen, telling you the upgrade is complete. F. WiPG-1000 will reboot to complete the upgrade process.
  • Page 22 WiPG-1600 User’s Manual Warning: Do not power off the WiPG-1000 while the firmware upgrade is in progress; otherwise your WiPG-1000 device may crash and you have to return the device to your vendor for repair.

  • Page 23: 8.5.8 Webslides Setup

    It is important to realize that all the WebSlides users consume wireless bandwidth. If there are more than 10 concurrent WebSlides users, it is recommended to connect WiPG-1000 to your company network via Ethernet, or set up a wireless router to connect to WiPG-1000. Then, users should connect their devices to WiPG-1000 via their company network or a wireless router in order to secure the projection performance.

  • Page 24: 8.5.9 Reboot System

    WiPG-1600 User’s Manual 8.5.9 Reboot System 1) Click [Reboot System], and you can restart the system. ♦ <Reboot>: Reboot the system automatically 8.5.10 Logout 1) Click [Logout] (on the upper-right corner of the screen), and you can log out of the WiPG-1000.

  • Page 25: Using Mirrorop (Sender) To Start Projection

    Using MirrorOp (Sender) to Start Projection Start the MirrorOp application Windows: 1) Click the MirrorOp icon on the desktop to execute the application, or launch the MirrorOp application from the USB token directly. 2) It will start to search for the WiPG-1000 device automatically.
  • Page 26 WiPG-1600 User’s Manual 3) Click on the WiPG-1000 device and enter the login code shown on the display. 4) Click the “PLAY” button to start the screen sharing. Mac: 1) Click on the MirrorOp icon from the Applications folder to execute the application.
  • Page 27 WiPG-1600 User’s Manual 3) Click on the WiPG-1000 device and enter the login code shown on the display. 4) Click the “PLAY” button to start the screen sharing.

  • Page 28: Main User Interface Of Mirrorop (Sender)

    WiPG-1600 User’s Manual Main User Interface of MirrorOp (Sender) Collapse/Expand the Info Panel Minimize the User Interface Settings Exit/Close the Application Expand/Collapse Device List Full/Split Screen Start/Stop Projection Sound/Mute...

  • Page 29: A Complete User's Guide On Mirrorop (Sender)

    WiPG-1600 User’s Manual A Complete User’s Guide on MirrorOp (Sender) 1) For a complete user’s manual on MirrorOp (Sender), click the “Settings” icon on the upper-left corner of the info panel. Then, click “About” in the menu bar. 2) Click “Get Help” on the lower-right corner of the screen, and then you can view the “MirrorOp User’s Manual”.

  • Page 30: Use The Sidepad Function With Mirrorop Receiver

    MirrorOp Receiver app. Display Tablet/Smartphone HDMI/VGA Cable PC/Mac (Projection) (Remote Control) WiPG-1000 (Projection) 2) How to use the SidePad function: A. PC/Mac running the MirrorOp (Sender) app Click the “Settings” icon on the upper-left corner of the info panel. ...
  • Page 31 WiPG-1600 User’s Manual Check “Allow controlling from tablets”  Set the passcode (default passcode: 1111)  B. Tablet/Smartphone running the “MirrorOp Receiver” app...
  • Page 32 WiPG-1600 User’s Manual Android Install the “MirrorOp Receiver” app from the Google Play store.  Open the “MirrorOp Receiver” app. Long-press the Menu button on your  Android device, and click “Settings”. Check “Search for senders on start”.  Close MirrorOp Receiver and re-open it. ...
  • Page 33 WiPG-1600 User’s Manual Select which PC/Mac you want to control and enter the passcode you set  earlier. Now you are able to remotely control the Mac/PC from your  tablet/smartphone. Install the “MirrorOp Receiver” app from the Apple App store. ...
  • Page 34 WiPG-1600 User’s Manual Enable “Search for senders on start”.  Open the “MirrorOp Receiver” app. ...
  • Page 35 WiPG-1600 User’s Manual You will see the name of the PC/Mac with the MirrorOp (Sender) app  installed. Select which PC/Mac you want to control and enter the passcode you set  earlier. Now you are able to remotely control the Mac/PC from your ...

  • Page 36: Launch Webslides

    The WebSlides function is not available when the Quad-Screen mode is on. - Connect your mobile device to the WiPG-1000 via WiFi or LAN - Open your web browser, and enter the IP address of the WiPG-1000 - View the presenting slides on your device…save the slides as JPG files for...
  • Page 37 WiPG-1600 User’s Manual 2) Audience: • The audience also need to connect to WiPG-1000 via WiFi or LAN. • Open the browser of the audience’s login devices, and enter the IP address of WiPG-1000 in the address bar of the browser. [Default IP address is 192.168.100.10]...
  • Page 38 WiPG-1600 User’s Manual The audience will see the below image on their devices, and they can start to • receive the projecting screen/slides. They can save the projecting screen (for note-taking later) by clicking in the menu bar at the top of the screen...

  • Page 39: Wall-Mount Kit

    Wall-Mount Kit 1. Insert the two short screws ( ) into the two holes on the bottom side of the WIPG-1000. [Remember to place the two plastic washers ( between the two short screws ( ) and the WIPG-1000.] 2. Install the mounting bracket on the wall with the four long screws (...
