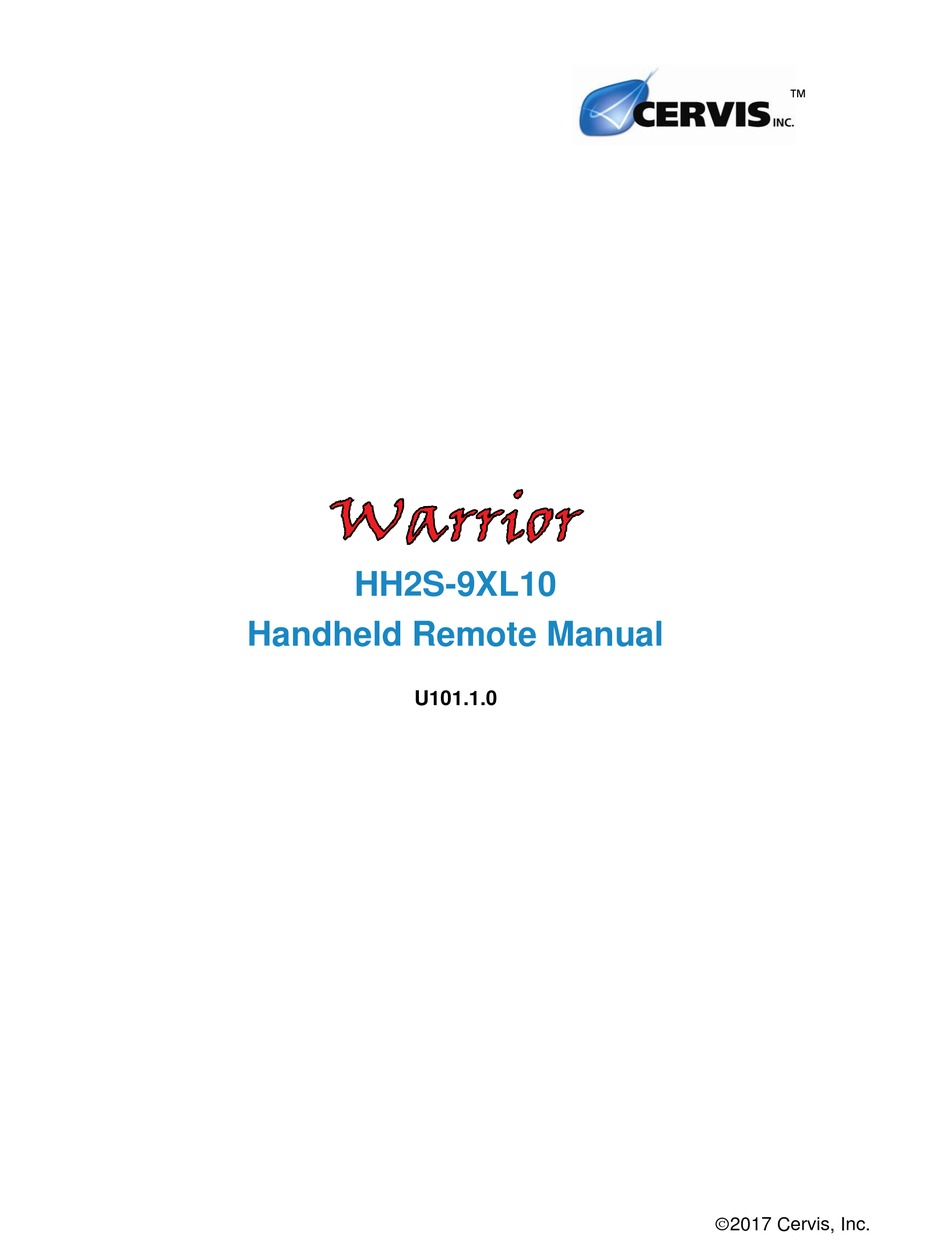

  • Page 1 ™ HH2S-9XL10 Handheld Remote Manual U101.1.0 2017 Cervis, Inc.
  • Page 2 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
  • Page 3: Table Of Contents

    HH2S-9XL10 Handheld Remote Table of Contents Table of Contents .......................... i List of Figures ..........................i Cervis Inc. Safety Precautions ....................ii Warning: Operator Control Check ..................... iii 1.0 Warrior Handheld Remote (HH2S-9XL10) ................1 1.1 HH2S-9XL10 Battery Installation ..................2 1.2 HH2S-9XL10 Battery Warning and Shutdown ..............
  • Page 4: Cervis Inc. Safety Precautions

    Cervis Inc. Safety Precautions  Read and follow all instructions.  Failure to abide by Safety Precautions may result in equipment failure, loss of authority to operate the equipment, and personal injury.  Use and maintain proper wiring. Follow equipment manufacturer instructions.
  • Page 5: Warning: Operator Control Check

    The tag can be removed from this manual and attached to the transmitter or kept in a toolbox for operator convenience. This tag can be ordered in an industrial tear-resistant material by contacting: Cervis, Inc. (724) 741-9000 ─ (P/N: L159.0.0 15100450-0-0) Figure 1. Warning: Operator Control Check Label 2017 Cervis, Inc...
  • Page 6 U101.1.0...
  • Page 7: Warrior Handheld Remote (Hh2S-9Xl10)

    HH2S-9XL10 Handheld Remote 1.0 Warrior Handheld Remote (HH2S-9XL10) The HH2S-9XL10 handheld is a small, compact handheld remote control that interfaces with Warrior 32 MU-9X15 receiver. The HH2S-9XL10 is made up of ten two step actuators. The HH2S-9XL10 utilizes two AAA batteries for power. The HH2S-9XL10 enclosure is constructed of rugged polycarbonate designed to meet an ingress protection rating of IP55 according to IEC 60529.
  • Page 8: Hh2S-9Xl10 Battery Installation

    1.1 HH2S-9XL10 Battery Installation HH2S-9XL10 handheld units are powered by two AAA alkaline batteries. When installing batteries, be sure to observe proper polarity as marked on the inside of the compartment to avoid damaging the unit. To replace or install batteries in the handheld: 1.
  • Page 9: Hh2S-9Xl10 Battery Warning And Shutdown

    2. Wait while the LEDs cycle and then the RX/TX begins to flash. 3. Press the Horn/Start button (B2). This energizes the MLC relays in the receiver. The handheld is ready for normal functional operation. Figure 6. System Startup 2017 Cervis, Inc...
  • Page 10: Associating A Handheld With A Receiver

    2.0 Associating a Handheld with a Receiver Warrior 32 system handhelds are associated to the receiver before the system is shipped and the Associate process is locked by MU-9X15 receiver SW01 DIP switch 8 (Figure 7) being 0 (OFF). The receiver will only communicate with handhelds to which it is associated. Other Warrior 32 handhelds can be associated to the receiver when necessary as additional spares or to replace damaged handhelds, but the receiver association ability must be first unlocked.
  • Page 11: Unlock Association Method 2

    2. Within 1 second, while the B Select LED is active, simultaneously press and release buttons A/B-AUX 1 and AUX 2. Figure 8. Associate Step 2 Handheld LEDs will begin cycling indicating the handheld is in maintenance mode. 2017 Cervis, Inc...
  • Page 12: Hh2S-9Xl10 Handheld Factory Reset (Memory Clear)

    3. Simultaneously press and hold buttons 3 (UP) and 4 (DOWN) for approximately 5- seconds. 4. Release the buttons when LED A starts to blink. 5. TX/RX LED and B Selection LED will become active indicating the handheld is attempting to locate all available Warrior receivers. 6.
  • Page 13: Hh2S-9Xl10 Handheld Specifications

    200 gr. / 7.2 oz. (With lanyard or belt clip) Durability High Impact Polymer case Polycarbonate faceplate Impact absorbing bumper Indicators Wireless Indicates wireless communications Battery Provides battery status Indicates A selected when lit Indicates B selected when lit Buttons (10) Two-step pushbuttons 2017 Cervis, Inc...
  • Page 14: Appendix A: Exposure To Radio Frequency Energy

    Appendix A: Exposure to Radio Frequency Energy Warrior 32 handheld remote units and machine units contain radio transceivers. When active, a handheld remote sends out radio frequency (RF) energy through its internal antenna. The Warrior 32 handheld remote complies with limits set by the FCC for operating distance from human tissue.
  • Page 15 History Table Date Action 4/26/17 Original 9/11/17 Typo fix: 904-926MHz bandwidth 11/16/17 Manual rewrite to isolate the HH2S www.cervisinc.com Visit our Web site at:  2017 Cervis, Inc. All rights reserved. Content is subject to change without notice. 2017 Cervis, Inc...
