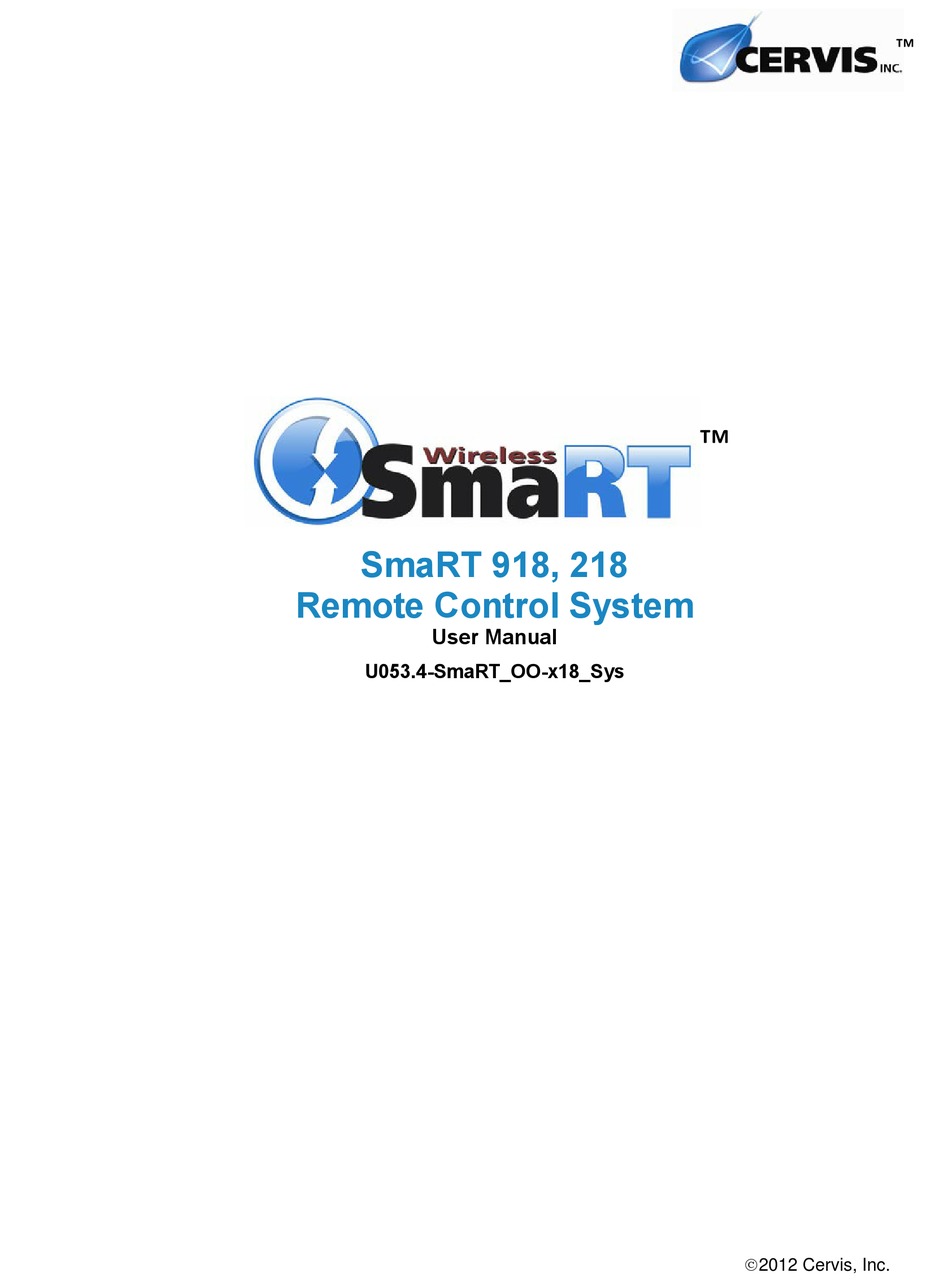

Page 1: Remote Control System
™ ™ SmaRT 918, 218 Remote Control System User Manual U053.4-SmaRT_OO-x18_Sys 2012 Cervis, Inc. - Page 2 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
-
Page 3: Table Of Contents
Remote Control System Table of Contents Cervis Inc. Safety Precautions ....................1 1.0 SmaRT 218, 918 Remote Control System ................3 2.0 SmaRT x18 18-Button Handheld Remote Control ............4 2.1 Features ..........................4 2.2 SmaRT x18 Handheld Battery Installation ..............5 2.3 Low Battery Warning ...................... - Page 4 SmaRT 218, 918 Definitions/Notes Associate/Association Mode where by SmaRT handhelds and base units are paired for operation (ID’s exchanged). This mode is used to commission spare handhelds or base units. DSSS Direct sequence spread spectrum; an advance wireless communication technology.
-
Page 5: Cervis Inc. Safety Precautions
Remote Control System Cervis Inc. Safety Precautions Read and follow all instructions. Failure to abide by Safety Precautions may result in equipment failure, loss of authority to operate the equipment, and personal injury. Use and maintain proper wiring. Follow equipment manufacturer instructions. - Page 6 SmaRT 218, 918 The following applies only to SmaRT 218 18-Button Handheld remote control systems. RoHS Compliance Statement Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS/WEEE) Specification based on in-house practice and declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc.
-
Page 7: Smart 218, 918 Remote Control System
The BU-x16F base unit has sixteen solid state FET channels. System configuration is extended as the I/O can also be custom configured by Cervis Engineering to be inputs or outputs. -
Page 8: Smart X18 18-Button Handheld Remote Control
SmaRT 218, 918 2.0 SmaRT x18 18-Button Handheld Remote Control The SmaRT™ x18 18-Button Handheld Remote is designed for traditional and non- traditional mobile applications capable of activating and deactivating the input/outputs of SmaRT base units. The handheld remote is capable of providing single-handed operation in a comfortable ergonomic layout. -
Page 9: Smart X18 Handheld Battery Installation
2.2 SmaRT OO-x18 Handheld Battery Installation The handheld remote operates between 1.6 to 3.2VDC powered by four factory installed 1.5V AA alkaline batteries. Cervis, Inc. recommends that fresh spare batteries be at hand at all times that the system is in use. -
Page 10: Low Battery Warning
SmaRT 218, 918 2.3 Low Battery Warning When low voltage is sensed—approximately 1.7V—the AMBER RX LED will no longer indicate that there is an incoming message. Instead, the LED will begin to flash approximately once per second indicating a Low Battery Warning. Messages are still being received, and the handheld can still be used, but it is recommended that a fresh set of four AA batteries should be installed as soon as possible. -
Page 11: Smart Oo-X18 Operation
Pin # P2–9 P2–10 P2–11 P2–12 P2–1 P2–2 P2–3 P2–4 P1–3 Ch10 P1–4 Ch11 P1–5 Ch12 P1–6 Ch13 P1–7 Ch14 P1–8 Ch15 P1–9 Ch16 P1–10 Table 1. Handheld Button to BU I/O Mapping Figure 5. Handheld Buttons 2012 Cervis, Inc. -
Page 12: Associate Mode
SmaRT 218, 918 4.0 Associate Mode The Associate Mode is used to establish the communications link between the 18-button handheld remote and base unit on a 1-to-1 basis. There must be a clear line of sight between the handheld and the base to associate, and both units must be OFF (powered down). -
Page 13: Bu-X16F Base Unit
The SmaRT™ BU-x16F features sixteen FET, high side switching outputs or switch-to- ground digital inputs. The versatile, programmable digital inputs can be customized by Cervis to fit specific user applications. The BU-X16F accepts a broad range of input power with operating voltages ranging from 7VDC to 32VDC. The rugged weatherproof enclosure allows the unit to operate worry free in harsh weather conditions. -
Page 14: Bu-X16F Base Unit Installation
Make sure the machine that the base unit is to be installed is disabled during installation. Use the configuration diagrams supplied by Cervis as a guide when mounting the base unit and connecting the wiring harnesses. Dimensions for drilling mounting holes are shown in Figure 8. -
Page 15: Figure 9. Base Unit Field Wiring
(10) M16 (button #16) +VDC Battery/Power Supply Positive (11) UNUSED (12) — VDC −VDC Battery/Power Supply Negative Handheld remote buttons #1 through #16 are typically mapped to base unit outputs/Inputs M1 through M16 respectively. Figure 9. Base Unit Field Wiring 2012 Cervis, Inc. -
Page 16: Figure 10. Field Wiring
SmaRT 218, 918 Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Figure 10. Field Wiring U053.4-SmaRT_OO-x18_Sys... -
Page 17: Specifications
1 sec pulses – low battery indication LED 4 (Red) Used for Association Pulses for 30 sec. – low voltage auto-shutdown indication Pushbuttons Green 1 through 16 Function, output control Style Latching or Momentary Button Life 5-million operations (typical) 2012 Cervis, Inc. -
Page 18: Table 3. Smart Bu-X16F Base Unit Specifications
SmaRT 218, 918 Table 3. SmaRT BU-X16F Base Unit Specifications SmaRT BU-x16F Base Unit Specs POWER +7 to +32VDC RADIO Frequency 906 – 924MHz 900MHz RF Power Frequency 2405 – 2480MHz 2.4GHz RF Power License License Free Modulation DSSS Antenna... -
Page 19: Bu-X16F Output Current Derating Curve
Remote Control System 7.0 BU-x16F Output Current Derating Curve Figure 11. Base Unit Output Current Derating Curve 2012 Cervis, Inc. -
Page 20: Base Unit Troubleshooting
SmaRT 218, 918 8.0 Base Unit Troubleshooting Table 4. Base Unit LED Troubleshooting Indication Interpretation – Recommendation Is +7 to +32VDC input power present? Power LED not active Check input power polarity. Power LED Red or Green Indicates an internal component failure. - Page 21 The Cervis Inc. and SmaRT Wireless logos are trademarks of Cervis, Inc. Contact via Phone: (724) 741-9000 2012 Cervis, Inc. All rights reserved. Content is subject to change without notice. Revised manuals are available for download at www.cervisinc.com. 2012 Cervis, Inc.
- Page 22 SmaRT 218, 918 U053.4-SmaRT_OO-x18_Sys...
