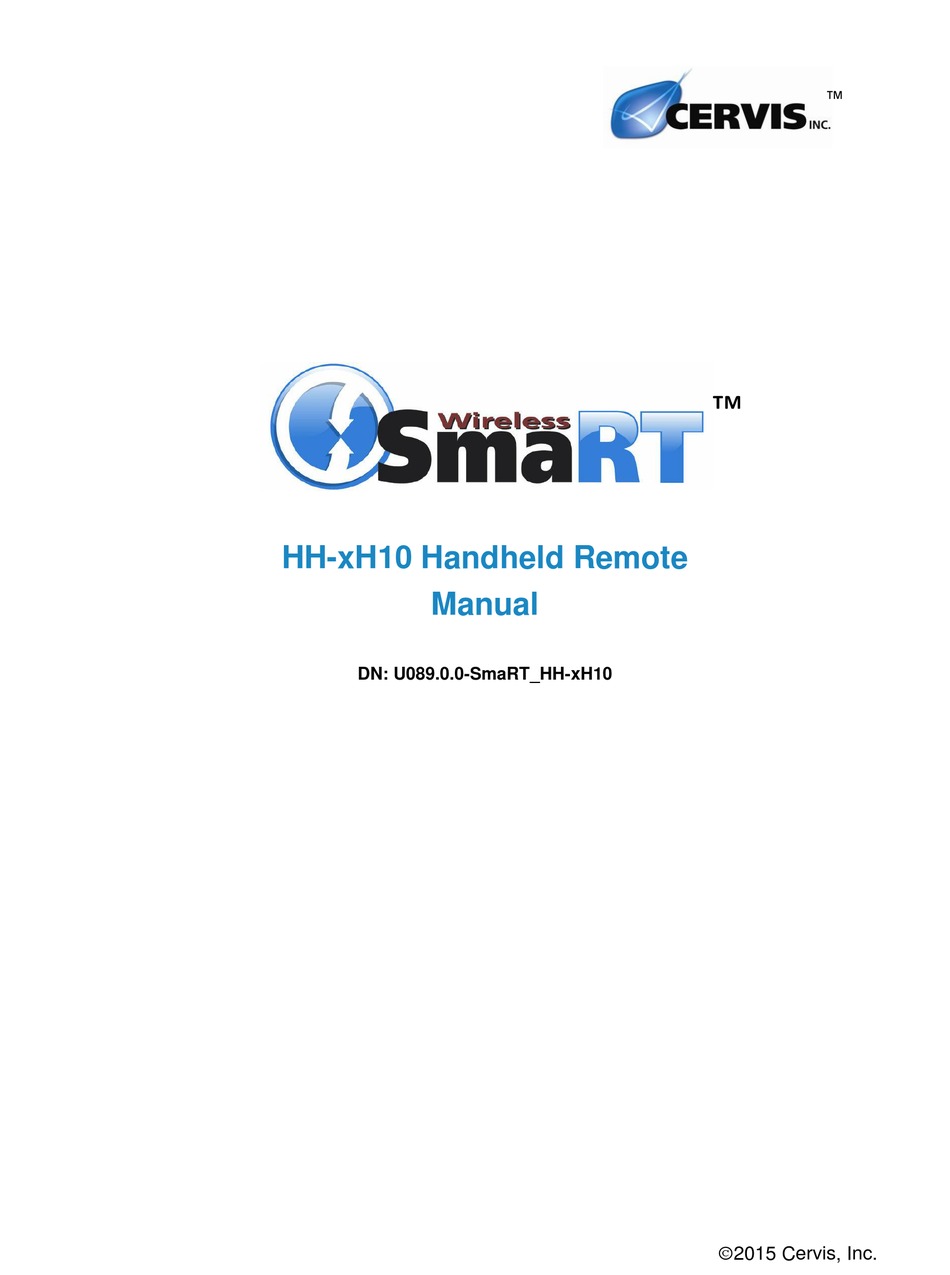

- Page 1 ™ ™ HH-xH10 Handheld Remote Manual DN: U089.0.0-SmaRT_HH-xH10 2015 Cervis, Inc.
- Page 2 RoHS Compliance Statement Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS/WEEE) Specification based on in-house practice and declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc. at: CERVIS, Inc.
-
Page 3: Document Conventions
Note: Notes are used to indicate points of interest or pertinent information. Cautions are used to warn of serious consequences of actions or inactions that may result in injury, death, or serious damage to the equipment. 2015 Cervis, Inc. -
Page 4: Table Of Contents
List of Figures ..........................ii List of Tables ..........................ii Cervis Inc. Safety Precautions ....................1 1.0 SmaRT HH-xH10 Handheld Remote ................... 2 2.0 Handheld and Base Unit Communication ................4 2.1 Associate Handheld to Base Unit ..................4 2.2 Dissociate Handheld from Base Unit ................5 3.0 Battery Installation or Change .................... -
Page 5: Cervis Inc. Safety Precautions
Handheld Remotes Manual Cervis Inc. Safety Precautions Read and follow all instructions. Failure to abide by Safety Precautions may result in equipment failure, loss of authority to operate the equipment, and personal injury. Use and maintain proper wiring. Follow equipment manufacturer instructions. -
Page 6: Smart Hh-Xh10 Handheld Remote
SmaRT HH-xH10 1.0 SmaRT HH-xH10 Handheld Remote Handheld Features License free 900MHz or 2.4GHz Direct Sequence Spread Spectrum Technology (DSSS) Direct-line-of-sight communications up to 1000 ft. (330m) range Powered by two AAA alkaline batteries Low Battery Warning and Low Battery Auto-Shutdown ... -
Page 7: Figure 2. Standard Ten Button Example
Handheld Remotes Manual The SmaRT HH-xH10 is powered by two (2) size AAA alkaline batteries and operates between 2.0VDC to 3.2VDC. Six visible status/diagnostic LEDs (see Figure 2) indicate transmit and receive activity, communications errors, and low battery warning. Two additional LEDs – A1 and A2 –... -
Page 8: Handheld And Base Unit Communication
An HH-xH10 remote as part of a system is associated to the system base unit before leaving Cervis, but it is possible to associate an HH-xH10 in the field to address a communication problem or to add or replace a handheld controller. The procedure to establish the link is called Associate. -
Page 9: Dissociate Handheld From Base Unit
Established links with base units are removed. A handheld remote must use the Associate Procedure (2.1) to re-establish a communication link with a base unit. Hold to DISSOCIATE Hold to DISSOCIATE Figure 4. Dissociate an HH-xH10 Handheld from a Base Unit 2015 Cervis, Inc. -
Page 10: Battery Installation Or Change
SmaRT HH-xH10 3.0 Battery Installation or Change SmaRT HH-xH10 handheld units are powered by two size AAA alkaline batteries. When installing batteries, be sure to observe proper polarity as marked on the inside of the compartment to avoid damaging the unit. To replace or install batteries in the handheld: 1. -
Page 11: Using A Standard Smart Handheld Remote
Inactivity timeout occurs, where no button activity is sensed for a programmed amount of time (default four [4] minutes). When the handheld is turned off and the base unit Safety Link is enabled, all base unit active functions are deactivated. 2015 Cervis, Inc. -
Page 12: Low Battery Warning And Low Battery Auto-Shutdown
SmaRT HH-xH10 5.0 Low Battery Warning and Low Battery Auto-Shutdown At 2.1VDC and below the Amber BATTERY LED will begin to flash approximately once per second to indicate a Low Battery Warning. Messages are still being transmitted, and the handheld can still be used, but it is recommended that a fresh set of two (2) AAA alkaline batteries should be installed as soon as possible. -
Page 13: Specifications
Handheld Remotes Manual 6.0 Specifications Table 2. SmaRT HH-xH10 Handheld Specifications Item Description Power +2.1V to +3.2VDC Source Two (2) AAA alkaline batteries Auto-shutdown Four (4) minutes of button inactivity (default) ≈2.1V – batteries should be immediately replaced Low Battery Warning 2.0V –... -
Page 14: Spare Parts List
7.0 Spare Parts List Table 3. Spare Parts List Item Cervis Bin Location Protective Rubber Bumper AA6-02 Lanyard AA8-01B Battery Cover with 4 Attached Screws Call Cervis @ 724-741-9000 AAA 1.5V Alkaline Batteries (pk. 2) AA6-03 Belt Clip AA5-07 Replacement Antenna Disallowed U089.0.0-SmaRT_HH-xH10... -
Page 15: Appendix A: Exposure To Radio Frequency Energy
Keep the remote when in use at least 15mm (5/8 inch) away from the body, and only use carrying cases, belt clips, or holders that are approved by the Cervis, Inc. Appendix B: Agency Identification Label Locations ... - Page 16 SmaRT HH-xH10 www.cervisinc.com Visit our Web site at: 2015 Cervis, Inc. All rights reserved. Content is subject to change without notice. U089.0.0-SmaRT_HH-xH10...
