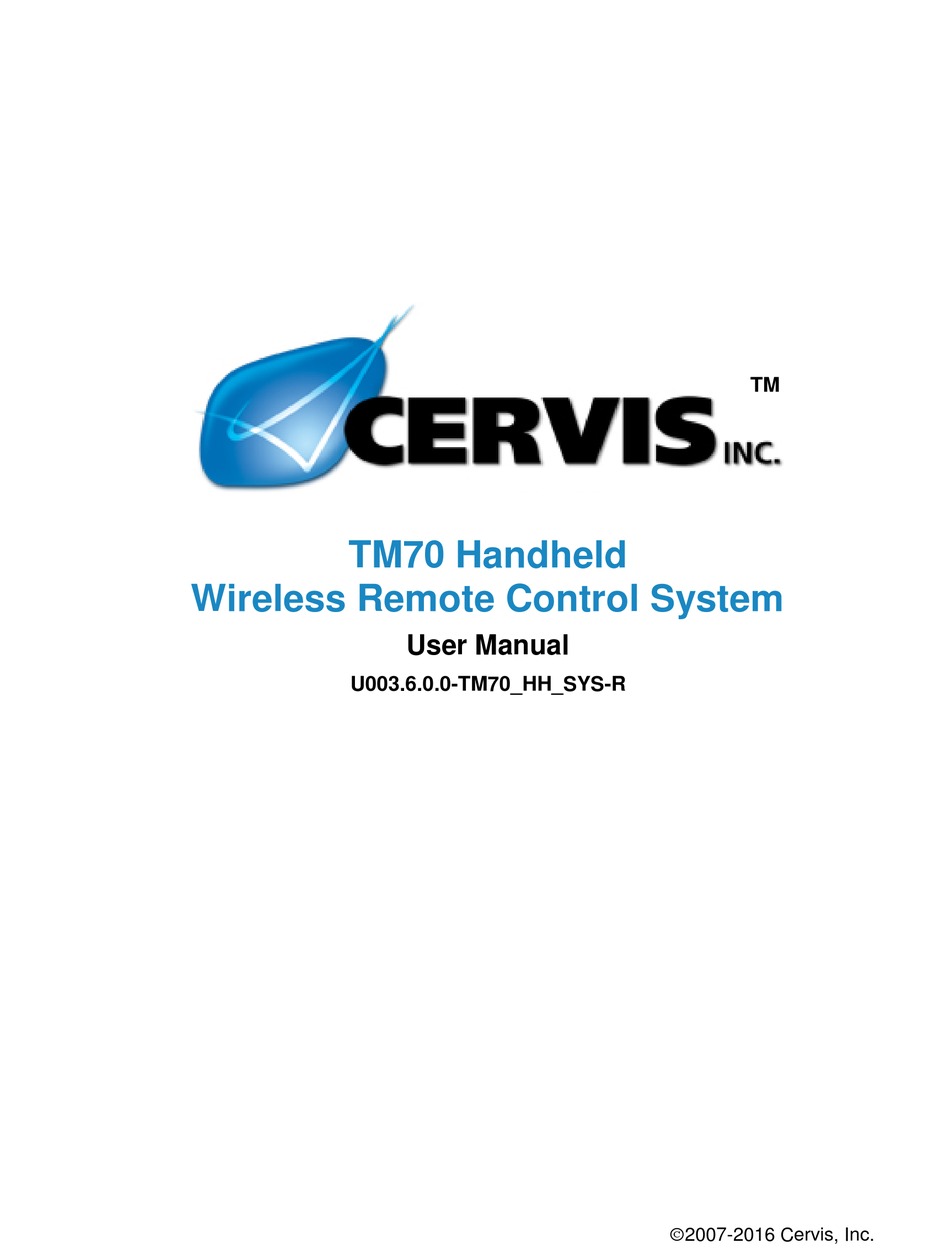

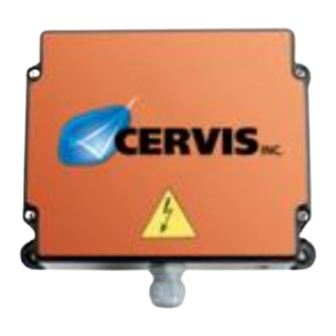

- Page 1 TM70 Handheld Wireless Remote Control System User Manual U003.6.0.0-TM70_HH_SYS-R 2007-2016 Cervis, Inc.
- Page 2 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
-
Page 3: Table Of Contents
List of Figures ..........................ii List of Tables ..........................ii Welcome to Cervis ........................1 1.0 TM70 System Description ....................2 2.0 Safety Instructions ....................... 5 2.1 What You MUST Do ......................5 2.2 What You MUST NOT Do ....................5 3.0 System Component Installation .................. - Page 4 TM70 Handheld Wireless Remote Control List of Figures Figure 1. TM70 System Components with a TM70/1 Transmitter ..........2 Figure 2. TM70/2 Transmitter Layout ....................3 Figure 3. CB70 Battery Charger ....................9 Figure 4: Typical MOV Wiring Across Contactor Coil ............. 10 Figure 5.
-
Page 5: Welcome To Cervis
Welcome to Cervis Thank you for choosing the TM70 Wireless Remote Control. We here at Cervis believe you have purchased one of the most reliable industrial radio control systems available. Specializing in wireless remote controls for mining and industry, we offer you over 60 years of combined machine control experience. -
Page 6: Tm70 System Description
One (1) Antenna (internal or external) The battery operated TM70/1 and TM70/2 push-button style transmitters are designed for the remote control of industrial equipment. An operator using a handheld transmitter can determine the safest location from which to carry out an operation. The receiver is connected to the electrical system of the machine to be operated. -
Page 7: Figure 2. Tm70/2 Transmitter Layout
System User Manual Figure 2. TM70/2 Transmitter Layout Table 1. TM70/02 Transmitter Component Descriptions Figure 2 Component Reference IR Range Limiter (optional) LCD (optional display) Diagnostic LED Two-step pushbuttons Maintained or spring return rotary switch Safety key switch (Power ON/OFF) -
Page 8: Table 2. Tm70 Main Specifications
TM70 Handheld Wireless Remote Control Table 2. TM70 Main Specifications TM70 914.150 – 915.875 MHz Frequency band ERP < 1mW Response Time 100 ms Temperature Range 0 to 150 °F (-20 to 65 °C) T70/1 and T70/2 Transmitters Protection IP65... -
Page 9: Safety Instructions
Service the equipment periodically. When carrying out repairs, only use parts supplied by Cervis dealers. 2.2 What You MUST NOT Do Never make changes to the system that have not been studied and approved by Cervis. - Page 10 TM70 Handheld Wireless Remote Control Never power the equipment with anything other than with the specified power supply. Never allow unqualified personnel to operate the equipment. ON/OFF Key Never leave the equipment after use. Always use the Stop Button to avoid accidental movements.
-
Page 11: System Component Installation
Stop Button procedure; instead, push and hold the START Button for one (1) second. START Button 7. Press and hold the . This activates the warning/start alarm if one is installed on the crane/machine and indicates to you the receiver is under your control. 2007-2016 Cervis, Inc. - Page 12 TM70 Handheld Wireless Remote Control 8. The green LED should light indicating that the transmitter is now transmitting. Now when any of the transmitter command pushbuttons are pressed, the corresponding motion is activated. Stop Button ON/OFF Key 9. Press the...
-
Page 13: Cb70 Battery Charger
3.2 CB70 Battery Charger The CB70 battery charger, Figure 3, has two charging compartments that can simultaneously charge two batteries. Battery types BT06K (TM70 transmitter battery) BT06, BT12, and BT20K can be charged in any combination using the charger. Figure 3. CB70 Battery Charger ... -
Page 14: Charging Tips
Note: Installations subject to vibration should install the optional Shock Absorber Kit part # 1166074 available at Cervis. The kit has four absorbers that you place between the receiver and the mounting surface as per the kit directions. ... -
Page 15: Figure 5. Receiver Footprint
Figure 5 below shows the footprint of the receiver and illustrates the distance between the mounting holes. Figure 5. Receiver Footprint J501 (Antenna) J502 (Cable) J503 (Bracket) Figure 6. Receiver Antenna with Extension Kit 2007-2016 Cervis, Inc. -
Page 16: Figure 7. Main Board Connections, Relays, And Leds
TM70 Handheld Wireless Remote Control 2. Follow the Outputs Diagram supplied with the system to connect the power supply and the receiver outputs on the relay board plug-in terminals. The Output Diagram indicates the relationship between the transmitter commands and the receiver outputs. -
Page 17: Starting Up
Absence of faults on the boards Channels are signal free SIGNAL Blinks An RF signal on the channels Another TM70 system is not active in the area DATA Blinks Another TM70 system is active in the area System Transmitter not on. -
Page 18: Figure 8. Tm70 Transmitter Details
TM70 Handheld Wireless Remote Control Crane ID Label Option: LCD Display Option: IR Range Limiter Command Button Contact Key Start Button Stop Button Figure 8. TM70 Transmitter Details Table 4 below shows the receiver LEDs upon receiving a signal from the transmitter. -
Page 19: Using The System
4.2 Battery Level Monitor TM70 transmitters are equipped with a battery-level monitoring circuit. When the charge level drops below a pre-defined limit, the transmitter LED flashes red indicating the switch OFF transmitter will and be disabled in five (5) minutes. -
Page 20: Lcd Option Power Level Display
TM70 Handheld Wireless Remote Control 4.2.1 LCD Option Power Level Display Transmitters with the LCD option indicate the battery power level by showing segments—black dashes—in the display. The more dashes shown, the more charged the battery. Power levels are interpreted in Table 5. -
Page 21: Copy Receiver Ep70 To Transmitter Ep70
EEPROM module found inside the receiver. To program a spare EP70 using the receiver EEPROM, please contact Cervis, Inc. Customer Service at: 724-741-9010. Figure 10. Receiver EP70 Module Location 2007-2016 Cervis, Inc. -
Page 22: Figure 11. Tx Pushbutton/Switch Numbers/Names
TM70 Handheld Wireless Remote Control Table 6. Transmitter Layout Ref. Component Ref. Component IR Range Warning/Start Limiter switch (optional) CAT3 Stop (optional) switch Diagnostic Shock absorbers Two-step Portable pushbuttons EEPROM Maintained or spring return Battery switch Safety key switch Figure 11. TX Pushbutton/Switch Numbers/Names... -
Page 23: Programming The Machine Identification In Lcd Transmitters
START SAVED Push to store the edited text. LCD will show the message for two (2) seconds. 5. Once the last character has been edited, exit EDITING mode by pressing STOP Button Figure 12. Transmitter Button Locations 2007-2016 Cervis, Inc. -
Page 24: Lcd Display Analog Feedback Calibration
TM70 Handheld Wireless Remote Control 4.5 LCD Display Analog Feedback Calibration Analog feedback systems must have the Display and Analog Feedback options. The analog input must be calibrated upon startup. Transmitters with the display option allow the operator to calibrate the analog input using the display three digit value and a comma;... -
Page 25: Range Limiter
The equipment should now be calibrated and ready for use. 4.6 Range Limiter TM70 radio remote control systems LA70 Infrared Range Limiter transmitter option prohibits the system from being operated outside a defined working area. The operator must be within Line-Of-Sight of the LA70 transmitter to control the machine. -
Page 26: Infrared Sensor
ID. If the operator is too far away from the LA70, the sensor stops receiving an IR signal and the TM70 transmitter LED begins to flash RED warning the operator that the sensor must be back within signal range within four (4) seconds (the system default). -
Page 27: Infrared Transmitter
Use the proper power supply. Place the selector jumper in the MASTER position. Select the desired programmed code in the transmitter EEPROM. Communication wiring between multiple LA70 transmitters must be made using shielded wires. 2007-2016 Cervis, Inc. -
Page 28: Technical Characteristics Of The La70
TM70 Handheld Wireless Remote Control In those cases where it is necessary to use more than one LA70 transmitter, connect subsequent transmitter in series with each transmitter selector set as SLAVE. 4.6.4 Technical Characteristics of the LA70 Infrared Transmitter Power Supply 48, 115, 230VAC ±... -
Page 29: Maintenance
If the response is normal, the problem is not related to the remote control equipment and the installation must be evaluated. 2007-2016 Cervis, Inc. -
Page 30: Returning Equipment For Repair
Clearly mark your issued RMA number on the outside of the package. Note: Please address all equipment returned to Cervis, Inc. to the attention of our Technical Service Department, together with a description of the problem and the status of all LED’s. It is our intention to make the necessary repairs quickly and return the system to you as soon as possible. -
Page 31: Spare Parts
5.4 Spare Parts Table 9.Available Spare Parts Item Part Code Transmitter TM70/1 2301090 TM70/2 2301091 TM70/1 with Display & IR Sensor 2301090-B4-DLA TM70/2 with Display & IR Sensor 2301091-B4 DLA Transmitter LE71/915 2303881 Boards LE71/915/DLA (units with display or IR) 2303901... - Page 32 N, S, E, W; Up-Down Arrows; Start/Horn 2303848 Note: The Available Spare Parts table may change without notice. For pricing, and availability, please go to our Web site at www.cervis.net for contact information; or, email Cervis Sales directly with you inquiry at www.sales@cervis.net. U003.6.0-TM70_HH_SYS-R...
-
Page 33: Common Spare Parts Identification (Limited)
Upper Part PS70/1 2303780 Pushbutton P70 2303670 Machine STOP Button Lower Part PI70/1 2305127 2303677 Includes Upper/Lower Bumpers Figure 15. TM70/1 2301090 Pushbutton Transmitter TM70/2 Internal Antenna 2303723 Upper Part PS70/2 LE72/915 Transmitter 2303790 Board 2303884 Pushbutton Cover 1152023 Maintain Switch... -
Page 34: Figure 17. Tm70/1 2301090-B4-Dla Display Handheld Transmitter
TM70 Handheld Wireless Remote Control LE71/915 DLA Transmitter Board 2303901 Set of Standard TM70 Icons 2303845: 3 White Arrows 3 Black Arrows 1 Start/Horn Figure 17. TM70/1 2301090-B4-DLA Display Handheld Transmitter LE72/915 DLA Transmitter Board 2303904 Figure 18. TM70/1 2301091-B4-DLA Display Handheld Transmitter U003.6.0-TM70_HH_SYS-R... -
Page 35: Figure 19. Ps70/1 Dla Upper 2303801 And Ps70/2 Dla Upper 2303811
System User Manual 2303811 2303801 PS70/2 DLA PS70/1 DLA Upper Upper Both Upper Parts include all pushbuttons and a mounted STOP switch. Figure 19. PS70/1 DLA Upper 2303801 and PS70/2 DLA Upper 2303811 2007-2016 Cervis, Inc. -
Page 36: Warranty
Any services rendered in the field will be performed at current rates for time and travel at the discretion of Cervis and will be paid by the purchaser. All TM70 products of Cervis carry a warranty period of one (1) year. Batteries, cases, switches, faceplates, foils, and such other items subject to normal wear and deterioration are not included in the warranty. - Page 37 Visit our Web site at: Cervis, Inc. in long time partnership with IKUSI and the IKUSI logo is a trademark of IKUSI. 20014 SAN SEBASTIAN SPAIN 2007-2016 Cervis, Inc. All rights reserved. Content is subject to change without notice. 2007-2016 Cervis, Inc.
