Summary of Contents for Cervis SmaRT 918

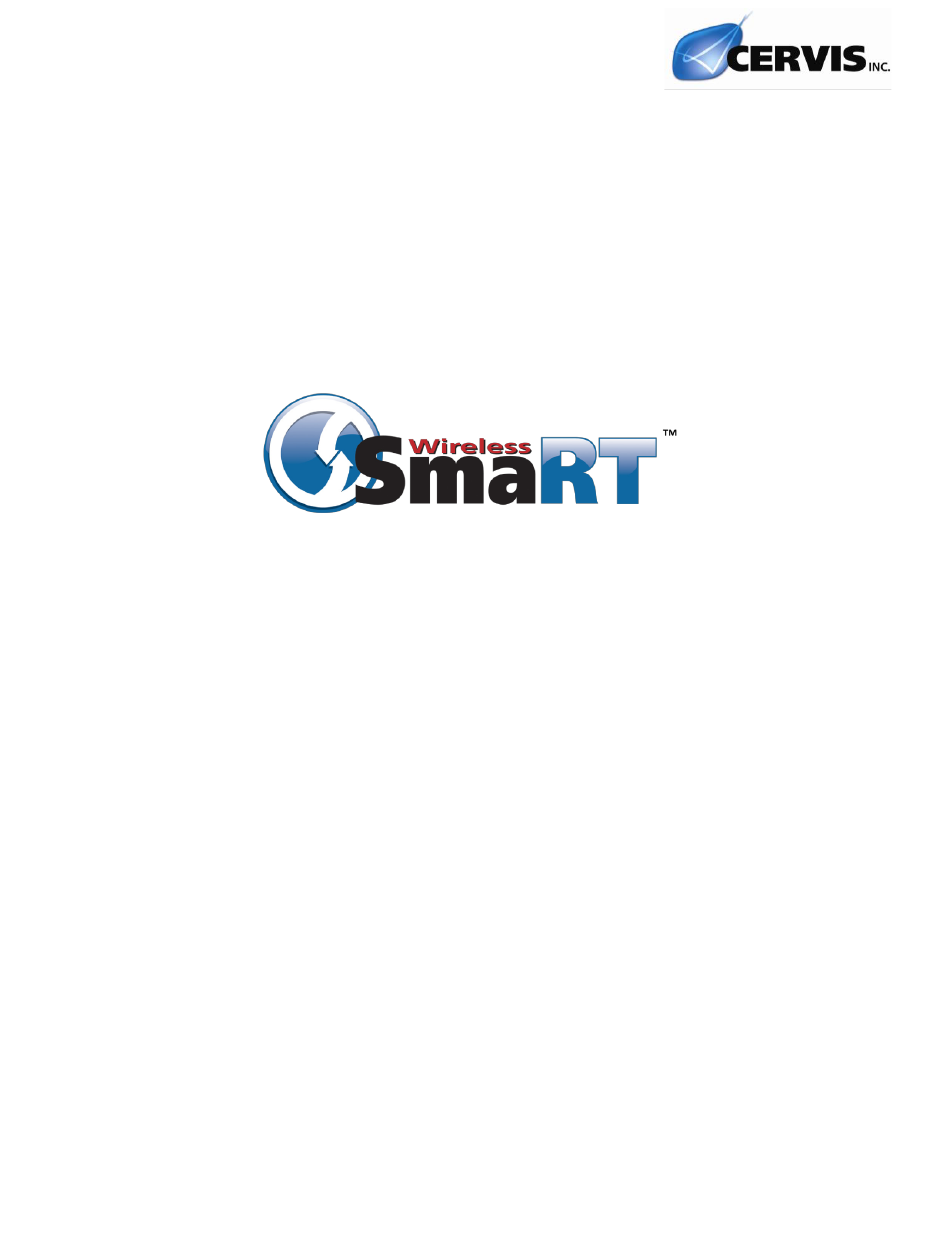

  • Page 1 ™ SmaRT 918, 218 Remote Control System User Manual U053.5.1-SmaRT_OO-x18_Sys ©2020 Cervis, Inc.
  • Page 2 SmaRT 218, 918 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification.
  • Page 3: Table Of Contents

    List of Figures ..........................i List of Tables ..........................i Definitions/Notes .......................... ii Cervis, Inc. Safety Precautions ....................1 1.0 SmaRT 218, 918 Remote Control System ................3 2.0 SmaRT x18 18-Button Handheld Remote Control ............4 2.1 Features ..........................4 2.2 SmaRT x18 Handheld Battery Installation ..............
  • Page 4: Definitions/Notes

    SmaRT 218, 918 Definitions/Notes Associate/Association Mode whereby SmaRT handhelds and base units are paired for operation (identities [ID’s] exchanged). This mode is used to commission spare handhelds or base units. DSSS Direct Sequence Spread Spectrum; an advanced wireless communication technology. Dissociation The process of decommisioning a handheld from a base unit’s identity memory.
  • Page 5: Cervis, Inc. Safety Precautions

    Remote Control System Cervis, Inc. Safety Precautions ✓ Read and follow all instructions. ✓ Failure to abide by Safety Precautions may cause equipment failure, loss of authority to operate the equipment, and personal injury. ✓ Use and maintain proper wiring. Follow equipment manufacturer instructions.
  • Page 6 The following applies only to SmaRT 218 18-Button Handheld remote control systems. RoHS Compliance Statement Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS) Specification based on in-house practice and declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc.
  • Page 7: Smart 218, 918 Remote Control System

    The BU-x16F base unit has sixteen solid state field effect transistor (FET) channels. System configuration is extended as the input/output (I/O) can also be custom-configured by Cervis Engineering to be inputs or outputs.
  • Page 8: Smart X18 18-Button Handheld Remote Control

    SmaRT 218, 918 2.0 SmaRT x18 18-Button Handheld Remote Control The SmaRT™ x18 18-Button Handheld Remote is designed for traditional and non-traditional mobile applications capable of activating and deactivating SmaRT base unit input/outputs. The handheld remote permits single-handed operation in a comfortable, ergonomic layout. Using direct sequence spread spectrum (DSSS) wireless technology at the 900 MHz or 2.4 GHz (system-dependent) range to communicate, the SmaRT 18-button handheld remote creates a robust link with a base unit in congested radio environments.
  • Page 9: Smart X18 Handheld Battery Installation

    2.2 SmaRT x18 Handheld Battery Installation The handheld remote operates between 1.6 to 3.2 VDC powered by four factory installed 1.5 V “AA” cell batteries. Cervis, Inc. recommends having fresh spare batteries on hand at all times that the system is in use.
  • Page 10: Smart X18 Operation

    SmaRT 218, 918 3.0 SmaRT x18 Operation Turn ON the Unit Power the remote ON by pressing the Green-and-White ON button Turn OFF the Unit Turned OFF the remote by pressing the Red-and-White OFF button Buttons 1 through 16 Buttons 1 through 16 are used to control the base unit. These buttons are typically mapped to specific base unit outputs/inputs M1 through M16 as shown below.
  • Page 11: Associate Mode

    LED numbers 2 (green), 3 (amber), and 4 (red) were the active LEDs on the eight-place units, which respectively relate to active LED numbers 1 (green), 2 (amber), and 3 (red) in the current version shown in this manual. This section was updated on July 20, 2015 and May 25, 2016. ©2020 Cervis, Inc.
  • Page 12: Bu-X16F Base Unit

    The SmaRT™ BU-x16F features 16 field effect transistors (FETs), high side switching outputs, or switch-to-ground digital inputs. Cervis, Inc. can customize the versatile, programmable digital inputs to fit specific user applications. The BU-x16F accepts a broad range of input power with operating voltages ranging from 7 VDC to 32 VDC.
  • Page 13: Bu-X16F Base Unit Installation

    When mounting the base unit and connecting the wiring harnesses, use the configuration diagrams Cervis, Inc. supplied as a guide. Figure 7 illustrates dimensions for drilling mounting holes. Figure 8 illustrates the wiring harness connections.
  • Page 14: Figure 8. Base Unit Field Wiring

    SmaRT 218, 918 (1) M5 (button #5) (2) M6 (button #6) (3) M7 (button #7) (4) M8 (button #8) (5) UNUSED (6) UNUSED (7) +VDC (8) UNUSED NOTE: (9) M1 (button #1) P1 and P2 are uniquely keyed to (10) M2 (button #2) prevent cross connection.
  • Page 15: Figure 9. Field Wiring

    Remote Control System Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Field Load Figure 9. Field Wiring ©2020 Cervis, Inc.
  • Page 16: Specifications

    SmaRT 218, 918 6.0 Specifications Table 2. SmaRT x18 18-Button Handheld Specifications Item Description Power +1.6 to +3.2 VDC Four “AA” cell Batteries Battery Life 175 to 200 hours Auto-shutdown 15 min. of button inactivity –20° C to 55° C Environment Operating Temp (–4°...
  • Page 17: Table 3. Smart Bu-X16F Base Unit Specifications

    M4 (Ch4) P2–12 M5 (Ch5) P2–1 M6 (Ch6) P2–2 M7 (Ch7) P2–3 M8 (Ch8) P2–4 M9 (Ch9) P1–3 M10 (Ch10) P1–4 M11 (Ch11) P1–5 M12 (Ch12) P1–6 M13 (Ch13) P1–7 M14 (Ch14) P1–8 M15 (Ch15) P1–9 M16 (Ch16) P1–10 ©2020 Cervis, Inc.
  • Page 18: Bu-X16F Output Current Derating Curve

    SmaRT 218, 918 7.0 BU-x16F Output Current Derating Curve Figure 10. Base Unit Output Current Derating Curve U053.5.1-SmaRT_OO-x18_Sys...
  • Page 19: Base Unit Troubleshooting

    Be aware that even if the handheld and base unit diagnostic LEDs do not indicate a problem, one may be present, and further troubleshooting steps may be needed. If a problem is found, do not operate the SmaRT System until the problem is resolved. ©2020 Cervis, Inc.
  • Page 20 Visit our Web site at: The Cervis, Inc. and SmaRT Wireless logos are trademarks of Cervis, Inc. Contact via Phone: (724) 741-9000 ©2020 Cervis, Inc. All rights reserved. Content is subject to change without notice. Revised manuals are available for download at www.cervisinc.com. U053.5.1-SmaRT_OO-x18_Sys...
