INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

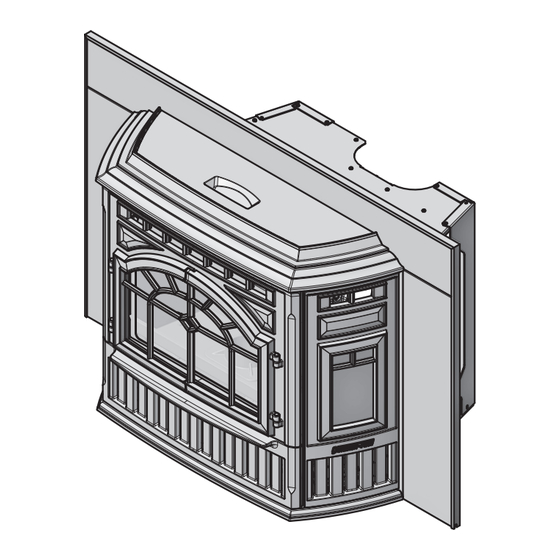

MT VERNON PELLET INSERT
ADVANCED ENERGY (AE)
Model(s):
MTVERNINSAE-MBK
MTVERNINSAE-PMH
MTVERNINSAE-CSB
CAUTION
Tested and approved for wood pellets, shelled field
corn, wheat and black oil sunflower seeds. Burning of
any other type of fuel voids your warranty.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fire officials or authorities having juris-
diction about restrictions, installation inspection, and permits.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not over fire - If appliance or chimney
connector glows, you are over firing. Over
firing will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fireplace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other flammable
materials away.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
7036-188J
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
NOTE
October 3, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTVERNINSAE-MBK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quadra-Fire MTVERNINSAE-MBK

Summary of Contents for Quadra-Fire MTVERNINSAE-MBK

  • Page 1 ADVANCED ENERGY (AE) fire may result causing property damage, personal injury, or death. Model(s): MTVERNINSAE-MBK • Do not store or use gasoline or other flam- mable vapors and liquids in the vicinity of MTVERNINSAE-PMH this or any other appliance.

  • Page 2: Table Of Contents

    MT VERNON AE INSERT Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. •...

  • Page 3: Important Safety Information

    E1509-04, ULC S628-93, (UM) 84-HUD and ULC/ORD- C-1482-M1990. Fire Risk. The Quadra-Fire Mt. Vernon AE Pellet Insert meets the U.S. Hearth & Home Technologies disclaims any Environmental Protection Agency’s emission limits for pellet responsibility for, and the warranty will be inserts sold after May 15, 2015.

  • Page 4: Getting Started

    MT VERNON AE INSERT Install Guide Getting Started A. Design, Installation & Location Considerations Since pellet exhaust can contain ash, soot or sparks, you must consider the location of: 1. Appliance Location • Windows NOTICE: Check building codes prior to installation. •...

  • Page 5: Thermostat Wall Control Location

    MT VERNON AE INSERT B. Thermostat Wall Control Location D. Inspect Appliance and Components The thermostat wall control’s location will have some affect • Open the appliance and remove all the parts and articles on the appliance’s operation. packed inside the Component Pack. Inspect all the parts and glass for shipping damage.

  • Page 6: Install Checklist

    MT VERNON AE INSERT E. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. Customer: __________________________________________________________________________ Date Installed: __________________________________________________________________________ Lot/Address: __________________________________________________________________________ Location of Appliance:...

  • Page 7: Dimensions And Clearances

    MT VERNON AE INSERT Dimensions and Clearances A. Appliance Dimensions 32 [814] 32 [813] 23-7/8 [606] 23-7/8 [606] 3-5/8 3-5/8 [92] [92] 15-1/8 12-7/8 [384] [380] [330] [327] 13-1/8 [330] [333] 36-5/8 [ 932] 36-3/4 [932] Figure 7.1 - Top View with Cast Panel Set Figure 7.4 - Top View with Basic Surround Panel Set 45 [1143] [1270]...

  • Page 8: Clearances To Combustibles (Ul And Ulc)

    MT VERNON AE INSERT B. Clearances to Combustibles (UL and ULC) Built-in Appliance - Framing Dimensions 26-7/8 in. (683 mm) 36 in. (914 mm) 22-1/2 in. - top vent* Top vent depth dimension (572 mm) assumes the use of the optional 17-3/4 in.

  • Page 9: Minimum Opening For Masonry & Zero Clearance Fireplaces

    MT VERNON AE INSERT C. Minimum Opening for Masonry & Zero Clearance Fireplaces TOP TRIM 23-5/8 18-5/16 600mm 465mm 29-3/4 1010mm HEARTH Figure 9.3 EXTENSION (406mm) Figure 9.1 Minimum Opening Dimensions Inches Millimeters Note: If trim measurement is over 3/4 in (19mm) in Height 24-1/8 depth use mantle or side clearances to combustibles.

  • Page 10: Installation Into A Factory-Built Fireplace

    MT VERNON AE INSERT D. Installation into a Factory-Built Fireplace The following is only one example as there are many differ- The following modifications are permissible: ent models of factory-built fireplaces. • Removal of damper or locked in open position NOTE: This example is for reference only.

  • Page 11: Installation Into A Masonry Fireplace

    MT VERNON AE INSERT F. Prefabricated Metal Chimney The chimney can be new or existing, masonry or prefabricated and must meet the following minimum requirements: • Must be minimum 6 inch (152mm) inside diameter of Leveling Leg high temperature chimney listed to UL 103 HT (2100 1”...

  • Page 12: Vent Information

    MT VERNON AE INSERT Vent Information A. Venting Termination Minimum Requirements Electrical Service Inside Corner FIXED FIXED OPEN CLOSED CLOSED OPEN J or K Figure 12.1 Termination Cap Restricted Area Air Supply Inlet Gas Meter All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below. 12 in.

  • Page 13: Avoiding Smoke And Odors

    MT VERNON AE INSERT B. Avoiding Smoke and Odors Vent Configurations When installing a pellet appliance with a horizontal vent con- Negative Pressure, Shut-Down and Electrical Power figuration the frequency of power outages should be consid- Failure ered: To reduce the probability of back-drafting or burn-back in •...

  • Page 14: Negative Pressure

    Avoid installing the appliance near doors, walkways or to 6 inch (76-152mm) Top Vent Offset Adapter, use Listed small isolated spaces double wall flue connector. A Quadra-Fire Outside Air Kit must be used with manufactured home installations. • Recessed lighting should be a “sealed can” design 3.

  • Page 15: Equivalent Feet Of Pipe

    MT VERNON AE INSERT F. Equivalent Feet of Pipe WARNING The table below can help you calculate the equivalent feet Vent surfaces get HOT, can cause burns if of pipe which is a method used to determine pellet vent size. touched.

  • Page 16: Venting Systems

    MT VERNON AE INSERT Venting Systems A. Full Reline With Outside Air - Horizontal WARNING Fire Risk. CAUTION Inspection of Chimney: • Masonry chimney must be in good condition. Never draw outside combustion air from: • Meets minimum standard of NFPA 211 •...

  • Page 17: Full Reline With Outside Air - Vertical

    MT VERNON AE INSERT B. Full Reline With Outside Air - Vertical NOTE: Check clearances carefully for this type of instal- NOTE: In Canada only a full reline is allowed per ULC lation to ensure adequate room for outside air venting. S628, ORD ULC C1482-M1990.

  • Page 18: Appliance Set-Up

    MT VERNON AE INSERT Appliance Set-Up A. Leveling System B. Outside Air Kit Instructions Included in Kit: 2 wire ties, 1 collar assembly, The leveling bolts are located on the sides of the appliance, 1 termination cap assembly, 1 trim ring, fasteners. front and rear.

  • Page 19: Hearth Support

    MT VERNON AE INSERT 7. Place the assembled hearth support under the insert. C. Hearth Support Lower the leveling bolts if necessary to keep the insert level. Included in Kit: (1) bottom, (1) trim front, (2) trim sides, (2) trim extensions 8.

  • Page 20: Surround And Trim Set - Cast

    MT VERNON AE INSERT F. Surround & Trim Set, Basic E. Surround and Trim Set - Cast Included in Surround Kit: (2) side panels, left and right; Included in Surround & Trim Kit: (2) corner brackets and set (1) panel top; (1) fastener package. screws;...

  • Page 21: Optional Log Set Placement Instructions

    MT VERNON AE INSERT G. Optional Log Set Placement Instructions The center 3 screws are for the wall control thermostat wires and the 2 outer screws are mounting screw and 2 PIECE LOG SET INSTALLATION should not have wires attached to them. 1.

  • Page 22: Mobile Home Installation

    MT VERNON AE INSERT Mobile Home Installation CAUTION You must use a Quadra-Fire Outside Air Kit for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE An outside air inlet must be provided for the combustion...

  • Page 23: Accessory List

    MT VERNON AE INSERT Accessory List MT VERNON INSERT-AE Service Parts Beginning Manufacturing Date: Sept. 2006 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Stocked Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
  • Page 24 Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
