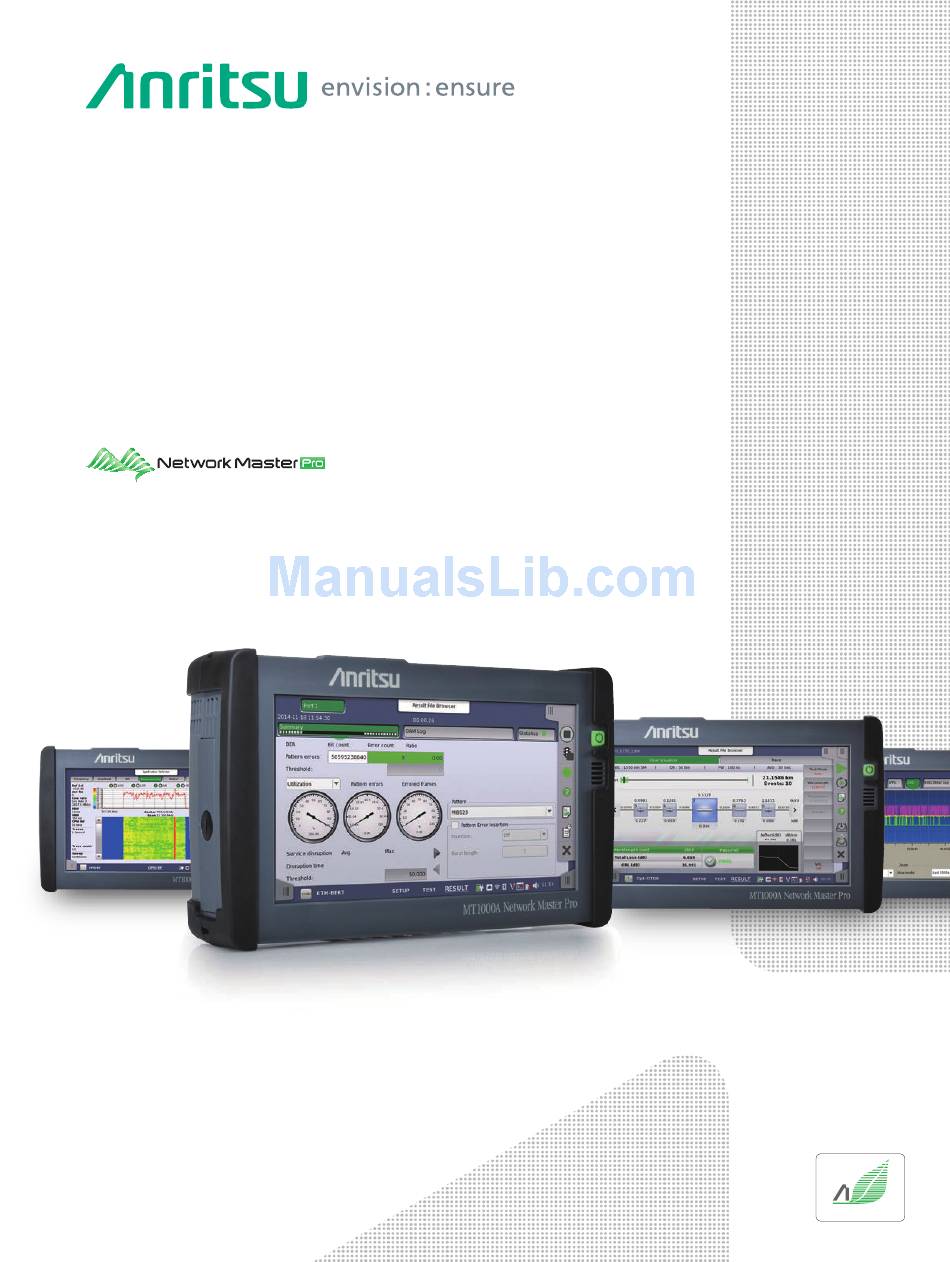

- Page 1 Configuration Guide Network Master™ Series Network Master Pro MT1000A 10G Multirate Module MU100010A OTDR Module MU100020A/MU100021A/MU100022A CPRI RF Module MU100040A High Performance GPS Disciplined Oscillator MU100090A Excellent Eco Product...
-
Page 2: Table Of Contents
The MT1000A configuration can be easily customized allowing for complex measurement by simply choosing various options. This configuration guide provides a simple explanation of the functions of each option. Contents Network Master Pro MT1000A Main Frame ..................................3 New Purchase Flowchart ........................................4 New Purchase ............................................6 Transport Function .......................................... -
Page 3: Network Master Pro Mt1000A Main Frame
Network Master Pro MT1000A Main Frame Network Master Pro MT1000A: Main Frame Model Name The Network Master Pro MT1000A is a multiplatform designed for MT1000A Network Master Pro field testing that is configured using a combination of transport Standard Accessories and optical. -
Page 4: New Purchase Flowchart
New Purchase Flowchart Use this flowchart to select options when purchasing a new MT1000A. MT1000A Page 3 Select testing requirements (1) Confirming comms quality such as OTN, Ethernet, etc. (2) Checking optical fiber breaks and quality Choose MU100010A Select Optical Fiber Select the type of optical fiber to measure Page 6 (4, 5) Single Model only... - Page 5 (3) CPRI RF Choose MU100040A Page 13 Unit size: Select Module Options Select the model for choosing the measurement spectrum. 3-2 Selecting Module Options. Page 13 Choose MU100021A Page 10 Select RF over CPRI Test Options Select the model for choosing the Unit size: required options from 3-3 Selecting MU100040A Options.
-
Page 6: New Purchase
New Purchase Transport Function 1-1 10G Multirate Module MU100010A Model Name MU100010A 10G Multirate Module Standard Accessories W3681AE MT1000A/MU100010A Quick Reference Guide: 1 pc The 10G Multirate Module MU100010A supports communications B0692A ESD Box (for optical modules): 1 pc network technologies with speeds ranging from 1.5 Mbps to 10 Gbps. : Up to four SFP+/SFPs can be stored. -
Page 7: Selecting Optical Transceiver (For Transport Module)
New Purchase Transport Function Table 1 Protocol Configuration Examples Pattern 1: When using 2.7 Gbps max. SDH/SONET/OTN/Ethernet interface and 10 GigE single channel Model Name Notes MU100010A-001 Up to 2.7G Dual Channel Measures (OTU1, 1 GigE, STM-16/OC-48) signals at 2 ports simultaneously at up to 2.7 Gbps max. MU100010A-012 Ethernet 10G Dual Channel Measures 1 port of 10 Gbps Ethernet Interface... -
Page 8: Choosing High-Accuracy Oscillator Option
New Purchase Transport Function 1-2 Choosing High-Accuracy Oscillator Option High Performance GPS Disciplined Oscillator MU100090A Model/Order No. Name MU100090A High Performance GPS Disciplined Oscillator Standard Accessories J1705A AUX Conversion Adaptor The High-Accuracy GPS Synchronization Oscillator MU100090A option is used with the MU100010A and MT1000A-005; it supports J1706A GPS Antenna 1 GbE (optical I/F) and 10 GbE IEEE 1588 v2 1 pps phase... -
Page 9: Optical Function
New Purchase Optical Function 2-1 OTDR Module 1310/1550 nm SMF MU100020A OPM Port SM Port Model Name MU100020A OTDR Module 1310/1550 nm SMF Standard Accessories J1693A Universal Connector 2.5 mm for OPM: 1 pc The OTDR Module 1310/1550 nm SMF MU100020A is an OTDR J1694A Universal Connector 1.25 mm for OPM: 1 pc... -
Page 10: Otdr Module 1310/1550/850/1300 Nm Smf/Mmf Mu100021A
New Purchase Optical Function 2-2 OTDR Module 1310/1550/850/1300 nm SMF/MMF MU100021A OPM Port MM Port SM Port Model Name MU100021A OTDR Module 1310/1550/850/1300 nm SMF/MMF Standard Accessories J1693A Universal Connector 2.5 mm for OPM: 1 pc The OTDR Module 1310/1550/850/1300 nm SMF/MMF MU100021A J1694A Universal Connector 1.25 mm for OPM: 1 pc... -
Page 11: Otdr Module 1310/1550/1625 Nm Smf Mu100022A
New Purchase Optical Function 2-3 OTDR Module 1310/1550/1625 nm SMF MU100022A OPM Port SM Port Model Name MU100022A OTDR Module 1310/1550/1625 nm SMF Standard Accessories J1693A Universal Connector 2.5 mm for OPM: 1 pc The OTDR Module 1310/1550/1625 nm SMF MU100022A is an J1694A Universal Connector 1.25 mm for OPM: 1 pc... -
Page 12: Selecting Mu100020A/Mu100021A/Mu100022A Options
New Purchase Optical Function 2-4 Selecting MU100020A/MU100021A/MU100022A Options The OTDR Module connector is available in a total of five types (3 UPC and 2 APC). These connectors can be changed freely by the user. However, connectors with mismatched polish types cannot be used. In addition, the MU100010A cannot be used. 2-4-1 OTDR Module Conversion Connector Adapters UPC (Option 010), SM/MM Ports APC (Option 011), SM Port... -
Page 13: Cpri Rf Iq Data Measurement
New Purchase CPRI RF IQ data Measurement 3-1 CPRI RF Module MU100040A Model/Order No. Name MU100040A CPRI RF Module : Excellent Eco Product non-compliant CPRI RF Module MU100040A displays the LTE spectrum of the uplink or downlink of BBU and RRH radios. By monitoring the LTE uplink spectrum on the CPRI uplink, it is possible to monitor for interferers from ground level. -
Page 14: Common Application Parts And Extended Warranty Services
New Purchase Common Application Parts and Extended Warranty Services 4-1 MT1000A Selecting Common Application Parts Various application parts make the MT1000A more convenient to use. Soft Bag B0690A (Standard Accessory) Video Inspection Probe G0306B This bag with shoulder strap can hold Scratches and dirt on the connector end face are a major cause of the MT1000A with up to three degraded communications quality. -
Page 15: Mt1000A Selecting Extended Warranty Services
New Purchase Common Application Parts and Extended Warranty Services 4-2 MT1000A Selecting Extended Warranty Services The standard warranty period is 1 year. An extended warranty can be purchased for the main frame and the test interface modules as listed below. Model Name Model... -
Page 16: Additional Purchases Flowchart
Additional Purchases Flowchart Use this flowchart when adding modules and options to a previously purchased MT1000A. Adding Functions Adding Protocol Options Adding Transport Module Adding High-Accuracy Oscillator option Adding OTDR Module Select Protocol Choose MU100010A Choose MU100090A Select Optical Fiber Select the model for choosing Page 6 Page 19... - Page 17 Adding CPRI RF Module Choose MU100040A Page 13 (B) Both Single Mode and Multimode Select Module Options Select the model for choosing the measurement spectrum. 3-2 Selecting Module Options. Page 13 Choose MU100021A Page 10 Select RF over CPRI Test Options Select the model for choosing the required options from 3-3 Selecting MU100040A Options.
-
Page 18: Additional Purchases
Additional Purchases Adding New Options to Previously Purchased MT1000A Confirm the serial numbers of the MT1000A and MU100010A. 5-1 Adding Test Protocols for Transport Module To add a new protocol option to a previously purchased MU100010A, choose the required option from the following list. The MU100010A serial number is required to make the purchase. -
Page 19: Adding Main Frame Options For Transport Function
Connectivity for WLAN/Bluetooth Retrofit WLAN/Bluetooth options (can be used in approved countries, including N. America, Japan, EU; see Anritsu web site for latest list of countries) When adding protocol options later, specify one of the following media types as well as the option. -
Page 20: Configuration Examples
Network Master Pro MT1000A Configuration Examples When Describing Different MT1000A Configurations on One Order Sheet The MT1000A configuration can be customized using options. When describing different MT1000A configurations on one order sheet, describe each MT1000A configuration on a separate line with the options for each MT1000A under that line. - Page 21 Network Master Pro MT1000A Configuration Examples Example 4: New Purchase, three different configurations Model Name Quantity MT1000A Network Master Pro MU100040A CPRI RF Module MU100040A-001 CPRI LTE RF Measurements 68-5-R SFP (Optical Module), 4.25G, 850 nm, 500 m MT1000A Network Master Pro...
-
Page 22: Procedure For Attaching Some Measurement Modules
The MT1000A measurement module can be removed and replaced. This explains the method and precautions. Step 1: Version up the software for MT1000A Install the latest software in the MT1000A. This software can be obtained from the Anritsu web site. Step 2: Remove the battery pack from Mainframe 1) Disconnect the AC cable. - Page 23 Network Master Pro MT1000A Procedure for Attaching Some Measurement Modules Step 4: Attaching the new module and the former module 1) Remove four screws of former module and replace to the next screws. Please arrange a screw separately. For 3 modules (B0731A)
-
Page 24: Order Sheet
Network Master Pro MT1000A Order Sheet When recording different MT1000A configurations on one order sheet, describe each MT1000A configuration on one line with the accompanying options under the relevant line. Model Name Quantity Specifications are subject to change without notice.
