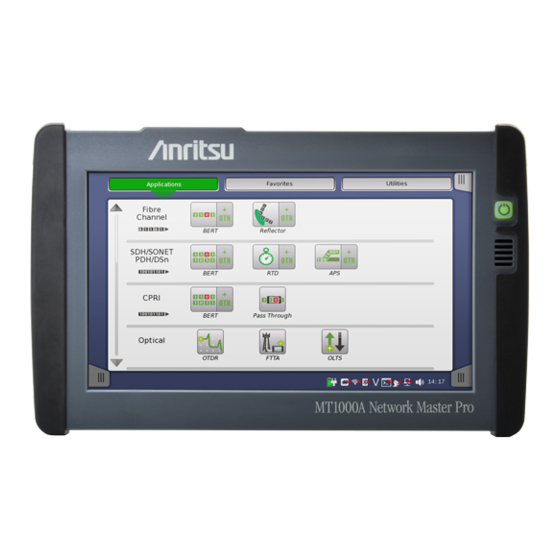

Anritsu MT1000A Operation Manual

Network master pro
Hide thumbs Also See for MT1000A:
1
2
3
Table Of Contents
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, Operating Manual
MT1000A
MT1000A
MU100010A
MU100010A
Network Master Pro
Network Master Pro
Operation Manual
Operation Manual
13th Edition
13th Edition
For safety and warning information, please read this
For safety and warning information, please read this
manual
manual before attempting to use the equipment.
before attempting to use the equipment.
Keep this manual with the equipment.
Keep this manual with the equipment.
ANRITSU CORPORATION
ANRITSU CORPORATION
Document No. M-W3682AE-13.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT1000A and is the answer not in the manual?

Questions and answers

Related Manuals for Anritsu MT1000A

Summary of Contents for Anritsu MT1000A

  • Page 1 MT1000A MT1000A MU100010A MU100010A Network Master Pro Network Master Pro Operation Manual Operation Manual 13th Edition 13th Edition For safety and warning information, please read this For safety and warning information, please read this manual manual before attempting to use the equipment.
  • Page 2 Operation Manual 25 June 2014 (First Edition) 21 October 2016 (13th Edition) Copyright © 2014-2016, ANRITSU CORPORATION. All rights reserved. No part of this manual may be reproduced without the prior written permission of the publisher. The contents of this manual may be changed without prior notice.
  • Page 3 About This Manual About This Manual The documentation for MT1000A Network Master Pro applies to the instrument with the MU100010A 10Gig Multirate Module installed. This operation manual describes both the basic operation of the instrument as well as the operations available via interface options and predefined applications/tests.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents Table of Contents Table of Contents 0 0 Table of Contents Table of Contents 1 1 Introduction Introduction 1.1 Mainframe Mainframe 1.2 10G Multirate Module 10G Multirate Module 1.3 High Performance GPS Disciplined Oscillator High Performance GPS Disciplined Oscillator 1.4 Symbols and Conventions Symbols and Conventions...
  • Page 5 3.5.1 Installation of Control Software 3.5.2 Connection and Setup 3.5.3 Communication Ports 3.5.4 Starting Control Software 3.5.5 Remote Upgrade 3.5.6 Remote Wake Up 3.5.7 Remote Reset 3.5.8 Stand-alone Editor 3.6 Command-Based Remote Control Command-Based Remote Control 3.7 File Access via USB Interface File Access via USB Interface 3.8 File Access via Ethernet Interface File Access via Ethernet Interface...
  • Page 6 Table of Contents Table of Contents 5.4.4 Errors/Alarms Insertion 5.5 E3 Setup and Status E3 Setup and Status 5.5.1 Transmitter Setup 5.5.2 Receiver Setup 5.5.3 Status Information 5.5.4 Errors/Alarms Insertion 5.6 DS3 Setup and Status DS3 Setup and Status 5.6.1 Transmitter Setup 5.6.2 Receiver Setup 5.6.3 Status Information 5.6.4 Errors/Alarms Insertion...
  • Page 7 6.8.1 Ports Setup and Status 6.8.2 Test Setup 6.8.3 Test Results 6.9 RFC 2544 RFC 2544 6.9.1 Ports Setup and Status 6.9.2 Test Setup 6.9.3 Test Results 6.9.4 Throughput Calculation 6.10 RFC 6349 6.10 RFC 6349 6.10.1 Ports Setup and Status 6.10.2 Test Setup 6.10.3 Test Results 6.11 SAT 1564...
  • Page 8 10.4.2 Connecting the Video Inspection Probe 10.4.3 Test Setup 10.4.4 Test Results 10.5 Wireshark 10.5 Wireshark 11 Specifications Specifications 11.1 MT1000A 11.1 MT1000A 11.1.1 Configuration 11.1.2 External Interfaces 11.1.3 Other Interfaces 11.1.4 Environment Performance 11.1.5 Mechanical Performance 11.2 MU100010A, 10 G Multirate Module 11.2...
  • Page 9 12.6.2 Transporting 12.6.3 Disposal 12.7 Special Information 12.7 Special Information 12.7.1 Equipment Certificate 12.7.2 Anritsu Warranty 12.7.3 Anritsu Corporation Contact 12.7.4 Licensing Information 12.7.5 Availability of Source Code 12.8 Software License Document 12.8 Software License Document 12.9 EULA License Document 12.9...
  • Page 10 Table of Contents Table of Contents...
  • Page 11 1 1 Introduction Introduction This chapter provides a general introduction to the MT1000A Network Master Pro, and explains the symbols and conventions used in this manual.

  • Page 12: Introduction Introduction 11

    1 1 . . 1 1 Mainframe Mainframe The MT1000A Network Master Pro (hereafter called the Network Master and sometimes the instrument ) is a battery-powered multipurpose telecommunications test instrument for field use. It is a tool for a wide range of applications from fast first-aid troubleshooting to comprehensive, in-depth analysis of transmission problems.
  • Page 13 Tod (Time of Day) output in NMEA 0184 format MU100090A Block Diagram Using the MU100090A clock output to the MU100010A reference clock allows the time measurement in high accuracy. Moreover MU100090A can be used as the external GPS receiver of MT1000A.

  • Page 14: Symbols Used In Manual

    Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.

  • Page 15: Option

    Symbols and Conventions Symbols and Conventions The Hint symbol indicates information that should be treated as hints, suggestions, recommendations etc. Hint text is written in italics to separate the information from the other text elements on a page. 1 1 . . 4 4 . . 5 5 Option Option The Option symbol indicates that the information described covers an option (hardware and software) and that this option must be installed before use.

  • Page 16: Dangers

    Introduction Introduction 1 1 . . 5 5 For Safety For Safety This section contains warnings which should be followed to avoid personal injury, product damage, as well as damage to the environment. 1 1 . . 5 5 . . 1 1 Dangers Dangers DANGER DANGER...
  • Page 17 Calibration The performance-guarantee seal verifies the integrity of the equipment. To ensure the continued integrity of the equipment, only Anritsu service personnel, or service personnel of an Anritsu sales representative, should break this seal to repair or calibrate the equipment. Be careful not to break the seal by opening the equipment or unit covers.

  • Page 18: Cautions

    This battery must be replaced by service personnel when it has reached the end of its useful life; contact the Anritsu sales section or your nearest representative. Note: The battery used in this equipment has a maximum useful life of 8 years. It should be replaced before this period has elapsed.

  • Page 19: Cautions Against Computer Virus Infection

    Copying files and data Copying files and data Only files that have been provided directly from Anritsu or generated using Anritsu equipment should be copied to the instrument. All other required files should be transferred by means of USB media after undergoing a thorough virus check.

  • Page 20: Installation

    Install MT1000A horizontally in a stable place. CAUTION CAUTION If the MT1000A is not installed in a "good" direction as above, a small shock may turn it over and harm the user. 1 1 . . 6 6 . . 2 2 ESD (Electrostatic Discharge)

  • Page 21: Optical Surfaces

    Correct functioning of the instrument can only be ensured if optical modules, Correct functioning of the instrument can only be ensured if optical modules, supplied by Anritsu for the Network Master, are used. supplied by Anritsu for the Network Master, are used.
  • Page 22 Introduction Introduction Do not excessively bend, fold, or pinch an optical fiber cable. Do not excessively bend, fold, or pinch an optical fiber cable. Doing so may break the optical fiber inside the cable. Keep the bend radius of an optical fiber cable at 30 mm or more. If the radius is less, optical fiber cable loss will increase.

  • Page 23: Caution When Handling Mu100090A

    To avoid violating WLAN regulations, visit the Anritsu website to check where use is allowed. http://www.anritsu.com/ja-JP/test- measurement/support/downloads/brochures-datasheets-and- catalogs/dwl16689 Note that Anritsu cannot be held liable for any problem arising from WLAN use in other countries and regions.
  • Page 24 Introduction Introduction...
  • Page 25 2 2 Configuration Configuration This chapter contains information about the included accessories as well as guidelines for connecting the mains adapter, for charging the battery, and for attaching the carrying strap.

  • Page 26: Configuration Configuration 25

    2 2 . . 1 1 . . 1 1 Standard Accessories Standard Accessories The following standard accessories are delivered with the instrument: MT1000A MT1000A J1565A Line Cord USA * J1566A...
  • Page 27 Hard Case G0306B Video Inspection Probe G0324A Battery Charger G0325A GPS receiver J1569A Car 12 Vdc adapter J1667A GPIB-USB Converter W3682AE MT1000A/MU100010A Network Master Pro Operation Manual MT1000A Network Master Pro/ MT1100A Network Master Flex W3736AE Remote Scripting Operation Manual...

  • Page 28: Connecting Mains Power Adapter

    CAUTION CAUTION Always use AC mains adapter delivered from Anritsu. Anritsu Part No. G0309A. Always use AC mains adapter delivered from Anritsu. Anritsu Part No. G0309A. 2 2 . . 2 2 . . 1 1 Connecting Mains Power Adapter...

  • Page 29: Installing Or Replacing Battery

    4 hours. CAUTION CAUTION Use only original batteries delivered from Anritsu, to prevent the risk of Use only original batteries delivered from Anritsu, to prevent the risk of instrument damage or personal injury. instrument damage or personal injury.

  • Page 30: Charging Battery In Fast Mode

    Configuration Configuration 6. When installing the battery, note the direction of the battery terminals. With the instrument placed on its back - and the battery compartment in front of you - the terminals should be in the upper left corner. 7.

  • Page 31: Connecting Measurement Cables

    For connection of the Network Master to different types of equipment, different cables are available. Please contact your Anritsu representative for information. 2 2 . . 4 4 . . 1 1 Connecting Measurement Cables Connecting Measurement Cables Measurement cables are connected to the input and output connectors located on the connector panel of the instrument.

  • Page 32: Support Stand

    Configuration Configuration 2 2 . . 5 5 Support Stand and Carrying Strap Support Stand and Carrying Strap 2 2 . . 5 5 . . 1 1 Support Stand Support Stand The Network Master is equipped with a support stand keeping the instrument at a convenient angle during the operation.
  • Page 33 How to attach carrying strap and handle How to attach carrying strap and handle To attach carrying strap (Z1747A) and handle (Z1748A) to MT1000A Network Master Pro, follow instructions below. 1. Use screw driver and remove the battery lid from MT1000A.
  • Page 34 Configuration Configuration 6. Detailed photos for upper and lower corner. 7. Remove the buckle cap from the handle and the carrying strap. 8. Mount the carrying strap on both upper corners.
  • Page 35 Support Stand and Carrying Strap Support Stand and Carrying Strap 9. Attach MT1000A and MU100010A , insert the battery pack and mount the battery lid with the reverse sequence at the beginning.
  • Page 36 MU100040A CPRI RF Module (CPRI RF) MU100090A High Performance GPS Disciplined Oscillator (GPS) MT1000A is able to mount up to three modules. Available module combinations are eleven kinds and shown in the table below. Only one OTDR module can be mounted to the MT1000A.

  • Page 37: Replacing The Mu100010A 10G Multirate Modules

    How to Attach the MU100090A How to Attach the MU100090A 2 2 . . 7 7 How to Attach the MU100090A How to Attach the MU100090A MU100090A is attached to MT1000A with rear panel or MU100010A 10G Multirate module. CATION CATION Replacing modules operation should be done on the table where antistatic measures are taken.

  • Page 38: Attaching The Mu100090A And Mu100010A

    2. Attach the MU100090A to the MT1000A. Place the MU100090A on the MT1000A so as to connect the following pairs: 1 - 4, 2 - 5, 3 - 6. Be careful not to bump the guide pins (2, 3, 5 and 6) to the connectors (1 and 3.
  • Page 39 How to Attach the MU100090A How to Attach the MU100090A 5. Tighten the four screws. After the module attachment has finished, the external appearance will be as below. 6. Connect the AC cable or install the battery packs. CAUTION CAUTION When using MU100090A, do not drop the Network Master or give a shock.
  • Page 40 Configuration Configuration...
  • Page 41 3 3 Human-Machine-Interface Human-Machine-Interface Human-Machine-Interface (HMI) covers the relation between the user and the instrument - in other words: the information you get from the instrument combined with the action you add to the instrument. The informative part is the TFT display, and the part susceptible to influence is the touch-active layer of the screen.
  • Page 42 The touch screen display is constructed to be operated by the tip of your finger or by the included Stylus (Anritsu part No. Z1746A). The touch screen surface is made of delicate material and is easily scratched or damaged if handled incorrectly.

  • Page 43: Power Button

    Key Operation Key Operation 3 3 . . 2 2 Key Operation Key Operation The only physical operator key (the Power button) is described in this section. 3 3 . . 2 2 . . 1 1 Power Button Power Button The Power button on the front panel of the instrument is used to switch power ON and OFF.
  • Page 44 Human-Machine-Interface Human-Machine-Interface AC Operation AC Operation After you shut the Network Master down, the Network Master goes back to Stand by or Charging state. The Network Master stays Stand by or Charging state until you disconnect the mains power adapter. Battery Operation Battery Operation After you shut the Network Master down, the power goes off.
  • Page 45 Head Set Head Set 3 3 . . 3 3 Head Set Head Set You can use the commercially available head set (3.5 φ CTIA), it is possible to listen speech in the audio channels available in E1 and T1 systems. CAUTION CAUTION Do not operate for a long period of time at high volume level or at a level that...

  • Page 46: Test Interfaces

    Human-Machine-Interface Human-Machine-Interface 3 3 . . 4 4 Connector Panel Connector Panel All connections (both for test interfaces and for service interfaces ) are placed on the connector panel of the Network Master. 3 3 . . 4 4 . . 1 1 Test Interfaces Test Interfaces The figure below shows the connector panel of the mainframe and MU100010A.
  • Page 47 Connector Panel Connector Panel The audio connector is used for connecting to an optional head Audio set. The AUX connector is used for optional G0325A GPS Receiver. Ext Clock Input The Ext Clock Input connector is used for reference clock input. USB B The three USB connectors (two connectors type A and one connector type B mini) can, for example, be used for connection...

  • Page 48: Gps Disciplined Oscillator Interfaces

    3 3 . . 4 4 . . 3 3 GPS Disciplined Oscillator Interfaces GPS Disciplined Oscillator Interfaces All connections concerning the GPS Disciplined Oscillator interfaces are also located on the connector panel: Connects to AUX connector on MT1000A panel using J1705A AUX DSUB9 AUX Conversion Adaptor. 1pps Out The 1PPS signal is output.
  • Page 49 2. Connect AUX DSUB9 of the MU100090A to AUX of the MT1000A using J1705A AUX Conversion Adaptor. 3. Connect 10MHz Out of the MU100090A to Sync In of the MT1000A using J1710A BNC Cable. 4. Connect 1PPS Out of the MU100090A to REF 1PPS IN of J1705A AUX Conversion Adaptor.

  • Page 50: Installation Of Control Software

    3. If User Account Control dialog box appears, click Yes Yes. 4. After the installation finishes, click Close Close. Click Start Start > All Programs > Anritsu > MX100001A folder. Confirm that following programs appear. "V*.**" is replaced to the version name. MX100001A-V*.**-Editor MX100001A-V*.**-Remote MX100001A-V*.**-Viewer V*.**-Uninstall...

  • Page 51: Communication Ports

    Remote Operation Remote Operation 5. Change the Network settings of the PC, so it can access the Network Master via Ethernet. Select Control Panel -> Network and Internet -> Network Connection. Right-click the interface and click the Properties. Select the properties of Internet Protocol Version 4 (TCP/IPv4) and click the Properties button.

  • Page 52: Starting Control Software

    138, 139, File Sharing, fixed ports. 3 3 . . 5 5 . . 4 4 Starting Control Software Starting Control Software 1. Open Anritsu-MX100001A folder from Start menu. 2. Click MX100001A-V*.**-Remote MX100001A-V*.**-Remote. Executing Remote Operation on control PC: 1. If Control Software launched, the initial screen for remote operation appears as below.

  • Page 53: Remote Upgrade

    Remote Operation Remote Operation To exit Control Software, click Close button at right hand top of the window. Power button menu appears, and click Close Close. 3 3 . . 5 5 . . 5 5 Remote Upgrade Remote Upgrade If the MX100001A Control Software version differs from that of Network Master, when clicking Launch Application Launch Application, the software upgrading dialog...

  • Page 54: Remote Wake Up

    If Network Master is in Stand-by mode, it is possible to remotely get the unit into the Operation state. 1. Click Start Start > All Programs > Anritsu > MX100001A folder. 2. Click MX100001A-V*.**-Remote MX100001A-V*.**-Remote. 3. On the Control Software startup screen, enter the IP address of the Network Master in the Remote Unit IP Address Remote Unit IP Address field.
  • Page 55 Remote Operation Remote Operation 3. Set configuration of Network Master by clicking options in Select Controller Select Controller, and Add Module(s) Add Module(s). To save the configuration, click Save Configuration Save Configuration. 4. Click OK OK. After a while, the GUI of the selected Network Master configuration appears.
  • Page 56 SCPI version 1999 (Standard Commands for Programmable Instruments). All commands are described in a separate document: MT1000A Network Master Pro MT1100A Network Master Flex Remote Scripting Operation Manual (M-W3736AE). This icon on Status barindicates whether the Network Master is controlled by the command-based scripts or not.
  • Page 57 File Access via USB Interface File Access via USB Interface 3 3 . . 7 7 File Access via USB Interface File Access via USB Interface You can access the mass storage of the Network Master by connecting the USB cable.

  • Page 58: Accessing Files In Network Master From The Pc

    Human-Machine-Interface Human-Machine-Interface 3 3 . . 8 8 File Access via Ethernet Interface File Access via Ethernet Interface 3 3 . . 8 8 . . 1 1 Accessing files in Network Master from the PC Accessing files in Network Master from the PC The mass storage of the Network Master can be shared with your PC via Ethernet interface.
  • Page 59 File Access via Ethernet Interface File Access via Ethernet Interface 4. Connect an Ethernet network cable to the LAN connector on your Network Master and link this to a Local Area Network. 5. Assign an IP address to the Network Master. This is done in the Ethernet Ethernet screen as described in the Graphical User Interface available in the...

  • Page 60: G0325A Gps Receiver

    3 3 . . 9 9 . . 2 2 MU100090A GPS Disciplined Oscillator MU100090A GPS Disciplined Oscillator The MU100090A needs to connect GPS antenna and and to be connected to the MT1000A using J1705A AUX conversion Adaptor. Activating the GPS receiver Activating the GPS receiver...

  • Page 61: Operating Gps Receiver

    GPS Receiver GPS Receiver Warm up three hours or more after turning the MU100090A power on. Synchronize Rubidium oscillator by capturing GPS satellites for 30 minutes or more or by inputting the signal to 1pps Sync In connector for 30 minutes or more.
  • Page 62 Using a J1667A GPIB-USB Converter, an optional accessory, allows users to control Network Master via GPIB. GPIB address of Network Master can be set in the Remote Control. Command-Based Remote Control is available via GPIB control. MX100001A MT1000A/MT1100A Control Software does not support operation via GPIB.
  • Page 63 4 4 Graphical User Interface Graphical User Interface This chapter provides a general introduction to the graphical user interface (GUI). The descriptions of the screens, sub-screens and major dialog boxes related to specific technologies and applications are placed in separate chapters.

  • Page 64: Gui Concept

    Graphical User Interface Graphical User Interface 4 4 . . 1 1 General Handling of the GUI General Handling of the GUI The Network Master is equipped with a touch screen display, except for the key to switch the instrument on/off. The operating principle of the graphical user interface (GUI) presented on the touch screen display is that it guides you through all setup steps required for running a specific test and then finally presents you with the test results.

  • Page 65: Navigating In The Gui

    General Handling of the GUI General Handling of the GUI 4 4 . . 1 1 . . 2 2 Navigating in the GUI Navigating in the GUI As shown in the previous figure, you can navigate from the application selector to a specific application in the workspace vertically.

  • Page 66: Layout Of The Gui Screens

    Graphical User Interface Graphical User Interface From a setup screen you can return to the application selector using the tab at the top of the screen. Test result screens contain a tab at the top which returns you to the result file browser. 4 4 .
  • Page 67 General Handling of the GUI General Handling of the GUI Battery status Refer to "Battery Status Information". Link status of Ethernet service interface WLAN (when the option is installed.) Bluetooth (when the option is installed.) VNC (Virtual Network Computing) Controlled by the remote command Connection status of GPS receiver External PC status Speaker On/Off status...
  • Page 68 Graphical User Interface Graphical User Interface A Favorite application is basically an application with an associated set of port resources and specific settings. When launching a Favorite application, the associated port resources are automatically allocated and the associated settings are subsequently loaded. Favorites require a specific number of resources to run corresponding to the number of resources used when the Favorite was first created.
  • Page 69 General Handling of the GUI General Handling of the GUI Renaming favorites Renaming favorites 1. Touch and hold an icon in Favorites screen until a pop-up menu appears. 2. Touch Rename Favorite Rename Favorite. 3. Input a new name on the opening dialog box. Importing favorites Importing favorites Settings files (.cfg) can be registered to Favorites by using the...
  • Page 70 Graphical User Interface Graphical User Interface Result File Browser Result File Browser The Result File Browser Result File Browser screen is the other entry point after startup of the Network Master. From here you can access the results of previous tests to view the statistics directly, to generate PDF reports or to do both.
  • Page 71 General Handling of the GUI General Handling of the GUI The running applications appear in the Applications Switcher. Touching the button switches the application on the screen. 4 4 . . 1 1 . . 3 3 . . 3 3 Operating the Application Operating the Application Ports Setup screen Ports Setup screen...
  • Page 72 Graphical User Interface Graphical User Interface The status area (to the right of the setup area) shows status information for the currently selected port and layer. You can access more detailed status information from here by touching the status summary boxes and buttons. It may contain one or more setup pages, with a row of navigation buttons at the top of the screen allowing you to switch between the pages and between ports (when relevant).

  • Page 73: Lamp Indication Of Alarm/Error Status

    General Handling of the GUI General Handling of the GUI In addition to the results, whose presentation varies from application to application, the Test results Test results screen also contains the Application toolbar the navigation tabs for horizontal and vertical navigation. 4 4 .
  • Page 74 Graphical User Interface Graphical User Interface 4 4 . . 1 1 . . 4 4 . . 1 1 Test Status Summary Test Status Summary In the status bar, an icon indicates the summarized Test Status of every running test application (not viewers or utilities).

  • Page 75: Keypads For Entering Text In Fields

    General Handling of the GUI General Handling of the GUI 4 4 . . 1 1 . . 5 5 Keypads for Entering Text in Fields Keypads for Entering Text in Fields Alphanumerical or purely numerical keypads are used to enter text in fields. By touching the field you launch the related keypad.

  • Page 76: User Pattern Editor

    Graphical User Interface Graphical User Interface 4 4 . . 1 1 . . 6 6 User Pattern Editor User Pattern Editor The 32-bits and 2048-bits user patterns are specified using the Pattern Editor Pattern Editor. You can view the pattern in either Hexadecimal, Binary or ASCII format and use either a numpad, an ASCII table or a keyboard to set it up.

  • Page 77: Instrument Toolbar

    Toolbars Toolbars You can switch whether displaying the Confirm Dependencies dialog box. Refer to Miscellaneous in "Instrument Toolbar" section. 4 4 . . 2 2 Toolbars Toolbars Two toolbars are available on the right-hand side of the screen: the desktop toolbar (called the Instrument toolbar ) and the expandable workspace toolbar (called the Application toolbar ).
  • Page 78 This launches another dialog box, where you can specify file name and location. For the icons, refer to "File Manager". When there are "NG"s in the self test results, try to reboot Network Master. If "NG"s remain in the self test results, contact an Anritsu Service and Sales office.
  • Page 79 Toolbars Toolbars Configuration Configuration The Configuration icon launches the Global Configuration screen. From this screen, it is possible to configure both the general instrument settings (such as date/time, password etc.) and various network settings. General General The General General screen contains the following configuration options: LCD Brightness LCD Brightness Allows you to change the screen brightness by using the slide bar.
  • Page 80 Graphical User Interface Graphical User Interface This icon indicates that the speaker is On. This icon indicates that the speaker is Off. Auto Save Auto Save Allows you to specify saving method of the measurement results. Prompt: Confirms saving results or not after a test. Prompt On: Saves results to the file automatically without notification every time a test ends.
  • Page 81 Toolbars Toolbars Date/Time Date/Time Allows you to change the system date and time. Select a part in New Time New Time or New Date field and touch the up/down button. New Date If touching OK OK, the dialog box confirming the reboot appears. Touch Yes Yes.
  • Page 82 WLAN Allows the instrument to connect to a network via Wireless Local Area Network (WLAN). Note that if WLAN is enabled, the instrument cannot connect to the Ethernet via the Ethernet setting mentioned above. This feature requires an option (MT1000A-003).
  • Page 83 To edit the settings of the current network, touch the Edit Network Edit Network button. The Event History Event History button is available to diagnose the WLAN connection. Bluetooth Bluetooth Allows the instrument to use a Bluetooth connection. This feature requires an option (MT1000A-003).
  • Page 84 Graphical User Interface Graphical User Interface Enable Bluetooth: Enables using the Bluetooth. Enable Bluetooth Make visible: Allows to discover Network Master from other Bluetooth devices. Make visible Share files using FTP: Allows to share files stored in Network Master via Share files using FTP Bluetooth.
  • Page 85 Toolbars Toolbars IP Address: The IP address of the networked PC IP Address Domain: The domain name of the networked PC Domain User: The username (account) of the networked PC User Password: The password for account Password Folder Name: The name of the shared folder on the networked PC Folder Name After entering parameters, touch Apply Apply.
  • Page 86 Graphical User Interface Graphical User Interface Appears on the remote control application screen only. Displays the local folder of the control PC. Appears on the remote control application screen only. Displays the folder of the Network Master. Sets the current folder to the home folder. Moves to the home folder.
  • Page 87 Toolbars Toolbars Moves to the Help list topic. Back Forward Shows/hides the search box and buttons at bottom. Searches backward. Searches forward. When Case Sensitive Case Sensitive is selected, searches distinguishing the upper case and the lower case. Resource monitoring Resource monitoring The Resource monitoring Resource monitoring icon launches a screen showing which applications are...

  • Page 88: Application Toolbar

    Graphical User Interface Graphical User Interface Each application is associated with up to two Views, Only one View can have control at a time. Having control gives user full access to all application functions, including modification of setting parameters, load and save functions, and running the test.
  • Page 89 Toolbars Toolbars This icon appears in case of applications having traffic generation. Touch the Traffic Traffic Start icon to start sending traffic of all ports under test. The icon changes to the Start Traffic Stop icon shown below. Traffic Stop Traffic Stop Traffic Stop This icon appears in case of applications having traffic generation.
  • Page 90 Graphical User Interface Graphical User Interface Moves to the topic when touching the help icon. Back Forward Shows/hides the search box and buttons at bottom. Searches backward. Searches forward. If Case Sensitive Case Sensitive is selected, searches distinguishing the upper case and the lower case.
  • Page 91 Toolbars Toolbars 6. Select check boxes of items outputting to the report. Touching Customize Customize button launches the dialog box selecting items of statistics. 7. Touching Generate Generate button starts the report generation. Adobe® Reader® is recommended as a PDF viewer to open or print out the report. "Include Performance Verification dates"...
  • Page 92 Graphical User Interface Graphical User Interface Touch this icon to close the application. Expanded Application toolbar Expanded Application toolbar The Application toolbar is expanded/collapsed by touching the tab placed above the left-most column. The column displayed in the expanded toolbar contains the following functions: Restart Testing Restart Testing...
  • Page 93 Toolbars Toolbars The setup options vary depending on the stimulus mode (i.e. the signal type). Common functions for all stimulus modes are the port selection and stimulus type drop-down menus. Touching the Clear all stimuli Clear all stimuli button clears/resets the current stimulus settings.

  • Page 94: Instrument Startup

    Graphical User Interface Graphical User Interface 4 4 . . 3 3 Startup and Switch-off Sequences Startup and Switch-off Sequences This section describes what takes place when you switch the Network Master on and off as well as when you start up and close down an application. 4 4 .

  • Page 95: Accessing Previous Tests And Test Results

    Startup and Switch-off Sequences Startup and Switch-off Sequences 4 4 . . 3 3 . . 3 3 Accessing Previous Tests and Test Results Accessing Previous Tests and Test Results When you select test result files on the Report File Browser screen, you can choose to create either a report from the results or a workspace containing the test setup data and its results.

  • Page 96: Switching Off The Instrument

    Graphical User Interface Graphical User Interface 4 4 . . 3 3 . . 5 5 Switching Off the Instrument Switching Off the Instrument When you press the Power button on the instrument, the power-off menu is displayed. The menu contains the menu item Shut Down Shut Down, and when you select that, you are prompted to confirm that you really want to switch off the instrument completely.
  • Page 97 5 5 SDH/SONET/PDH/DSn SDH/SONET/PDH/DSn Applications Applications This chapter describes the graphical user interface (i.e. screens, sub-screens and major dialogs) related to SDH/SONET/PDH/DSn applications. Sub- screens and dialogs are described under the main screen from which they are activated/launched. The following settings and applications are available: SDH Setup and Status SONET Setup and Status E1 Setup and Status...

  • Page 98: Transmitter Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 1 1 SDH Setup and Status SDH Setup and Status An STM-xx STM-xx button in the navigation area of the Ports Setup Ports Setup screen gives you access to the SDH setup for the transmitter and/or receiver of the currently selected port.
  • Page 99 SDH Setup and Status SDH Setup and Status Use the Transmitter Transmitter drop-down menus to select to the transmitter. Mode Mode Use the Mode Mode drop-down menus to select to the behavior of the transmitter. OH overwrite position OH overwrite position Only enabled when the OH overwrite OH overwrite has been selected to the behavior of the transmitter.
  • Page 100 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications The general principle in setting up the SDH frame is to select the relevant values for the various containers in the multiplexing structure. This is done either via a drop-down menu or via a launched dialog box, by touching a drop- down menu or a button in the frame structure diagram.
  • Page 101 SDH Setup and Status SDH Setup and Status The setup principle is the same in this editor dialog as in the SDH structure. Touching a button or opening a drop-down menu will open for new editor dialog boxes, new value selections etc. S1: Synchronization status J0: Regenerator section trace Idle Char is an ASCII code used for the padding.
  • Page 102 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications J1: Path Trace Idle Char is an ASCII code used for the padding. B3: Path BIP-8 This byte cannot be set. C2: Signal label G1: (bit 1 to 4) REI (bit 5) RDI (bit 6 and 7) Reserved (bit 8) Spare F2,F3: Path user channels F2,F3 H4: Multiframe indicator...

  • Page 103: Receiver Setup

    SDH Setup and Status SDH Setup and Status User [32] bit, User [2048] bit User [32] bit User [2048] bit: 32 bits or 2048 bits length pattern. The field which shows bit length is enabled. Touch the field to launch the dialog box to define the bit pattern.
  • Page 104 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications SFP/SFP+: Optical interface SFP/SFP+ Electrical: Electrical interface (BNC connector) Electrical Receiver gain Receiver gain Only relevant for electrical receivers. Select the attenuation and impedance mode from the drop-down menu. Terminate: Up to 12 dB cable attenuation, nominal impedance Terminate Monitor: 20 dB linear attenuation and up to 12 dB cable attenuation, nominal Monitor...

  • Page 105: Status Information

    SDH Setup and Status SDH Setup and Status 5 5 . . 1 1 . . 3 3 Status Information Status Information This section describes the status information available for the SDH layer in the status area of the Ports Setup Ports Setup screen.
  • Page 106 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications The physical status information consists of the following parameters. When Receiver is set to OFF, 'N/A's are displayed. Rx signal level Rx signal level Signal Level (Optical) shows the optical signal level in dBm. Signal Level (Electrical) shows the electrical signal level in dB. 'nan' is displayed when input level is too low to detect the signal level.
  • Page 107 SDH Setup and Status SDH Setup and Status This screen contains detailed alarm and error information related to the SDH interface. Status is indicated by the use of colored Lamp icons. Alarms LOS: Loss of Signal LOF: Loss of Frame OOF: Out of Frame MS-AIS: Multiplex Section Alarm Indication Signal MS-AIS...
  • Page 108 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications TU-Negative: Tributary Unit Negative stuffing TU-Negative 5 5 . . 1 1 . . 3 3 . . 4 4 OH capture OH capture Touching the OH capture OH capture button in the status area of the Ports Setup Ports Setup screen launches the screen shown below.
  • Page 109 SDH Setup and Status SDH Setup and Status 5 5 . . 1 1 . . 3 3 . . 5 5 Tributary scan Tributary scan Touching the Tributary scan Tributary scan button in the status area of the Ports Setup Ports Setup screen displays the status shown below.
  • Page 110 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 1 1 . . 3 3 . . 6 6 Transceiver Transceiver Touching the Transceiver Transceiver button in the status area of the Ports Setup Ports Setup screen launches the dialog shown below. This dialog box presents status information about the optical transceiver.

  • Page 111: Errors/Alarms Insertion

    SDH Setup and Status SDH Setup and Status 5 5 . . 1 1 . . 4 4 Errors/Alarms Insertion Errors/Alarms Insertion This section describes the errors or alarms insertion for the SDH layer on the Application toolbar. Alarms/Errors/ Alarms/Errors/ Select the port to insert errors, and the stimuli type.
  • Page 112 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 1 1 . . 4 4 . . 2 2 SDH frequency SDH frequency Touch the field to set Frequency Offset Frequency Offset. If setting a positive value, the frequency will shift higher side. Example: If setting -50 ppm to the frequency offset for STM-16 output signal, the bit rate of output signal will be...

  • Page 113: Transmitter Setup

    SONET Setup and Status SONET Setup and Status 5 5 . . 2 2 SONET Setup and Status SONET Setup and Status An OC-xx/STS-xx OC-xx/STS-xx button in the navigation area of the Ports Setup Ports Setup screen gives you access to the SONET setup for the transmitter and/or receiver of the currently selected port.
  • Page 114 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Use the Transmitter Transmitter drop-down menus to select to the transmitter. Mode Mode Use the Mode Mode drop-down menus to select to the behavior of the transmitter. OH overwrite position OH overwrite position Only enabled when the OH overwrite OH overwrite has been selected to the behavior of the transmitter.
  • Page 115 SONET Setup and Status SONET Setup and Status The general principle in setting up the SONET frame is to select the relevant values for the various containers in the multiplexing structure. This is done either via a drop-down menu or via a launched dialog box, by touching a drop- down menu or a button in the frame structure diagram.
  • Page 116 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications The setup principle is the same in this editor dialog box as in the SONET structure. Touching a button or opening a drop-down menu will open for new editor dialog boxes, new value selections etc. S1: Synchronization status J0: Regenerator section trace Idle Char is an ASCII code used for the padding.
  • Page 117 SONET Setup and Status SONET Setup and Status J1: Path Trace Idle Char is an ASCII code used for the padding. B3: Path BIP-8 This byte cannot be set. C2: Signal label G1: (bit 1 to 4) REI (bit 5) RDI (bit 6 and 7) Reserved (bit 8) Spare F2,Z3: Path user channels F2,Z3 H4: Multiframe indicator...

  • Page 118: Receiver Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications User [32] bit, User [2048] bit User [32] bit User [2048] bit: 32 bits or 2048 bits length pattern. The field which shows bit length is enabled. Touch the field to launch the dialog box to define the bit pattern. Refer to The User Pattern Editor.
  • Page 119 SONET Setup and Status SONET Setup and Status SFP/SFP+: Optical interface SFP/SFP+ Electrical: Electrical interface (BNC connector) Electrical Receiver gain Receiver gain Only relevant for electrical receivers. Select the attenuation and impedance mode from the drop-down menu. Terminate: Up to 12.7 dB cable attenuation, nominal impedance Terminate Monitor: 20 dB linear attenuation and up to 12 dB cable attenuation, nominal Monitor...

  • Page 120: Status Information

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 2 2 . . 3 3 Status Information Status Information This section describes the status information available for the SONET layer in the status area of the Ports Setup Ports Setup screen. 5 5 .
  • Page 121 SONET Setup and Status SONET Setup and Status This dialog box contains detailed alarm and error information related to the SONET interface. Status is indicated by the use of colored Lamp icons. Alarms LOS: Loss of Signal LOF: Loss of Frame OOF: Out of Frame AIS-L: Line Alarm Indication Signal AIS-L...

  • Page 122: Errors/Alarms Insertion

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications REI-P : Path Remote Error Indication REI-P V5/B3: BIP-2 of VT-2/VT-1.5 or BIP-8 of Low order VC-3 V5/B3 REI-V: VT-Path Remote Error Indication REI-V Pattern errors: Bit error detected in the payload Pattern errors STS-NDF: Path New Data Flag STS-NDF VT-NDF: VT-Path New Data Flag VT-NDF...

  • Page 123: Transmitter Setup

    E1 Setup and Status E1 Setup and Status 5 5 . . 3 3 E1 Setup and Status E1 Setup and Status E1 represents the 2.048 Mbit/s PDH layer. The Ports Setup Ports Setup screen gives you access to the PDH layer setup for the transmitter and/or receiver of the currently selected port.
  • Page 124 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Switching between PDH Tx and DSn Tx is done in the SDH/SONET transmitter setup screen. 1. Select SDH Tx SDH Tx or SONET Tx SONET Tx check box. 2. Touch STM-xx STM-xx, STS-xx STS-xx, or OC-xx OC-xx button in the navigation area.
  • Page 125 E1 Setup and Status E1 Setup and Status Drop and insert Drop and insert Select the source for the transmitter. On: transmits the received data which the data generated in the Network Master has added. Off: transmits the data generated in the Network Master. Timing Source Timing Source Select the clock source.
  • Page 126 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications PCM frame is formed by 16 E1 frames. Frame structure is shown below. Bits 1 to 8 of the frame (Timeslot 0) Bits 1 to 8 of the frame (Timeslot 0) Frame Frame number number Sub multiframe (SMF) I: Frame number 0 to 7, II: Frame number 8 to 15 E: CRC4 error indication bits (FEBE) Sa: Spare bits C1 to C4: Cyclic Redundancy Check-4 (CRC4) bits...
  • Page 127 E1 Setup and Status E1 Setup and Status In the Sa-Bits Sa-Bits dialog box, change the individual Sa-bits by touching on the relevant bit keys - this will toggle the bit key's binary value from logic 1 to 0 or vice versa.
  • Page 128 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications You can select 'Normal' or 'Inverse' pattern type. Touching the 'ITU standard' button will apply ITU-T O.150 recommended Pattern type for N x 64 kbps data rates (PRBS 11). Pattern type User pattern User pattern User pattern field is enabled if Pattern type is set to User [32] bit User [32] bit or User [2084] User [2084] bit.

  • Page 129: Receiver Setup

    E1 Setup and Status E1 Setup and Status Tone Tone Touch the Tone Frequency Tone Frequency button and use the launched dialog box to key in the frequency, using the numeric soft keys. Touch the Level Level button and use the launched dialog box to key in the level. CAS tab page CAS tab page The CAS...
  • Page 130 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Switching between PDH Rx and DSn Rx is done in the SDH/SONET receiver setup screen. 1. Select SDH Rx SDH Rx or SONET Rx SONET Rx check box. 2. Touch STM-xx STM-xx, STS-xx STS-xx, or OC-xx OC-xx button in the navigation area.
  • Page 131 E1 Setup and Status E1 Setup and Status Terminate Terminate Used when the instrument is used as a tester and the receiver is the only device connected to the line. The input impedance is nominal. Bridged Bridged Used when the receiver is connected directly in parallel to a line carrying live traffic.
  • Page 132 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Line code Line code Use the Line code Line code radio buttons to select transmission line code HDB3 HDB3 or AMI AMI. For normal 2 Mbps systems choose HDB3. AMI is for special applications only. PCM frame PCM frame Use the PCM frame PCM frame radio buttons to enable (On...
  • Page 133 E1 Setup and Status E1 Setup and Status Pattern type Pattern type Select the requested pattern. Refer to Pattern type in "Transmitter Setup". For testing of data rates from 64 kbps to 2 Mbps in a 2 Mbps line, ITU-T O.150 recommends PBRS 11 to be used.

  • Page 134: Status Information

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Use the CAS CAS radio buttons to enable (On On) or disable (Off Off) the reception of a CAS (Channel Associated Signaling) signaling multiframe in time slot 16 of the received signal. 5 5 . . 3 3 . . 3 3 Status Information Status Information This section describes the status information available for the E1 layer in the status area of the Ports Setup...
  • Page 135 E1 Setup and Status E1 Setup and Status 5 5 . . 3 3 . . 3 3 . . 2 2 Physical Details Physical Details Touching the topmost summary box in the status area of the Ports Setup Ports Setup screen displays the status shown below.
  • Page 136 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications This screen contains detailed alarm and error information related to the E1 interface. Status is indicated by the use of colored Lamp icons. Alarms LOS: Loss of Signal AIS: Alarm Indication Signal No frame: No Frame No frame No CRC4 MF: No Cyclic Redundancy Check 4 Multi Frames No CRC4 MF...
  • Page 137 E1 Setup and Status E1 Setup and Status This screen provides information on the frame alignment when available. The frame alignment information includes the 16 first FAS/NFAS words of the CRC4 multiframe. If multiframe is not available, the frame information will show 16 FAS/NFAS words in sequence.
  • Page 138 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications CAS MFAS-Signal CAS MFAS-Signal This field shows the status of the CAS MFAS-Signal. Port1, Port2 Port1, Port2 This field shows the MFAS bits. CAS Bits, Port1 and Port2 CAS Bits, Port1 and Port2 This table shows the status of the CAS Bits in the two ports. Use of colors Use of colors For easy recognition of special bit combinations, coloring is available.
  • Page 139 E1 Setup and Status E1 Setup and Status The received line content with even bits inverted. With A-law coded speech it is possible to observe the A-law code words before the even bit inverting. DS1/J1 inverts all the bits. Peak (pos. and neg.) Peak (pos.

  • Page 140: Errors/Alarms Insertion

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications The busy / idle status of channel is displayed. The current audio time slot is marked with an green highlighting. Select the relevant channel by touching it. Audio Time Slots for all ports are marked, but it is only possible to change the time slots of the current port.
  • Page 141 E1 Setup and Status E1 Setup and Status Alarms/Errors/ Alarms/Errors/ Select the port to insert errors, and the stimuli type. The settings items vary Others Others depending on the selected stimulus type. PDH Alarm/Errors: Inserts errors or alarms related the PDH multi frame or PDH Alarm/Errors the pattern error.

  • Page 142: Transmitter Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 4 4 DS1/J1 Setup and Status DS1/J1 Setup and Status DS1/J1 represents the 1.544 Mbit/s PDH layer. The Ports Setup Ports Setup screen gives you access to the PDH layer setup for the transmitter and/or receiver of the currently selected port.
  • Page 143 DS1/J1 Setup and Status DS1/J1 Setup and Status For the switching method between PDH Tx and DSn Tx, refer to Physical Setup in "E1 Setup and Status". Touching Off Off radio button disables the transmitter. This screen allows you to make the physical setup of the PDH transmitter in DS1/J1 mode.
  • Page 144 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Line code Line code Use the Line code Line code radio buttons to select transmission line code. AMI: Alternate Mark Inversion B8ZS: Bipolar Eight Zero Substitution B8ZS PCM frame PCM frame Use the PCM frame PCM frame radio buttons to enable (On On) or disable (Off Off) insertion of PCM frame in the transmitted signal.
  • Page 145 DS1/J1 Setup and Status DS1/J1 Setup and Status Pattern type Pattern type Select the pattern to be inserted in the transmitted signal. Refer to Pattern type in "E1 Setup and Status". Available patterns are: User [32] bit, User [2048] bit User [32] bit User [2048] bit PRBS 9 to PRBS 31...
  • Page 146 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Off: No channel content is selected. Tone: Tone with specified frequency and level. Tone Transparent: Received content in the same channel time slot is used. Transparent Speech: Pre-programmed speech sequence. 'Drop and insert' on Tx screen will Speech be switched to On.

  • Page 147: Receiver Setup

    DS1/J1 Setup and Status DS1/J1 Setup and Status 5 5 . . 4 4 . . 2 2 Receiver Setup Receiver Setup 5 5 . . 4 4 . . 2 2 . . 1 1 Physical Setup Physical Setup When the receiver is set up with only a DS1/J1 interface, touching the Rx button in the navigation area will launch the following screen.
  • Page 148 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Follows Follows To make the currently selected receiver follow either the transmitter or Port 1 receiver (i.e. copy its settings), touch the drop-down menu in the navigation area and select the relevant value. The receiver settings continue to follow the change of either the transmitter or Port 1 receiver.
  • Page 149 DS1/J1 Setup and Status DS1/J1 Setup and Status Pattern type Pattern type Select the requested pattern. Available patterns are the same as the transmitter setup. Refer to Pattern type in "E1 Setup and Status". Touch 'Normal' or 'Inverse' pattern type. Touching the 'ITU standard' button will apply ITU-T O.150 recommended Pattern type for N x 64 kbps data rates (PRBS 11).

  • Page 150: Status Information

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Use the CAS CAS radio buttons to enable (On On) or disable (Off Off) the reception of a CAS (Channel Associated Signaling). 5 5 . . 4 4 . . 3 3 Status Information Status Information This section describes the status information available for the DS1/J1 layer in the status area of the Ports Setup Ports Setup screen.
  • Page 151 DS1/J1 Setup and Status DS1/J1 Setup and Status 5 5 . . 4 4 . . 3 3 . . 2 2 Physical Details Physical Details Refer to Physical Details in "E1 Setup and Status". The nominal bit rate of DS1/J1 is 1 544 000 bps.
  • Page 152 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications This screen provides information on the frame alignment when available. F-Bit and M-bit are displayed when the frame type is J1 J1 or ESF ESF. F-Bit and S-bit are displayed when the frame type is SF/D4 SF/D4.

  • Page 153: Errors/Alarms Insertion

    DS1/J1 Setup and Status DS1/J1 Setup and Status This screen gives information on the CAS (Channel Associated Signaling) signaling when available. It displays the state of the two signaling bits in both directions for all 24 channels. Activity is indicated with bold characters. Use of colors Use of colors For easy recognition of special bit combinations, coloring is available.

  • Page 154: Transmitter Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 5 5 E3 Setup and Status E3 Setup and Status E3 represents the 34.368 Mbit/s PDH layer. The Ports Setup Ports Setup screen gives you access to the PDH layer setup for the transmitter and/or receiver of the currently selected port.
  • Page 155 E3 Setup and Status E3 Setup and Status For the switching method between PDH Tx and DSn Tx, refer to Physical Setup in "E1 Setup and Status". Touch E3 E3 radio button. Touching Off Off radio button disables the transmitter. This screen allows you to make the physical setup of the PDH transmitter in E3 mode.

  • Page 156: Receiver Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications User [32] bit, User [2048] bit User [32] bit User [2048] bit PRBS 9 to PRBS 31 PRBS 9 PRBS 31 Fox Pattern, Fox (CMA3000) Fox Pattern Fox (CMA3000) All 0's, All 1's All 0's All 1's Alternating 1:1, Alternating 1:3 Alternating 1:1 Alternating 1:3, Alternating 1:7...
  • Page 157 E3 Setup and Status E3 Setup and Status Terminate Terminate Used when the instrument is used as a tester and the receiver is the only device connected to the line. The input impedance is nominal. Monitor Monitor Used when connecting to protected monitoring points. The input impedance is nominal.

  • Page 158: Status Information

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 5 5 . . 3 3 Status Information Status Information This section describes the status information available for the E3 layer in the status area of the Ports Setup Ports Setup screen. 5 5 .

  • Page 159: Errors/Alarms Insertion

    E3 Setup and Status E3 Setup and Status Alarms LOS: Loss of Signal AIS: Alarm Indication Signal No frame: No frame No frame Distant: Distant Distant No sync: No synchronization No sync Errors FAS words: Received FAS pattern does not match to "1111010000". FAS words Pattern error: Received pattern does not match to specified pattern type.

  • Page 160: Transmitter Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 6 6 DS3 Setup and Status DS3 Setup and Status DS3 represents the 44.736 Mbit/s PDH layer. The Ports Setup Ports Setup screen gives you access to the PDH layer setup for the transmitter and/or receiver of the currently selected port.
  • Page 161 DS3 Setup and Status DS3 Setup and Status For the switching method between PDH Tx and DSn Tx, refer to Physical Setup in "E1 Setup and Status". Touch DS3 DS3 radio button. Touching Off Off radio button disables the transmitter. This screen allows you to make the physical setup of the PDH transmitter in DS3 mode.
  • Page 162 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Follows Follows To make the Port 2 transmitter follow the Port 1 transmitter (i.e. copy its settings) when using Port 1 and Port 2, touch the drop-down menu in the navigation area and select the Tx1 Tx1.
  • Page 163 DS3 Setup and Status DS3 Setup and Status C-bit Frame Overhead C-bit Frame Overhead F1 AIC F0 NA F0 FEAC F1 F1 UDL F0 UDL F0 UDL F1 CP F0 CP F0 CP F1 FEBE F0 FEBE F0 FEBE F1 M0 F1 DL F0 DL F0 DL...

  • Page 164: Receiver Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Option Option Meaning Meaning Cord Word Cord Word FEAC Off DS3 EF DS3 Equipment Failure Service Affecting 011001 DS3 LOF DS3 Loss of Signal 001110 DS3 OOF DS3 Out of Frame 000000 DS3 AIS DS3 AIS Received 010110 DS3 Idle DS3 Idle Signal Received...
  • Page 165 DS3 Setup and Status DS3 Setup and Status This screen allows you to make the physical setup of the PDH receiver in DS3 mode. It can also be used to inspect the current status of the selected port. The configuration options available in the setup area of the screen are described below.

  • Page 166: Status Information

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Touch 'Normal' or 'Inverse' pattern type. Touching the 'ANSI standard' button will apply ANSI/IEEE 1007 recommended Pattern type Pattern type for 45 Mbit data rates (PRBS 23 Inverse). User pattern User pattern User pattern field is enabled if Pattern type is set to User [32] bit User [32] bit or User [2084] User [2084] bit.
  • Page 167 DS3 Setup and Status DS3 Setup and Status This dialog box contains detailed alarm and error information related to the DS3 interface. Status is indicated by the use of colored Lamp icons. Alarms LOS: Loss of Signal AIS: Alarm Indication Signal LOF: Loss of Frame RAI: Remote Alarm Indication IDLE: Idle Signal...
  • Page 168 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Alignment status when the frame type is M13 Alignment status when the frame type is M13 Alignment status when the frame type is C-bit Alignment status when the frame type is C-bit This screen provides information on the frame alignment when available. The frame alignment information includes the below bits contained in seven subframes.

  • Page 169: Errors/Alarms Insertion

    DS3 Setup and Status DS3 Setup and Status 5 5 . . 6 6 . . 4 4 Errors/Alarms Insertion Errors/Alarms Insertion Refer to Errors/Alarms Insertion in E1 Setup and Status section.

  • Page 170: Transmitter Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 7 7 E4 Setup and Status E4 Setup and Status E4 represents the 139.264 Mbit/s PDH layer. The Ports Setup Ports Setup screen gives you access to the PDH layer setup for the transmitter and/or receiver of the currently selected port.
  • Page 171 E4 Setup and Status E4 Setup and Status For the switching method between PDH Tx and DSn Tx, refer to Physical Setup in "E1 Setup and Status". Touch E4 E4 radio button. Touching Off Off radio button disables the transmitter. This screen allows you to make the physical setup of the PDH transmitter in E4 mode.

  • Page 172: Receiver Setup

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications The length can be any length from 1 bit to 32 bits or from 1 bit to 2048 bits. 5 5 . . 7 7 . . 2 2 Receiver Setup Receiver Setup 5 5 . . 7 7 . . 2 2 . . 1 1 Physical Setup Physical Setup When the receiver is set up with only an E4 interface, selecting the Rx Rx button in...

  • Page 173: Status Information

    E4 Setup and Status E4 Setup and Status To make the currently selected receiver follow either the transmitter or Port 1 receiver (i.e. copy its settings), touch the drop-down menu in the navigation area and select the relevant value. The receiver settings continue to follow the change of either the transmitter or Port 1 receiver.

  • Page 174: Errors/Alarms Insertion

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Refer to Physical Details in "E1 Setup and Status". The nominal bit rate of E4 is 139 264 000 bps. 5 5 . . 7 7 . . 3 3 . . 3 3 Alarms and Errors Alarms and Errors Touching the middle summary box in the status area of the Ports Setup Ports Setup screen...

  • Page 175: Ports Setup And Status

    5 5 . . 8 8 APS The Automatic Protection Switching (APS) test described in this section is applicable for SDH/SONET/PDH/DSn interfaces. For APS test of OTN interface, refer to in "OTN Application". On SDH/SONET K1,K2 protocol decoding is performed, as well as measurement of average and maximum duration of a specified reference event (alarm/error).

  • Page 176: Test Results

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications This screen contains the parameters for setting up the threshold values for alarms/errors and Pass/Fail status. Measurement Measurement Reference event Reference event Condition Condition Use the drop-down menu(s) to select the relevant event (Any errors Any errors, LOS LOS, LOF LOF, OOF etc.).
  • Page 177 This screen presents a summary of the results of the APS test. For each port the following information is displayed: Reference event Average switching time Max. time Max reference duration 5 5 . . 8 8 . . 3 3 . . 2 2 Details for APS Details for APS Touching the Detailed Detailed button will display the screen shown below.
  • Page 178 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Graphical Graphical The graphical presentation consists of a bar diagram of the automatic switching presentation presentation times. Results may be affected by unexpected alarms/errors. Protocol interpretation Protocol interpretation Shows the screen displaying the Protocol interpretation. Protection interpolation button appears when SDH or SONET layer is present. 5 5 .
  • Page 179 Touch the Apply Apply button to apply the specified APS request to the SDH/SONET transmitter. 5 5 . . 8 8 . . 3 3 . . 4 4 Event Log Event Log Touching the Event Log Event Log button in the navigation area displays the screen providing the event log data.

  • Page 180: Ports Setup And Status

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 9 9 BERT BERT The Bit Error Rate Test (BERT) described in this section is applicable for SDH/SONET/PDH/DSn interfaces. For BERT of OTN interface, refer to BERT in "OTN Application". The interface settings on the Ports Setup screen determines whether the current application is SDH, SONET, PDH and/or DSn BERT.
  • Page 181 BERT BERT Measurement Mode button appears in the Navigation area only when starting the BERT Measurement Mode by Application selector. Measurement Mode Measurement Mode Touch the field to select the application. BERT Pointer movement Pointer movement Touch the field to select the Pointer movement Pointer movement button display in Result screen.
  • Page 182 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Manual stop: Stops the measurement immediately when you touch the Stop Manual stop Stop button. Stop at: Stops the measurement at the time specified in the Stop at Stop at Stop at field on the right. Duration: Performs the measurement for the duration of time specified on the Duration right.
  • Page 183 BERT BERT Performance Parameters Performance Parameters SDH, SONET SDH, SONET Parameter Parameter G.826, G.826, Name Name G.821 G.821 G.826 M.2100 G.826 M.2100 G.828+G.829, G.828+G.829, G.8201,M.2401 G.8201,M.2401 M.2101.1 M.2101.1 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓...
  • Page 184 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications These items appear if PDH Tx PDH Tx and PDH Rx PDH Rx, or DSn Tx DSn Tx and DSn Rx DSn Rx are selected on Setup screen. G.821, G.826, M.2100, G.821 (expired) G.826, M.2100 G.826, M.2100 DS1/J1 DS1/J1 G.821, G.826, M.2100, G.821 (expired)

  • Page 185: Test Results

    BERT BERT Interface Interface Select the item to evaluate from OTN OTN, SDH SDH, SONET SONET, E4 E4, E3 E3, E1 E1, DS3 DS3 or DS1/J1. DS1/J1 Evaluation item Evaluation item Select the item to evaluate. If selecting other than Any Alarm or Error Any Alarm or Error, another menu appears.
  • Page 186 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Insertion Insertion Select the timing of the error insertion from the drop-down menu. Off: Stops the error insertion. Manual Manual 1E-04 to 1E-10 1E-04 1E-10 Alternate Alternate Burst length Burst length If 'Insertion' is set to Manual Manual, touch the button and set the burst length to insert.
  • Page 187 BERT BERT When releasing the finger or stylus, the graph area zooms in to show the selected part of the graph. To zoom out, use the view settings below the graph: View mode View mode Used to set the x-scaling for the graph. The possible settings are: Last 24H to Last 5m Last 24H Last 5m: Shows a sliding graph area with max.
  • Page 188 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 9 9 . . 3 3 . . 3 3 Event Log Event Log Touching the Event Log Event Log button in the navigation area displays the screen shown below. Event log display Event log display The slide-out panel on the left-hand side of the screen contains the following functions...
  • Page 189 BERT BERT The test start event (Started) and stop event (Stopped) are always shown in the event log. The View View setting applies a port filter. A single port or all ports can be selected. Events with no port association will always pass. The CSV export CSV export button is for writing all events (un-filtered) to a file in a CSV format (Comma Separated Values).
  • Page 190 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications This screen presents a detailed analysis of the test results. You can choose to view either the total results from measurement start or the results of a specific interval during the test. You can also zoom in on a specific result item. The results can be displayed either in table (list) form or as a graph.
  • Page 191 BERT BERT Selecting type of Selecting type of Open the middle drop-down menu in the top row of buttons to select which results results results you want to display on the screen. SDH, SONET SONET E1, E3 E3, E4 E4, DS1/J1 DS1/J1, DS3 Alarms/Errors Alarms/Errors...
  • Page 192 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications TU VC-12/11 Bulk AU Pointer TU Pointer Justification * SDH Performance AU VC-4/3 TU VC-3 TU VC-12/11 SDH TCM Alarms Errors SONET Alarms/Errors Alarms Errors SONET Quality Frequency STS-3c/1 TU VC-3 VT-2/1.5 Bulk STS Pointer VT Pointer Justification * SONET Performance STS-3c/1...
  • Page 193 BERT BERT Pattern errors *1: Justification Justification appears when 'PDH Rx' or 'DSn Rx' is selected. *2: E-Bit errors E-Bit errors appears when 'E-bit' is set to On in Frame tab of E1 receiver. *3: CRC6 errors CRC6 errors appears when 'ESF' or 'J1' is selected. SDH/SONET Performance Measurement Items SDH/SONET Performance Measurement Items This paragaraph describes the performance result items.
  • Page 194 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications BIS limit BIS limit Items Items Definition Definition The ES threshold for deciding Accecpted S1-ES The ES threshold for deciding Unaccecpted S2-ES S1-SES The SES threshold for deciding Accecpted S2-SES The SES threshold for deciding Unaccecpted S1-ES, S2-ES, S1-SES, and S2-SES are the calculated values according to ITU Recommendation, and vary depending on Allocation and Period of Performance Parameters.
  • Page 195 BERT BERT When SES or ALS continues for ten seconds, UAT starts from the beginning of the time. When items other than SES continues for ten seconds, UAT ends at one second before the time. Refer to the figure of Example of Unavailable Time Detection.

  • Page 196: Ports Setup And Status

    SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications 5 5 . . 10 10 RTD The Round-Trip Delay (RTD) test measures the time that the data which is transmitted by the transmitter returns to the receiver. The RTD test described in this section is applicable for SDH/SONET/PDH/DSn interfaces.

  • Page 197: Test Results

    Test Condition Test Condition Allows you to define the test duration in one of two ways: Mode Mode Single - Used to perform RTD test once. Single Repeat - Used when a persistent RTD test is needed. Repeat Measurement period Measurement period Select the measurement period from 0.5 seconds 0.5 seconds to 10 seconds...
  • Page 198 SDH/SONET/PDH/DSn Applications SDH/SONET/PDH/DSn Applications Buttons for selecting the relevant port are displayed at the top of the screen, with a color indication of the pass/fail status of the test. This screen presents the detailed results of an RTD test. The result is shown in both list-form and in a graphical presentation.
  • Page 199 6 6 Ethernet Applications Ethernet Applications This chapter describes the graphical user interface (i.e. screens, sub-screens and major dialogs) related to Ethernet applications. Sub-screens and dialogs are described under the main screen from which they are activated/launched. The following setting and applications are available: Ethernet Setup and Status BERT Cable...

  • Page 200: Physical Port Setup

    Ethernet Applications Ethernet Applications 6 6 . . 1 1 Ethernet Setup and Status Ethernet Setup and Status Ethernet is globally used for data communication. Ethernet transmits variable length frames up to 1500 bytes in length, each containing a header with the source and destination addresses and a trailer that contains error correction data.
  • Page 201 Ethernet Setup and Status Ethernet Setup and Status 6 6 . . 1 1 . . 1 1 . . 1 1 Port configuration parameters Port configuration parameters Port definition Port definition You can use either a 'quick mode' or a 'detailed mode' to set up the port. Touching the long button at the top of the setup area will launch the Port Setup ) will open the quick...
  • Page 202 Ethernet Applications Ethernet Applications Received Received IEEE 1588v2 IEEE 1588v2 Received appears when the interface type is set to SFP Received SFP or SFP+ SFP+. Transceiver Transceiver Displays the Transceiver information. 6 6 . . 1 1 . . 1 1 . . 2 2 Port Setup (detailed mode) Port Setup (detailed mode) The contents of the dialog box (i.e.

  • Page 203: Ethernet Frame Setup

    Ethernet Setup and Status Ethernet Setup and Status Open the Clock Clock drop-down menu to select one of the following settings: Prefer master, Prefer slave Prefer master Prefer slave, Master Master, or Slave Slave. Electrical + Forced Electrical + Forced Selecting the Forced Forced port mode with interface type specified as Electrical Electrical will...
  • Page 204 Ethernet Applications Ethernet Applications This screen allows you to specify the configuration of a WAN interface sublayer for the currently selected Ethernet port. It can also be used to inspect the current status of the selected port. The configuration options available in the setup area of the screen are described below.
  • Page 205 Ethernet Setup and Status Ethernet Setup and Status This screen contains the setup of the Ethernet frame content transmitted by the Network Master. The exact layout depends on the current selection of layers (i.e. the various encapsulation and protocol headers composing the Ethernet frame).
  • Page 206 Ethernet Applications Ethernet Applications The quick selection menu contains a number of predefined frame configurations (e.g. ETH/VLAN/IPv4 ETH/VLAN/IPv4). The detailed mode dialog box allows you to specify the frame configuration yourself and also provides you with access to all configuration parameters available for the individual layers. The detailed mode (Stream Setup Stream Setup) dialog box is described in detail below.
  • Page 207 Ethernet Setup and Status Ethernet Setup and Status Copy frame content to Copy frame content to This feature allows you to copy the frame content of the stream that you are other stream(s) other stream(s) currently configuring to all streams in another port or to a single stream. Touching the Copy To Copy To button opens a drop-down menu from which you can select the relevant port and all or a specific stream.
  • Page 208 Ethernet Applications Ethernet Applications The layer buttons are arranged in order from bottom to top and from left to right. The TCP/UDP protocols are the uppermost layer and Ethernet the lowermost as depicted below compared to the OSI model. OSI layer name OSI layer name Protocol Protocol...
  • Page 209 Ethernet Setup and Status Ethernet Setup and Status MPLS MPLS-TP VLAN LLC1 SNAP IPv4 IPv6 Payload Variable Custom Custom Custom header can be set on BERT application, allows users to edit the specific area in the header. To set Custom header, touch the Custom Custom button in Layer 2 or select Custom Custom in Layer 3.
  • Page 210 Ethernet Applications Ethernet Applications Export Export Touching this button launches the Export Custom Header Export Custom Header dialog box. Enter the file name and touch Export Export button. Unframed Unframed Following operation on Steam Setup dialog box will display the parameter of the unframed stream.
  • Page 211 Ethernet Setup and Status Ethernet Setup and Status The Ethernet (MAC) header contains MAC addresses and Ethertype. Dst MAC Dst MAC The Destination MAC address can either be specified manually. This can be decided based on an ARP lookup when IPv4 is set to Layer 3 or based on an NDP when IPv6 is set to Layer 3.
  • Page 212 Ethernet Applications Ethernet Applications Level count Level count Up to eight levels of MPLS fields can be inserted in the frame. The number of MPLS fields is selected through the Level count Level count drop-down menu, and each level is set up individually. Label Label Allows you to set up a denoting of the MPLS.
  • Page 213 Ethernet Setup and Status Ethernet Setup and Status Auto increment Auto increment Selecting the Auto increment Auto increment check box makes the sequence number in the RFC4448 control word increment automatically instead of being fixed to zero. The remaining fields are described under the layer.
  • Page 214 Ethernet Applications Ethernet Applications Shows the type automatically depending on layer configuration. If the value is selectable, select the value by touching the field. VLAN VLAN Touching the VLAN VLAN layer button displays the parameters available for the Virtual LAN protocol layer. Virtual LAN (VLAN) is used to create independent logical networks within a physical network.
  • Page 215 Ethernet Setup and Status Ethernet Setup and Status Ethertype Ethertype When the Level count is more than one, select the type from 0x8100 0x8100, 0x88A8 0x88A8, 0x9100 or 0x9200 0x9100 0x9200. When IPv4 IPv4 or IPv6 IPv6 is set to Layer 3, the Ethertype of the highest level is automatically defined, based on the next protocol element.
  • Page 216 Ethernet Applications Ethernet Applications The Protocol ID Protocol ID is fixed to 0 0 , and the Ethertype Ethertype field depends on the upper protocol layer. 'SNAP' is not possible without 'LLC1'. IPv4 IPv4 Touching the IPv4 IPv4 layer button displays the parameters available for the Internet Protocol version 4 layer.
  • Page 217 Ethernet Setup and Status Ethernet Setup and Status Version, Header length Version, Header length Shows Version and Header length in the IPv4 header. Total length Total length Shows Total length in the IPv4 header. DSCP/TOS DSCP/TOS When changing the DSCP/TOS DSCP/TOS (Differentiated Service Code Point/Type of Service) setting, it is possible to define some handling characteristics of the datagram, originally defined in RFC 791.
  • Page 218 Ethernet Applications Ethernet Applications Selecting the DHCP DHCP check box located next to the Src IP Src IP field will enable the Dynamic Host Configuration Protocol function. Selecting the DNS DNS check box located next to the Dst IP Dst IP field changes the field name to Hostname Hostname, allowing you to specify the domain name server.
  • Page 219 Ethernet Setup and Status Ethernet Setup and Status IPv6 IPv6 Touching the IPv6 IPv6 layer button displays the parameters available for the Internet Protocol version 6 layer. IPv6 header is defined in RFC 791 as below. Version Version Shows Version in the IPv6 header. Traffic class Traffic class Traffic class is similar to IPv4's DSCP/TOS...
  • Page 220 Ethernet Applications Ethernet Applications Shows Payload length in the IPv6 header. This value is calculated automatically. Next header Next header The next header indicates the upper/next layer protocol encapsulated in the IP datagram. Typical values in hex are: 1 = ICMP , 6 = TCP etc. Hop limit Hop limit The hop limit defines the number of 'hops' a datagram can do before it no...
  • Page 221 Ethernet Setup and Status Ethernet Setup and Status User Datagram Protocol is a core protocol of the Internet protocol suite. The UDP provides a minimal and simple interface between a network layer below and a session layer or application above. This protocol does not guarantee reliable and in-order delivery from sender to receiver.
  • Page 222 Ethernet Applications Ethernet Applications Transmission Control Protocol is a core protocol of the Internet protocol suite. It is the intermediate layer between the Internet Protocol below it and the application above it. This protocol guarantees reliable and in-order delivery from sender to receiver. The Network Master supports sending frames that resemble TCP frames, but the traffic transmitted will not constitute a real TCP stream, as no handshake is performed.
  • Page 223 Ethernet Setup and Status Ethernet Setup and Status When Listen mode is enabled, the transmitter will await an external TCP connection before the actual traffic frames are sent. This makes it possible to pass a firewall/nat router from the other side (Remark: you must have something establishing the TCP connection from the inner side e.g.
  • Page 224 Ethernet Applications Ethernet Applications Open the Pattern Pattern drop-down menu to select the relevant pattern. 5555 5555 PRBS9 to PRBS31 PRBS9 PRBS31 HF TEST HF TEST CRPAT CRPAT JTPAT JTPAT SPAT SPAT User 32 bit User 32 bit If you select the User 32 bit User 32 bit pattern, a button appears with which you can open Pattern Editor Pattern Editor...
  • Page 225 Ethernet Setup and Status Ethernet Setup and Status Ethernet frames. Variable Variable The Variable allows you to set variables in the transmitted frames. When ETH ETH button in layer 2 is green. When Custom Custom button in layer 2 is green. Variable No.
  • Page 226 Ethernet Applications Ethernet Applications Allows you to specify a bit position and bit length for the variable by Offset Offset and Length field. The position of a variable is shown in green. 'X' means four bits. Length When Custom button in Layer 2 is green, row of boxes appears. A box indicates eight bits.
  • Page 227 Ethernet Setup and Status Ethernet Setup and Status 6 6 . . 1 1 . . 2 2 . . 3 3 Swap Swap Touching the Swap Swap button in the navigation area displays the following screen. Swap button appears in Reflector application. Swap This screen is where you configure the traffic loop by specifying how addresses and/or ports are to be swapped and reflected.
  • Page 228 Ethernet Applications Ethernet Applications This screen allows you to specify how the Network Master handles incoming frames on the currently selected Ethernet port. It can also be used to inspect the current status of the selected port. Follows Follows It is possible to let the Port 2 copy the setup from Port 1 by touching the Follows button.
  • Page 229 Ethernet Setup and Status Ethernet Setup and Status Allows you to specify the minimum allowed receiver interframe gap. The default setting is 12 12 bytes. The range is from 8 8 to 15 15 bytes. Filter IFG violations caused by master/slave clock synchronization Filter IFG violations caused by master/slave clock synchronization Applies only to Gigabit mode, where the IFG will not be constant, which leads to a larger number of IFG violated frames than expected.
  • Page 230 Ethernet Applications Ethernet Applications This screen allows you to configure the setup parameters related to Synchronous Ethernet. It can also be used to inspect the current status of the selected port. The configuration options available in the setup area of the screen are described below.
  • Page 231 Ethernet Setup and Status Ethernet Setup and Status Combination of Ql Type and Ql Combination of Ql Type and Ql G.781 G.781 G.781 G.781 G.781 G.781 G.8264 G.8264 option I option I option II option II option III option III QL-INV0 QL-STU QL-UNK...
  • Page 232 Ethernet Applications Ethernet Applications This screen allows you to configure the IEEE 1588 clock (based on the IEEE 1588 Precision Time Protocol (PTP), which is used to distribute absolute time across the Ethernet network). An IEEE 1588 clock can act either as a timing master or as a slave.
  • Page 233 Ethernet Setup and Status Ethernet Setup and Status When the Network Master is grandmaster in unicast mode, only one slave will be accepted at a time. Other slaves are just ignored. Ext. Log Ext. Log Used to record the external log. If you select this, the IEEE1588v2 Log IEEE1588v2 Log button appears in the navigation area of Test Result.
  • Page 234 Ethernet Applications Ethernet Applications You can set up the transport protocol(s) for PTP messages either by selecting one of the predefined configurations from the quick selection menu (e.g. ETH/VLAN/IPv4/UDP) or by configuring the protocols via the detailed mode ETH/VLAN/IPv4/UDP dialog box. Touching the protocol button will launch the detailed mode dialog box (the IEEE 1588v2 Protocol dialog box).
  • Page 235 Ethernet Setup and Status Ethernet Setup and Status Unicast negotiat Unicast negotiat Selecting the check box enables the unicast negotiation. This check box is available when Profile is set to User Defined User Defined and the Unicast Unicast is selected. Clock tab page Clock tab page The Clock...
  • Page 236 Allows you to specify the delay time of GPS antenna cable connected to the Network Master in nano second unit. When calculating the delay time from the cable length, it is recommendable to use 5 ns/m as the conversion factor. When using the following GPS provided by Anritsu, set 25 ns.
  • Page 237 Ethernet Setup and Status Ethernet Setup and Status G0325A MU100090A (When using J1706A GPS antenna of the standard accessory) Sync interval Sync interval Allows you to specify the interval between transmitted sync messages. Available values are between 1/128 s 1/128 s and 32 s 32 s.
  • Page 238 Ethernet Applications Ethernet Applications ETH layer ETH layer When the Layer 3 is set to None None, you can set Src MAC Src MAC and Select Multicast Select Multicast MAC address only. MAC address Dst MAC - Type in the destination MAC address to be used with all PTP Dst MAC unicast frames.
  • Page 239 Ethernet Setup and Status Ethernet Setup and Status between 0x0 and 0xF. Enable extension header -Appends the IPv6 extension header. Touching Enable extension header Extension header opens the Extension Header dialog box. Extension header Type Select the extension header type from Hop-by-Hop Hop-by-Hop, Routing (Type 0) Routing (Type 0), Destination.
  • Page 240 Ethernet Applications Ethernet Applications Touch the button in the top left-hand part of the screen to select the protocol. The setup parameters are grouped according to protocol. 802.3ah protocol - Applies to the connectivity of point-to-point connections across one hop. 802.1ag protocol - Applies to the connectivity of bridges and paths that pass through bridges.
  • Page 241 Ethernet Setup and Status Ethernet Setup and Status PBB layer PBB layer Refer to in "Stream" subsection. VLAN layer VLAN layer Refer to VLAN in "Stream" subsection. MPLS, MPLS-TP layer MPLS, MPLS-TP layer Refer to MPLS in "Stream" subsection. 802.3ah protocol 802.3ah protocol Selecting the 802.3ah 802.3ah protocol will display the screen shown below.
  • Page 242 Ethernet Applications Ethernet Applications Select this check box to make the device operate in unidirectional transmission mode. Link event Link event This setting is reserved for future use and cannot be set. Remote loopback Remote loopback This setting is reserved for future use and cannot be set. Variable retrieval Variable retrieval Select this check box to make the DTE support sending Variable Response...
  • Page 243 Ethernet Setup and Status Ethernet Setup and Status General parameters General parameters State State Allows you to set the state of the protocol to either On On or Off Off. Note that when State is set to On State On, the other general parameters are disabled, but the tab pages and their contents are enabled.
  • Page 244 Ethernet Applications Ethernet Applications Allows you to specify a TTL value. Used to indicate whether or not an LTM should be terminated by the receiver. Trans ID Trans ID Allows you to specify the transaction number for the LTM. Y.1731 protocol setup Y.1731 protocol setup Selecting the Y.1731 Y.1731 protocol will display the screen shown below.
  • Page 245 Ethernet Setup and Status Ethernet Setup and Status Use the drop-down menu to specify the frequency at which CCMs are transmitted and expected to be received. LBM tab page LBM tab page The LBM LBM tab page contains the following parameters: Optional TLV Optional TLV Use the drop-down menu to select a TLV type, if relevant.
  • Page 246 Ethernet Applications Ethernet Applications MCC tab page MCC tab page The MCC MCC tab page contains the following parameters: Allows you to specify the Organizationally Unique Identifier for the organization defining a specific format and meaning of ETH-MCC. Data Data Allows you to specify any required additional information.
  • Page 247 Ethernet Setup and Status Ethernet Setup and Status Only available if a Data TLV type has been selected. Allows you to specify the length of the TLV. Value Value Only available if a Data TLV type has been selected. Allows you to specify the value of the TLV.
  • Page 248 Ethernet Applications Ethernet Applications Use the drop-down menu to select the rate at which LMM frames are transmitted. Frames to send Frames to send Allows you to specify the number of frames to transmit. Loss threshold Loss threshold Allows you to specify a loss threshold that is used when an LMM test is active. If the loss ratio meets or exceeds that threshold, the user is alerted.
  • Page 249 Ethernet Setup and Status Ethernet Setup and Status The contents of the Discovery view screen is the same for both protocols. The screen contains the following parameters: CCM/LBM CCM/LBM Select the radio button for the relevant method of discovery. CCM - Passive method. Discover Remote Maintenance points by looking at incoming CCM frames.
  • Page 250 Ethernet Applications Ethernet Applications Devices will appear in the dialog's list as they are discovered. Select the device in the list and touch the Add Add button in the dialog box. The device is added to the list displayed on the Discovery view screen. Adding devices Adding devices To add devices manually, touch the Add...
  • Page 251 Ethernet Setup and Status Ethernet Setup and Status Touching the Filter Filter button in the navigation area will display the screen shown below. This screen allows you to set up filters and masks for the reception of Ethernet frames. It can also be used to inspect the current status of the selected port. The configuration options available in the setup area of the screen are described below.
  • Page 252 Ethernet Applications Ethernet Applications To specify the set of values and/or masks available for each filter (i.e. the columns of the table), touch the Select Filter Select Filter button. This will launch the filter editor dialog box, which contains a number of check boxes for enabling filters and masks on different addresses.

  • Page 253: Status Information

    Ethernet Setup and Status Ethernet Setup and Status 4. Touch the cell of Pattern Pattern in the table on the setup area. 5. Specify the pattern of four bytes. 6. Select the check box at left-side of the table. For MPLS/VLAN pattern setting, the dedicated dialog box will launch. MPLS MPLS Enter the number of MPLS label and TTL (Time To Live).
  • Page 254 Ethernet Applications Ethernet Applications Physical Status Physical Status The topmost part of the status area gives you access to information about the current physical status of the selected interface. A summary consisting of the most relevant status indicators is displayed constantly. By touching the summary, you can launch a display that contains the detailed status information.
  • Page 255 Ethernet Setup and Status Ethernet Setup and Status Accumulated difference, which shows the accumulated bit rate difference between the received signal and the reference source signal. Link, which shows the link status of Ethernet. Link partner abilities, which shows the abilities of the opposite interface port. (Only available for Electrical) Timing Timing...
  • Page 256 Ethernet Applications Ethernet Applications Indicates in green when the device is capable of asymmetric flow control using Pause request. Remote fault Remote fault Indicates in green when the device is sending the remote fault signal. Speed/Duplex Speed/Duplex Available speed and duplex are indicated in green. 6 6 .
  • Page 257 System route 10MHz external reference clock: The 10 MHz clock input to Ext Clock 10MHz external reference clock connector of MT1000A. 6 6 . . 1 1 . . 3 3 . . 4 4 OH Capture OH Capture This function is enabled when interface is set to 10G WAN 10G WAN.
  • Page 258 Ethernet Applications Ethernet Applications This screen presents information related to the status of synchronous Ethernet. SSM/QL SSM/QL Synchronization Status Message and Quality Level status Last received Last received Shows the latest QL value. Server signal fail . The Lamp icon becomes red when no ESMC message has been received within the last five seconds.
  • Page 259 Ethernet Setup and Status Ethernet Setup and Status Offset Offset Shows the current offset from the master clock. Mean path delay Mean path delay Shows the mean path delay, which is the time from master to slave back to master again, divided by two. Sync timeout Sync timeout Shows the current status of Sync Message reception.
  • Page 260 Ethernet Applications Ethernet Applications Shows the time source. The hexadecimal value of the time source in the PTP packet data is displayed right-hand. Foreign Masters Foreign Masters Provides a list of detected foreign masters. The identity of the current master is shown in the field, the other masters are listed in a drop-down menu.
  • Page 261 Ethernet Setup and Status Ethernet Setup and Status Loop button Loop button Touch the Loop Loop button to send the far-end device into loopback mode and reflect frames. Devices tab page Devices tab page Shows the status of the remote and local devices. Variables tab page Variables tab page On the Variables...
  • Page 262 Ethernet Applications Ethernet Applications Shows extra information about LTM frames. Y.1731 status Y.1731 status information information Message buttons Message buttons Allows you to send messages either to a remote MEP ID or to a unicast MAC Address. U-LBM: Data-path integrity to/from the far-end to/from one address (unicast). U-LBM M-LBM: Data-path integrity to/from the far-end to/from multiple addresses M-LBM...
  • Page 263 Ethernet Setup and Status Ethernet Setup and Status Shows extra information about the various frame types. 6 6 . . 1 1 . . 3 3 . . 8 8 Frame Capture Frame Capture Touching the Frame Capture Frame Capture button in the status area of the Ports Setup Ports Setup screen launches the screen shown below.
  • Page 264 Ethernet Applications Ethernet Applications Frame capture starts when the error specified by Error Type Error Type drop-down menu has occurred. Field match Frame capture starts if the field in transmitted frame matches to one defined by Frame Field Trigger Definition Frame Field Trigger Definition.

  • Page 265: Errors/Alarms Insertion

    Ethernet Setup and Status Ethernet Setup and Status This screen presents status information about the optical transceiver (Pluggable module installed on the connector panel). Module Present Module Present Green indicates that an optical transceiver is currently mounted. Green Transceiver Transceiver Select the information from pull down menu.
  • Page 266 Ethernet Applications Ethernet Applications Ethernet LAN: Inserts errors or alarms related the Ethernet frame, IP packet Ethernet LAN or the pattern error. Ethernet PCS alarms/errors: Inserts errors or alarms to PCS blocks. Ethernet PCS alarms/errors Ethernet WAN: Inserts errors or alarms to the WAN header. Ethernet WAN Ethernet frequency: Adds the frequency offset to the Ethernet bit rate.
  • Page 267 Ethernet Setup and Status Ethernet Setup and Status Destination Destination Description Description Sends an Ethernet frame which has FCS error. Sends a preamble in which pattern is different from the normal Preamble pattern. PAUSE frames. Sends PAUSE frames. Wrong IP Sends data which IPv4 Header checksum is wrong.
  • Page 268 Ethernet Applications Ethernet Applications 6 6 . . 1 1 . . 4 4 . . 3 3 Ethernet WAN Ethernet WAN When Port is set to SFP+ 10 Gbps WAN SFP+ 10 Gbps WAN, inserting the WAN alarms/errors is available.

  • Page 269: Ports Setup And Status

    BERT BERT 6 6 . . 2 2 BERT BERT The Bit Error Rate Test (BERT) described in this section is applicable for Ethernet interfaces. For BERT of OTN interface, refer to BERT in "OTN Application". 6 6 . . 2 2 . . 1 1 Ports Setup and Status Ports Setup and Status The first step in running an application is to set up the port interfaces.
  • Page 270 Ethernet Applications Ethernet Applications Allows you to specify when the measurement is started. Immediate: Starts the measurement when you touch the Start Immediate Start button. Start at: Starts the measurement at the time specified in the Start at Start at Start at field on the right.
  • Page 271 BERT BERT OTN-related OTN-related These items appear if OTN Tx OTN Tx and OTN Rx OTN Rx are selected on Setup screen. G.8201, M.2401 (M.2110) Time period Time period 15 minutes, 1 hour, 2 hours, 24 hours, 7 days Allocation Allocation Touching the Setup Setup button launches the dialog box.
  • Page 272 Ethernet Applications Ethernet Applications Only show BER Alarms when measuring Only show BER Alarms when measuring BER alarms in Interface status dialog box is enabled only when the measurement is running. This function allows to avoid the BER alarms occurrence when no data is input. Ignore the Frame loss secs on BERT statistics Ignore the Frame loss secs on BERT statistics The"Frame loss secs."...
  • Page 273 BERT BERT This screen contains the parameters for specifying a profile and pattern for each stream and for specifying which measurements are made. Transmission mode Transmission mode Normal: Does not generate the bursts. The normal Ethernet frames are sent. Normal Burst: Generate the bursts.
  • Page 274 Ethernet Applications Ethernet Applications The line load unit can be specified from Percent Percent, Mbps Mbps, and IFG IFG. When IFG (Inter frame gap) is specified to the unit, 12 byte setting means the 100% utilization. The value set to the field is an average of Inter frame gap. When Transmission mode is Normal Normal, 100% or more line load can be set in specific case.
  • Page 275 BERT BERT Frame size Frame size When Profile is set to Data Data, four setups are available: Constant Constant Uses the fixed frame size specified by the Start Start value for the duration of the test. The following figure shows an example of frame sizes when Constant Constant is selected.
  • Page 276 Ethernet Applications Ethernet Applications 1-Byte incremental 1-Byte incremental Steps the frame size from Start Start to End End in increment of one byte in frame-by- frame. The following figure shows an example of frame sizes when 1-Byte 1-Byte incremental is selected. incremental Frame size is protocol headers and payload combined.
  • Page 277 BERT BERT Ramp: generates the bursts while changing the burst length. Ramp Number of Bursts Number of Bursts Selecting Num of Burst Num of Burst allows to set the number of the bursts to generate. If sending specified number bursts has finished, sending stream will stop. Burst length Burst length Set the burst burst length and the gap length.
  • Page 278 Ethernet Applications Ethernet Applications Select one or more of the measurements (Jitter Jitter, Latency Latency and Service Service disruption) and then specify a threshold value for each. disruption When Service disruption Service disruption is selected, select Disruption Type Disruption Type from "Packet" or "LOS".
  • Page 279 BERT BERT This screen contains the parameters for setting up the various threshold values (i.e. limits) for errors and Pass/Fail status that are used during the monitoring. Pattern Errors Pattern Errors Allows you to enable monitoring of pattern errors (i.e. bit errors) and to set up a threshold value for the bit error ratio.

  • Page 280: Test Results

    Ethernet Applications Ethernet Applications In the dialog box, select the check boxes for the relevant thresholds and then touch the Close Close button to list them on the Thresholds Thresholds screen. You can select/deselect all check boxes in the dialog box by using the Select all Select all / Clear Clear all buttons.
  • Page 281 BERT BERT This screen contains a summary of the results of the Ethernet BERT test. The information includes such things as number of pattern errors, average and maximum disruption time, and number of exceeded thresholds. The three dials showing utilization/throughput results, pattern errors and errored frames can be enlarged by clicking on them.
  • Page 282 Ethernet Applications Ethernet Applications Transport Transport Displays the results of Transport test. This result appears if 'Transport' check box is selected in the Test Setup screen. Pattern Pattern Allows to change the payload pattern. Cross pattern Cross pattern check box is the same as Cross pattern at successive frames of Payload pattern setting.
  • Page 283 BERT BERT This screen presents an IEEE1588v2 Log of the test results. You can search the messages by specifying the type. Search Search Message type Message type Select the message type from below. Announce Announce DelayReq DelayReq DelayResp DelayResp FollowUp FollowUp Management Management...
  • Page 284 Ethernet Applications Ethernet Applications This screen presents an OAM Log of the test results. Note that the layout of the dialog box depends on the currently selected OAM protocol. 6 6 . . 2 2 . . 3 3 . . 4 4 Event Log Event Log Touching the Event Log Event Log button in the navigation area displays the screen...
  • Page 285 BERT BERT Selecting the interval Selecting the interval Touch the Total Total button to switch the total values measured in all interval times. time time The start time of measurement is displayed on the button. Touching the button in left side Back Back field shows the measured values in the interval time.
  • Page 286 Ethernet Applications Ethernet Applications Studying a specific Studying a specific Touch a specific cell in a result table to zoom in on the corresponding result result result item. The Count Count and Ratio Ratio fields are displayed on a Zoom Zoom tab page.
  • Page 287 BERT BERT Size Dist. Frame Size Transmit Results Traffic Latency Results Latency(ns) Jitter Results Jitter(ns) WAN Alarms/Errors Alarms Errors WAN G.826 Results WAN G.826+G.829 Results WAN M.2101.1(M.2100) Results SyncE Results SSM Statistics Alarms Rx SSM QL IEEE 1588v2 Results Offset Stat Offset Variance Mean Path Delay Message Stat...
  • Page 288 Ethernet Applications Ethernet Applications Unavailable time of measurement. Refer to UAT definition. M.2100 Performance Parameters M.2100 Performance Parameters Items Items Definition Definition Errored Second Within S , the number of seconds during which one or more pattern Avail errors occurred. Severely Errored Second Within S , the number of seconds during which any of the following is...
  • Page 289 BERT BERT Sequence Error and Sequence Sync Loss are measured as following: Ethernet frames sent by Network Master include special bytes that indicates sequence number. When receiving this Ethernet frames, Network master sets the sequence number of next incoming Ethernet frame. Network Master checks sequence numbers in every four straight incoming frames.

  • Page 290: Test Setup

    Ethernet Applications Ethernet Applications 6 6 . . 3 3 Cable Cable The Ethernet Cable Test uses Time Domain Reflectometry (TDR) to validate and detect open and short circuited CAT5/CAT5E cables. This test is convenient for installation and troubleshooting of cables. Time Domain Reflectometry Principle Time Domain Reflectometry Principle The TDR method can be used for control of electrical cables.
  • Page 291 Cable Cable This screen allows you to control and monitor an Ethernet Cable Test. Test setup controls Test setup controls Color Coding Standard Color Coding Standard Allows you to select the color coding used for the graphical representation of the cables. In the drop-down menu, you can choose between T-568A (CAT5) T-568A (CAT5) and T-568B (CAT5E) T-568B (CAT5E).

  • Page 292: Ports Setup And Status

    Ethernet Applications Ethernet Applications 6 6 . . 4 4 Channel Statistics Channel Statistics The Channel Statistics test separates incoming frames into channels based on a number of defining characteristics ( Definitions ) and shows information about each channel ( Statistics ). The test is mostly used for in-service monitoring, where it provides data for detailed analysis of the traffic types present in the network.

  • Page 293: Test Results

    Channel Statistics Channel Statistics This screen is where you specify which frame characteristics are considered when performing the channel separation (i.e. which frame characteristics are active during the test). The maximum number of channels is 231. 6 6 . . 4 4 . . 3 3 Test Results Test Results 6 6 .
  • Page 294 Ethernet Applications Ethernet Applications Open the Merge Merge drop-down menu to combine all channels where one specific definition value (e.g. the source MAC address) is identical. The drop-down menu contains all currently active definitions. When the test results are shown in merged mode, definitions that are not uniquely defined will be hidden, so that only the merge criterion, channel number, and protocol information will be visible.
  • Page 295 Channel Statistics Channel Statistics TCP statistics TCP statistics UDP statistics UDP statistics Select/Clear all Select/Clear all To select all check boxes in the dialog box, touch the Select All Select All button. To clear all check boxes in the dialog box, touch the Clear All Clear All button.

  • Page 296: Ports Setup And Status

    Ethernet Applications Ethernet Applications 6 6 . . 5 5 Mon/Gen Mon/Gen Ethernet Monitor/Generate is typically used for out-of-service and performance testing. It is possible to perform a passive, non-intrusive monitoring or at the same time transmit test data, which can be reflected for further evaluation and testing of the network.
  • Page 297 Mon/Gen Mon/Gen This screen contains the parameters for specifying a profile and pattern for each stream and for specifying which measurements are made. Stream selection Stream selection Use the slide-out panel on the left-hand side of the screen to select the relevant stream.
  • Page 298 Ethernet Applications Ethernet Applications The line load unit can be specified from Percent Percent, and Mbps Mbps. Touching Off Off at left-bottom stops sending the stream. The dialog box contains the following settings: Line load start Line load start The line load at which the ramp will start. Line load end Line load end The line load at which the ramp will end.
  • Page 299 Mon/Gen Mon/Gen Stepped Stepped Steps the frame size from Start Start to End End in increments of Step Step. Each frame size is transmitted for the period in seconds specified by Duration Duration. The following figure shows an example of frame sizes when Stepped Stepped is selected.
  • Page 300 Ethernet Applications Ethernet Applications Const: generates the bursts that the data length and the gap length are Const constant. When Const Const is selected, "Burst" is displayed on multi stream slide. Number of Bursts Number of Bursts Selecting n-Burst n-Burst allows to set the number of the bursts to generate. If sending specified number bursts has finished, sending stream will stop.

  • Page 301: Test Results

    Mon/Gen Mon/Gen 6 6 . . 5 5 . . 3 3 Test Results Test Results 6 6 . . 5 5 . . 3 3 . . 1 1 Summary Summary When you go to the test results of the Ethernet Monitor/Generate application, the following screen is displayed.
  • Page 302 Ethernet Applications Ethernet Applications When Ethernet Ethernet is selected on 'Threshold' of the Test Setup screen, the Ethernet Ethernet information appears in the upper right-hand corner, shows pass/fail status summary. Touching the Details Details button allows you to inspect the individual pass/fail status.
  • Page 303 Mon/Gen Mon/Gen 6 6 . . 5 5 . . 3 3 . . 3 3 OAM Log OAM Log The operation of OAM Log OAM Log screen is the same as that of BERT application. Refer to OAM Log in BERT for the operation.
  • Page 304 Ethernet Applications Ethernet Applications If you have stopped measurement during the interval time, the measurement results of the current interval are discarded. The log of the current interval is not displayed in Back Back field. In this case, result data are re-calculated excluding the data of the current interval when the measurement is stopped.
  • Page 305 Mon/Gen Mon/Gen Frame Alarms Alarms Good Frames Good Frames Errored Frames Errored Frames Layer3 Error Layer3 Error Other Frames Other Frames Last Received Last Received Frame diff. Frame diff. Bursts Frames Frames Burst Size Burst Size Size Distribution Total Frames Total Frames Size Dist.

  • Page 306: Ports Setup And Status

    Ethernet Applications Ethernet Applications 6 6 . . 6 6 Pass Through Pass Through Ethernet Pass Through enables non-intrusive in-service monitoring for both fast troubleshooting and detailed analysis of the live traffic on a network. All traffic received on a port is forwarded on the other port and vice versa. Traffic between the two network DUT elements is monitored as illustrated below.

  • Page 307: Test Results

    Pass Through Pass Through Ethernet Ethernet When you select the check box, you can enable various thresholds. Touch the Setup button to display the Ethernet threshold setup Setup Ethernet threshold setup dialog box. 6 6 . . 6 6 . . 3 3 Test Results Test Results 6 6 .
  • Page 308 Ethernet Applications Ethernet Applications 6 6 . . 6 6 . . 3 3 . . 2 2 Event Log Event Log Touching the Event Log Event Log button in the navigation area displays the screen providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn BERT application.

  • Page 309: Ports Setup And Status

    Ping Ping 6 6 . . 7 7 Ping Ping The Ethernet Ping test is a quick and easy way for testing, troubleshooting and verification of connectivity and latency. Packets are sent from the source address to the destination address and back again - allowing the user to determine whether traffic is possible.

  • Page 310: Test Results

    Ethernet Applications Ethernet Applications Frame size is protocol header and payload combined. Frame size does not include preamble and interframe gap. 6 6 . . 7 7 . . 3 3 Test Results Test Results The results of an Ethernet Ping test relate to a specific port and consist of the Round Trip Times of the ping requests.
  • Page 311 Ping Ping This screen presents the detailed results of an Ethernet Ping test. The results relate to a specific port and consist of the Round Trip Times of the individual Ping requests. The data is shown in both list-form and in a graphical representation.

  • Page 312: Ports Setup And Status

    Ethernet Applications Ethernet Applications 6 6 . . 8 8 Reflector Reflector In Ethernet Reflector mode the Network Master loops incoming traffic on a port swapping MAC and/or IP addresses. HDX (Half Duplex) is not possible in 'Reflector' mode. Multicast or Broadcast frame are not reflected in 'Reflector' mode. 6 6 .

  • Page 313: Test Setup

    Reflector Reflector For applications also including an OTN interface, you can find a description of the setup options and status information for OTN in the following section: OTN Setup and Status Please refer to the sections relevant for your current port setup requirements. 6 6 .

  • Page 314: Test Results

    Ethernet Applications Ethernet Applications 6 6 . . 8 8 . . 3 3 Test Results Test Results 6 6 . . 8 8 . . 3 3 . . 1 1 Summary Summary When you go to the test results of the Ethernet Reflector application, the following screen is displayed.

  • Page 315: Ports Setup And Status

    RFC 2544 RFC 2544 6 6 . . 9 9 RFC 2544 RFC 2544 The RFC 2544 is a benchmarking methodology and defines a number of tests to be used for describing the performance characteristics of a network device (or a complete network).
  • Page 316 Ethernet Applications Ethernet Applications This screen allows you to specify your test mode and select which RFC 2544 tests to carry out. Select Test Mode Select Test Mode 4 different test modes are available: Switch/Router test Router latency test End to end network test Single ended network test Select the test mode to define your test configuration.
  • Page 317 RFC 2544 RFC 2544 Both ports must be activated in order to perform the Switch/Router test. You cannot select 'Throughput and Frame Loss' and 'Throughput' / 'Frame Loss' at the same time. Router latency test Router latency test In this test mode, the latency-test sends out ping frames, used for measuring the response time for router equipment.
  • Page 318 Ethernet Applications Ethernet Applications The End to End Test can be run in several modes: By default, both ports are used for transmitting and receiving on both the 'local' unit and the 'remote' unit. Depending on the address setup the test will run either Local port 1 > Remote port 1, and Local port 2 >...
  • Page 319 RFC 2544 RFC 2544 This screen allows you to configure the following parameters related to an RFC 2544 Throughput test: The changes affect both Port 1 and Port 2 when the Switch/Router Test mode is selected. Frame Size (Bytes) Frame Size (Bytes) Frame size can be specified in 3 ways.
  • Page 320 Ethernet Applications Ethernet Applications Line Load (Mbps) Line Load (Mbps) The different test line loads used in the test are specified as a Minimum (Min Min) and Maximum (Max Max) - varied in intervals of the value specified in the Step Step field.
  • Page 321 RFC 2544 RFC 2544 6 6 . . 9 9 . . 2 2 . . 3 3 Frame Loss Frame Loss Only available if you have specified a Frame Loss test on the 'Control' of the Test Setup screen. Touching the Frame loss Frame loss button in the navigation area will display the screen shown below.
  • Page 322 Ethernet Applications Ethernet Applications This screen allows you to configure the following parameters related to an RFC 2544 Throughput and Frame Loss test: Frame Size Line Load Duration The settings for 'Throughput and Frame Loss' are identical to the ones described in the Throughput section above.
  • Page 323 RFC 2544 RFC 2544 Duration Most of the settings for Latency are identical to the ones described above in the Throughput section. Please see the detailed descriptions in that section in addition to the Latency-specific information provided here. Only run steps where other test passed Only run steps where other test passed If selecting the check box, the latency test will be done only on the line load steps where other test has passed (i.e.
  • Page 324 Ethernet Applications Ethernet Applications This screen allows you to configure the following parameters related to an RFC 2544 Burst test: Frame Size Frames per burst (burst length) Duration Frame Size and Duration are identical to the ones described above in the Throughput section.
  • Page 325 RFC 2544 RFC 2544 Pretest Options End to End Test (master side) Miscellaneous Throughput Calculation Layer Selection Throughput Type Pretest Options Pretest Options Transmit learning frames Transmit learning frames When this option is enabled, the RFC 2544 test will send out a number of 'learning frames' before the first test-step starts on each port.

  • Page 326: Test Results

    Ethernet Applications Ethernet Applications The RFC 2544 test (Throughput, Frame loss, Latency, and Burst) is performed by steps by means of changing a parameter value. When selecting the check box, the results of each steps are accumulated by each test when the tests are repeated.
  • Page 327 RFC 2544 RFC 2544 This screen presents the current status of the test(s) (Configured / Not Started Configured / Not Started, Running, Completed Running Completed or Not Configured Not Configured). Touching the status button for a specific test will display the relevant screen with detailed results information. 6 6 .
  • Page 328 Ethernet Applications Ethernet Applications Test Mode Test Mode Port 1 Port 1 Port 2 Port 2 Port 1 Tx Port 2 Tx Switch/Router test Port 2 Rx Port 1 Rx End to End test Port 1 Tx Port 2 Tx Router latency test Port 1 Rx Port 2 Rx...
  • Page 329 RFC 2544 RFC 2544 This screen presents the results from the Throughput and frame loss test. The most important columns of the tables are the varied main parameters Frame size and Throughput and the performance parameters Frames lost and Loss rate . The order of the tables will vary depending on the test mode and the relation of the ports.
  • Page 330 Ethernet Applications Ethernet Applications 6 6 . . 9 9 . . 3 3 . . 5 5 Latency Latency Touching the Latency Latency button in the navigation area will display the screen shown below. This screen presents the results from the Latency test. The most important columns of the tables are the varied main parameters Frame size and Throughput and the performance parameters Min , Avg and Max latency stated in micro seconds.

  • Page 331: Throughput Calculation

    RFC 2544 RFC 2544 The most important columns of the tables are the varied main parameters Burst size and Frame size and the performance parameter Frames lost . The order of the tables will vary depending on the test mode and the relation of the ports. Refer to the table in "Throughput"...
  • Page 332 Ethernet Applications Ethernet Applications The Tx Tx graph shows the transmitted periods, and the Rx Rx graph shows the received periods. Due to latency the receiver will first see the transmitted frames some time later than when transmitter actually sent the frames (the L- period).

  • Page 333: Ports Setup And Status

    RFC 6349 RFC 6349 6 6 . . 10 10 RFC 6349 RFC 6349 The RFC 6349 Framework for TCP Throughput Testing describes a practical methodology for measuring end-to-end TCP Throughput in a managed IP network. For using RFC 6349 application, TCP Throughput option is required to the test module. If the option has been installed, RFC 6349 icon will appear in Application Selector.
  • Page 334 Ethernet Applications Ethernet Applications This screen allows you to specify your test mode and select which RFC 6349 tests to carry out. General General Test Port Test Port Touch the fields to set the port number. On Local side, "Test port" is used as the TCP destination port. On Remote side, "Test port"...
  • Page 335 RFC 6349 RFC 6349 Downstream CIR: CIR of incoming stream. Downstream CIR Test Sequence Test Sequence Select the check boxes of the test defined in RFC 6349, which you wish to run. Path MTU Path MTU Runs a test to determine the Path MTU (Maximum Transmission Unit). If cleared, set the Upstream MTU Upstream MTU and Downstream MTU Downstream MTU.
  • Page 336 Ethernet Applications Ethernet Applications 6 6 . . 10 10. . 2 2 . . 3 3 Windows Scan / Throughput Windows Scan / Throughput Windows Scan / Throughput button in the navigation area is enabled if Windows Scan / Throughput Windows Scan and Throughput check box of Test Sequence is selected on "Control"...
  • Page 337 RFC 6349 RFC 6349 Appears when Test mode is set to Auto. The nominal window size to be used if possible. If specified window size is lower than BDP/16, a larger window size will be calculated and used automatically. Window Scan Window Scan Touch the Step Duration Step Duration field to set the duration of each steps.

  • Page 338: Test Results

    Ethernet Applications Ethernet Applications Select the check box if setting Window Size automatically. The window size is calculated from bandwidth delay product (BDP). Connection Connection Select the check box of the stream number to enable a connection. Destination Port Destination Port Touch the fields to set the destination port number.
  • Page 339 RFC 6349 RFC 6349 The measurement results are displayed in white cells. Throughput and RTT Throughput and RTT Window Size: The window size used for the step. Window Size Connections: The number of TCP connections. Connections Threshold: The threshold of the throughput. Threshold Avg Throughput: The average value of measured Throughputs.
  • Page 340 Ethernet Applications Ethernet Applications For example, a baseline RTT of network path is 25 ms, and average RTT across the entire transfer increases to 32 ms. Buffer Delay percentage would be calculated as: 32 - 25 Buffer Delay (%) = ×...
  • Page 341 RFC 6349 RFC 6349 This screen presents the Throughput results in graph or table. Touch the Graph Graph and Table Table buttons to switch between the tabular form and a graphical presentation of the results. The ideal throughput, RTT and TCP Efficiency are shown in the graphical presentation.
  • Page 342 Ethernet Applications Ethernet Applications This screen presents results by each TCP connection of RTT, Throughput and Efficiency. Use the Graph Graph and Table Table buttons to switch between the tabular form and a graphical presentation of the results. Touching the button in navigation area switches the Test direction of results. The results in Connection are: Connection: Connection number of the stream Connection...

  • Page 343: Ports Setup And Status

    SAT 1564 SAT 1564 6 6 . . 11 11 SAT 1564 SAT 1564 Service Activation Test is an out-of-service test used to assess the proper configuration and performance of Ethernet services. The test methodology, which is described in the ITU-T recommendation Y.1564, applies to point-to-point and point- to-multipoint connectivity in the Ethernet layer and to the network portions that provide (or contribute to) the provisioning of such services.
  • Page 344 Ethernet Applications Ethernet Applications This screen allows you to configure the test mode and other general parameters related to a Service Activation Test. Test Mode Test Mode Use the radio buttons to select the relevant test mode. One-Way Test One-Way Test In this test mode, two Network Master units will work together performing the test.
  • Page 345 Service Configuration Test. External GPS sensor is available from Anritsu (part no. G0325A or MU100090A). Use local SRC as DST on remote side Use local SRC as DST on remote side Select this to transfer the local source IP address to the remote side, to be used as destination IP address.
  • Page 346 Ethernet Applications Ethernet Applications Frame starting with the first MAC address bit and ending with the last FCS bit. In this realm the Ethernet line rate defines the maximum combined CIR rate for all included services. Service Configuration Service Configuration Complete despite SAC violation Complete despite SAC violation Tests...
  • Page 347 SAT 1564 SAT 1564 Use the Enabled Enabled check box to enable/disable the service specified in the Service field. Service To define a new service, select the relevant stream, specify a name in the Service field and then configure the service using the tab pages. Service Profile tab Profile tab...
  • Page 348 Ethernet Applications Ethernet Applications Allows you to specify the Committed Information Rate (CIR). When set to zero, the CIR test is excluded. If color awareness is enabled (see below), this is the bit rate for green frames. Steps Steps Step duration Step duration Allows you to specify the test step duration.
  • Page 349 SAT 1564 SAT 1564 Traffic policing Traffic policing Select this check box to enable the traffic policing test. When enabled, you can specify a margin on the Service Acceptance Criteria Service Acceptance Criteria tab page and use that margin for pass/fail evaluation during the service configuration test. The test will fail if the throughput is greater than CIR + EIR + Margin.
  • Page 350 Ethernet Applications Ethernet Applications Allows you to specify the maximum acceptable frame transfer deviation in ms (mean). Frame loss rate Frame loss rate Allows you to specify the maximum acceptable frame loss rate. AVAIL AVAIL Allows you to specify the minimum acceptable availability percentage. Color Aware tab Color Aware tab The Color Aware...
  • Page 351 SAT 1564 SAT 1564 EMIX EMIX Allows you to set up a repeating frame size pattern. The pattern must consist of at least 1 frame size and at most 16. Touching EMIX sequence EMIX sequence field opens the dialog box. Frame size is protocol headers and payload combined.

  • Page 352: Test Results

    Ethernet Applications Ethernet Applications 6 6 . . 11 11. . 2 2 . . 3 3 Advanced Advanced Include addresses in frame filter on receiver Include addresses in frame filter on receiver When enabling this function, the Ethernet frames which their destination addresses match to following items will appear on the Streams screen.
  • Page 353 SAT 1564 SAT 1564 Green The item and all its sub items are passing or have passed the Service Acceptance Criteria. Yellow The GPS synchronization has been lost for a following period or more. G0325A: 10 seconds MU1000090A: 1 hour FTD and FDV results could be compromised if the duration of continuous GPS synchronization loss has been longer the this time FTD and FDV results are compromised.
  • Page 354 Ethernet Applications Ethernet Applications The results are presented in a table and are related to a specific CIR% (CIR 25.00%, CIR 50.00%, CIR 75.00%, and CIR 100%). Select the relevant CIR% either by selecting the corresponding bar in the bar graph or by using the CIR drop-down menu.
  • Page 355 SAT 1564 SAT 1564 Test results Test results Select a cell in the results table to see the details. The following information is presented: IR IR Shows the minimum, mean and maximum bit rate in Mbps. Depending on the test setup, the bit rate is either Information Rate (IR). Shows the number of lost frames and the frame loss ratio.

  • Page 356: Ports Setup And Status

    Ethernet Applications Ethernet Applications 6 6 . . 12 12 Traceroute Traceroute The Traceroute test is used to determine the route taken by packets in an IP network. The intermediate routers traversed are identified by the sending of a sequence of ICMP Ping packets to the desired destination, each packet with a too low Time-to- Live (TTL) or hop limit so that it terminates in one of the routers and makes the router return an error message.

  • Page 357: Test Results

    Traceroute Traceroute Test Duration Test Duration Number of attempts Number of attempts Used to specify the maximum number of times that Ping packets with each TTL value are transmitted. If no ICMP type 11 or ping reply is received after this number of attempts, the test will move on to a higher TTL value.
  • Page 358 Ethernet Applications Ethernet Applications 6 6 . . 12 12. . 3 3 . . 2 2 IEEE1588v2 Log IEEE1588v2 Log If Ext. log Ext. log is selected in IEEE1588v2 screen of Ethernet Frame Setup, the IEEE1588v2 Log button appears in the navigation area. Refer to IEEE1588v2 Log IEEE1588v2 in "BERT"...
  • Page 359 GPS satellites. Ground Master Clock, Boundary Clock, etc will be assumed as the device under test. To perform Sync Test application, the MT1000A-005 and the MU100090A are necessary. Using the MU100090A allows you to perform 1PPS comparison and OWD measurement based on GPS signal.
  • Page 360 Ethernet Applications Ethernet Applications Measurement Result Example Measurement Result Example δ δ 0.05 Deviation Deviation 0.05 Phase error Phase error 0.15 0.15 0.35 0.35 The difference between two BNC cable lengths makes time difference of 1PPS signals. Therefore it affects the phase error measurement result. You can set the correction of the time difference caused from the cable length difference at 1PPS cable correction in the Control screen.

  • Page 361: Ports Setup And Status

    Sync Test Sync Test Δms: The cable delay in direction from DUT (master) to Network Master (slave). TE4= (Delay_Request OWD) − Δsm Δsm: The cable delay from Network Master (slave) to DUT (master). Δms=Δsm is assumed in OWD Measurement. This value can be set at Ethernet Ethernet cable correction in Control screen.
  • Page 362 Ethernet Applications Ethernet Applications Interval length Interval length Refer to "Control in BERT Test Setup subsection for the operation. Measurement period Measurement period Allows you to set the time from the measurement start to the stop. Following values are listed in the pull-down menu. 100 sec, 1000 sec 100 sec 1000 sec, User defined...
  • Page 363 Sync Test Allows you to set a correction value of the delay time in ns unit that is caused by the Ethernet cable length between the MT1000A and the instrument under test. This value is used to correct the measurement results in Packet TE Packet TE.

  • Page 364: Test Results

    Ethernet Applications Ethernet Applications Allows to set the threshold range of Follow_Up OWD. Delay req. OWD Delay req. OWD Allows to set the threshold range of Delay_Request OWD. 6 6 . . 13 13. . 3 3 Test Results Test Results 6 6 .
  • Page 365 Sync Test Sync Test Terr: Time error between DUT and Network Master The each formula is shown below. cTE1 = −1 × (avg. Sync OWD) + Δms cTE4 = (avg. Delay_Request OWD) − Δsm) Max|TE1| = Greater absolute value of (−1 × (max. Sync OWD) + Δms) and (−1 ×...
  • Page 366 Ethernet Applications Ethernet Applications Zoom Zoom To zoom in, select a zoom area directly in the graph area by drawing a rectangle with a finger or the stylus (delivered with the instrument). When releasing the finger or stylus, the graph area zooms in to show the selected part of the graph.
  • Page 367 Sync Test Sync Test In this screen, the one way delay test results are displayed as a graph, showing the positions of a time error over time. CSV export CSV export Outputs measurement results in CSV format. Content Content Select the contents corresponding to the test to display. Sync: Displays the one way delay obtained by using the Sync message Sync timestamp.
  • Page 368 Ethernet Applications Ethernet Applications Used to set the y-scaling of the view. The maximum amplitude of the plot always originates from the zero line. In general, you use direct touch-manipulation of the graph area to zoom in and use the controls to zoom out.
  • Page 369 Sync Test Sync Test If you have stopped measurement during the interval time, the measurement results of the current interval are discarded. The log of the current interval is not displayed in Back Back field. In this case, result data are re-calculated excluding the data of the current interval when the measurement is stopped.
  • Page 370 Ethernet Applications Ethernet Applications SI prefix - e.g. 71.892 k (k means "kilo") SI prefix Engineering - e.g. 71.892E3 Engineering Scientific - e.g. 7.1892E4 Scientific Results Results The result items varies depending on the configuration in Ports Setup screen. Frame Results Alarms Alarms Good Frames...
  • Page 371 7 7 OTN Applications OTN Applications This chapter describes the graphical user interface (i.e. screens, sub-screens and major dialog boxes) related to OTN-only applications. Sub-screens and dialogs are described under the main screen from which they are activated/launched. The following setting and applications are available: OTN Setup and Status BERT OTN Setup and Status may also be part of the test in following applications.

  • Page 372: Transmitter Setup

    OTN Applications OTN Applications 7 7 . . 1 1 OTN Setup and Status OTN Setup and Status An OTUk OTUk button in the navigation area of the Ports Setup Ports Setup screen gives you access to the OTN setup for the transmitter and/or receiver of the currently selected port.
  • Page 373 OTN Setup and Status OTN Setup and Status Mode Mode Select the transmission mode. Off: OTUk frame is not transmitted. Normal: Transmits OTUk frames generated in the Network Master. Normal Through (pass through mode):Transmits the received data. Through OH overwrite (pass through mode with Overhead overwrite): Overwrite the OH overwrite overhead of the received data to OH data generated in Transmit side.
  • Page 374 OTN Applications OTN Applications Note that the changes you make will be reflected in the text displayed in the OTUk button in the navigation area. Follows Follows To make the Port 2 transmitter follow the Port 1 transmitter (i.e. copy its settings), touch the right-most button in the navigation area and select the Tx1 in the drop-down menu.
  • Page 375 OTN Setup and Status OTN Setup and Status GFP-F GFP-F Only displayed when the client signal is Ethernet. Touch the GFP-F GFP-F button to launch a dialog box where you can to select parameters. The dialog box is described in the GFP-F section. GFP-T GFP-T Only displayed when the client signal is GbE.
  • Page 376 OTN Applications OTN Applications For the OTN application PRBS: PRBS PRBS NULL: Null NULL For the Ethernet +OTN application GbE: Giga bit Ethernet (1.25 Gbit/s) 10GbE: 10 Giga bit Ethernet (10.3125 Gbit/s) 10GbE Ethernet: Variable rate Ethernet For the SDH/SONET/PDn/DSn +OTN application STM64(Async): Synchronous Transport Module-64 (9953.28 Mbit/s) STM64(Async) STM64(Sync): Synchronous Transport Module-64 (9953.28 Mbit/s)
  • Page 377 OTN Setup and Status OTN Setup and Status Applicable when there are three levels of multiplexing. Defines into which higher order ODU is multiplexed. None None ODTU01 : Supports 1.25G Tributary Slot (TS). ODTU01 7 7 . . 1 1 . . 1 1 . . 4 4 Overhead Overhead Touching an OH OH button in the setup area of the Ports Setup...
  • Page 378 OTN Applications OTN Applications SM consists of the following parameters: TTI byte (Trail Trace Identifier) BIP-8 byte (Bit Interleaved Parity level 8 code) 3rd byte: Bits 1-4: BIP violations (BEI/BIAE) Bit 5: Signal fail status (BDI) Bit 6: Frame alignment error (IAE) Bits 7-8: Reserved for future use The TTI byte and 3rd byte can both be edited by launching the OTUk SM-TTI OTUk SM-TTI...
  • Page 379 OTN Setup and Status OTN Setup and Status 3rd byte Bit 5: BDI 3rd byte Bit 5: BDI BDI (Backward Defect Indication) is set to "1" to indicate a signal fail status, otherwise it is set to "0". 3rd byte Bit 6: IAE 3rd byte Bit 6: IAE IAE (Incoming Alignment Error) is set to "1"...
  • Page 380 OTN Applications OTN Applications Bits 1-4 Bits 1-4 BIP violations BIP violations 0000 0000 0001 0001 0010 0010 0011 0011 0100 0100 0101 0101 0110 0110 0111 0111 1000 1000 1001 to 1111 1001 to 1111 0 3rd byte Bit 5: BDI 3rd byte Bit 5: BDI BDI (Backward Defect Indication) is set to "1"...
  • Page 381 OTN Setup and Status OTN Setup and Status Both messages (Forward and Backward) consist of the following parameters: FIF (Fault indication field) FIF (Fault indication field) Byte Byte Fault indication Fault indication 0x00 0x00 No Fault 0x01 0x01 Signal Fail 0x02 0x02 Signal Degrade...
  • Page 382 OTN Applications OTN Applications Bits 1-4 Bits 1-4 BIP violations BIP violations 0000 0000 0001 0001 0010 0010 0011 0011 0100 0100 0101 0101 0110 0110 0111 0111 1000 1000 1001 to 1111 1001 to 1111 0 3rd byte Bit 5: BDI 3rd byte Bit 5: BDI BDI (Backward Defect Indication) is set to "1"...
  • Page 383 OTN Setup and Status OTN Setup and Status Bits 1-4 Bits 1-4 Meaning Meaning 0000 0000 NR (No request) 0001 0001 DNR (Do not revert) 0010 0010 RR (Reverse request) 0011 0011 Reserved 0100 0100 EXER (Exercise) 0101 0101 Reserved 0110 0110 WT (Wait-to-restore)
  • Page 384 OTN Applications OTN Applications PSI value PSI value Payload type Payload type 0x0A 0x0A STM-1 mapping into OPU0 0x0B 0x0B STM-4 mapping into OPU0 0x0C 0x0C FC-100 mapping into OPU0 0x0D 0x0D FC-200 mapping into OPU1 0x0E 0x0E FC-400 mapping into OPUflex 0x0F 0x0F FC-800 mapping into OPUflex...
  • Page 385 OTN Setup and Status OTN Setup and Status 7 7 . . 1 1 . . 1 1 . . 5 5 TP/TS TP/TS Touching a TP TP button on the Ports Setup Ports Setup screen launches the TP/TS TP/TS dialog box.

  • Page 386: Receiver Setup

    OTN Applications OTN Applications 7 7 . . 1 1 . . 1 1 . . 7 7 GFP-F GFP-F GFP-F means Frame-mapped Generic Framing Procedure, defined by ITU-T Rec. G.7041/Y.1303. When OTN layer is added to Ethernet applications, GFP-F GFP-F button appears in the setup area of the Ports Setup Ports Setup screen if Client Signal is...
  • Page 387 OTN Setup and Status OTN Setup and Status This screen allows you to make the physical setup of the receiver in OTN mode. It can also be used to inspect the current status of the selected port by the button in Navigation area. The configuration options available in the setup area of the screen are described below.
  • Page 388 OTN Applications OTN Applications This screen allows you to configure OTUk frame of the currently selected receiver. It can also be used to inspect the current status of the selected port in a separate screen. To setting up the OTU frame, touch Mapping Mapping button at first.
  • Page 389 OTN Setup and Status OTN Setup and Status Only displayed when the frame mapping is set to multiplexing. Touch the MSIM detection button and use the launched dialog box to set the detection MSIM detection method of MSIM. The dialog box is shown and described in the MSIM Detection section. Configure Configure Only displayed when the client signal is PRBS.
  • Page 390 OTN Applications OTN Applications TTI detection TTI detection TTI detection allows you to select the detection method for SM, PM, and TCM1- Off Disables the TTI (Trail Trace Identifier) detection. SAPI (Source Access Point Identifier) SAPI DAPI (Destination Access Point Identifier) DAPI SAPI and DAPI SAPI and DAPI...

  • Page 391: Status Information

    OTN Setup and Status OTN Setup and Status Tx Data : Expected MSI are copied from OH Preset data. Tx Data Received Data: Expected MSI are set from received MSI data. Received Data 7 7 . . 1 1 . . 3 3 Status Information Status Information This section describes the status information available for the OTN layer in the status area of the Ports Setup...
  • Page 392 OTN Applications OTN Applications This screen presents detailed information about the current physical status of the optical signal. Signal Level Signal Level Shows the input level of an optical signal. A lamp icon indicates the LOS state. Frequency Frequency Shows the input signal frequency and the deviation of the input signal from the nominal bit rate in ppm.
  • Page 393 OTN Setup and Status OTN Setup and Status This screen contains detailed alarm and error information related to the OTN layer. Status is indicated by the use of colored lamp icons. Level-specific alarms Level-specific alarms If the ODUk is multiplexed, touch the relevant OTU/ODUk level button. Alarms OTU Alarms LOS: Loss of Signal.
  • Page 394 OTN Applications OTN Applications Pattern error: Bit error detected in the payload Pattern error TCM Errors TCMi-BIP8: Bit Interleaved Parity 8 TCMi-BIP8 TCMi-BEI: Backward Error Indication TCMi-BEI (i=1 to 6) GMP Errors CRC8 error: CRC8 error occurred CRC8 error CRC5 error: CRC5 error occurred CRC5 error Inc over: C Inc over...
  • Page 395 OTN Setup and Status OTN Setup and Status This screen shows OTU/ODU/OPU OH capture data for one frame at time. Use the Level Level drop-down menu to select which multiplexing level to display. For a description of the frame structure, see the Overhead Dialog box section under the ports setup of OTN.
  • Page 396 OTN Applications OTN Applications A Tributary scan detects errors and alarms over multiple Tributary Ports depending on the current mapping settings at the receiver port. The screen displayed by the Tributary scan Tributary scan button can be used to acquire the tributary status information.

  • Page 397: Error/Alarm Insertion

    OTN Setup and Status OTN Setup and Status Errors and alarms detected at the selected channel. Touching the button in green does not launch the dialog box. To change TP to scan, touch the Scan Scan button. Tributary Scan Results are cleared, when close the dialog box, move other status area or move other screens.
  • Page 398 OTN Applications OTN Applications Alarms/Errors/ Alarms/Errors/ Select the port to insert errors, and the stimuli type. The settings items vary Others Others depending on the selected stimulus type. OTN: Inserts errors or alarms related the OTN overhead or FEC. OTN frequency: Adds the frequency offset to the OTU bit rate and Payload bit OTN frequency rate.
  • Page 399 OTN Setup and Status OTN Setup and Status 1. Select the Level Level to insert errors. 2. Select the Error Item Error Item. 3. Touch the Error Bits Error Bits field to edit bits. 4. Touch the Error Insert Error Insert icon. The error is inserted once by touching the icon. 1.
  • Page 400 Error Insert icon. The error is inserted once by touching the icon. For O.182 Poisson, refer to the white paper on Anritsu homepage: FEC Efficiency New Test Method - Required by ITU-T New Rec. O.182 - 7 7 . . 1 1 . . 4 4 . . 2 2 OTN frequency...

  • Page 401: Ports Setup And Status

    7 7 . . 2 2 APS The APS (Automatic Protection Switching) test measures the switching time in protecting the system from failure Switching time is defined below. The start and stop trigger can be selected independently. Trigger event can be selected from the high order OTU and ODU. The pass/fail thresholds for switching time can be set.

  • Page 402: Test Results

    OTN Applications OTN Applications This screen contains the parameters for setting up the threshold values for errors and Pass/Fail status. Start Trigger, Stop Trigger Start Trigger, Stop Trigger Use the drop-down menu(s) to select the appropriate trigger. Start and stop triggers include the following: Any errors, LOF Any errors...
  • Page 403 The following information is displayed: Start Trigger Stop Trigger Average switching time : Average time of switching Max. Time : Maximum time of switching Threshold : The threshold value used in the test 7 7 . . 2 2 . . 3 3 . . 2 2 Detailed Detailed Touching the Detailed Detailed button in the navigation area will display the screen...
  • Page 404 OTN Applications OTN Applications Summary field Summary field Consists of the minimum, maximum, and average automatic switching times in milliseconds, the specified threshold value, the number of measurements. List-form information List-form information Presents the automatic switching times in list-form. Graphical Graphical The graphical presentation consists of a bar diagram of the automatic switching presentation...

  • Page 405: Ports Setup And Status

    BERT BERT 7 7 . . 3 3 BERT BERT The Bit Error Rate Test (BERT) described in this section is applicable for OTN interfaces. 7 7 . . 3 3 . . 1 1 Ports Setup and Status Ports Setup and Status The first step in running an application is to set up the port interfaces.
  • Page 406 OTN Applications OTN Applications This screen allows you to configure the test mode and other general parameters related to the test. Interval length Interval length Allows you to specify the duration of the BERT intervals. The drop-down menu contains the following values: 1 second 1 second, 2 seconds 2 seconds, 5 seconds 5 seconds, 10 seconds...
  • Page 407 BERT BERT The Network Master's memory size (the file size of measurement results) is 64 Mbytes per one port. The result file size is less than 64 Mbytes because it is compressed when saving to the file. Estimate of test duration Estimate of test duration Contains an estimation of the time (in days, hours, minutes and seconds) before the whole memory will be filled out by the test.
  • Page 408 OTN Applications OTN Applications Set the limit of SESR (Severely Errored Seconds Ratio). SES (Severely Errored Second) is a one-second period which contains 15% or more errored blocks or at least one defect. Section Objective (BBER) Section Objective (BBER) Set the upper limit of BBER (Background Block Errors Rate). BBE (Background Block Error) is an errored block that occurred during non-SES.

  • Page 409: Test Results

    BERT BERT Evaluation item Evaluation item Use the drop-down menu to select the item to evaluate. If selecting other than Any Alarm or Error, another menu appears. Any Alarm or Error Evaluation type Evaluation type Select the relevant type. Pass & fail threshold Pass &...
  • Page 410 OTN Applications OTN Applications Pattern Error Insertion Pattern Error Insertion Select the check box to enable the pattern error insertion. Select Insertion Mode to Single Single or Rate Rate. When Single Single is selecting, touch Alarm/Error Insert icon in the Application Toolbar. 7 7 .
  • Page 411 BERT BERT Time format If you have stopped measurement during the interval time, the measurement results of the current interval are discarded. The log of the current interval is not displayed in Back Back field. In this case, result data are re-calculated excluding the data of the current interval when the measurement is stopped.
  • Page 412 OTN Applications OTN Applications OTN Performance Measurement Items OTN Performance Measurement Items This paragaraph describes the performance result items. EB (Errored Block) is defined as: A block in which one or more bits are in error OTN Performance Parameters OTN Performance Parameters Items Items Definition...
  • Page 413 BERT BERT Example of Unavailable Time Detection Pass/Fail is judged after the Time period set at Performance Test Parameters the Control screen has elapsed.

  • Page 414: Ports Setup And Status

    OTN Applications OTN Applications 7 7 . . 4 4 RTD The Round-Trip Delay (RTD) time is the duration time of the network and the network equipments. Network Master measures RTD using a trigger injected in ODU frame. At first, Network Master transmits the trigger signal.

  • Page 415: Test Results

    7 7 . . 4 4 . . 2 2 . . 2 2 Threshold Threshold Touching the Thresholds Thresholds button in the navigation area displays the following screen. This screen allows you to configure the RTD test conditions for the currently selected port(s).
  • Page 416 OTN Applications OTN Applications Minimum, Average and Maximum RTD in micro seconds Threshold value 7 7 . . 4 4 . . 3 3 . . 2 2 Detailed Detailed Touching the Detailed Detailed button in the navigation area will display the screen shown below.
  • Page 417 8 8 CPRI/OBSAI Applications CPRI/OBSAI Applications This chapter describes the graphical user interface (i.e. screens, sub-screens and major dialogs) related to CPRI (Common Public Radio Interface) and OBSAI (Open Base Station Architecture Interface) applications. Sub-screens and dialogs are described under the main screen from which they are activated/launched.
  • Page 418 CPRI/OBSAI Applications CPRI/OBSAI Applications 8 8 . . 1 1 CPRI/OBSAI Setup and Status CPRI/OBSAI Setup and Status CPRI (Common Public Radio Interface) is an interface designed for the communication inside the base station used for the mobile radio communications. OBSAI (Open Base Station Architecture Initiative) defines the architecture of the cellular base station, including the interface between base band block and RF block.

  • Page 419: Physical Port Setup

    CPRI/OBSAI Setup and Status CPRI/OBSAI Setup and Status OBSAI Line bit rates OBSAI Line bit rates Bit Rate Bit Rate Multiplexer × Multiplexer × (MBaud) (MBaud) Base bit rate (MBaud) Base bit rate (MBaud) 1 × 768 1536 2 × 768 3072 4 ×...

  • Page 420: Cpri/Obsai Frame Setup

    CPRI/OBSAI Applications CPRI/OBSAI Applications Clock Configuration Clock Configuration Use the drop-down menu to select the clock source. This is fixed to Received Received when the Port mode is set to Through Through. Timing Source Internal: Internal clock of the module Internal External: The clock input to the connector External...

  • Page 421: Status Information

    CPRI/OBSAI Setup and Status CPRI/OBSAI Setup and Status CPRI Link CPRI Link Set the CPRI Link conditions, if Content Content is set to "CPRI Link" and Port mode Port mode is set to "Normal". Start up Start up Enabled: The line rate, protocol version, and C&M Channel will be decided by Enabled auto-negotiation.
  • Page 422 CPRI/OBSAI Applications CPRI/OBSAI Applications Capture/Monitor Capture/Monitor At the bottom of the status area, a button that gives you access to the monitor Status Status information By touching the button, you can launch the Transceiver information display. 8 8 . . 1 1 . . 3 3 . . 2 2 Physical Details Physical Details Touching the topmost summary box in the status area of the Ports Setup Ports Setup screen...
  • Page 423 CPRI/OBSAI Setup and Status CPRI/OBSAI Setup and Status This screen contains detailed alarm and error information related to the CPRI/OBSAI interface. Status is indicated by the use of colored Lamp icons. Remote and Link Remote Link are displayed only when the content is set to CPRI. Alarms Signal loss: This lights in red when the optical signal is not detected.

  • Page 424: Error/Alarm Insertion

    CPRI/OBSAI Applications CPRI/OBSAI Applications Link State and Port Role appear when Start up is set to Enabled Enabled. Protocol version HDLC rate Pointer Protocol version HDLC rate Pointer 8 8 . . 1 1 . . 3 3 . . 4 4 Transceiver Transceiver Refer to Transceiver...
  • Page 425 CPRI/OBSAI Setup and Status CPRI/OBSAI Setup and Status 3. Select the Insertion Insertion. Off: Turns off inserting errors. Manual: Inserts the specified number of errors if you touch the Error Manual Insert icon. Touch the Burst length Burst length field to set the number of errors to insert. 1E-04 to 1E-10 1E-04 1E-10: Inserts errors at the specified rate continuously.

  • Page 426: Ports Setup And Status

    CPRI/OBSAI Applications CPRI/OBSAI Applications 8 8 . . 2 2 BERT BERT This section describes the Bit Error Rate Test (BERT) that is applicable to CPRI/OBSAI interfaces. For BERT of OTN interface, refer to BERT in "OTN Application". 8 8 . . 2 2 . . 1 1 Ports Setup and Status Ports Setup and Status After the application is launched, first configure the port interface in the Ports Ports...
  • Page 427 BERT BERT Allows you to specify when the measurement is started. Immediate: Starts the measurement when you touch the Start Immediate Start button. Start at: Starts the measurement at the time specified in the Start at Start at Start at field on the right.
  • Page 428 CPRI/OBSAI Applications CPRI/OBSAI Applications If selecting check box, Port setup is changed as following: Content: CPRI Link Error insertion item: LCV The check box will be cleared if Content has changed to other options. Threshold Threshold Allows you to specify a threshold value of Round Trip Delay in micro seconds (μs).

  • Page 429: Test Results

    BERT BERT Refer to Thresholds of BERT section in "SDH/SONET/PDH/DSn Applications". 8 8 . . 2 2 . . 3 3 Test Results Test Results 8 8 . . 2 2 . . 3 3 . . 1 1 Summary Summary When you go to the test results of the CPRI/OBSAI BERT application, the following screen is displayed.
  • Page 430 CPRI/OBSAI Applications CPRI/OBSAI Applications Off: Stops the error insertion. Manual Manual 1E-04 to 1E-09 1E-04 1E-09 Burst length Burst length If 'Insertion' is set to Manual Manual, touch the button and set the burst length to insert. 8 8 . . 2 2 . . 3 3 . . 2 2 APS If APS is selected on the Test screen, APS APS button appears in Navigation area.
  • Page 431 BERT BERT This screen presents a detailed analysis of the test results. You can choose to view either the results of a specific time interval or the total results from measurement start. The results can be displayed either in table (list) form or as graphs.
  • Page 432 CPRI/OBSAI Applications CPRI/OBSAI Applications Selecting type of Selecting type of Open the left drop-down menu in the top row of buttons to select which results results results you want to display on the screen. OTN - Alarms/Errors OTN - Alarms/Errors OTN - Performance OTN - Performance CPRI - Alarms/Errors...

  • Page 433: Ports Setup And Status

    Pass Through Pass Through 8 8 . . 3 3 Pass Through Pass Through CPRI/OBSAI Pass Through enables non-intrusive in-service monitoring. All traffic received on a port is forwarded on the other port and vice versa. Traffic between the two network DUT elements is monitored as illustrated below. 8 8 .
  • Page 434 CPRI/OBSAI Applications CPRI/OBSAI Applications This screen contains a summary of the results of the CPRI Pass Through test. Transport Transport Displays the results of Transport test. This result appears if 'Transport' check box is selected in the Test Setup screen. 8 8 .
  • Page 435 9 9 Fibre Channel (FC) Fibre Channel (FC) Applications Applications This chapter describes the graphical user interface (i.e. screens, sub-screens and major dialogs) related to Fibre Channel applications. Sub-screens and dialog boxes are described under the main screen from which they are activated/launched.
  • Page 436 Fibre Channel (FC) Applications Fibre Channel (FC) Applications 9 9 . . 1 1 Fibre Channel Setup and Status Fibre Channel Setup and Status Fibre Channel (FC) is a high-speed network technology, commonly running at 1, 2, 4, 8, 16 and 20 Gigabit per second rates. It is primarily used to connect computer data storage.

  • Page 437: Physical Port Setup

    Fibre Channel Setup and Status Fibre Channel Setup and Status 9 9 . . 1 1 . . 1 1 Physical Port Setup Physical Port Setup When the port is set up with a Fibre Channel interface, touching the Port Port button in the navigation area will display the screen shown below.
  • Page 438 Fibre Channel (FC) Applications Fibre Channel (FC) Applications Touching the Interface Interface button in the navigation area displays the following screen. Topology Topology Point to Point is the point to point connection. Select the Login Point to Point Login check box to establish the connection.
  • Page 439 Fibre Channel Setup and Status Fibre Channel Setup and Status Frame Setup setting is not used in FC BERT. In Fibre Channel Reflector mode you should activate connection to a FC Switch, after you have selected framing as SOF:Header:Data:CRC:EOF SOF:Header:Data:CRC:EOF. If activating connection to a FC Switch when framing is set to SOF:Data:EOF SOF:Data:EOF, all frames outputted from the FC Switch are reflected to it.

  • Page 440: Status Information

    Fibre Channel (FC) Applications Fibre Channel (FC) Applications SOF:Data:EOF: Start of Frame - Data - End of Frame SOF:Data:EOF SOF:Header:Data:CRC:EOF: SOF:Header:Data:CRC:EOF Start of Frame - Frame Header - Data - CRC - End of Frame Content Content Select a predefined pattern or define a user pattern. Frame Header Frame Header Touching the Frame Header...
  • Page 441 Fibre Channel Setup and Status Fibre Channel Setup and Status A summary consisting of the most relevant alarm/error indications is displayed constantly. 9 9 . . 1 1 . . 3 3 . . 2 2 Physical Details Physical Details Touching the topmost summary box in the status area of the Ports Setup Ports Setup screen opens the dialog shown below.

  • Page 442: Errors/Alarms Insertion

    Fibre Channel (FC) Applications Fibre Channel (FC) Applications Indicates the current link status. Login Login Fabric Login Fabric Login Lamp icon lit in green when login. Port Login Port Login Lamp icon lit in green when login. 9 9 . . 1 1 . . 3 3 . . 3 3 Alarms and Errors Alarms and Errors The middle summary box in the status area of the Ports Setup Ports Setup screen indicates...
  • Page 443 Fibre Channel Setup and Status Fibre Channel Setup and Status 2. In the Insertion Insertion drop-down list, select an insertion mode. Off: Turns off inserting errors. Manual: Inserts the specified number of errors if you touch the Error Manual Insert icon. Burst / sec: Inserts the specified number of errors in one second Burst / sec periodic.

  • Page 444: Ports Setup And Status

    Fibre Channel (FC) Applications Fibre Channel (FC) Applications 9 9 . . 2 2 BERT BERT BERT stands for Bit Error Rate Testing or BER Testing. The bit error rate is a key parameter in assessing systems that transmit digital data from one location to another (that is, systems such as radio data links, fiber-optic data systems, Ethernet etc.).
  • Page 445 BERT BERT Start action Start action Allows you to specify when the measurement is started. Immediate: Starts the measurement when you touch the Start Immediate Start button. Start at: Starts the measurement at the time specified in the Start at Start at Start at field on the right.
  • Page 446 Fibre Channel (FC) Applications Fibre Channel (FC) Applications The receiver uses a filter to determine which frames should be counted in the results. When this function is enabled, the following fields are required to match: Source ID Destination ID R_CTL (=0x00, Uncategorized FC-4) Type (=0xE0, vender unique type) When this function is not enabled, the following fields are required to match: Most significant byte of R_CTL should be equal to 0.
  • Page 447 BERT BERT This screen contains the parameters for specifying a profile and pattern for each stream and for specifying which measurements are made.
  • Page 448 Fibre Channel (FC) Applications Fibre Channel (FC) Applications Stream profile Stream profile Line load Line load Refer to "Line load in "Ethernet Applications" for the operation. Frame size Frame size Touch Constant Constant field to set the fixed frame size for the duration of the test. Set the Frame size to a multiple of 4.

  • Page 449: Test Results

    BERT BERT Fibre Channel Fibre Channel When you select the check box, you can enable various thresholds. Touch the Setup button to display the Fibre Channel threshold setup Setup Fibre Channel threshold setup dialog box. For setting example, refer to Example in "Ethernet threshold setup".
  • Page 450 Fibre Channel (FC) Applications Fibre Channel (FC) Applications This screen contains a summary of the results of the Fibre Channel BERT test. The information includes such things as number of pattern errors, average and maximum disruption time, and number of exceeded thresholds. The three dials showing utilization/throughput results, pattern errors and errored frames can be enlarged by touching on them.
  • Page 451 BERT BERT 9 9 . . 2 2 . . 3 3 . . 3 3 Statistics Statistics Touching the Statistics Statistics button in the navigation area displays the screen shown below. This screen presents a detailed analysis of the test results. You can choose to view either the results of a specific time interval or the total results from measurement start.
  • Page 452 Fibre Channel (FC) Applications Fibre Channel (FC) Applications If you have stopped measurement during the interval time, the measurement results of the current interval are discarded. The log of the current interval is not displayed in Back Back field. In this case, result data are re-calculated excluding the data of the current interval when the measurement is stopped.
  • Page 453 BERT BERT Results are displayed according to your choice. OTN Alarms/Errors Refer to Results in "OTN Application" OTN Performance Refer to Results in "OTN Application" BERT Results Latency Jitter Service Disruption Reflector Results Reflected Frames Reflected Bytes Not Reflected Frames Not Reflected Bytes Total Frames Total Bytes...

  • Page 454: Ports Setup And Status

    Fibre Channel (FC) Applications Fibre Channel (FC) Applications 9 9 . . 3 3 Reflector Reflector In Fiber Channel Reflector mode, the Network Master loops incoming traffic on a port, swapping ID addresses. 9 9 . . 3 3 . . 1 1 Ports Setup and Status Ports Setup and Status The first step in running an application is to set up the port interfaces.

  • Page 455: Test Results

    Reflector Reflector For operation, refer to Control in "BERT" section. 9 9 . . 3 3 . . 2 2 . . 2 2 Thresholds Thresholds Touching the Thresholds Thresholds button in the navigation area displays the following screen. The Follow Follow button appears when the Port 2 settings can follow Port 1.
  • Page 456 Fibre Channel (FC) Applications Fibre Channel (FC) Applications This screen contains a summary of the results of the FC Reflector test. The information includes such things as number of errored frames and number of exceeded thresholds. The three dials showing Utilization, Errored frames and Throughput results. Utilization, Errored frames and Throughput can be enlarged by touching on them.
  • Page 457 Reflector Reflector Touching the Event Log Event Log button in the navigation area displays the screen providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn BERT application. 9 9 . . 3 3 . . 3 3 . . 3 3 Statistics Statistics Touching the Statistics Statistics button in the navigation area displays the screen shown...
  • Page 458 Fibre Channel (FC) Applications Fibre Channel (FC) Applications If you have stopped measurement during the interval time, the measurement results of the current interval are discarded. The log of the current interval is not displayed in Back Back field. In this case, result data are re-calculated excluding the data of the current interval when the measurement is stopped.
  • Page 459 10 Utility Applications Utility Applications This chapter describes the applications on Utilities screen of Application Selector. The following applications are available: Scenario PDF Viewer Wireshark...

  • Page 460: Scenario Manager

    Scenario application executes applications according to the description in the scenario file. The contents of the scenario file can be edited by using the MX100003A MT1000A/MT1100A Scenario Editor Software on the PC. If the scenario files are not loaded, only Scenario manager icon appears on the Utilities screen.
  • Page 461 Scenario Scenario Note are defined in the scenario. They cannot be edited on the Scenario Manager screen. Editing the scenario Editing the scenario 1. Touch the row of the scenario in the table. 2. Touch Edit Edit button. The Edit screen appears. 3.

  • Page 462: Running The Scenario

    Utility Applications Utility Applications 10. . 1 1 . . 2 2 Running the Scenario Running the Scenario When scenario is loaded, the icon appears in Scenario of Utilities screen. If touching the icon, the following screen is displayed. This screen displays the Pass/Fail results and status of the scenario execution. Select the check box for the application name you want to run.
  • Page 463 Scenario Scenario An example of the scenario execution An example of the scenario execution Save results Save results 1. Touch the Application Toolbar 2. Set the file name using the dialog box displayed. 3. Touch Save Save button. Generating the report Generating the report 1.

  • Page 464: Test Setup

    Utility Applications Utility Applications 10. . 2 2 GPS GPS application logs NMEA format data received from the GPS receiver. According to the NMEA format data, the locations of satellite are displayed on the chart. 10. . 2 2 . . 1 1 Test Setup Test Setup When you go to the test setup of the GPS application, the following screen is displayed.
  • Page 465 This screen displays positions of satellite and the logged data. Touch a left top button to switch the result to display. Satellites: Displays the satellite positions by the chart and the table. Satellites Console: Displays the logged data received from GPS receiver. Console Touch to start a test.
  • Page 466 Utility Applications Utility Applications Elev: Elevation Azim: Azimuth SNR: Signal to Noise Ratio Depending on the SNR value, the text color varies in green, blue, or red. Console Console Text Console Text Console The logged data in text data are displayed. You can save the logged data by touching icon on the Application Toolbar.
  • Page 467 PDF Viewer PDF Viewer 10. . 3 3 PDF Viewer PDF Viewer PDF Viewer allows you to view PDF files, for example, Operation Manual, report files created by the Network Master, etc. Opening the PDF file Opening the PDF file Touching the File Open icon ( ) on Application Toolbar opens the dialog box, where you can select a PDF file you want to open.

  • Page 468: Application Toolbar

    Utility Applications Utility Applications 10. . 4 4 VIP VIP (Video Inspection Probe) application allows you to view the edge surface of an optical fiber by using the optional accessory Video Inspection Probe. The captured image and analysis results can be saved to files. 10.

  • Page 469: Test Setup

    G0306B Video Inspection Probe G0306B Video Inspection Probe Replace the adaptor of the Video Inspection Probe with one that matches the optical connector. For handling the Video Inspection Probe, refer to the operation manual that came with the Video Inspection Probe. Network Master also supports following the Video Inspection Probes.

  • Page 470: Test Results

    Utility Applications Utility Applications Test Profile Test Profile Select the observing fiber type. SM PC>45: Single Mode Fiber, Physical Contact, Return Loss is more than 45 SM PC>45 SM APC: Single Mode Fiber, Angled Physical Contact SM APC SM PC>25: Single Mode Fiber, Physical Contact, Return Loss is more than 25 SM PC>25 MM PC 62.5: Multi-Mode Fiber, Physical Contact, Core diameter 62.5 μm MM PC 62.5...
  • Page 471 Analyzing an image Analyzing an image 1. Touch 2. Touch After the analysis finishes normally, the results appear in the table. If Overlays On Overlays On is selected, the circles showing the analysis area appear. 3. Adjust image position by touching Zoom Zoom buttons or PAN PAN buttons.
  • Page 472 Utility Applications Utility Applications 10. . 5 5 Wireshark Wireshark Wireshark allows users to analyze captured Ethernet frames. Wireshark is used to analyze the capture files. There are some restrictions on functions because Ethernet interface is not connected. For example, "Capture" and "Telephony" menus are not available.
  • Page 473 11 Specifications Specifications...

  • Page 474: Configuration

    Specifications Specifications 11. . 1 1 MT1000A MT1000A This section contains specifications for the Network Master Pro, MT1000A (mainframe). 11. . 1 1 . . 1 1 Configuration Configuration - Main Frame - - Main Frame - MT1000A Network Master Pro...

  • Page 475: External Interfaces

    G0306B Video Inspection Probe G0324A Battery Charger G0325A GPS receiver J1569A Car 12 Vdc adapter W3682AE MT1000A Operation Manual - Modules - - Modules - MU100010A 10G Multirate Module MU100020A OTDR Module 1310/1550nm SMF MU100021A OTDR Module 1310/1550/850/1300nm SMF/MMF MU100022A...

  • Page 476: Environment Performance

    EN61326-1 and EN61000-3-2. EN61010-1. Wireless Certification Wireless Certification For countries and regions permitting WLAN use, refer to the following URL. http://www.anritsu.com/ja-JP/test- measurement/support/downloads/brochures-datasheets-and- catalogs/dwl16689 11. . 1 1 . . 5 5 Mechanical Performance Mechanical Performance Size Size 163(H) x 257.6 (W) x 43.5(D) (Excluding projections)

  • Page 477: Configuration

    MU100010A module. The MU100010A specification lists the functionality added to the basic Network Master Pro by installing the MU100010A option. Refer to the Specifications, MT1000A section for further information about the Network Master Pro's basic functionality. 11. . 2 2 . . 1 1 Configuration...

  • Page 478: External Interfaces

    Specifications Specifications 11. . 2 2 . . 2 2 External Interfaces External Interfaces Test signal interface Test signal interface SFP/SFP+: 2 Slots SFF-8431, SFF-8472 compliant IEEE 802.3ae-2002, IEEE802.3-2008 compliant RJ45: 2 Sockets IEEE802.3-2008 10BASE-T, 100BASE-TX, 1000BASE-T compliant Auto MDI-X 10/100 Mbps Full/Half Duplex, 1000 Mbps Full Duplex RJ48: 2 Sockets...
  • Page 479 MU100010A, 10 G Multirate Module MU100010A, 10 G Multirate Module 2.048 Mbit/s RJ-48/BNC 34.368 Mbit/s 139.264 Mbit/s DS1: 1.544 Mbit/s RTT Bantam DS3: 44.736 Mbit/s STM-1e/STS-3: 155.52 Mbit/s CPRI1: 614.4 Mbit/s CPRI2: 1228.8 Mbit/s CPRI3: 2457.6 Mbit/s SFP, SFP+ CPRI4: 3072.0 Mbit/s SFP, SFP+ CPRI5:...
  • Page 480 Specifications Specifications Electrical Output Electrical Output 1.5M/2M Output 1.5M/2M balanced output Bit Rate Refer to Rate. Pulse mask ITU-T G.703 compliant Code/Interface 1.544 Mbits/s AMI/B8ZS Bantam 100Ω (Balance) 2.048 Mbits/s HDB3 or AMI RJ-48 120Ω 2M to 139/45/156M Output Bit Rate Refer to Rate.

  • Page 481: Environment Performance

    1PPS Phase 1PPS Phase Compares the phase between Ref 1PPS Input from AUX I/O and 1PPS Input Comparison Comparison when MT1000A-005 and MU100090A are combined. Accuracy: ±5 ns 11. . 2 2 . . 3 3 Environment Performance Environment Performance...

  • Page 482: Mechanical Performance

    11. . 2 2 . . 4 4 Mechanical Performance Mechanical Performance Size Size MU100010A only: 163(H) x 257.6 (W) x 38.5(D) (Excluding projections) When combined to MT1000A: 163(H) x 257.6 (W) x 77(D) (Excluding projections) Mass Mass MU100010A only: 1.1 kg max.

  • Page 483: Configuration

    MU100090A High Performance GPS Disciplined Oscillator MU100090A High Performance GPS Disciplined Oscillator 11. . 3 3 MU100090A High Performance GPS Disciplined Oscillator MU100090A High Performance GPS Disciplined Oscillator The following sections describe the specifications for the Network Master Pro MU100090A module. 11.

  • Page 484: Gps Synchronization

    11. . 3 3 . . 5 5 Mechanical Performance Mechanical Performance Size Size MU100090A only: 163(H) x 257.6 (W) x 25(D) (Excluding projections) When combined to MT1000A and MU100010A: 163(H) x 257.6 (W) x 102.2(D) (Excluding projections) Mass Mass MU100090A only: 0.8 kg max.

  • Page 485: Ethernet Measurements

    Measurement Functionality Measurement Functionality 11. . 4 4 Measurement Functionality Measurement Functionality 11. . 4 4 . . 1 1 Ethernet Measurements Ethernet Measurements Cable test Cable test Identifies failures on electrical cables like short-circuits or breaks of a wire pair and indicates the distance from the instrument to the fault.
  • Page 486 Specifications Specifications Priority 1 Priority 2 Domain number Clock class Slave only mode Time source Encapsulation Announce receipt timeout Clock accuracy Clock step mode Announce interval Sync interval Minimum delay request interval IEEE 1588 clock results: Clock state Announce count Sync count Follow-up count Delay request count...
  • Page 487 Measurement Functionality Measurement Functionality Faults and Changes in grand-master clock IEEE 1588 messages can be captured and exported in a Wireshark compatible format. Terminology SDH, SONET Transmitter, Receiver Transmitter, Receiver Supported encapsulations (frame formats) EtherType ll (DIX v.2) IEEE 802.3 with 802.2 (LLC1) IEEE 802.3 with SNAP Variable line rate traffic generation Up to full line rate...
  • Page 488 Specifications Specifications User-defined VLAN ID and VLAN priority Address Configurable IP and Ethernet source and destination addresses (supports IPv4 and IPv6 addressing). Fixed, DHCP, DNS. Flow control Generate pause frames Respond to pause frames Answer incoming ARP request On/Off Fixed or incremented IP identifier User programmable DSCP/TOS byte UDP/TCP User programmable UDP/TCP address...
  • Page 489 Measurement Functionality Measurement Functionality Fragmented frames Oversized and Undersized frames FCS errored frames Error symboled frames (Excluding 10Gbps) Code violation frames (For 10Gbps) Collisions (10/100 Mbps half duplex) Preamble Violations IFG violations Local Fault (For 10Gbps) Remote Fault (For 10Gbps) Last Received VLAN 1-8 (ID/Priority) Last Received MPLS 1-8 (Label/Priority/TTL) B-Tag, I-tag (ID/Priority)
  • Page 490 Specifications Specifications Errored frames Collision rate Unicast frames Multicast frames Broadcast frames Pause frames Fragmented frames Undersized frames Oversized frames FCS errored frames IFG violations (Ethernet 10/100/1000 Mbps) Preamble violations Difference between Tx and Rx DHCP Show source IP address assigned by DHCP. Show current lease expire time.
  • Page 491 Measurement Functionality Measurement Functionality Single Repeat : Update period 1s Frame Capture Frame Capture Buffer size 1, 2, 4, 8, 16, 32, 64, 128 MB Frame slicing Whole frame, Top 64 Bytes, Top 32 Bytes Buffer handling Stop when full, Overwrite Capture transmitted frames on, off Trigger Type...
  • Page 492 Specifications Specifications Link layer Network layer Data layer Service disruption Service disruption Can be activated as part of the BER test: measurement measurement Maximum/Average service disruption time, resolution 0.1 μsec Number of service disruptions Ping test Ping test For the connectivity check through the network. Round Trip Time (RTT) Supports IPv4 addressing Answer incoming Ping requests (On/Off)
  • Page 493 Measurement Functionality Measurement Functionality can be added. Status Indicator for detection of MPLS frames and MPLS-TP Statistics Number of MPLS frames and MPLS-TP frames Maximum number of MPLS layers detected Ethernet Multistream Ethernet Multistream Number of streams Up to 16 streams can be activated on the Ethernet line. Parameters per stream Encapsulation (frame format) Line rate traffic load, up to full line rate...
  • Page 494 Specifications Specifications Physical layer excl. preamble Link layer Network layer Data layer Average or maximum values RFC6349 TCP RFC6349 TCP Supports connecting to iPerf server. throughput test throughput test Test Direction Setup Local -> Remote Remote -> Local Simultaneous in Both Direction For RFC6349 test sequence the user can choose to make the measurement for: Path MTU Baseline RTT...
  • Page 495 Measurement Functionality Measurement Functionality All services tested simultaneously at CIR Duration: 15 minutes, 2 hours, 24 hours or customer programmable Results: Pass/Fail indication IR (Maximum/Minimum/Average) FL (Count/FLR) FTD and FDV (Maximum/Minimum/Average/Current (during measurement)) AVAIL (%) Unavail (sec) Verification against Service Acceptance Criteria: Information Rate Frame Transfer Delay Frame Delay Variation...
  • Page 496 Specifications Specifications IPv4 bytes IPv4 throughput IPv4 header bytes IPv4 header errors IPv6 statistics IPv6 packet count, rate IPv6 bytes IPv6 throughput IPv6 header bytes TCP/UDP statistics TCP/UDP packets, rate TCP/UDP bytes TCP/UDP throughput TCP/UDP errored packets Reflector mode Reflector mode The following parameters are user-settable: Swap all MAC addresses or one specific MAC address Swap IP addresses...

  • Page 497: Sdh/Sonet/Pdh/Dsn

    Measurement Functionality Measurement Functionality Sync OWD Follow up OWD Delay Req. OWD 11. . 4 4 . . 2 2 SDH/SONET/PDH/DSn SDH/SONET/PDH/DSn SONET/SDH switchable. Number of ports Number of ports Max. 2 Transmitter Clock Transmitter Clock Reference Clock Internal clock External clock BITS SETS...
  • Page 498 Specifications Specifications STM-64/STM-16/STM-4/STM-1/STM-1e - AU-4 - VC-4 - TU-11 - VC-11 - DS1 (Async/Sync) STM-64/STM-16/STM-4/STM-1/STM-1e - AU-3 - VC-3 - Bulk STM-64/STM-16/STM-4/STM-1/STM-1e - AU-3 - VC-3 - DS3 STM-64/STM-16/STM-4/STM-1/STM-1e - AU-3 - VC-3 - E3 STM-64/STM-16/STM-4/STM-1/STM-1e - AU-3 - VC-3 - TU-12 - VC-12 - Bulk STM-64/STM-16/STM-4/STM-1/STM-1e - AU-3 - VC-3 - TU-12 - VC-12 - E1 (Async/Sync) STM-64/STM-16/STM-4/STM-1/STM-1e - AU-3 - VC-3 - TU-11 - VC-11 - Bulk...
  • Page 499 Measurement Functionality Measurement Functionality Manual : Burst length : 1 to 8000 (bit) (Excluding Pattern error) Burst length : 1 to 4000 (bit) (For Pattern error) Rate: 1*10 , 1*10 , 1*10 , 1*10 , 1*10 , 1*10 , 1*10 , 1*10 The available highest rate varies depending on the error item.
  • Page 500 Specifications Specifications Deviation: ppm (Resolution: 1 ppm) Bit rate: bit/s Pointer analyze Pointer analyze Pointer value: AU-PTR, TU-PTR Element : Negative, Positive Graph : Pointer movement OH Capture OH Capture Item SOH: 64 Frames POH: 64 Frames Pathtrace: J0/J1/J2 (Displays in ASCII characters) Timing Single Repeat : Update period 1s...
  • Page 501 Measurement Functionality Measurement Functionality Delay measurement Delay measurement Measurement Mode : Single, Repeat Measurement Period : 0.5, 1, 2, 5,10 s Measurement Range : Up to 10 000 000.000 μs / resolution 0.1 μs, Timeout SDH Performance SDH Performance Setup : G826, G.828+G.829, M.2101.1(M2100) Measurement Measurement Allocation...
  • Page 502 Specifications Specifications 1:7, 2 in 8 User Pattern : 32 bit, 2048 bit Preset data Preset data OH Preset data TOH : All bytes except B1, B2, H1, H2 and H3 byte STS-3c/STS-1 POH : All bytes except B3 VT-2/VT-1.5 POH : All bytes except BIP-2 Path trace Setting: J0, J1, J2 (ASCII data, 16 bytes/64 bytes) Tandem connection Tandem connection...
  • Page 503 Measurement Functionality Measurement Functionality Pointer Pointer STS-3c, STS-1, TU-3, VT-2, VT-1.5 Test Sequence : No Test Sequence Single Alternating Regular + Double Regular + Missing Double Alternating Movement : Positive Negative Burst: 1 to 100 Jump : NDF: Including NDF or Excluding NDF Pointer Value: 0 to 782(STS-3c/STS-1) or 764(TU-3) or 139(VT-2) or 103(VT-1.5) Error/Alarm detection Error/Alarm detection...
  • Page 504 Specifications Specifications Transceiver Transceiver Module Present Transceiver Information Alarm, Wavelength and bit rate, Compliance, Vendor Information, Output Control Power monitor Through Mode Through Mode Mode : Through Rx OH Overwrite TOH, A1/A2, K1/K2, S1, DCC1-3, DCC4-12, J0, TOH 1byte Stimuli Alarm : LOS, LOF, OOF, RDI-L Available alarms depend on Through mode setting.
  • Page 505 Measurement Functionality Measurement Functionality 11. . 4 4 . . 2 2 . . 3 3 PDH Number of ports Number of ports Max. 2 Frame format Frame format Non PCM frame Bit rate : Refer to Rate. Framed Bit rate (Format) E1 2.048Mbit/s (30,31ch with or without CRC4, Sa-bit, CAS) E3 34.368Mbit/s (G.751) E4 139.264Mbit/s (G.751)
  • Page 506 Specifications Specifications Error Insertion Error Insertion Item FAS, FAS and NFAS, FAS word, CRC4, CRC4 MFAS, Code, Pattern error, CAS MFAS, E-Bit, Pattern slip, Frame slip, Transparent E3/E4 Frame, Code, Pattern error, Pattern slip (Code is only available for E3.) Pattern error, Pattern slip, CRC-6, F-Bit, S-Bit, BPV, EXZ Pattern error, Pattern slip, FEBE, C-Bit, F-Bit, P-Bit, BPV Timing : Manual, Burst...
  • Page 507 Measurement Functionality Measurement Functionality DS1: CAS bits, F-Bit, S-Bit DS3: F-bits Round trip delay APS switching time (Only available in case of E1 or DS1.) 11. . 4 4 . . 3 3 OTN 11. . 4 4 . . 3 3 . . 1 1 OTN Setup OTN Setup Frame Format Frame Format...
  • Page 508 Specifications Specifications OTU2-ODU2/OPU2-ODTU2.1-ODU0/OPU0-STM1/STS3 OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1 -STM16(Async)/STS48(Async) OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1 -STM16(Sync)/STS48(Sync) OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1 -ODTU01-ODU0/OPU0-STM4/STS12 OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1 -ODTU01-ODU0/OPU0- STM1/STS3 OTU2-ODU2/OPU2-PRBS OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1-PRBS OTU2-ODU2/OPU2-ODTU2.1-ODU0/OPU0-PRBS OTU2-ODU2/OPU2-NULL OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1-NULL OTU2-ODU2/OPU2-ODTU2.1-ODU0/OPU0-NULL OTU2 (Client FC) OTU2-ODU2/OPU2-ODTU2.ts-ODUflex-FC800 OTU2-ODU2/OPU2-ODTU2.ts-ODUflex-FC400 OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1-FC200 OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1 -ODTU01-ODU0/OPU0-FC100 OTU2-ODU2/OPU2-ODTU2.1-ODU0/OPU0-FC100 OTU2 (Client CPRI) OTU2-ODU2/OPU2-ODTU2.ts-ODUflex-9830.4 M(CPRI) OTU2-ODU2/OPU2-ODTU2.ts-ODUflex-6144.0 M(CPRI) OTU2-ODU2/OPU2-ODTU2.ts-ODUflex-4915.2 M(CPRI) OTU2-ODU2/OPU2-ODTU2.ts-ODUflex-3072.0 M(CPRI) OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1-2457.6 M(CPRI) OTU2-ODU2/OPU2-ODTU12(PT=20,21)-ODU1/OPU1 -ODTU01-ODU0/OPU0-1228.8 M(CPRI) OTU2-ODU2/OPU2-ODTU2.1-ODU0/OPU0-1228.8 M(CPRI)
  • Page 509 Measurement Functionality Measurement Functionality OTU1-ODU1/OPU1-STM16(Async)/STS48(Async) OTU1-ODU1/OPU1-ODTU01-ODU0/OPU0-STM4/STS12 OTU1-ODU1/OPU1-ODTU01-ODU0/OPU0-STM1/STS3 OTU1-ODU1/OPU1-PRBS OTU1-ODU1/OPU1-ODTU01-ODU0/OPU0-PRBS OTU1-ODU1/OPU1-ODTU01-ODU0/OPU0-NULL OTU1 (Client FC) OTU1-ODU1/OPU1-FC200 OTU1-ODU1/OPU1-ODTU01-ODU0/OPU0-FC100 OTU1 (Client CPRI) OTU1-ODU1/OPU1-2457.6 M(CPRI) OTU1-ODU1/OPU1-ODTU01-ODU0/OPU0-1228.8 M(CPRI) OTU1-ODU1/OPU1-ODTU01-ODU0/OPU0-614.4 M(CPRI) OTU1e/2e (Client PRBS) OTU1e-ODU1e/OPU1e-PRBS OTU2e-ODU2e/OPU2e-PRBS OTU1e/2e (Client Null) OTU1e-ODU1e/OPU1e-NULL OTU2e-ODU2e/OPU2e-NULL OTU1e/2e (Client Ethernet) OTU1e-ODU1e/OPU1e-10GbE OTU2e-ODU2e/OPU2e-10GbE OTU1f/2f (Client PRBS) OTU1f-ODU1f/OPU1f-PRBS OTU2f-ODU2f/OPU2f-PRBS OTU1f/2f (Client Null)
  • Page 510 Specifications Specifications FEC Encode/Decode FEC Encode/Decode RS(255,239) described in ITU-T Rec. G709, No FEC OH Edit OH Edit All OTU, ODU bytes except MFAS and BIP8 TTI, FTFL bytes with multi-frame manner TTI measurement TTI measurement Condition for detecting TIM can be selected. TCM measurement On/Off MSIM Detection MSIM Detection...
  • Page 511 Measurement Functionality Measurement Functionality 0.1 ppm step -150 ppm to +150 ppm 0.1 ppm step 11. . 4 4 . . 3 3 . . 3 3 OTN Measurement OTN Measurement Alarm Detection Alarm Detection OTU, ODU LOS, OTU-AIS, LOF, OOF, LOM, OOM, SM-TIM, SM-BIAE, SM-BDI, SM-IAE, ODU-AIS,ODU-OCI, ODU-LCK, PM-TIM, PM-BDI, FSF, FSD, BSF, BSD, MSIM, TCMi-TIM, TCMi-BIAE, TCMi-BDI, TCMi-IAE, TCMi-LTC (i=1-6) Multiplexed ODU...

  • Page 512: Fibre Channel

    Specifications Specifications Measurement Range 0.001 to 10.000 ms Error Free Period 1, 10, 100, 200, 300, 400, 500, 600, 700, 800, 900 and 1000 ms OTN Performance OTN Performance Standard Measurement Measurement ITU-T Rec. G.8201, M.2401(M.2110) Tributary Scan Tributary Scan Supports up to 10 Gbps.

  • Page 513: Cpri/Obsai

    Measurement Functionality Measurement Functionality R_RDY, LR, LRR, NOS, OLS Traffic: Frames, Bytes Errors: IFG, CRC, Symbol, CRD, Terminate, Errored Line rate, Frame rate, Throughput Size Distribution Reflector mode Reflector mode Supports Reflector application. 11. . 4 4 . . 5 5 CPRI/OBSAI CPRI/OBSAI Port mode Port mode...
  • Page 514 Specifications Specifications Link Link Protocol version, HDLC rate, Pointer P Protocol version, HDLC rate, Pointer P Transceiver Transceiver Module Present Transceiver Information Alarm, Wavelength and bit rate, Compliance, Vendor Information, Output Control Power monitor BER Test BER Test Alarm: Signal loss, LOS, LOF, LSS, Remote LOS, Remote LOF, RAI, SDI, Reset Errors: LCV, SHV, K30.7, Pattern error Frames count:...
  • Page 515 Optical modules for the MU100010A comply with optical safety standards in IEC 60825-1. Specifications Specifications Specification of optical modules purchased from Anritsu for the MU100010A (each with 1 transmitter and 1 receiver) with LC connectors (subject to change without further notice): Description Description Min.
  • Page 516 Specifications Specifications Description Description Min. Input Min. Input Input Input Output Output Output Output Order No./ Name Order No./ Name (Approx. Distance) (Approx. Distance) Sensitivity Sensitivity Wavelength Wavelength Power Power Wavelength Wavelength G0356A 840 to 860 -8.2 to -1 840 to 860 8G FC/10G SR 850 nm SFP+ -11.1 dBm 8G FC/10G SR 850 nm SFP+...

  • Page 517: Support 12 Support 517

    12 Support Support This chapter contains information about general maintenance of the Network Master. It also contains information on how to obtain support or service assistance.

  • Page 518: Maintenance

    There are no user-serviceable parts in the Network Master. Possible service or There are no user-serviceable parts in the Network Master. Possible service or repair should be performed by Anritsu authorized personnel only. repair should be performed by Anritsu authorized personnel only. 12. . 1 1 . . 2 2 Cleaning Cleaning From time to time the Network Master needs to be cleaned.
  • Page 519 Maintenance and Cleaning Maintenance and Cleaning In the presence of lubricating oil mists In places at an altitude of more than 2 000 m In the presence of frequent vibration or mechanical shock, such as in cars, ships, or airplanes Places with temperatures and relative humidity in the following ranges: Temperature range of ≤-20°C or ≥+50°C Humidity range of ≥90%...
  • Page 520 Support 12. . 2 2 Calibration Calibration MT1000A and MU100010A do not require any calibration in the meaning of adjustment after shipment from factory. When the MU100090A is capturing GPS satellites, built-in Rubidium oscillator is disciplined to the UTC by using the GPS signal. By this operation, 10 MHz clock and 1PPS are calibrated.
  • Page 521 Formatting the data area in the Network Master Formatting the data area in the Network Master 12. . 3 3 Formatting the data area in the Network Master Formatting the data area in the Network Master Occasionally it is required to remove customer data from Network Master such as after instrument rental.

  • Page 522: Installation By Using Usb Memory Stick

    9. Remove USB memory stick after the installation has completed. 12. . 4 4 . . 2 2 Installation via Network Installation via Network 1. Install MX100001A MT1000A/MT1100A Control Software to PC by referring to 3.5.1 Installation of Control Software.

  • Page 523: Before You Obtain Assistance

    12. . 5 5 . . 1 1 Before you obtain assistance Before you obtain assistance To ensure fast help the Anritsu or the Anritsu representative need detailed information about the Network Master and the problems concerning the Network Master. The minimum information required is listed below: A file containing the system information.

  • Page 524: Repackaging

    Support Support 12. . 6 6 Transporting and Disposal Transporting and Disposal This section describes the precautions to observe when transporting and disposing of the main frame at the end of its useful life. 12. . 6 6 . . 1 1 Repackaging Repackaging Use the original shipping materials, or an approved optional transit case, when repacking the unit for transport.

  • Page 525: Equipment Certificate

    In addition, this warranty is valid only for the original equipment purchaser. It is not transferable if the equipment is resold. Anritsu Corporation shall assume no liability for injury or financial loss of the customer due to the use of or a failure to be able to use this equipment.

  • Page 526: Anritsu Corporation Contact

    12. . 7 7 . . 3 3 Anritsu Corporation Contact Anritsu Corporation Contact In the event of this equipment malfunctions, contact an Anritsu Service and Sales office. Contact information can be found on the last page of the printed version of this manual, and is available in a separate file on the PDF version.
  • Page 527 Software License Document Network Master comes with the package software as described in following Table. Note, however, that the package software is not covered by the Anritsu Software License Agreement. Go to the following website for details of each license.
  • Page 528 Support Support Software License (Continued) Software License (Continued) Name Name Version Version License License 5.1.3-2 LGPL3 gnutls 3.2.7-1 GPL3,LGPL2.1 graphite 1:1.2.4-1 LGPL,GPL,custom gsettings-desktop-schemas 3.10.1-1 gtk2 2.14.3 LGPL gtk3 3.10.6-1 LGPL gzip 1.6-1 GPL3 harfbuzz 0.9.24-1 hicolor-icon-theme 0.12-2 GPL2 hplip 3.14.1 custom icewm 1.3.7...
  • Page 529 Software License Document Software License Document Software License (Continued) Software License (Continued) Name Name Version Version License License libx11 1.6.2-1 custom libXau 1.0.4 libXaw 1.0.4 libxcb 1.9.1-2 custom libxcomposite 0.4.4-1 custom libxcursor 1.1.14-1 custom libXext 1.0.4 libXfixes 4.0.3 libXfont 1.3.3 libXft 2.1.13 libxi...
  • Page 530 Support Support Software License (Continued) Software License (Continued) Name Name Version Version License License poppler-data 0.4.6-1 custom,GPL2 poppler-qt4 0.26.3-1 portaudio 19_20111121- custom portmap 5beta 4.8.2 GPL3,LGPL,FDL,custom 6.1.0rc3 LGPL randrproto 1.2.2 readline 6.2.004-2 recordproto 1.13.2 renderproto 0.9.3 resourceproto 1.0.2 samba 3.6.23 GPL3 scrnsaverproto 1.1.0...
  • Page 531 2. Disclaimers 2. Disclaimers To the extent not prohibited by law, in no event shall Anritsu be liable for personal injury, or any incidental, special, indirect or consequential damages whatsoever, including, without limitation, damages for loss of profits, loss of data, business interruption or any other commercial damages or losses, arising out of or related to your use or inability to use this Software.
  • Page 532 6. Reparations 6. Reparations If Anritsu suffers any loss, financial or otherwise, due to your violation of the terms of this EULA, Anritsu shall have the right to seek proportional damages from you. 7. Responsibility after Termination 7. Responsibility after Termination...

  • Page 533: Product Model

    12. . 10 10 CE Conformity Marking CE Conformity Marking Anritsu affixes the CE conformity marking on the following product(s) in accordance with the Decision 768/2008/EC to indicate that they conform to the EMC and LVD directive of the European Union (EU).

  • Page 534: Authorized Representative

    LVD: EN 61010-1:2010 (Pollution Degree 2) 12. . 10 10. . 4 4 Authorized Representative Authorized Representative Murray Coleman Name: Head of Customer Service EMEA ANRITSU EMEA Ltd 200 Capability Green, Luton Address, City: Bedfordshire, LU1 3LU Country: United Kingdom...

  • Page 535: Ce Declaration

    CE Conformity Marking CE Conformity Marking 12. . 10 10. . 5 5 CE Declaration CE Declaration...

  • Page 536: Product Model

    Support 12. . 11 11 RCM Conformity Marking RCM Conformity Marking Anritsu affixes the RCM mark on the following product(s) in accordance with the regulation to indicate that they conform to the EMC framework of Australia/New Zealand. 12. . 11 11.

  • Page 537: Laser Safety Classifications

    Laser Safety Laser Safety 12. . 12 12 Laser Safety Laser Safety 12. . 12 12. . 1 1 Laser Safety Classifications Laser Safety Classifications Class 1 indicate the danger degree of the laser radiation specified below according to IEC 60825-1:2007. Class 1: Lasers that are safe under reasonably foreseeable conditions of operation, including the use of optical instruments for intrabeam viewing.

  • Page 538: Indication Labels On Product

    Support Support Table 2 Specifications of Laser Built into Table 2 Specifications of Laser Built into MU100010A MU100010A Max. Optical Max. Optical Emitted Emitted Beam Beam Pulse Width (s)/ Pulse Width (s)/ Model Model Output Power Output Power Wavelength Wavelength Divergence Divergence Repetition Rate...

  • Page 539: Laser Radiation Markings

    Laser Safety Laser Safety 12. . 12 12. . 3 3 Laser Radiation Markings Laser Radiation Markings Figure 1: Locations of laser beam aperture Figure 2: Locations of affixed labels...

  • Page 540: Japan Mic

    Wireless Certification 12. . 13 13. . 1 1 Japan MIC Japan MIC MT1000A has obtained the certification of construction type of specified radio equipment. 12. . 13 13. . 2 2 North America (USA FCC and Canada IC) North America (USA FCC and Canada IC) This device complies with Industry Canada license-exempt RSS standard(s).

  • Page 541: Europe Ce

    Certaines études ont suggéré qu'il pouvait y avoir certains effets biologiques, mais ces résultats n'ont pas été confirmés par des recherches supplémentaires. MT1000A a été testé et jugé conforme aux limites d'exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les régles les radioélectriques (RF) de la FCC lignes directrices d'exposition et...

  • Page 542: China Srrc

    Support 12. . 13 13. . 5 5 China SRRC China SRRC 12. . 13 13. . 6 6 Indonesia SDPPI Indonesia SDPPI MT1000A is certified SDPPI wireless certification. 12. . 13 13. . 7 7 Israel MoC Israel MoC...

  • Page 543: Mexico Ifetel

    12. . 13 13. . 10 10 Russia CU Scheme and Minsvyaz Russia CU Scheme and Minsvyaz MT1000A is certified CU scheme and Minsvyaz wireless certification. Contact information: "Uniservis" Ltd. 1st Vladimirovskaya street, building 20A, 1st floor, premises 1, room 17, Moscow 111123, Russia.

  • Page 544: Notes On Export Management

    2012/19/EU (the "WEEE directive") in European Union. For products placed on the EU market after August 13, 2005, please contact your local Anritsu representative at the end of the product's useful life to arrange disposal in accordance with your initial contract and the local law.

  • Page 545: Information For The Chinese Market Only

    5. Remove the battery. 6. Insulate the battery terminals with adhesive tape. 7. Mail it to your Anritsu Service or Sales office, or to the address shown below. ANRITSU COMPANY 490 Jarvis Drive, Morgan Hill, CA 95037-2809, USA 12. . 14 14.
