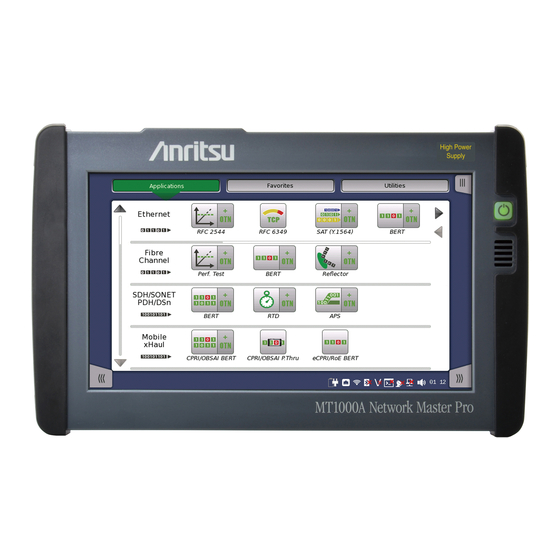

Network Master Pro/Flex Release Notes
Product Configuration
The following table shows the
Revision History.
Mainframe
MT1100A/MT1000A
Common
MT1100A
MT1000A
relationship between the changed application and modules described in the
Module
―
MU110010A
MU110011A
MU110012A
MU100013A
MU100010A
MU100090A
MU100020A
MU100021A
MU100022A
MU100040A
Changed Application
[Framework][Remote]
[ETH][OTN][CPRI][FC][SDH/SONET][SDHPDH]
[OTDR][FTTA][OLTS]
[CPRI-RF]
Network Master Pro/Flex Release Notes
1
2016-9-14
Anritsu Corporation
TAA-1ETNMX0054-20
