Anritsu Network Master Pro MT1000A User Manual

Introduction
MT1000A
Mainframe (MT1000A)
Network Master Pro

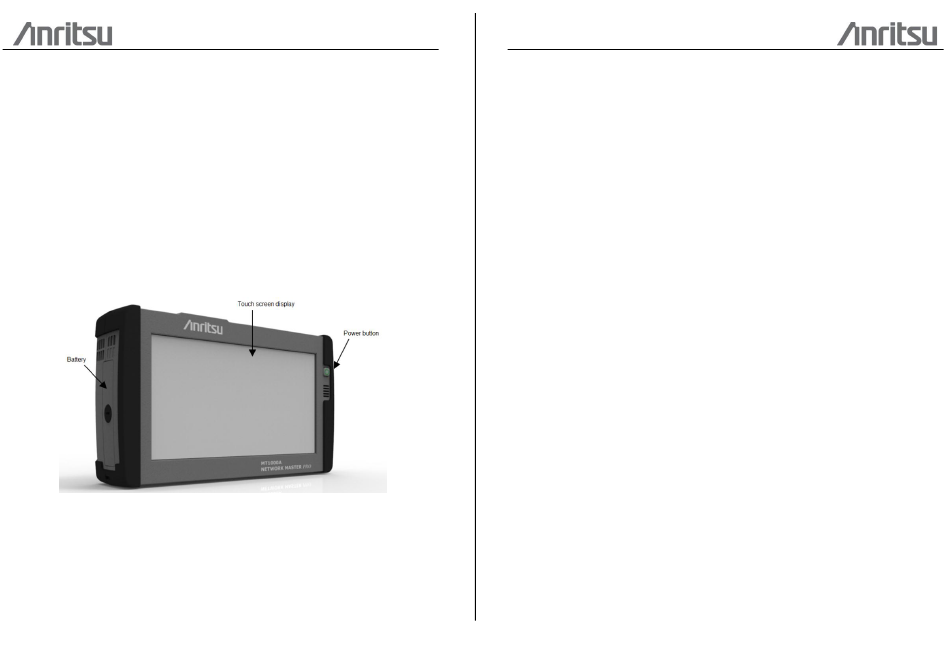

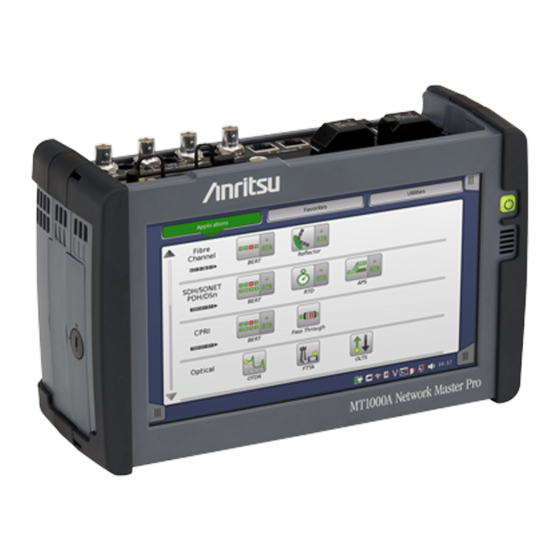

The MT1000A Network Master Pro is a multipurpose telecommunications test
instrument for field use. The installed options enable the Network Master to be used
User's Manual
both as a full-featured transmission line quality tester and as an advanced signaling
analyzer.
for WLAN/BT function Results are easily read from the large color LCD display, where the colors and
graphical symbols facilitate interpretation. Together with the touch screen operation,
this makes the Network Master very user-friendly in operation. The instrument has the
following interface for data transfer and external communication: LAN interface
First Edition
(Wired/Wireless), Bluetooth interface and three USB ports.
The instrument is powered by a rechargeable and replaceable intelligent high-capacity
Li-Ion battery. The Network Master can also be powered via an external mains adapter
for long-term measurements.
10 G Multirate Module (MU100010A)
The MU100010A 10 G Multirate Module is a plug-in module of the Network Master Pro
series. This module allows the Network Master to test a large variety of interfaces and
systems up to 10Gbps, like OTN interfaces, Ethernet interfaces, SDH/SONET
interfaces and PDH/DSn interfaces. The MU100010A can be configured to have two
ports at all rates and interfaces. The instrument is thus ideal for both in-service and out-
of-service transmission-quality measurement.
ANRITSU CORPORATION
