Summary of Contents for Anritsu MU104014B

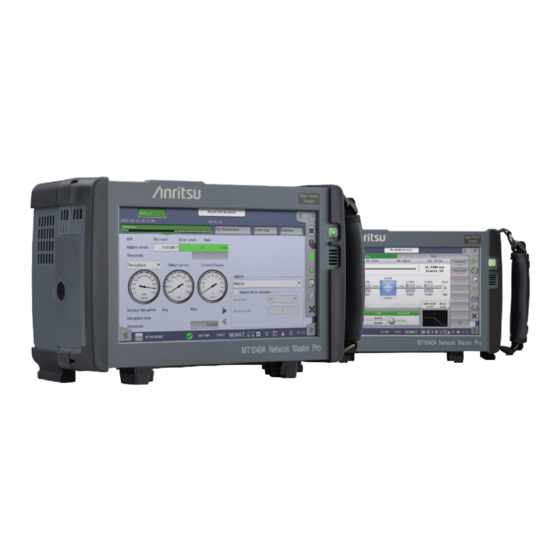

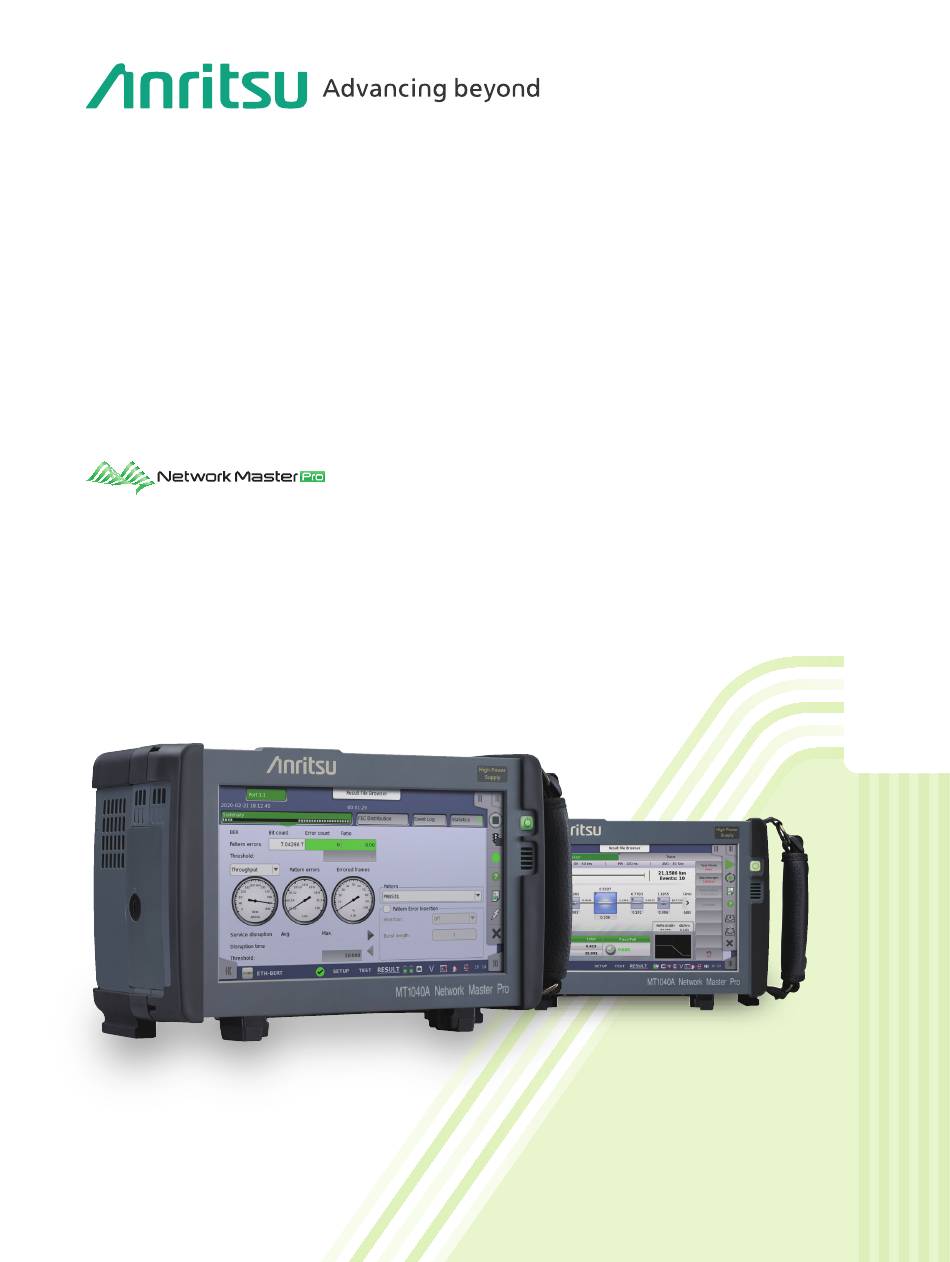

- Page 1 Configuration Guide Network Master™ Series Network Master Pro MT1040A 400G (QSFP-DD) Multirate Module MU104014B 400G (OSFP) Multirate Module MU104015A 100G Multirate Module MU104011A/MU100011A 10G Multirate Module MU100010A1 OTDR Module MU100020A/MU100021A/MU100022A/MU100023A...
-
Page 2: Table Of Contents
Network Master Pro MT1040A Main Frame ..............................................3 New Purchase Flowchart ......................................................4 New Purchase ..........................................................6 Transport Module ........................................................6 1-1 400G (QSFP-DD) Multirate Module MU104014B ........................................6 1-2 400G (OSFP) Multirate Module MU104015A ..........................................7 1-3 100G Multirate Module MU104011A .............................................8 1-4 10G Multirate Module MU100010A1 .............................................9 1-5 100G Multirate Module MU100011A ............................................ -
Page 3: Network Master Pro Mt1040A Main Frame
5: WLAN is available for certified countries and regions including USA, Japan and 2: One line cord is attached to the area to shipment. EU countries. Please visit the Anritsu web site for updated information. 3: Composed of B0720A, B0730A, B0731A, B0740A and B0741A. -
Page 4: New Purchase Flowchart
(100G Dual) Up to 100G with independent dual port. (200G/400G) 200G/400G single port. 100G Single 100G Dual 200G/400G Choose MU100010A1 Choose MU100011A Choose MU104011A Choose MU104014B for QSFP-DD 400G/200G 100G Dual Page 9 Page 10 Page 8 Page 6 Unit size: Unit size:... - Page 5 Checking optical fiber breaks and quality Select the type of optical fiber to measure Single Model only Both Single and Multimode fiber Single Model only Both Single and Multimode fiber Wavelength select 2 Wavelength 3 Wavelength 3 Wavelength (1310/1550 nm) (1310/1550/ (1310/1550/ 1625 nm)
-
Page 6: New Purchase
2: Requires MU104014B-012. 3: Requires that at least one of the following option is installed: MU104014B-052, MU104014B-053, MU104014B-054, MU104014B-055, MU104014B-056. 4: MU104014B does not have a physical interface of the option. The option is required for client signal mapped in the OTN. -
Page 7: 400G (Osfp) Multirate Module Mu104015A
New Purchase Transport Module 1-2 400G (OSFP) Multirate Module MU104015A Model/Order No. Name MU104015A 400G (OSFP) Multirate Module Standard Accessories B0768A* ESD Box: 1 pc W4039AE Transport Module Quick Reference Guide: 1 pc The 400G (OSFP) Multirate Module MU104015A supports communications : The following combination of module patterns can be installed. -
Page 8: 100G Multirate Module Mu104011A
New Purchase Transport Module 1-3 100G Multirate Module MU104011A Model/Order No. Name MU104011A 100G Multirate Module Standard Accessories B0768A* ESD Box: 1 pc W4039AE Transport Module Quick Reference Guide: 1 pc The 100G Multirate Module MU104011A supports communications : The following combination of module patterns can be installed. network technologies from 10 Mbps to 100 Gbps with dual ports. -
Page 9: Multirate Module Mu100010A1
New Purchase Transport Module 1-4 10G Multirate Module MU100010A1 Model Name MU100010A1 10G Multirate Module Standard Accessories W3935AE MT1000A Transport Quick Reference Guide: 1 pc The 10G Multirate Module MU100010A1 supports communications B0692A* ESD Box (for optical modules): 1 pc network technologies with speeds ranging from 10 Mbps to 10 Gbps. -
Page 10: 100G Multirate Module Mu100011A
New Purchase Transport Module 1-5 100G Multirate Module MU100011A Model Name MU100011A 100G Multirate Module Standard Accessories W3935AE MT1000A Transport Quick Reference Guide: 1 pc B0763A* ESD Box (for optical modules): 1 pc The 100G Multirate Module MU100011A supports communications network technologies with speeds ranging from 10 Mbps to 100 Gbps. -
Page 11: Selecting Optical Transceiver For Transport Module
New Purchase Transport Module 1-6 Selecting Optical Transceiver for Transport Module When using any transport modules for testing optical interfaces, perform the test by installing the optical modules matching the test standards in the QSFP-DD/OSFP/QSFP28/SFP/SFP+/SFP28 slots. The following table lists the modules and supported standards. Model/ Form Order... -
Page 12: Selecting Transport Test Option
New Purchase Transport Module 1-7 Selecting Transport Test Option These options are used in combination with the transport module. Choose options matching the customer’s test requirements. Additionally today, these options cannot be used in combination with the OTDR module. Model Name Notes G0325A... -
Page 13: Otdr Module
New Purchase OTDR Module 2-1 OTDR Module 1310/1550 nm SMF MU100020A OPM Port SM Port Model Name MU100020A OTDR Module 1310/1550 nm SMF Standard Accessories J1693A Universal Connector 2.5 mm for OPM: 1 pc The OTDR Module 1310/1550 nm SMF MU100020A is an OTDR module J1694A Universal Connector 1.25 mm for OPM: 1 pc... -
Page 14: Otdr Module 1310/1550/850/1300 Nm Smf/Mmf Mu100021A
New Purchase OTDR Module 2-2 OTDR Module 1310/1550/850/1300 nm SMF/MMF MU100021A OPM Port MM Port SM Port Model Name MU100021A OTDR Module 1310/1550/850/1300 nm SMF/MMF Standard Accessories J1693A Universal Connector 2.5 mm for OPM: 1 pc The OTDR Module 1310/1550/850/1300 nm SMF/MMF MU100021A is J1694A Universal Connector 1.25 mm for OPM: 1 pc... -
Page 15: Otdr Module 1310/1550/1625 Nm Smf Mu100022A
New Purchase OTDR Module 2-3 OTDR Module 1310/1550/1625 nm SMF MU100022A OPM Port SM Port Model Name MU100022A OTDR Module 1310/1550/1625 nm SMF Standard Accessories J1693A Universal Connector 2.5 mm for OPM: 1 pc The OTDR Module 1310/1550/1625 nm SMF MU100022A is an OTDR J1694A Universal Connector 1.25 mm for OPM: 1 pc... -
Page 16: Otdr Module 1310/1550 Nm, 1650 Nm Smf Mu100023A
New Purchase OTDR Module 2-4 OTDR Module 1310/1550 nm, 1650 nm SMF MU100023A SM Port SM Port (1650 nm) (1310/1550 nm) OPM Port Model Name MU100023A OTDR Module 1310/1550/1650 nm SMF Standard Accessories J1693A Universal Connector 2.5 mm for OPM: 1 pc The OTDR Module 1310/1550 nm, 1650 nm SMF MU100023A is an J1694A... -
Page 17: Selecting Mu100020A/Mu100021A/Mu100022A/Mu100023A Options
New Purchase OTDR Module 2-5 Selecting MU100020A/MU100021A/MU100022A/MU100023A Options The OTDR Module connector is available in a total of five types (3 UPC and 2 APC). These connectors can be changed freely by the user. However, connectors with mismatched polish types cannot be used. 2-5-1 OTDR Module Conversion Connector Adapters UPC (Option 010), SM/MM Ports APC (Option 011), SM Port... -
Page 18: Optional Accessories, Extended Warranty Services And Remote Software Service
When the VIP is connected, scratches and dirt on the optical connector end face are visualized (× 400) and the OK/NG status is evaluated based on the IEC61300-3-35 standard. Anritsu supports VIP Series G0382A (USB Autofocus Type) and G0306C (USB Standard Type). G0382A G0306C Different tip types are used by the G0382A and G0306C. - Page 19 New Purchase Optional Accessories, Extended Warranty Services and Remote Software Service Accessories for MT1040A Dual-Module Configuration The size of the MT1040A depends on the module configuration. Choose the appropriate case. Soft Case Hard Case Mounting Module Combination Screws B0745A B0772A B0733A B0773A Short (2U)
-
Page 20: Mt1040A Selecting Extended Warranty Services
3 Years Extended Warranty Service (standard 1 year + 2 years) MT1040A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years) MU100011A-ES510 5 Years Extended Warranty Service (standard 1 year + 4 years) MU104014B MU100020A MU104014B-ES210 2 Years Extended Warranty Service (standard 1 year + 1 year) MU100020A-ES210... -
Page 21: Remote Software Service
Site Over Remote Access Connect 1: WLAN is available for certified countries and regions including USA, Canada, Japan and EU countries. Please visit the Anritsu web site for updated information. Although this product has not been approved by Bluetooth SIG, the supported frequencies are in the range assigned to Bluetooth communications. -
Page 22: Additional Purchases Flowchart
100G Dual 200G/400G Select Protocol Select the model for choosing the Choose MU100010A1 Choose MU100011A Choose MU104011A Choose MU104014B for QSFP-DD, measurement protocol port 400G/200G, 100G dual Page 9 Page 10 Page 8 number, options, etc., from 4-1 Adding Test Protocols for Page 6 Transport Module. - Page 23 Adding OTDR Module Select the type of optical fiber to measure Single Mode only Both Single Mode and Multimode Single Mode only Both Single Mode and Multimode Wavelength select 2 Wavelength 3 Wavelength 3 Wavelength (1310/1550 nm) (1310/1550/ (1310/1550/ 1625 nm) 1650 nm) Choose MU100020A Choose MU100022A...
-
Page 24: Additional Purchases
2: Requires to MU104014B-012/312. 3: Requires that at least one of the following option is installed: MU104014B-052/352, MU104014B-053/353, MU104014B-054/354, MU104014B-055/355, MU104014B-056/356. 4: MU104014B does not have a physical interface of the option. The option is required for client signal mapped in the OTN. - Page 25 Additional Purchases Adding New Options to Previously Purchased MT1040A <MU104015A> To add a new protocol option to a previously purchased MU104015A, choose the required option from the following list. The MU104015A serial number is required to make the purchase. MU104015A Bit Rate 10G or less 16G or 25G...
- Page 26 Additional Purchases Adding New Options to Previously Purchased MT1040A <MU104011A> To add a new protocol option to a previously purchased MU104011A, choose the required option from the following list. The MU104011A serial number is required to make the purchase. MU104011A Bit Rate 10G or less 16G or 25G...
- Page 27 Additional Purchases Adding New Options to Previously Purchased MT1040A <MU100010A1> To add a new protocol option to a previously purchased MU100010A1, choose the required option from the following list. The MU100010A1 serial number is required to make the purchase. Adding MU100010A1 Protocol Option Bit Rate Less than 5G From 6G to 10G...
- Page 28 Additional Purchases Adding New Options to Previously Purchased MT1040A <MU100011A> To add a new protocol option to a previously purchased MU100011A, choose the required option from the following list. The MU100011A serial number is required to make the purchase. Adding MU100011A Protocol Option Bit Rate Up to 10G Higher than 10G...
-
Page 29: Adding Main Frame Options For Transport Function
WLAN/Bluetooth options (can be used in approved countries, including N. America, Japan, MT1040A-303 Connectivity for WLAN/Bluetooth Retrofit EU; see Anritsu web site for latest list of countries) In mounting two transport modules, this option is required. This option includes AC Adapter G0419A. -
Page 30: Configuration Examples
Model Name Q'ty Model Name Q'ty MT1040A Network Master Pro MT1040A Network Master Pro MU104014B 400G (QSFP-DD) Multirate Module MU104014B 400G (QSFP-DD) Multirate Module MU104014B-033 Ethernet 400G Single Channel MU104014B-012 Ethernet up to 25G Dual Channel G0404A QSFP-DD 400GBASE-LR4 MU104014B-014... -
Page 31: Order Sheet
Network Master Pro MT1040A Order Sheet When recording different MT1040A configurations on one order sheet, describe each MT1040A configuration on one line with the accompanying options under the relevant line. Model Name Quantity... -
Page 32: Method For Adding Measurement Modules
Install the latest software in the MT1040A. Choose the bolts matching the added module. Use the B0740A for This software can be obtained from the Anritsu web site. transport (MU10001xA) or OTDR module. Preparation 2: Remove the battery pack from Mainframe... - Page 33 Align the connectors on the left side. MT1040A Main Unit Side Measurement Modules Side 4) Install the transport module in the correct MT1040A slot as shown below. 400G (QSFP-DD) Module MU104014B 400G (QSFP-DD) Module MU104014B MT1040A Mainframe Side View after Assembling Modules Note: Align the four edges when installing the option;...
- Page 34 Note...
- Page 35 Note...
- Page 36 Phone: +852-2301-4980 • Mexico Representation Office in Spain Fax: +852-2301-3545 Anritsu Company, S.A. de C.V. Paseo de la Castellana, 141. Planta 5, Edificio Cuzco IV • Japan 28046, Madrid, Spain Blvd Miguel de Cervantes Saavedra #169 Piso 1, Col. Granada...
