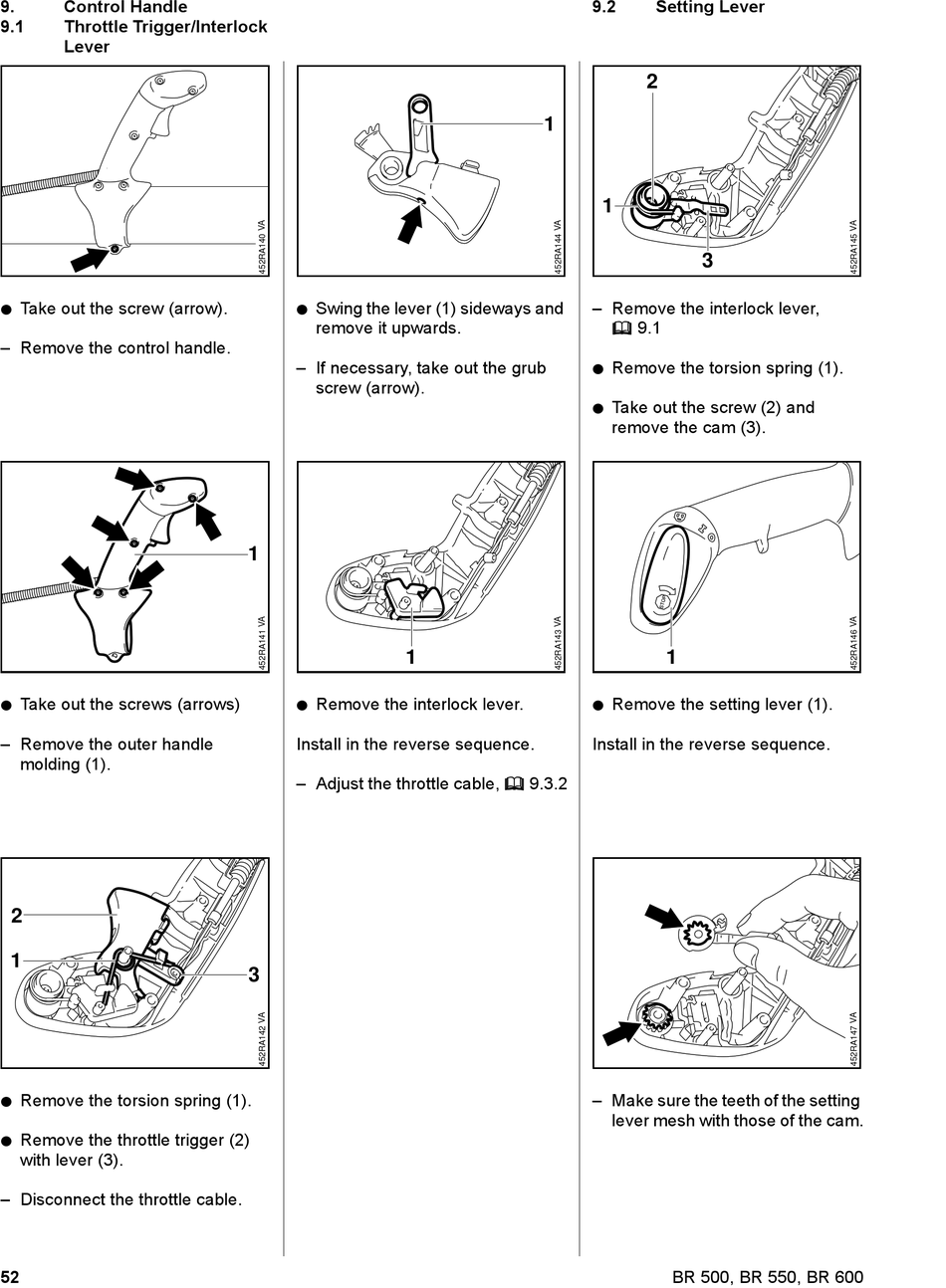

9.

Control Handle

9.1 Throttle Trigger/Interlock
Lever
: Take out the screw (arrow).
– Remove the control handle.
: Take out the screws (arrows)
– Remove the outer handle
molding (1).
2
1
: Remove the torsion spring (1).
: Remove the throttle trigger (2)
with lever (3).
– Disconnect the throttle cable.
52
: Swing the lever (1) sideways and
remove it upwards.
– If necessary, take out the grub
screw (arrow).
1
1
: Remove the interlock lever.
Install in the reverse sequence.
– Adjust the throttle cable, b 9.3.2
3
9.2

Setting Lever

2
1
1
3
– Remove the interlock lever,
b 9.1
: Remove the torsion spring (1).
: Take out the screw (2) and
remove the cam (3).
1
: Remove the setting lever (1).
Install in the reverse sequence.
– Make sure the teeth of the setting
lever mesh with those of the cam.
BR 500, BR 550, BR 600
