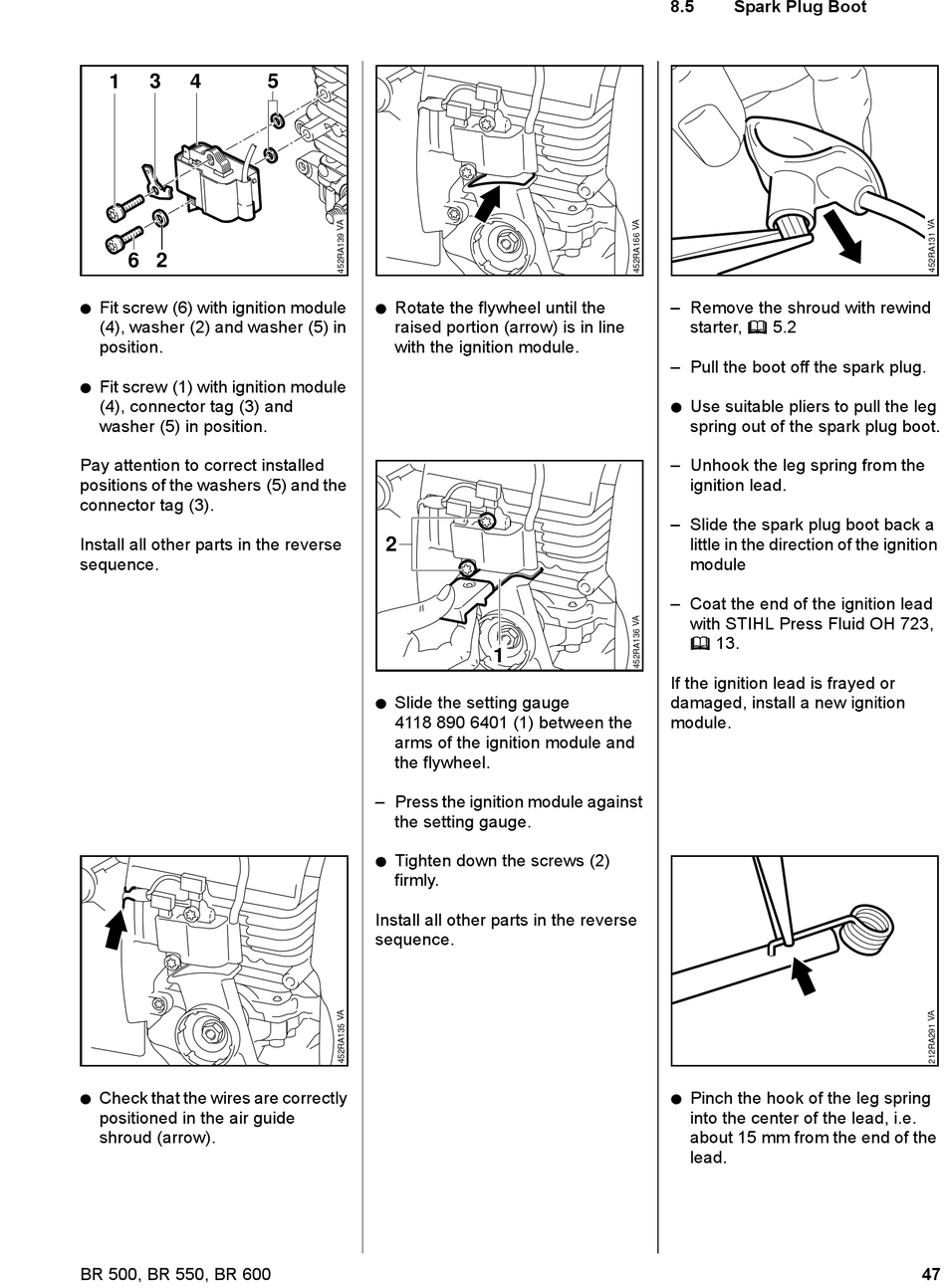

Spark Plug Boot - Stihl BR 500 Service Manual

1 3 4
6 2
: Fit screw (6) with ignition module
(4), washer (2) and washer (5) in
position.
: Fit screw (1) with ignition module
(4), connector tag (3) and
washer (5) in position.
Pay attention to correct installed
positions of the washers (5) and the
connector tag (3).
Install all other parts in the reverse
sequence.
: Check that the wires are correctly
positioned in the air guide
shroud (arrow).
BR 500, BR 550, BR 600
5
: Rotate the flywheel until the
raised portion (arrow) is in line
with the ignition module.
2
: Slide the setting gauge
4118 890 6401 (1) between the
arms of the ignition module and
the flywheel.
– Press the ignition module against
the setting gauge.
: Tighten down the screws (2)
firmly.
Install all other parts in the reverse
sequence.
8.5
– Remove the shroud with rewind
– Pull the boot off the spark plug.
: Use suitable pliers to pull the leg
– Unhook the leg spring from the
– Slide the spark plug boot back a
– Coat the end of the ignition lead
1
If the ignition lead is frayed or
damaged, install a new ignition
module.
: Pinch the hook of the leg spring

Spark Plug Boot

starter, b 5.2
spring out of the spark plug boot.
ignition lead.
little in the direction of the ignition
module
with STIHL Press Fluid OH 723,
b 13.
into the center of the lead, i.e.
about 15 mm from the end of the
lead.
