Main Screen

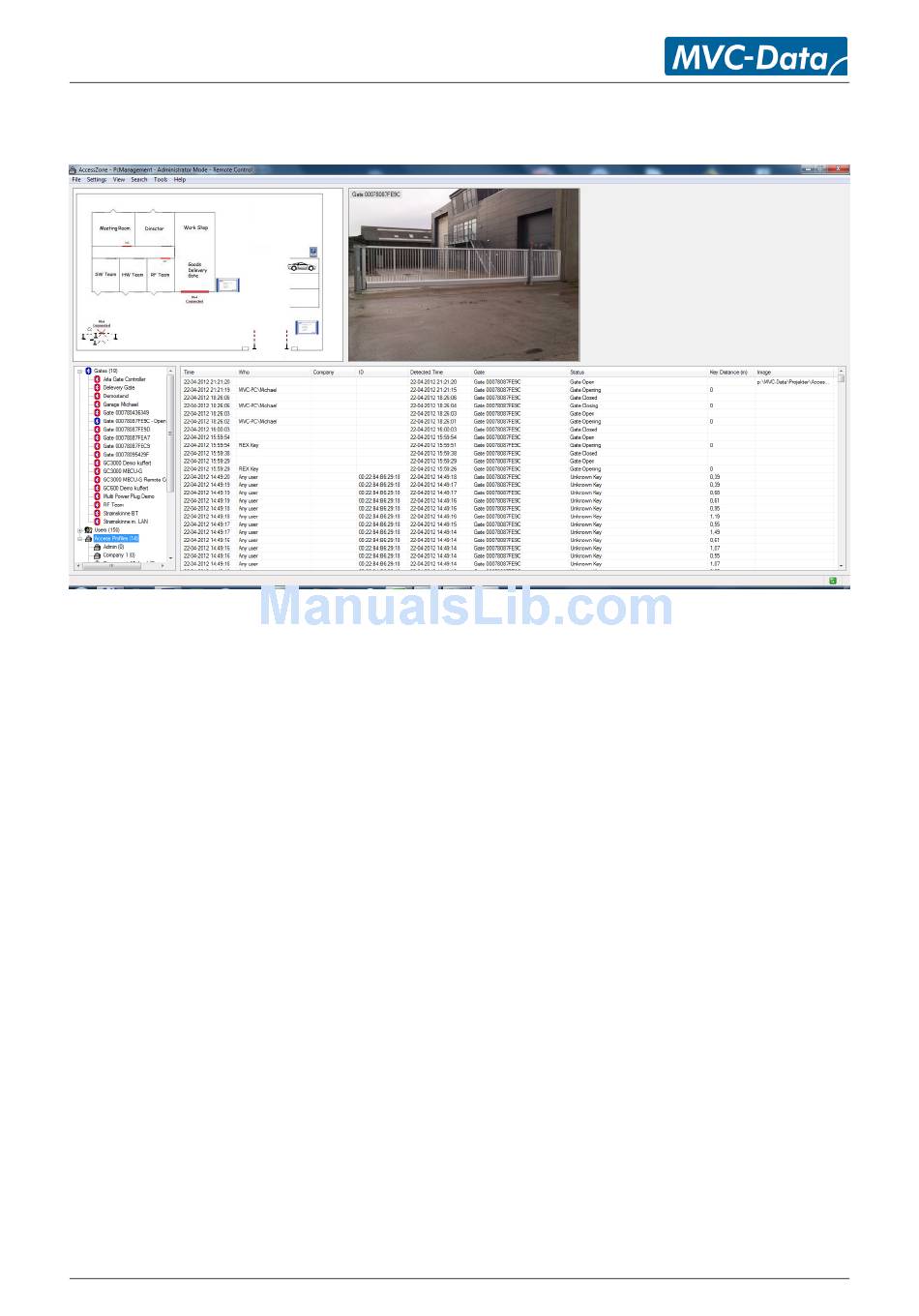

The image below shows how the main screen is organized.
The upper left screen shows a customized overview image (e.g. CAD drawing) of the secured area
or building. You can freely make your own drawing of the secure area/building. The overview
image can be enabled/disabled.
The different door, barrier and gate symbols can also be customized and be placed freely anyway
on the overview drawing. The symbols are automatically updated according to the status events
for all the connected GateControllers. I.e. is the door/barrier/gate open or closed etc.
You can design an overview image which looks like the real environment to ease identification of
the user accesses and other events.
To the right video images can be shown from a freely selected folder on the PC or server for each
GateController™. The images are automatically updated to show the latest image. I.e. it can be
images from surveillance cameras at the location. The system administrator can then get a visual
indication of the last access as well. This can be enabled/disabled.
The bottom half shows an event log for all detected users and other events in real time.
Bottom left shows a list with all the controlled GateControllers. Below a list of all registered users
(SBD-keys) for easy maintenance and last a list with all the profiles and the users associated with
each profile for an easy overview.
General!
A feature must be enabled for a GateController™ and for a user before it becomes active. I.e.
this makes it possible to enable a feature for a GateController™ and then specify whatever the
feature is going to be used for each user. And a feature can be permanently disabled for all users
by disabling the feature for the GateController™ etc.
