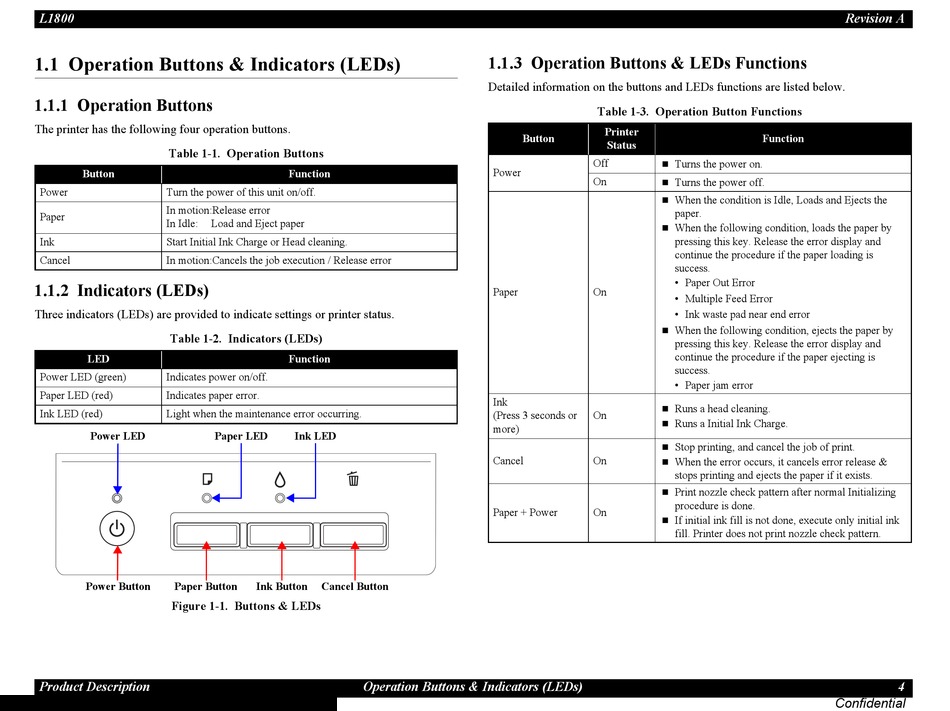

1.1 Operation Buttons & Indicators (LEDs)
1.1.1 Operation Buttons
The printer has the following four operation buttons.
Table 1-1. Operation Buttons
Button
Power Turn the power of this unit on/off.
In motion:Release error
Paper
In Idle: Load and Eject paper
Ink Start Initial Ink Charge or Head cleaning.
Cancel In motion:Cancels the job execution / Release error
1.1.2 Indicators (LEDs)
Three indicators (LEDs) are provided to indicate settings or printer status.
Table 1-2. Indicators (LEDs)
LED
Power LED (green) Indicates power on/off.
Paper LED (red) Indicates paper error.
Ink LED (red) Light when the maintenance error occurring.
Power LED
Power Button Paper Button
Figure 1-1. Buttons & LEDs
Product Description
Function
Function
Paper LED Ink LED
Ink Button Cancel Button
Operation Buttons & Indicators (LEDs)
1.1.3 Operation Buttons & LEDs Functions
Detailed information on the buttons and LEDs functions are listed below.
Table 1-3. Operation Button Functions
Printer
Button
Status
Off

Power
On



Paper On

Ink

(Press 3 seconds or On

more)

Cancel On


Paper + Power On

Revision A
Function
Turns the power on.
Turns the power off.
When the condition is Idle, Loads and Ejects the
paper.
When the following condition, loads the paper by
pressing this key. Release the error display and
continue the procedure if the paper loading is
success.
• Paper Out Error
• Multiple Feed Error
• Ink waste pad near end error
When the following condition, ejects the paper by
pressing this key. Release the error display and
continue the procedure if the paper ejecting is
success.
• Paper jam error
Runs a head cleaning.
Runs a Initial Ink Charge.
Stop printing, and cancel the job of print.
When the error occurs, it cancels error release &
stops printing and ejects the paper if it exists.
Print nozzle check pattern after normal Initializing
procedure is done.
If initial ink fill is not done, execute only initial ink
fill. Printer does not print nozzle check pattern.
