L1800

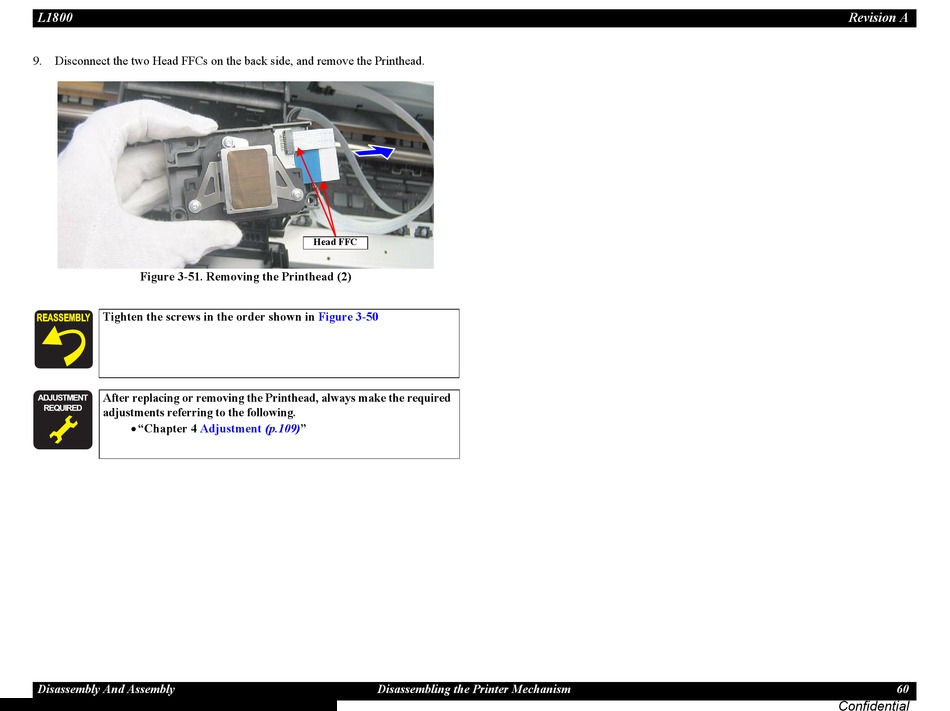

9. Disconnect the two Head FFCs on the back side, and remove the Printhead.
Figure 3-51. Removing the Printhead (2)
Tighten the screws in the order shown in
After replacing or removing the Printhead, always make the required
A D J U S T M E N T
R E Q U I R E D
adjustments referring to the following.
 "Chapter 4
Adjustment
Disassembly And Assembly
Head FFC
Figure 3-50
(p.109)"
Disassembling the Printer Mechanism
Revision A
60
Confidential
