L1800
6. Remove the foot of Left PG Torsion Spring from tab A, and remove the coil
section from tab B to remove Left PG Torsion Spring from the Main Frame.
Left PG Torsion Spring
Tab B

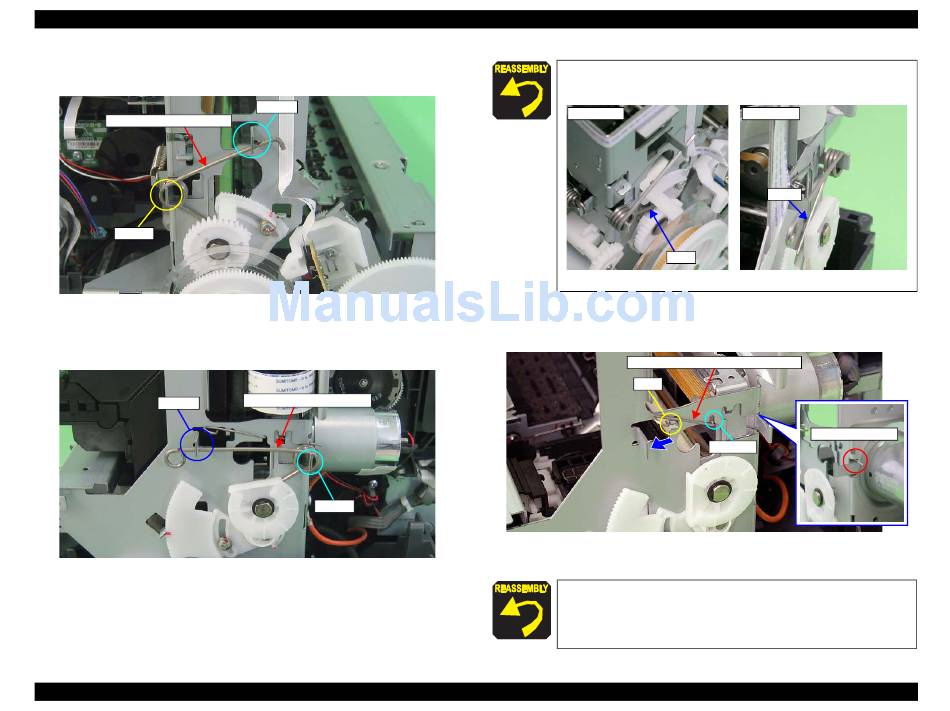

Figure 3-59. Removing the Left PG Torsion Spring
7. Remove the foot of Right PG Torsion Spring from tab A, and remove the coil
section from tab B to remove the Right PG Torsion Spring from the Main Frame.
Tab A
Figure 3-60. Removing the Right PG Torsion Spring
Disassembly And Assembly
Tab A
Right PG Torsion Spring
Tab B
Disassembling the Printer Mechanism
Place the feet of Left PG Torsion Spring and Right PG Torsion
Spring on the Carriage Shaft.
Left Side
Figure 3-61. Reinstalling PG Torsion Springs
8. Remove CR Shaft Mounting Plate Fixed Spring from the tab and notch on the
Main Frame, and pull out the spring in the direction of the arrow.
CR Shaft Mounting Plate Fixed Spring
Tab
Figure 3-62. Removing CR Shaft Mounting Plate Fixed Spring
Insert the foot of CR Shaft Mounting Plate Fixed Spring into the
notch on the Main Frame (rear side).
Revision A
Right Side
Foot
Foot
Notch (rear side)
Notch
(See Figure 3-62 (p.64))
