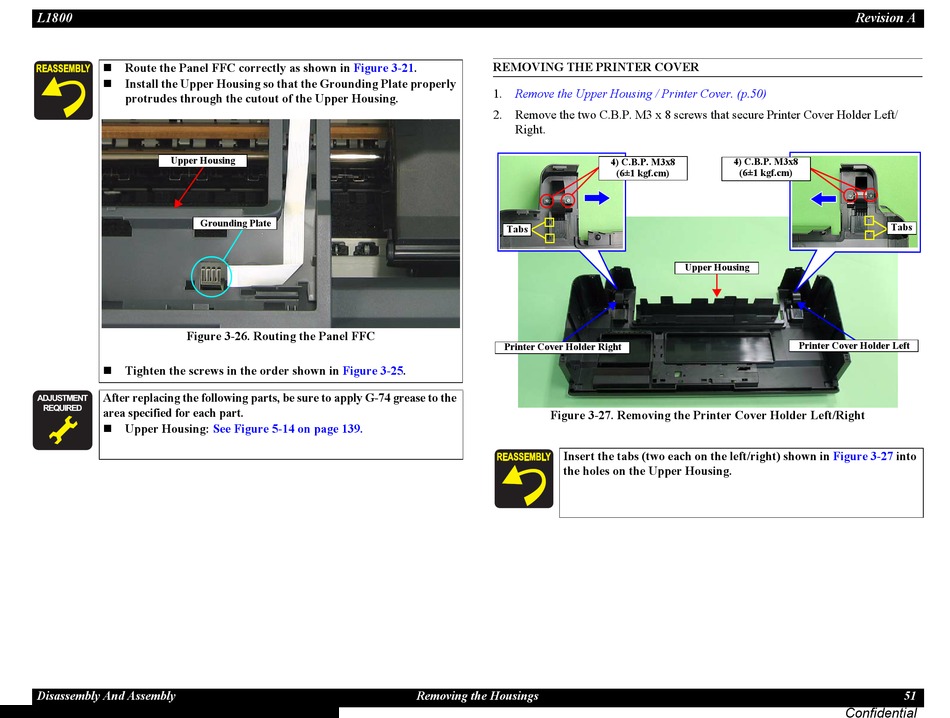

Epson L1800 Service Manual page 56

L1800
 Route the Panel FFC correctly as shown in
 Install the Upper Housing so that the Grounding Plate properly
protrudes through the cutout of the Upper Housing.
Upper Housing
Grounding Plate
Figure 3-26. Routing the Panel FFC
 Tighten the screws in the order shown in
After replacing the following parts, be sure to apply G-74 grease to the
A D J U S T M E N T
R E Q U I R E D
area specified for each part.
 Upper Housing: See Figure 5-14 on page 139.
Disassembly And Assembly
REMOVING THE PRINTER COVER
Figure 3-21.
1. Remove the Upper Housing / Printer Cover. (p.50)
2. Remove the two C.B.P. M3 x 8 screws that secure Printer Cover Holder Left/
Right.
Tabs
Printer Cover Holder Right
Figure 3-25.
Removing the Housings
4) C.B.P. M3x8
(6±1 kgf.cm)
Upper Housing
Figure 3-27. Removing the Printer Cover Holder Left/Right
Insert the tabs (two each on the left/right) shown in
the holes on the Upper Housing.
Revision A
4) C.B.P. M3x8
(6±1 kgf.cm)
Tabs
Printer Cover Holder Left
Figure 3-27 into
51
