TP-Link TL-WR841HP Quick Installation Manual page 90

Chapter 5
• DHCP Server - Enable or disable the DHCP server. If disabled, you must have another
DHCP server within your network or else you must configure the computer manually.
• Start IP Address - Specify an IP address for the DHCP Server to start with when
assigning IP addresses. 192.168.0.100 is the default start address.
• End IP Address - Specify an IP address for the DHCP Server to end with when assigning
IP addresses. 192.168.0.199 is the default end address.
• Address Lease Time
will be allowed to connect to the router with the current dynamic IP Address. When
time is up, the user will be automatically assigned a new dynamic IP address. The
range of the time is 1 ~ 2880 minutes. The default value is 120.
• Default Gateway (Optional)
the router. The default value is 192.168.0.1.
• Default Domain (Optional)
• DNS Server (Optional)
• Secondary DNS Server (Optional)
ISP provides two DNS servers.
Note:
• To use the DHCP server function of the router, you must configure all computers on the LAN as
an IP Address automatically.
• When you choose Smart IP (DHCP)

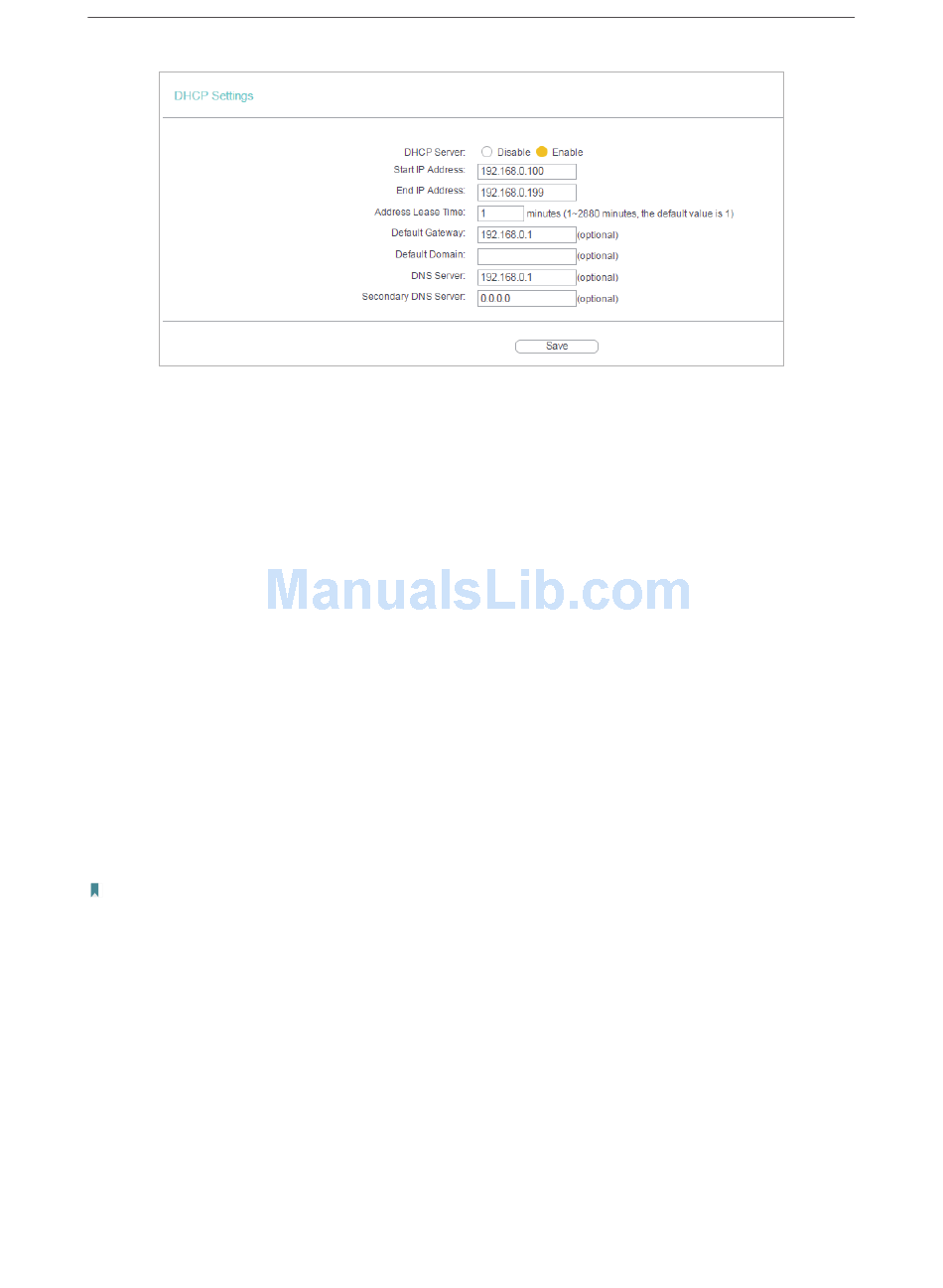

see the page as below.
- The Address Lease Time is the amount of time a network user
- It is suggested to input the IP address of the LAN port of
- Input the domain name of your network.
- Input the DNS IP address provided by your ISP.
- Input the IP address of another DNS server if your
in Network > LAN, the DHCP Server function will be disabled. You will
Configure the Router as an Access Point
Obtain
85
