Quick Start Guide — DA RGB/YUV
Step 1
Turn the equipment off and disconnect the equipment from the
power source.
Step 2
Rack, under-desk, or through-desk mount the DA as desired.
DA2 RGBHV — Use an optional RSU 129 1U Rack Shelf,
part #60-190-01, for rack mounting.
Use an optional MBU 125 Under-Desk Mount Kit,
part #70-077-01, to mount the DA under furniture.
Use an optional MBD 129 Thru-Desk Mount Kit,
part #70-077-02, to mount the DA through furniture.
DA4 RGBHV — Use the included rack mounting bracket for rack or
DA6 RGBHV through-desk mounting.
DA6 YUV A
Use an optional MBU 149 1U Enclosure Under-Desk
Mount Kit, part #70-222-01, to mount the DA under
furniture.
Step 3

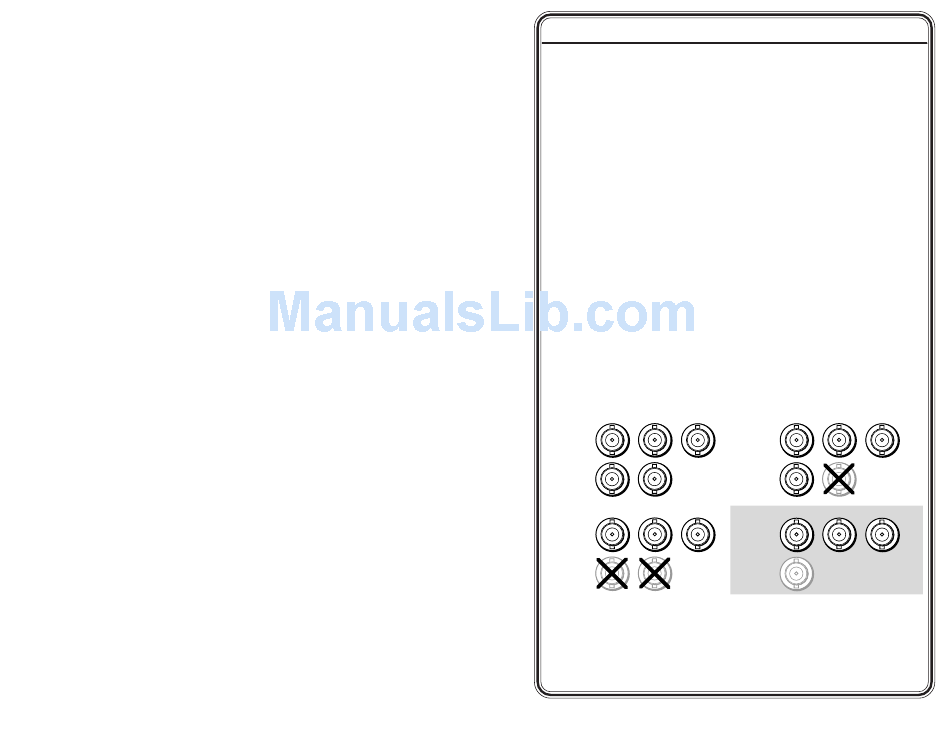

Video input — Connect the RGB or component video input as
shown. You can connect RGsB or RsGsBs video to a DA6 YUV A.
You can also connect RGBS video to a DA6 YUV A by connecting the
composite sync (S) input to the digital audio input BNC.
DA2 / 4 / 6 RGBHV
R G B
RGBHV
video
H
V
H/V
DA2 / 4 / 6 RGBHV
R G B
RGsB,
RsGsBs
(or component
video)
H
V
H/V
Step 4
(DA6 YUV A only) Digital audio input — Connect a digital audio
source to the input Digital Audio connector. If you are using the DA
to buffer RGBS video, connect the composite sync (S) input to this
connector in place of the digital audio.
DA RGB/YUV Distribution Amplifiers • Quick Start Guide
DA2 / 4 / 6 RGBHV
R G B
RGBS
video
H
V
H/V
DA6 YUV A
R-Y
Y B-Y
Component
video (or
RGBS, RGsB,
RsGsBs
DIGITAL
AUDIO
QS-1
