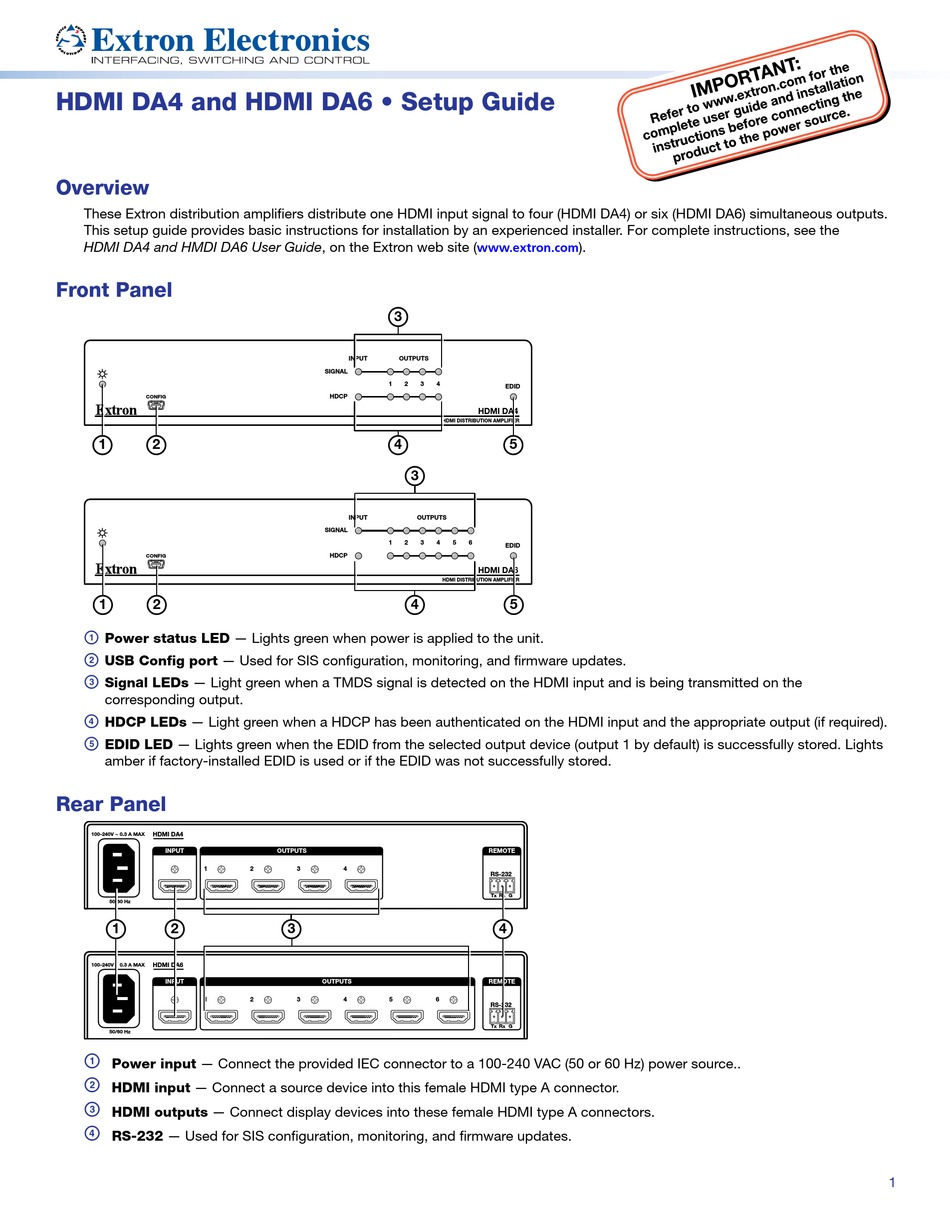

HDMI DA4 and HDMI DA6 • Setup Guide
Overview

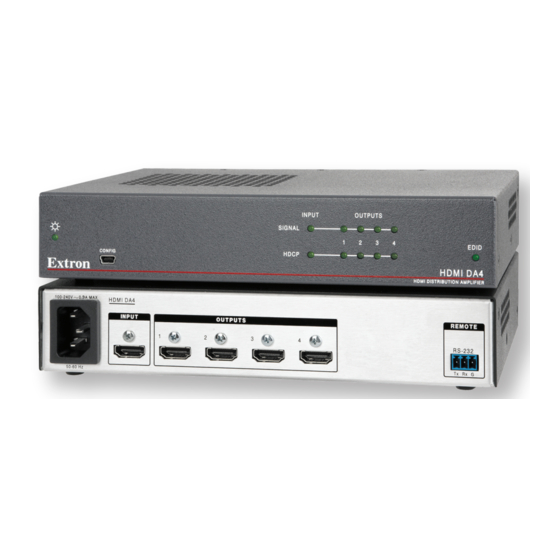

These Extron distribution amplifiers distribute one HDMI input signal to four (HDMI DA4) or six (HDMI DA6) simultaneous outputs.
This setup guide provides basic instructions for installation by an experienced installer. For complete instructions, see the
HDMI DA4 and HMDI DA6 User Guide, on the Extron web site (

Front Panel

CONFIG
1 2
CONFIG
1 2
a
Power status LED — Lights green when power is applied to the unit.
b
USB Config port — Used for SIS configuration, monitoring, and firmware updates.
c
Signal LEDs — Light green when a TMDS signal is detected on the HDMI input and is being transmitted on the
corresponding output.
d
HDCP LEDs — Light green when a HDCP has been authenticated on the HDMI input and the appropriate output (if required).
e
EDID LED — Lights green when the EDID from the selected output device (output 1 by default) is successfully stored. Lights
amber if factory-installed EDID is used or if the EDID was not successfully stored.

Rear Panel

100-240V ~ 0.3 A MAX HDMI DA4
INPUT
1
50/60 Hz
1 2
HDMI DA6
100-240V ~ 0.3 A MAX
INPUT
1
50/60 Hz
a
Power input — Connect the provided IEC connector to a 100-240 VAC (50 or 60 Hz) power source..
b
HDMI input — Connect a source device into this female HDMI type A connector.
c
HDMI outputs — Connect display devices into these female HDMI type A connectors.
d
RS-232 — Used for SIS configuration, monitoring, and firmware updates.
3
INPUT OUTPUTS
SIGNAL
1 2 3
HDCP
4
3
INPUT OUTPUTS
SIGNAL
1 2 3
HDCP
4
OUTPUTS
2 3 4
3
OUTPUTS
2 3 4 5
).
www.extron.com
4
EDID
HDMI DA4
HDMI DISTRIBUTION AMPLIFIER
5
4 5 6
EDID
HDMI DA6
HDMI DISTRIBUTION AMPLIFIER
5
REMOTE
RS-232
Tx Rx G
4
REMOTE
6
RS-232
Tx Rx G
1
