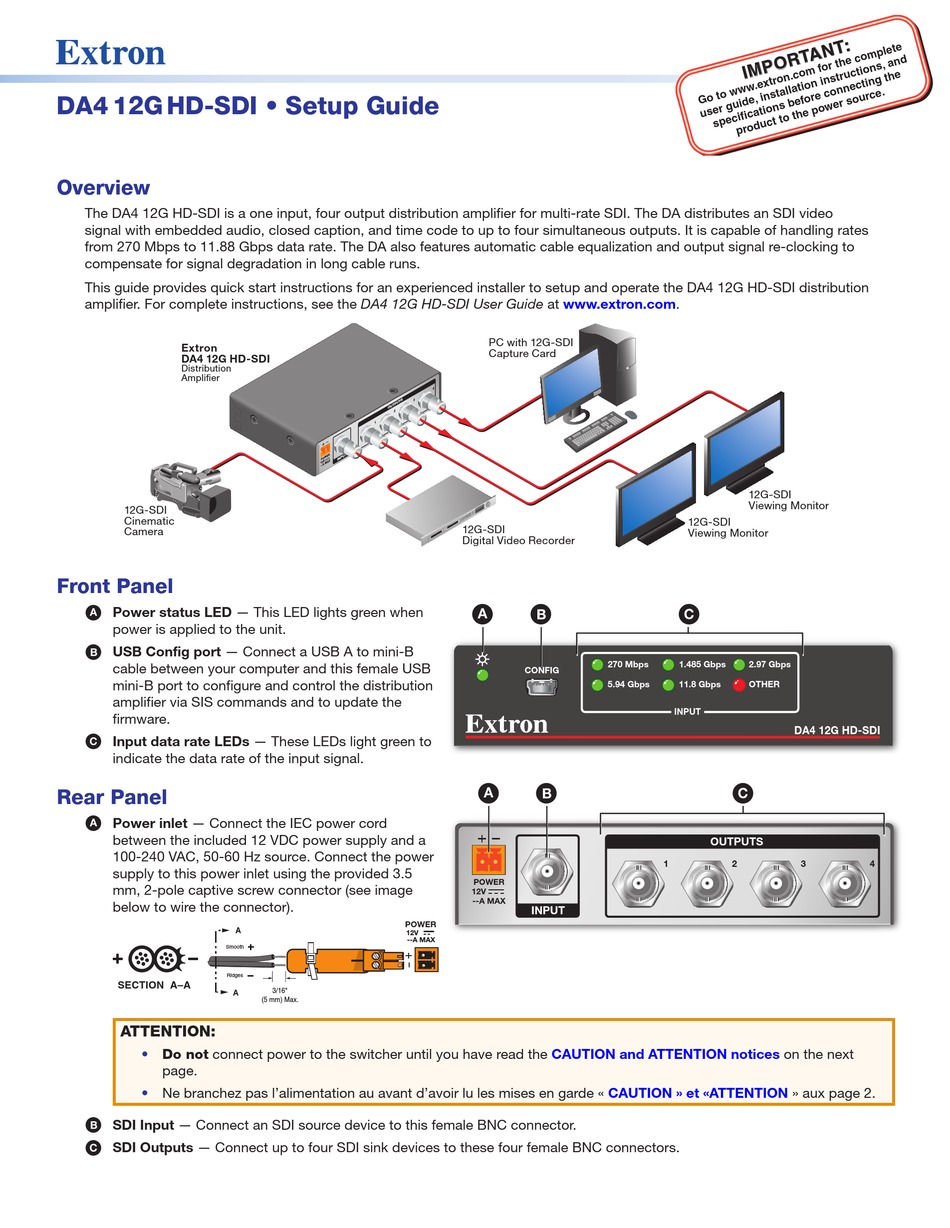

DA4
12G
HD-SDI • Setup Guide



Overview

The DA4 12G HD-SDI is a one input, four output distribution amplifier for multi-rate SDI. The DA distributes an SDI video
signal with embedded audio, closed caption, and time code to up to four simultaneous outputs. It is capable of handling rates
from 270 Mbps to 11.88 Gbps data rate. The DA also features automatic cable equalization and output signal re-clocking to
compensate for signal degradation in long cable runs.
This guide provides quick start instructions for an experienced installer to setup and operate the DA4 12G HD-SDI distribution
amplifier. For complete instructions, see the DA4 12G HD-SDI User Guide at www.extron.com.
Extron
DA4 12G HD-SDI
Distribution
Ampli er
12G-SDI
Cinematic
Camera

Front Panel

Power status LED — This LED lights green when
A
power is applied to the unit.
USB Config port — Connect a USB A to mini-B
B
cable between your computer and this female USB
mini-B port to configure and control the distribution
amplifier via SIS commands and to update the
firmware.
Input data rate LEDs — These LEDs light green to
C
indicate the data rate of the input signal.

Rear Panel

Power inlet — Connect the IEC power cord
A
between the included 12 VDC power supply and a
100-240 VAC, 50-60 Hz source. Connect the power
supply to this power inlet using the provided 3.5
mm, 2-pole captive screw connector (see image
below to wire the connector).
A
Smooth
Ridges
SECTION A–A
A
ATTENTION:
Do not connect power to the switcher until you have read the
page.
Ne branchez pas l'alimentation au avant d'avoir lu les mises en garde «
SDI Input — Connect an SDI source device to this female BNC connector.
B
SDI Outputs — Connect up to four SDI sink devices to these four female BNC connectors.
C
4
S
3
U T
T P
O U
2
1
T
R
P U
W E
P O
I N
V
X
1 2
M A
- - A
POWER
12V
--A MAX
3/16"
(5 mm) Max.
PC with 12G-SDI
Capture Card
12G-SDI
Digital Video Recorder
A A
B B
270 Mbps
CONFIG
5.94 Gbps
e
A A
B B
POWER
12V
--A MAX
INPUT
CAUTION and ATTENTION notices
CAUTION » et «ATTENTION
12G-SDI
Viewing Monitor
12G-SDI
Viewing Monitor
C C
1.485 Gbps
2.97 Gbps
11.8 Gbps
OTHER
INPUT
DA4 12G HD-SDI
C C
OUTPUTS
1
2
3
on the next
» aux page 2.
4
