DA RGBHV Series
ANALOG RGBHV DISTRIBUTION AMPLIFIERS
The Extron DA RGBHV Series of distribution amplifiers split a signal from a high-
resolution source and distribute it to multiple outputs, providing amplification
and enhancement of the signal to maintain signal quality. Models in this series
include the DA2 RGBHV, DA4 RGBHV, and DA6 RGBHV.

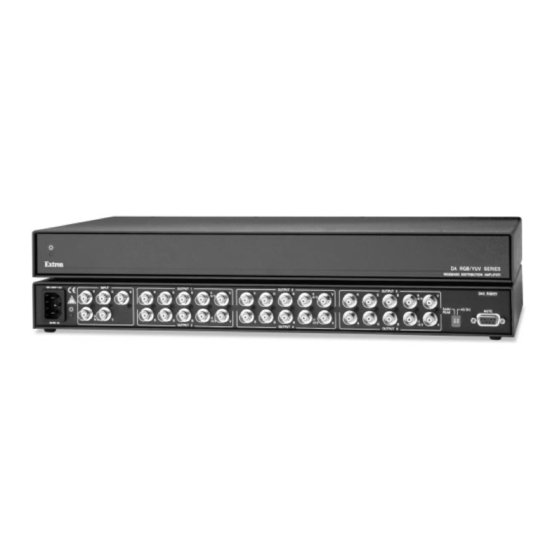

DA6 RGBHV
DISTRIBUTION AMPLIFIERS
350 MHz (-3dB) RGB video
bandwidth, fully loaded
Compatible with RGBHV, RGBS,
RGsB, RsGsBs, component video,
S-video, and composite video
Gain/peaking adjustments
AC or DC coupling
Individually buffered outputs
Output muting control
Internal international
power supply
Rack mountable metal
enclosure
www.extron.com
Advertisement
Related Manuals for Extron electronics DA RGBHV
Summary of Contents for Extron electronics DA RGBHV
- Page 1 DA RGBHV Series ANALOG RGBHV DISTRIBUTION AMPLIFIERS The Extron DA RGBHV Series of distribution amplifiers split a signal from a high- resolution source and distribute it to multiple outputs, providing amplification and enhancement of the signal to maintain signal quality. Models in this series include the DA2 RGBHV, DA4 RGBHV, and DA6 RGBHV.
-
Page 2: Video Output
RGBHV, RGBS, RGsB, RsGsBs, HDTV/component video, S-video, composite video on female BNC connectors. In addition, the DA RGBHV Series provides DIP switches for adjusting RGB gain and peaking, as well as for selecting input AC or DC coupling. An output muting control offers muting of any one or all outputs when used with a third-party control system.
